Description
Standard PoE Passthrough to Extend Power and Data Transmission Distance up to 200 m Without Losing Gigabit Speeds
Eliminate mains access location limits and transmit data and power through one cable, simplifying installation and cutting deployment costs. Doubles PoE source-to-device connection distance from 100 m (328 ft) to 200 m (656 ft), perfect for long-range surveillance cameras and access points.*

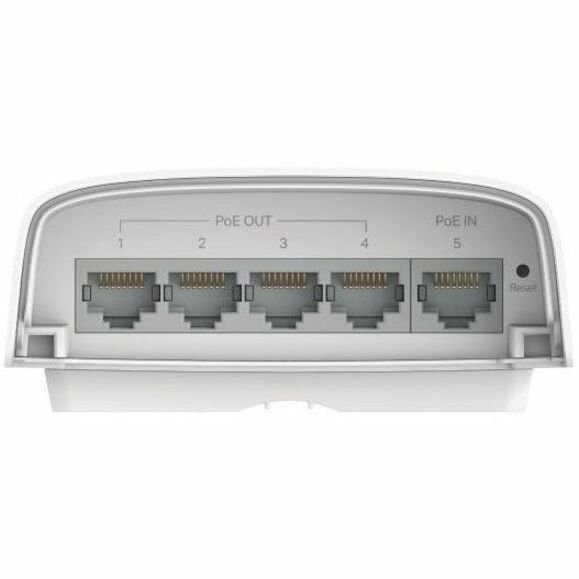

One Gigabit PoE++ In Port and Four Gigabit PoE+ Out Ports
Supports up to 64 W / 44 W / 19 W/ 6 W PoE budget output when powered by 802.3bt Type 4 (90 W), 802.3bt Type 3 (60 W), 802.3at, and 802.3af PoE, respectively.** The PoE-PD switch automatically detects the required PoE power for your devices and protects your non-PoE equipment from being damaged.
Specially Designed Weatherproof Enclosure for Outdoors
Rated as IP55 during Ingress Protection testing, a resilient weatherproof enclosure protects the switch against harsh outdoor conditions.
- Waterproof Enclosure
- No Ingress of Dust
- Operation Temperature of -40 to 60 °C
- UV-Resistant Casing
- 4KV Lightning Protection
Easy Installation to Flexibly Fit Your Needs

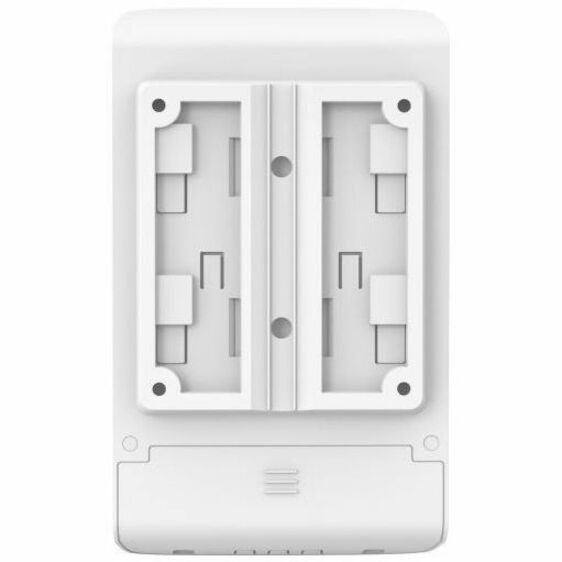

Easy to mount to a wall or pole with the provided mounting kits. Its compact design allows you to place the switch flexibly, such as in an outdoor Junction Box.
Value-Added Features Foster Touchpoint Experiences | Static Routing
Helps route internal traffic for more efficient use of network resources.
Access Control List (ACL)
ACL serves as a virtual admin, allowing all connected devices to obtain data in accordance with user-defined network rules and help you create the network regulations you need.
QoS for Lag-Free Experiences
Designate the priority of traffic based on QoS, ensuring latency-sensitive applications, like voice and video, remain clear and lag-free.
VLAN for Security and Flexible Management
VLAN allows for logical grouping management of devices in different physical LANs, improving information security and reducing data congestion.
Software Defined Networking (SDN) with Cloud Access
Omada's Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network-all controlled from a single interface.
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 5 ports
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- Management capability provides control over setup and configuration of your network
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Ethernet Technology : Gigabit Ethernet
- Power Source : DC,PoE++
- Layer Supported : 2
- PoE Budget : 64 W
- Port/Expansion Slot Details : 1 x Gigabit Ethernet PoE++,4 x Gigabit Ethernet PoE+
- PoE (RJ-45) Port : Yes
- Form Factor : Wall Mountable,Pole Mount
- Manufacturer Website Address : http://www.tp-link.com
- Product Type : Ethernet Switch
- Networking Standards : IEEE 802.3bt,IEEE 802.3at,IEEE802.3af,IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3x,IEEE 802.1D,IEEE 802.1s,IEEE 802.1w,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1x
- Manufacturer : TP-LINK Technologies Co., Ltd
- Features : Fanless
- Total Number of Network Ports : 5
- Power Consumption : 71.50 W
- Manageable : Yes
- Media Type Supported : Twisted Pair
- Network Technology : 10/100/1000Base-T
- Product Line : Omada
