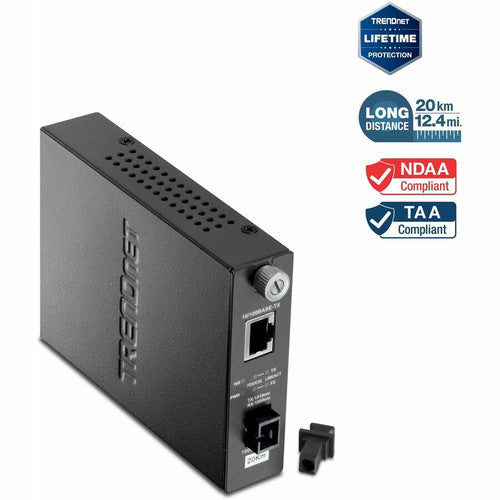

TRENDnet 10/100 Mbps TX vers 100Base-FX Convertisseur de média fibre monomode double longueur d'onde ; Utiliser avec TFC-110S20D5 ; Jusqu'à 20 km (12,4 milles); Convertisseur fibre vers Ethernet ; Protection à vie ; TFC-110S20D3 TFC-110S20D3

• Must use with TFC-110S20D5
• SC-type dual-wavelength single-mode fiber port connects over distances of up to 20km (12.4miles)
• 10/100Base-TX port supports Auto-Negotiation, Auto-MDIX and Full-Duplex mode

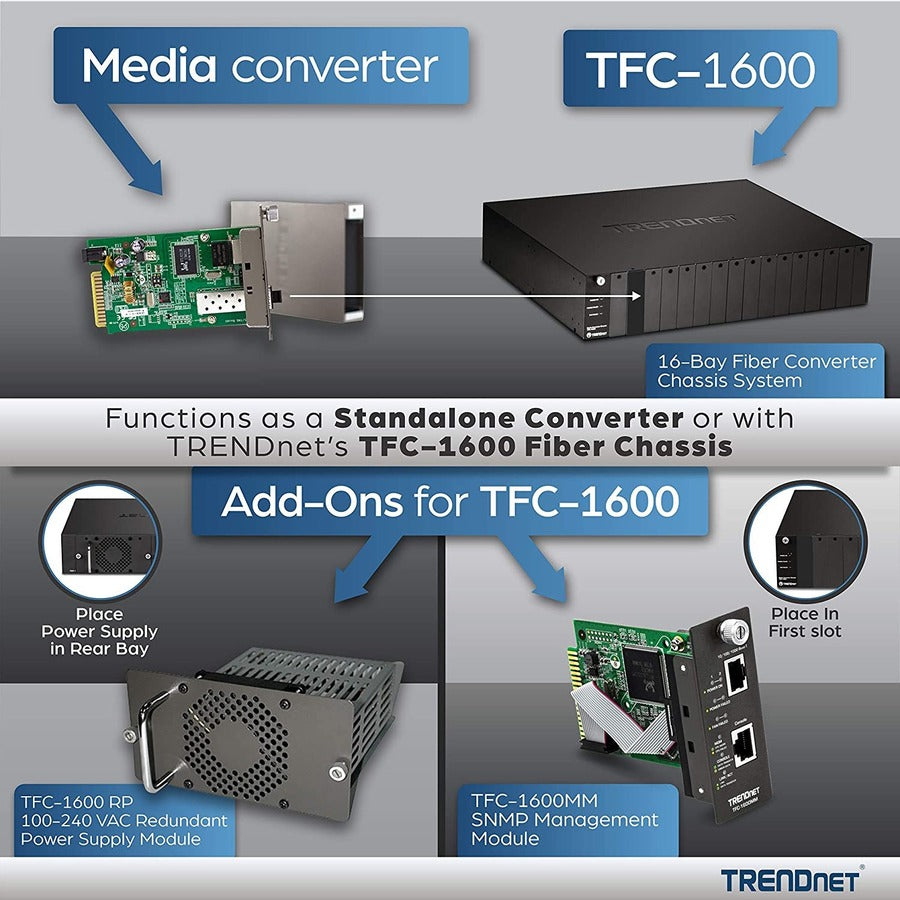

• Functions as a stand alone converter or with the TFC-1600 fiber chassis
• Lifetime TRENDnet Manufacturer's Warranty
• NDAA / TAA compliant (U.S. and Canada only)

The TFC-110S20D3i intelligent fiber converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Dual Wavelength Single Mode SC-Type fiber converter that spans distances up to 20 km (12.4 miles). This module must be used with the TFC-110S20D5i module. Ports include 1 x 10/100Base-TX (RJ-45) port and 1 x 100Base-FX (SC Simplex Type) port.

Must use with TFC-110S20D5i

Compliant with IEEE 802.3u 100Base-TX and 100Base-FX standards

1 x 10/100Base-TX RJ-45 port

1 x 100Base-FX single-mode bi-directional simplex-SC type fiber port Port level SNMP management support

Monitor and configure Ethernet or Fiber's duplex mode, LLR, port on / off and receive link down information via management module TFC-1600MM and chassis TFC-1600

Dip switch controls: Fiber (Full / Half-Duplex), UTP (Auto negotiation / Manual), Speed (10 Mbps / 100 Mbps),

Copper (Full / Half-Duplex), LLR (Enable / Disable), and LLCF (Enabled / Disable)

Link Loss Carry Forward (LLCF) support

Link Loss Return (LLR) support

Status LED indicators for Power and Link / Activity

Removable metal enclosure

Wall mountable

Functions as a standalone converter or with the TFC-1600 fiber chassis

Lifetime TRENDnet Manufacturer's Warranty

PACKAGE CONTENTS

TFC-110S20D3i

Multi-Language Quick Installation Guide

Power adapter (5 V DC, 1 A)

More from the Manufacturer

• SC-type dual-wavelength single-mode fiber port connects over distances of up to 20km (12.4miles)
• Must use with TFC-110S20D5
• 10/100Base-TX port supports Auto-Negotiation, Auto-MDIX and Full-Duplex mode
• NDAA / TAA compliant (U.S. and Canada only)
• Functions as a stand alone converter or with the TFC-1600 fiber chassis
• Lifetime TRENDnet Manufacturer's Warranty

• Ethernet Technology : Fast Ethernet
• TAA Compliant : Yes
• Product Condition : New
• Number of SC Ports : 1
• Limited Warranty : 3 Year Lifetime
• Form Factor : Wall Mountable
• Package Contents :
  • TFC-110S20D3 Fast Ethernet Media Converter
  • Power Adapter
  • User's Guide
• Manufacturer Website Address : http://www.trendnet.com
• Network (RJ-45) : Yes
• Total Number of Ports : 2
• Product Type : Transceiver/Media Converter
• Manufacturer : TRENDnet
• Product Model : TFC-110S20D3
• Maximum Distance Supported : 12.4 Mile
• Media Type Supported : Twisted Pair,Optical Fiber
• Fiber Mode Supported : Single-mode
• Country of Origin : Taiwan
• Number of Network (RJ-45) Ports : 1
• Network Technology : 10/100Base-TX,100Base-FX
