Description
- 8 x Gigabit PoE+ ports & 2 x Gigabit RJ-45 / SFP shared ports
- 240 W PoE power budget
- 20 Gbps switching capacity
- Power supply sold separately (models: TI-S24048 / 48VDC3000)
- Hardened IP30 rated metal switch
- Includes DIN-rail and wall mounts
- Operating temperature range of -40° - 75°C (-40° - 167°F)
- Dual redundant power inputs with overload current protection
- Alarm output triggered by power failure
- Lifetime TRENDnet Manufacturer's Warranty
- Power supply sold separately (models: TI-S24052, TI-S24048, 48VDC3000)

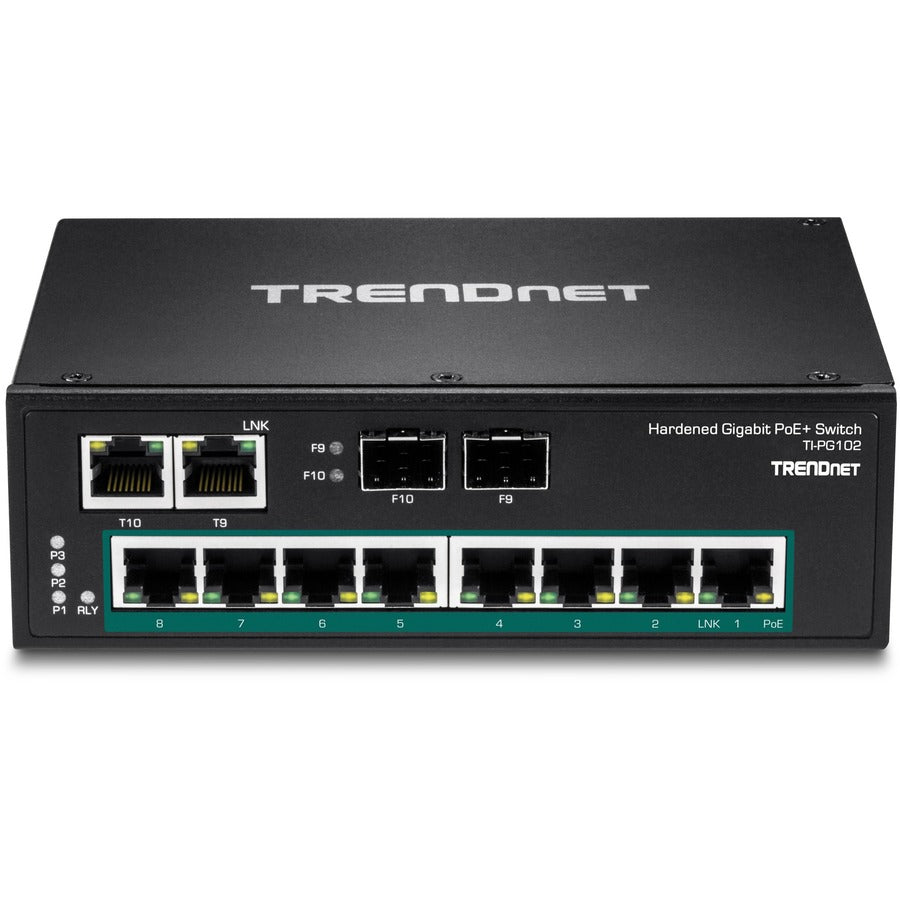

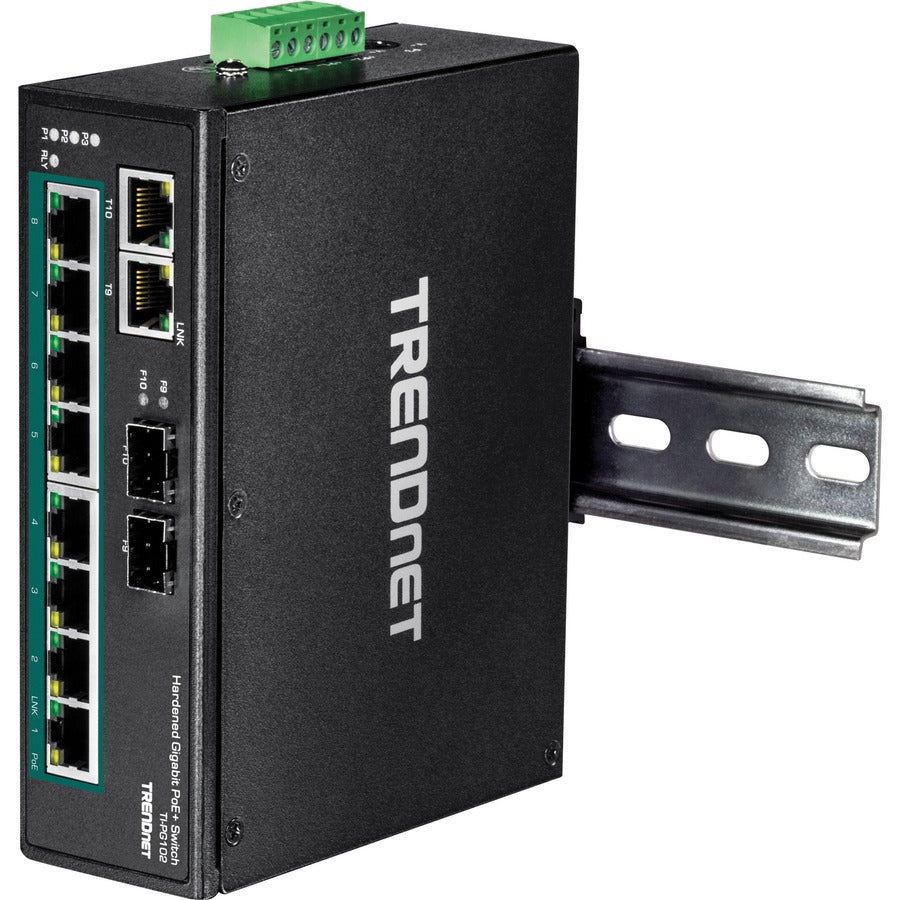

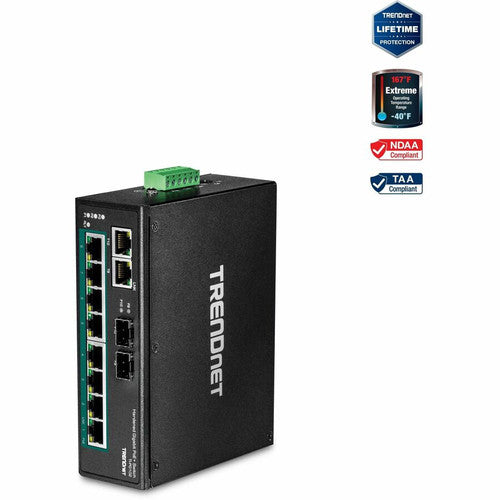

TRENDnet's 10-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG102, has eight gigabit PoE+ ports with a 240 W PoE power budget, plus two gigabit RJ-45 / SFP shared ports. Users are able to connect eight PoE+ devices to the switch, while still providing two gigabit ports for additional network connections. The switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75°C (-40° - 167°F) for industrial environments.
PoE Power
A 240 W PoE+ power budget supplies up to eight Power over Ethernet devices with PoE+ power.
Fault Tolerance
Features dual redundant power inputs with output alarm relay.
Industrial Hardened Design
Equipped with a rugged IP30 rated housing, designed to withstand a high degree of vibration, shock, and operate within a wide temperature range of -40 - 75°C (-40 - 167°F).
Package Contents:
- TI-PG102
- Quick Installation Guide
-Removable terminal block
- DIN-Rail and wall mount kit
- Power supply sold separately (models: TI-S24052, TI-S24048, 48VDC3000)
- Alarm output triggered by power failure
- Lifetime TRENDnet Manufacturer's Warranty
- NDAA / TAA compliant (U.S. and Canada only)
- Dual redundant power inputs with overload current protection
- Includes DIN-rail and wall mounts
- Operating temperature range of -40° - 75°C (-40° - 167°F)
- Hardened IP30 rated metal switch
- 20 Gbps switching capacity
- Power supply sold separately (models: TI-S24048 / 48VDC3000)
- 8 x Gigabit PoE+ ports & 2 x Gigabit RJ-45 / SFP shared ports
- 240 W PoE power budget
- Product Type : Ethernet Switch

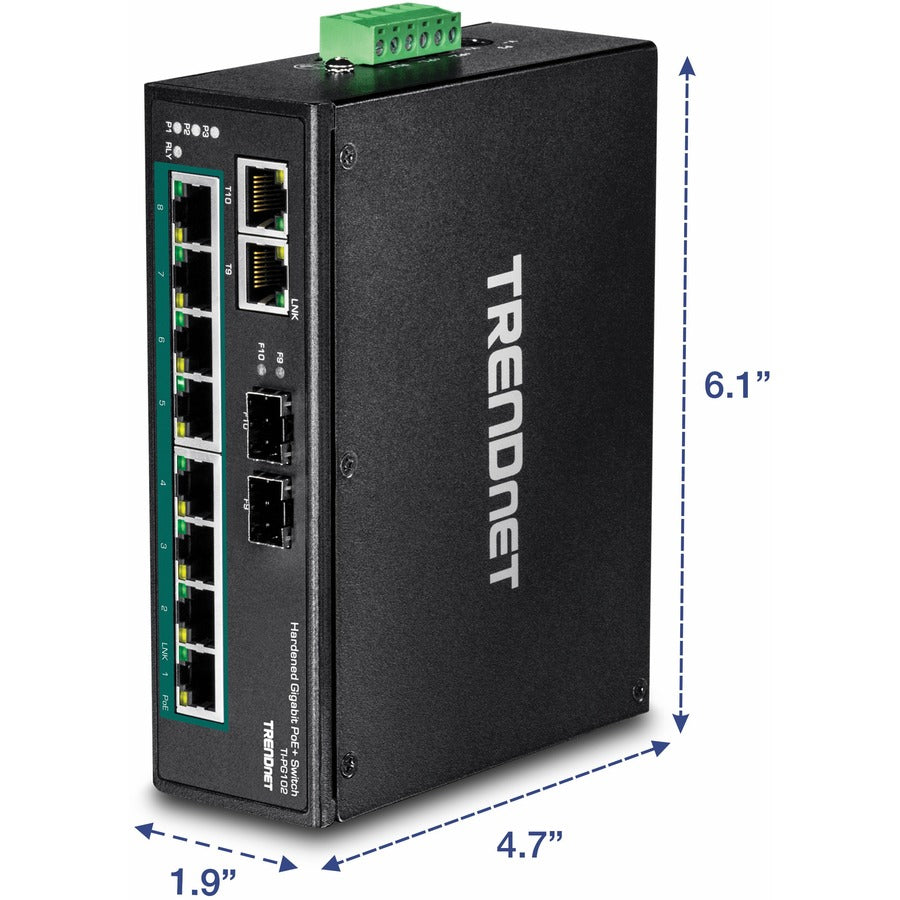

- Length : 6.10" (154.94 mm)
- Number of Total Expansion Slots : 2
- Manufacturer : TRENDnet
- Product Model : TI-PG102
- Total Number of Network Ports : 10
- Media Type Supported : Twisted Pair,Optical Fiber
- Country of Origin : Taiwan
- Number of SFP Slots : 2
- Network Technology : 1000Base-T,1000Base-X
- Expansion Slot Type : SFP
- Redundant Power Supply Supported : Yes
- Ethernet Technology : Gigabit Ethernet
- TAA Compliant : Yes
- Power Source : Power Supply
- Layer Supported : 2
- Product Condition : New
- Shared SFP Slot : Yes
- Port/Expansion Slot Details : 8 x Gigabit Ethernet Network,2 x Gigabit Ethernet Expansion Slot,2 x Gigabit Ethernet Network
- Modular : Yes
- Limited Warranty : Lifetime
- Form Factor : Wall Mountable,DIN Rail Mountable
- Package Contents :
- 10-Port Industrial Gigabit PoE+ DIN-Rail Switch
- Quick Installation Guide
- Removable Terminal Block
- DIN-rail and Wall Mount Kit
- Manufacturer Website Address : http://www.trendnet.com
