Description
TRENDnet's Hardened Industrial Gigabit PoE+ Rackmount Switches each feature a rugged IP30 rated metal enclosure. These hardened PoE+ switches are designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° - 75° C (-40° - 167° F). Redundant power inputs with overload current protection on each hardened PoE+ switch minimizes network downtime.
Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Hardened Industrial Gigabit PoE+ Rackmount Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power from the industrial rackmount PoE+ switch. With these hardened PoE+ switches, easily network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

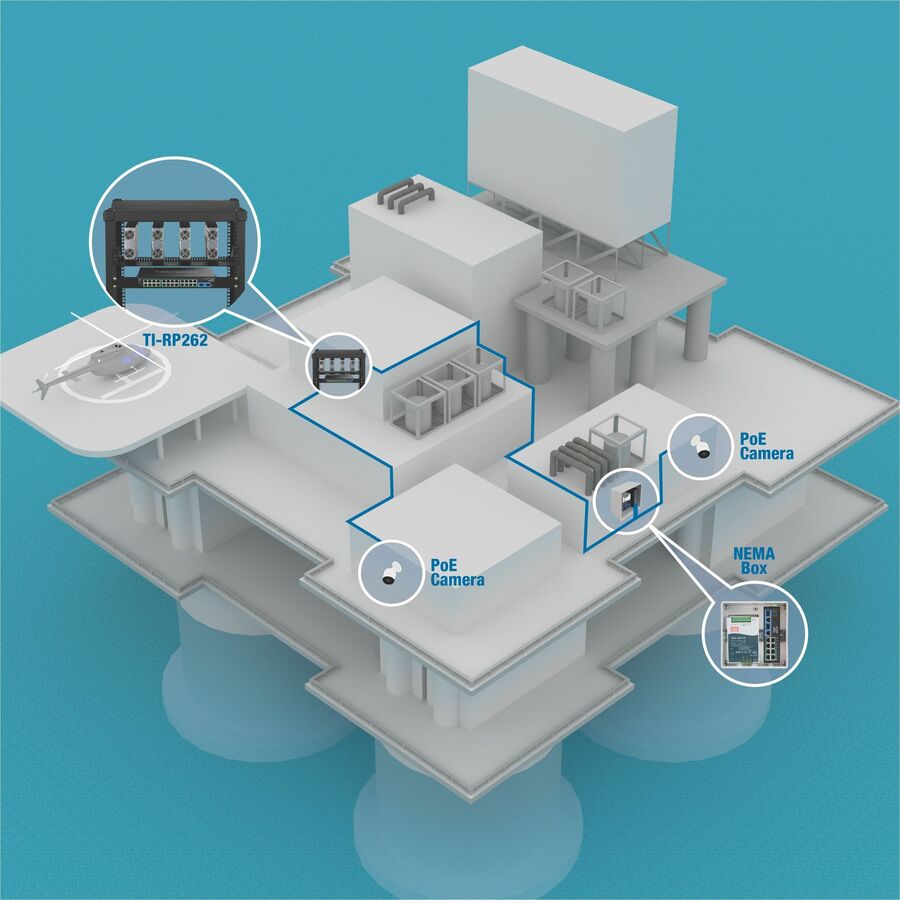

Industrial Applications
Networks devices for manufacturing, general industrial, warehousing, surveillance, and corporate applications.
PoE+ Power
Provides full PoE+ (30 watts) per port for devices, such as access points, cameras, access control equipment, and more.
Extreme Environments
Hardened IP30 switch, with a -40 to 75 �C (-40 to 167 �F) operating temperature range, functions in most environments.
bBudget Supplies up to 30W of PoE/PoE+ power per port (802.3at/802.3af) with up to a 480W PoE power budget
Network Ports
The 26-port hardened PoE+ switch features 24 x gigabit PoE+ ports, and 2 x gigabit SFP ports
Rackmount Design
With a sturdy metal housing and included rackmount brackets, this hardened PoE+ switch is wellsuited for 19" 1U rack installations
Switching Capacity
The 26-port industrial hardened PoE+ switch with fiber SFP ports features a 52Gbps switching capacity
Redundant Power
Redundant power inputs on the hardened PoE+ switch support overload current protection (power supply sold separately, models: TIS48048, TI-RSP100048)
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance
Extreme Temperatures
This hardened 26-port rugged PoE+ switch is rated for an operating temperature range of -40 to 75 �C (-40 to 167 �F)
Electro Magnetic Compliance
Complies with FCC Part 15 Subpart B Class A, and CE EN 55032 Class A standards
Certifications
Rated for information technology (ITE), and industrial equipment (EN55032/35)
Shock and Vibration Resistant
Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-31), and vibration (IEC 60068-2-6)

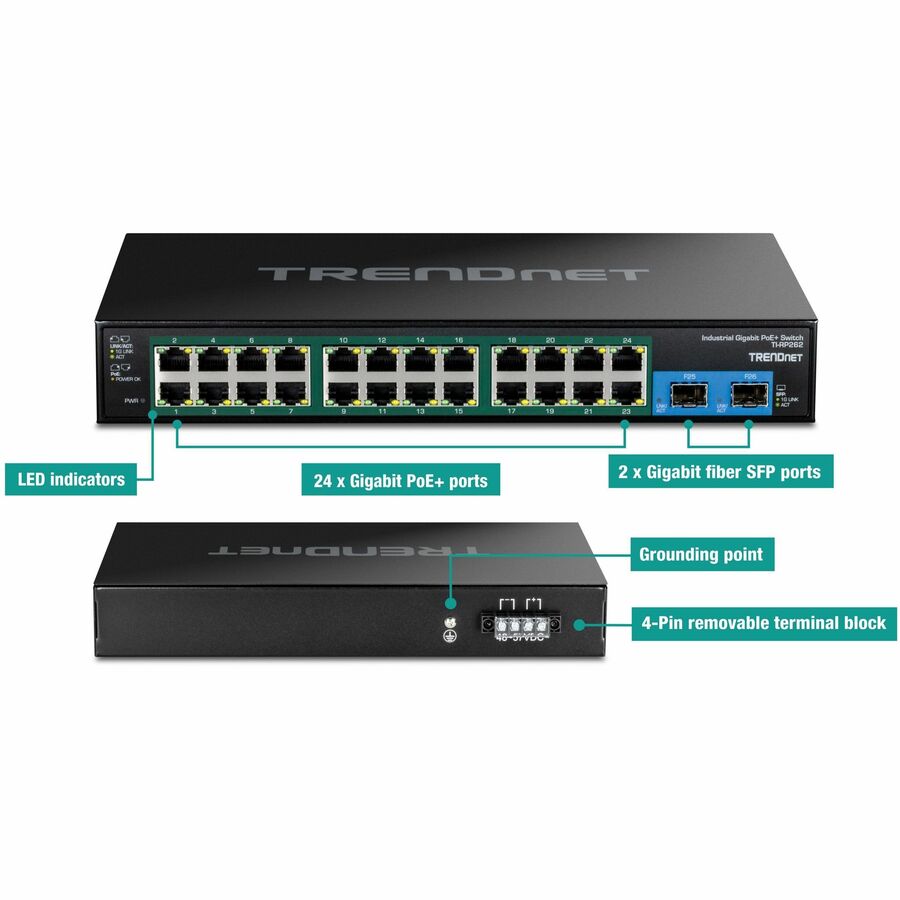

Grounding Point
Grounding point on the 26-port hardened PoE+ switch protects equipment from external electrical surges
- Features 24 networking ports to establish large network
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Rack mounting enables you to organize wires & secure cables for professional installation
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Gigabit Ethernet port for ultra-fast network speeds
- Power Source : DC,PoE+
- PoE (RJ-45) Port : Yes
- Form Factor : Rack-mountable
- Package Contents :
- 26-Port Hardened Industrial Gigabit PoE+ Rackmount Switch
- Quick Installation Guide
- Rackmount Kit
- Manufacturer Website Address : http://www.trendnet.com
- Maximum Data Transfer Rate : 250 MB/s
- Manufacturer : TRENDnet
- Compatible Rack Unit : 1U
- Manageable : No
- Network Technology : 10/100/1000Base-T,1000Base-X
- Redundant Power Supply Supported : Yes
- Ethernet Technology : Gigabit Ethernet
- Layer Supported : 2
- PoE Budget : 685 W
- Input Voltage : 48 V DC,57 V DC
- Port/Expansion Slot Details : 24 x Gigabit Ethernet PoE+,2 x Gigabit Ethernet Expansion Slot
- Limited Warranty : Lifetime
- Product Material : Metal
- Network (RJ-45) : Yes
- Plug/Connector Type : Terminal Block
- Product Type : Ethernet Switch
- Number of Total Expansion Slots : 2
- Networking Standards : IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3x,IEEE 802.3af,IEEE 802.3at
- Total Number of Network Ports : 24
- Media Type Supported : Twisted Pair,Optical Fiber
- Country of Origin : Taiwan
- Number of SFP Slots : 2
- Expansion Slot Type : SFP
