Description

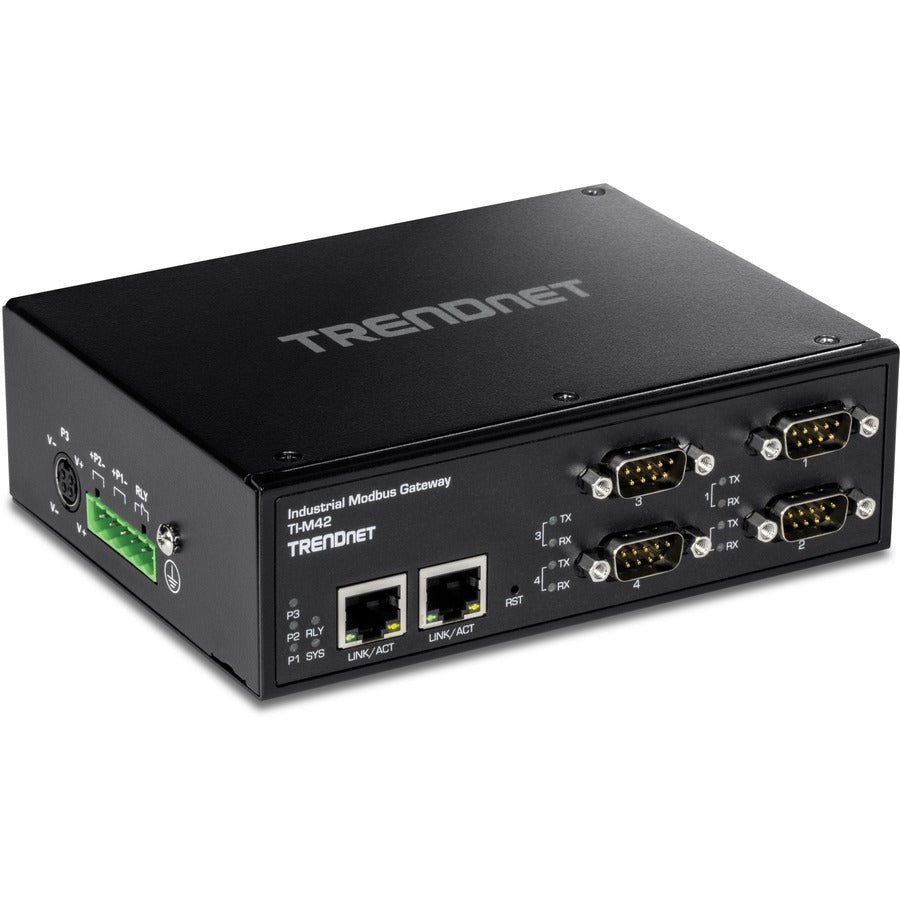

TRENDnet's Industrial Modbus Gateway, model TI-M42, provides four port serial connections, and two fast Ethernet ports at distances up to 100m (328 ft.) using Cat5e cabling. This industrial gateway allows users to connect four modbus serial devices to a network.

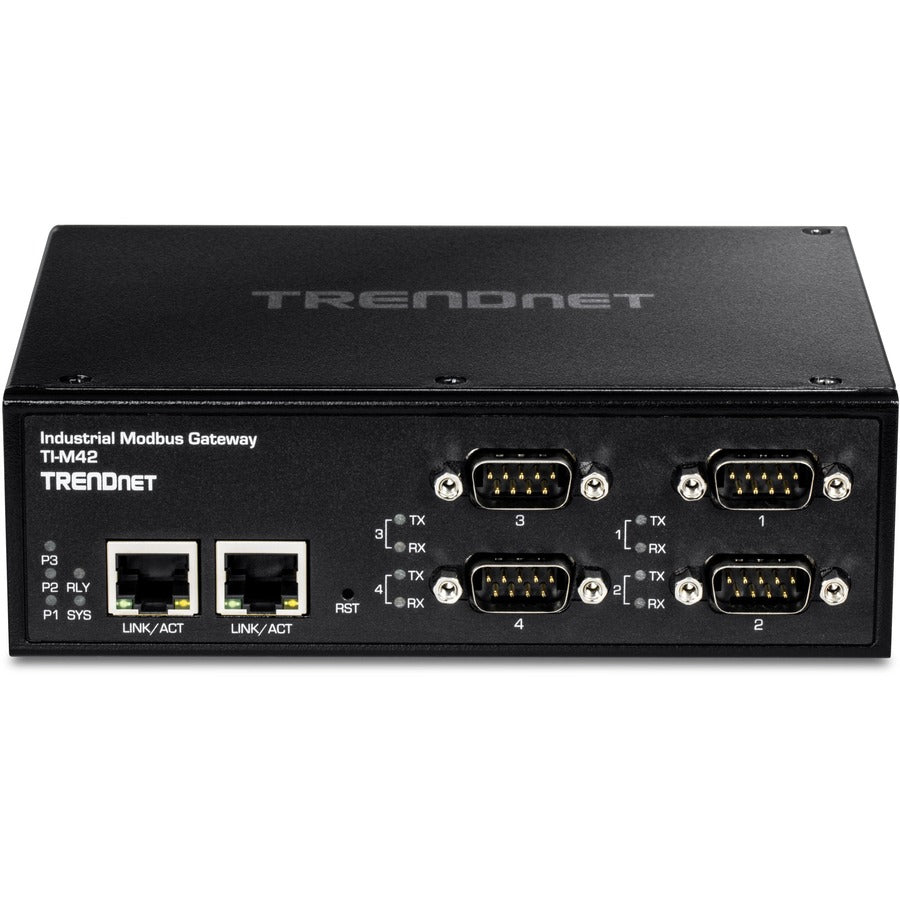

- DEVICE INTERFACE: 4 x Serial (DB-9) ports; 2 x 10/100Mbps (RJ-45) ports; 4-pin removable terminal blocks; LED indicators; DIN-Rail mount; Wall mount; Grounding point
- CONNECT FOUR SERIAL DEVICES: The 4-Port Industrial Modbus Gateway supports RS-232, RS-422 and 2-wire RS-485, and allows you to connect four serial devices to a network.
- MANAGEMENT CONFIGURATION: Web / Telnet / Windows -based management
- IP30 RATED HOUSING: Hardened components for the Modbus Gateway are rated for extreme temperatures - 40° - 75° C (-40° - 167° F)
- DATA TRANSFER RATE: The modbus gateway has a serial port baud rate from 50 bps to 921.6 Kbps
- Supports DHCP, automatically obtain an IP address and query IP address through serial setting protoco
Network
Two fast Ethernet ports at distances up to 100m (328 ft.) using Cat5e cabling.
Serial Connector
Connect up to four RS-232/RS-422/RS-485 serial devices to the network.
Industrial Design
Designed with a rugged IP30 rated housing, resistance to a high degree of vibration and shock, protection against ESD/EMI/surge, and operates within a wide operation temperature range -40° - 75° C (-40° - 167° F).
FEATURES | Network
Two fast Ethernet ports at distances up to 100m (328 ft.) using Cat5e cabling
Serial Connector
Connect up to four RS-232/RS-422/ RS-485 serial devices to the network
Industrial Design
Designed with a rugged IP30 rated housing, resistance to a high degree of vibration and shock, protection against ESD/EMI/surge, and a wide operation temperature range -40° -75° C (-40° - 167° F)

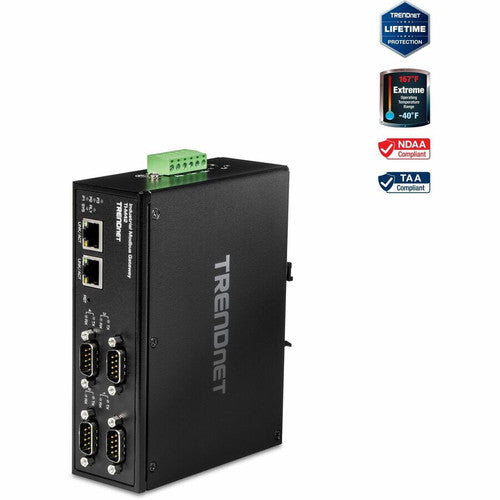

- NDAA / TAA compliant (U.S. and Canada only)
- Ethernet Technology : Fast Ethernet
- Number of Serial Ports : 4
- Serial Port : Yes

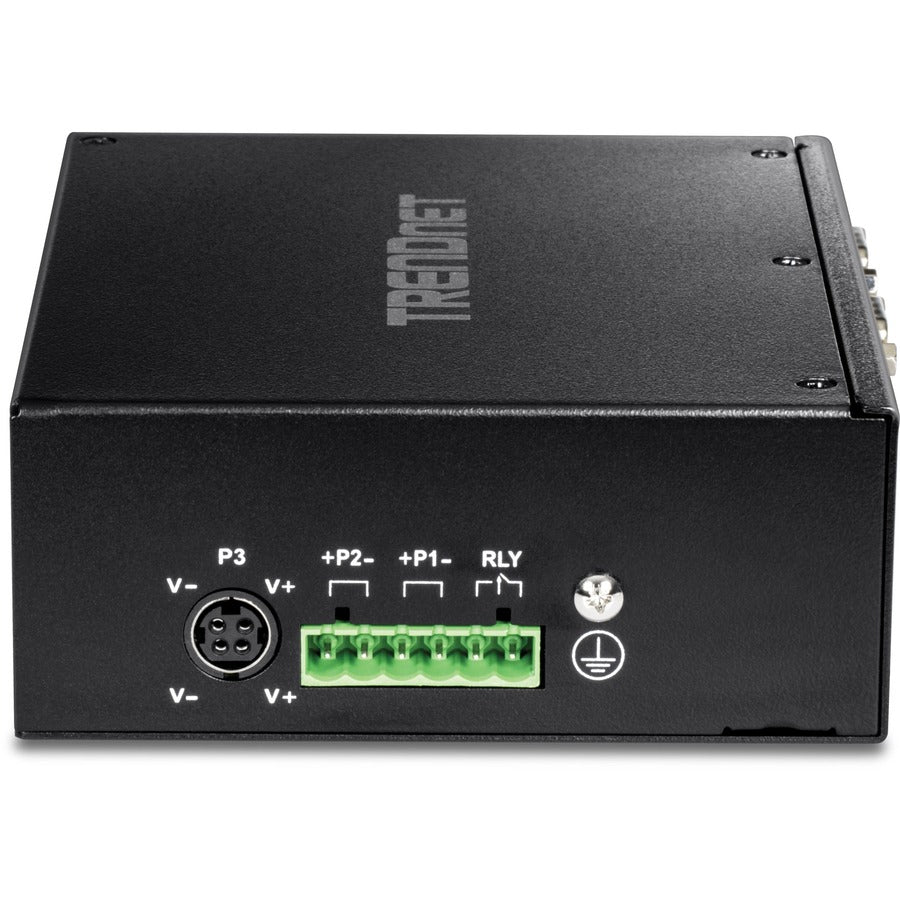

- Input Voltage : 12 V DC,56 V DC
- Limited Warranty : Lifetime
- Network Standard : 10/100Base-TX

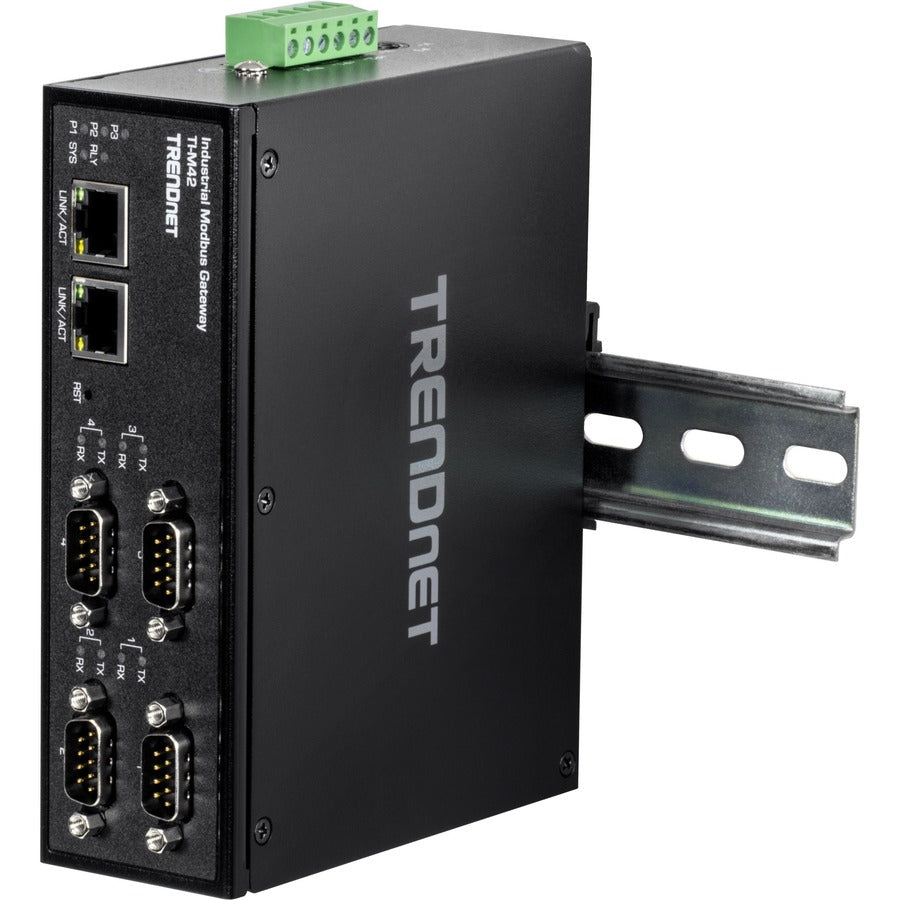

- Form Factor : DIN Rail Mountable,Wall Mountable

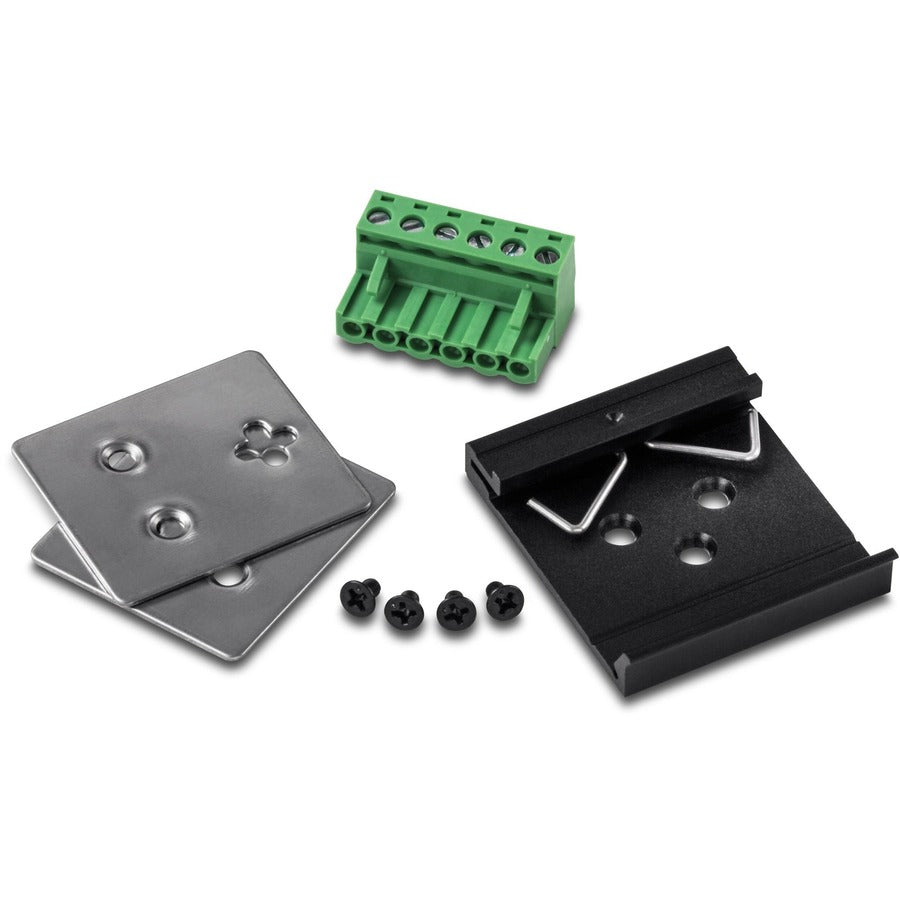

- Package Contents :
- 4-Port Industrial Modbus Gateway
- Quick Installation Guide
- Removable Terminal Block
- DIN-Rail and Wall Mount Kit
- Manufacturer Website Address : http://www.trendnet.com
- Network (RJ-45) : Yes
- Plug/Connector Type : Terminal Block
- Product Type : Device Server
- Manufacturer : TRENDnet
- Product Model : TI-M42
- Input Voltage Range : 12V DC to 56V DC
- Power Consumption : 3.84 W
- Media Type Supported : Twisted Pair
- Country of Origin : Taiwan
- Number of Network (RJ-45) Ports : 2
