Description
- DEVICE INTERFACE: 5 x Gigabit RJ-45 ports; LED indicators
- SWITCHING CAPACITY: This 5-port gigabit switch has a 10Gbps switching capacity with a forwarding rate of 7.44Mpps (64-byte packet size)
- DATA TRANSFER RATE: Ethernet: 10 Mbps (half duplex); 20 Mbps (full duplex); Fast Ethernet: 100 Mbps (half duplex); 200 Mbps (full duplex);Gigabit: 2000 Mbps (full duplex)
- COMPACT DESKTOP DESIGN: Sturdy lightweight metal housing is well-suited for desktop installations.
- FANLESS DESIGN: The network switch fanless design lowers energy consumption and eliminates operating noise.
- TRENDnet LIFETIME PROTECTION: The TEG-S51 5-Port Gigabit Desktop Switch is backed by TRENDnet's Lifetime Manufacturer Protection.

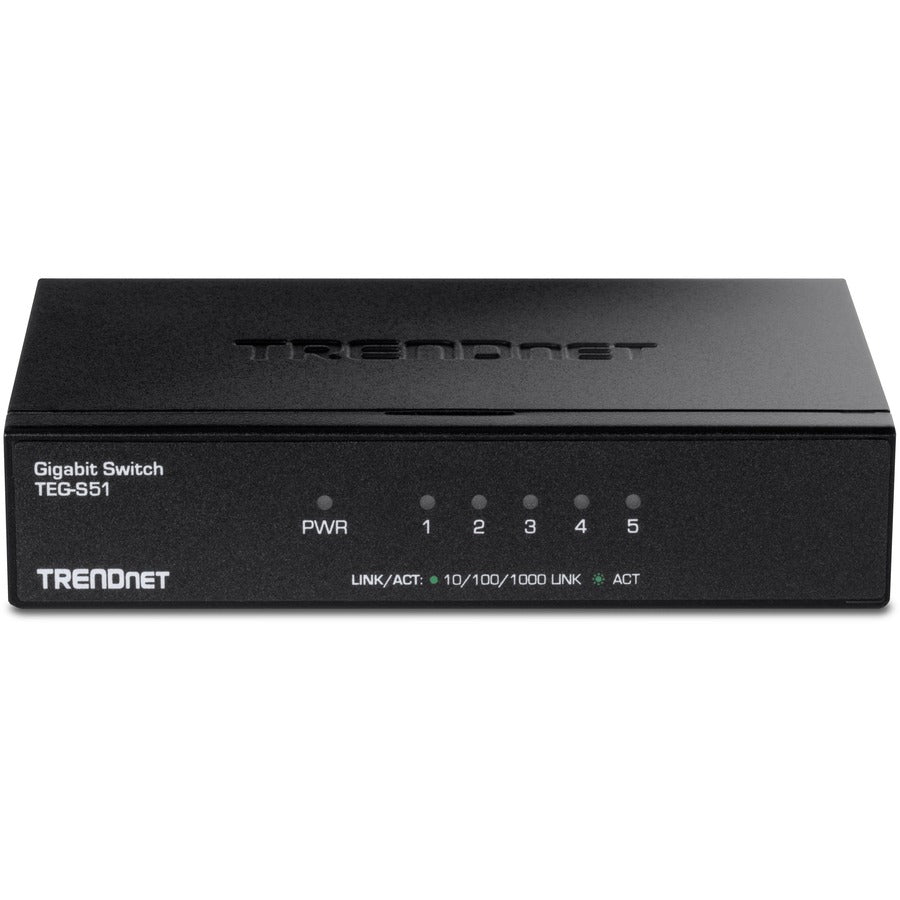

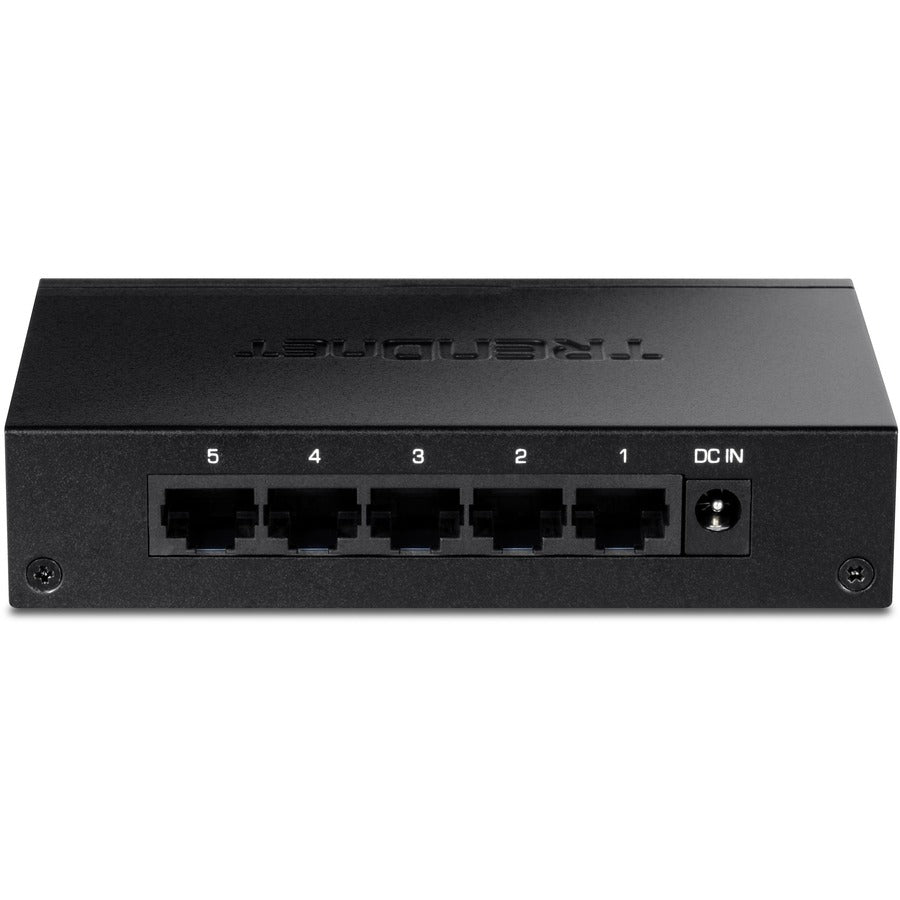

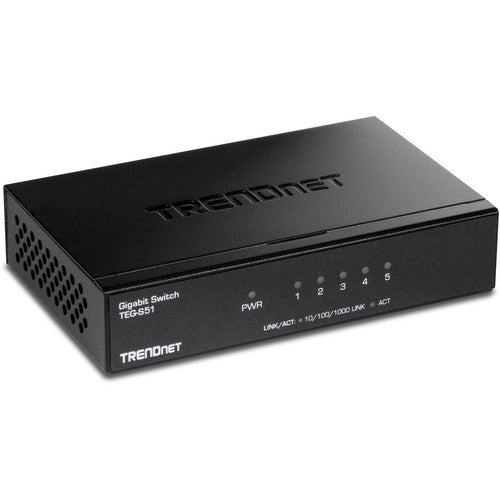

The 5-Port Gigabit Desktop Switch, model TEG-S51, provides high bandwidth performance, ease of use, and reliability. Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 10Gbps with full-duplex mode. Integrate this sturdy metal switch for reliable high-speed network connectivity.
Gigabit Speeds
Gigabit ports provide high-speed network connections to five devices, and a 10Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.
Compact Design
With a compact and lightweight metal housing design, this switch is well-suited for desktop installations.
Fanless
Fanless design lowers energy consumption and reduces distracting operating noise.
NETWORKING SOLUTION | FEATURES | Easy Setup
Simply power up the switch and plug in connected devices
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance
LED Indicators
LEDs convey power, link, and activity
Ports
5 x Gigabit Ethernet ports
Fanless
Fanless design lowers energy consumption and eliminates operating noise
Switching Capacity
10Gbps switching capacity
Housing Design
Compact and lightweight metal housing
NDAA / TAA compliant (U.S. and Canada only)
- NDAA / TAA compliant (U.S. and Canada only)
- Ethernet Technology : Gigabit Ethernet
- TAA Compliant : Yes
- Power Source : Power Adapter
- Layer Supported : 2
- Port/Expansion Slot Details : 5 x Gigabit Ethernet Network
- Limited Warranty : Lifetime
- Product Material : Metal
- Form Factor : Desktop
- Package Contents :
- 5-Port Gigabit Desktop Switch
- Quick Installation Guide
- Power Adapter (5V DC, 1A)
- Manufacturer Website Address : http://www.trendnet.com
- Network (RJ-45) : Yes
- Product Type : Ethernet Switch
- Length : 4.76" (121 mm)
- Networking Standards : IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3x
- Manufacturer : TRENDnet
- Product Model : TEG-S51
- Total Number of Network Ports : 5
- Power Consumption : 2.01 W
- Media Type Supported : Twisted Pair
- Country of Origin : Taiwan
- Network Technology : 1000Base-T
