Description
indicators; Wall Mount; Din Rail Mount; Grounding Point
supply sold separately (models: TI-S15052)
120W@56V DC
train, and other rolling stock applications.
vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments.
60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

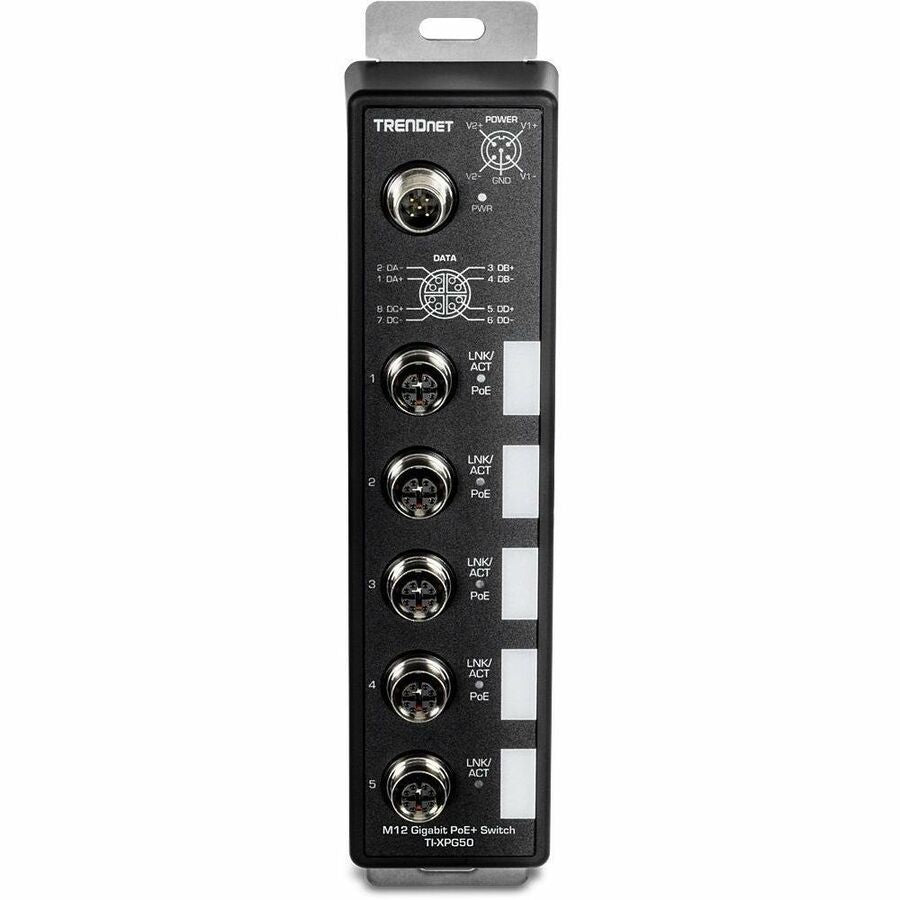

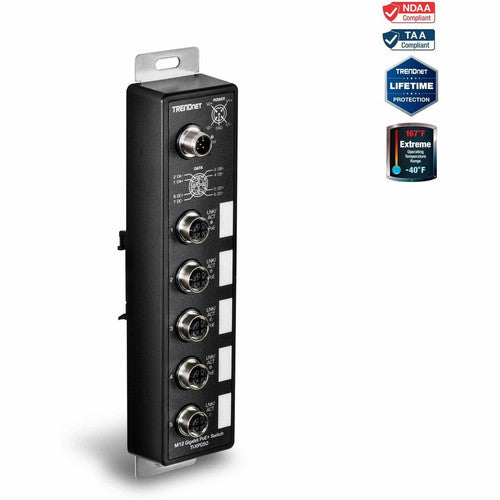

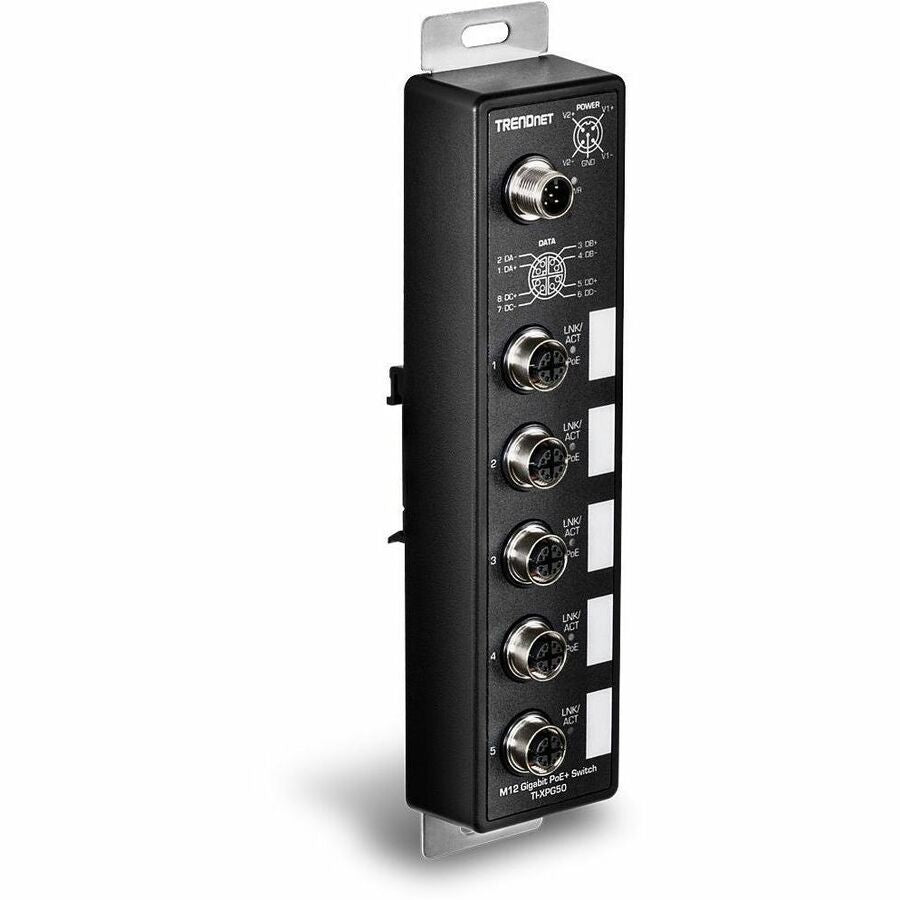

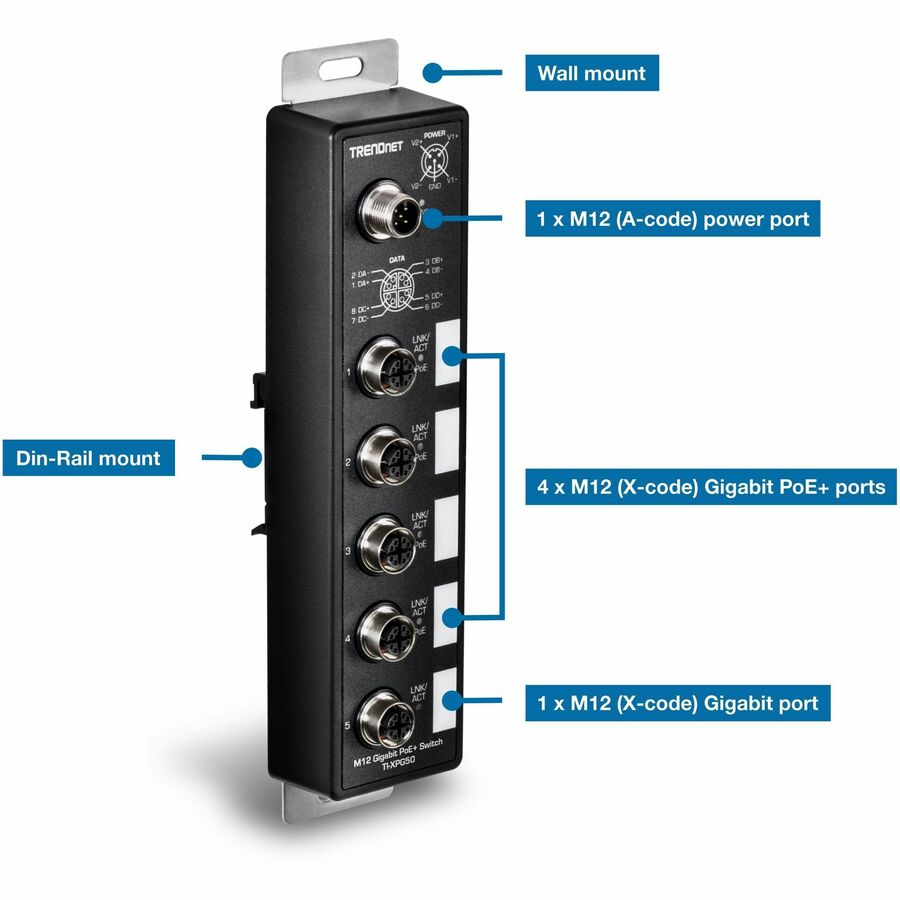

TRENDnet's 5-Port Industrial EN50155 M12 Gigabit PoE+ Railway Switch, model TI-XPG50, has four M12 gigabit PoE+ ports and one M12 gigabit port with a total PoE budget of up to 120W. This M12 Ethernet switch is equipped with an IP67 outdoor rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial EN50155 applications. The M12 Ethernet switch is designed and tested for mobile bus, train, other transportation and telecom applications.
EN50155 Compliant
This M12 Ethernet switch supports an input voltage range from 48 - 56V DC, with M12 interfaces for moving bus, train, and other rolling stock applications.
Industrial Design
Equipped with an IP67 rated metal enclosure, the M12 switch is designed to withstand vibration and shock, with a wide operating temperature range of -40° - 75° C (-40° - 167° F).
Power over Ethernet (PoE+)
Four M12 gigabit PoE+ ports deliver up to 30W of PoE+ power per port with a total power budget of 120W@56V DC.
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 5 ports
- PoE+ port to receive data and up to 25.5 W of power on a single cable in places where a power outlet is not available
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience

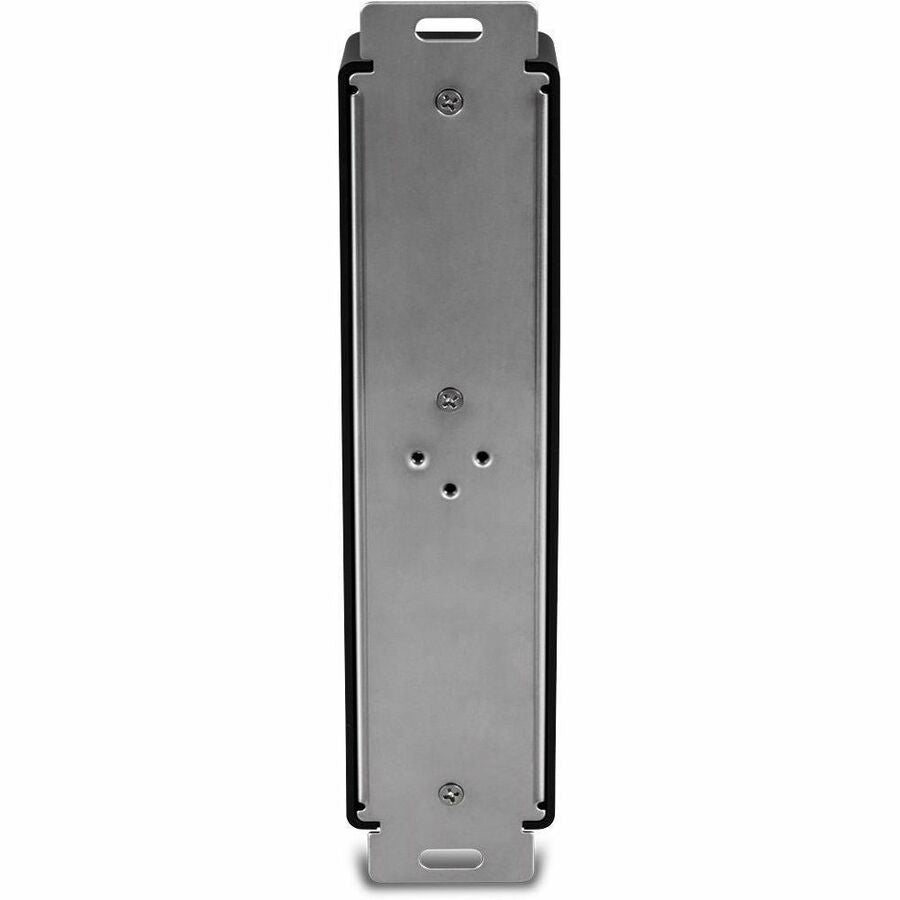

- With Wall mounting feature, you can conveniently install the switch while keeping the wires and cables organized
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Ethernet Technology : Gigabit Ethernet
- Power Source : DC,PoE+,Power Supply
- Layer Supported : 2
- PoE Budget : 120 W
- Input Voltage : 48 V DC,56 V DC
- Port/Expansion Slot Details : 4 x Gigabit Ethernet PoE+,1 x Gigabit Ethernet Network
- PoE (RJ-45) Port : Yes
- Limited Warranty : Lifetime
- Product Material : Metal

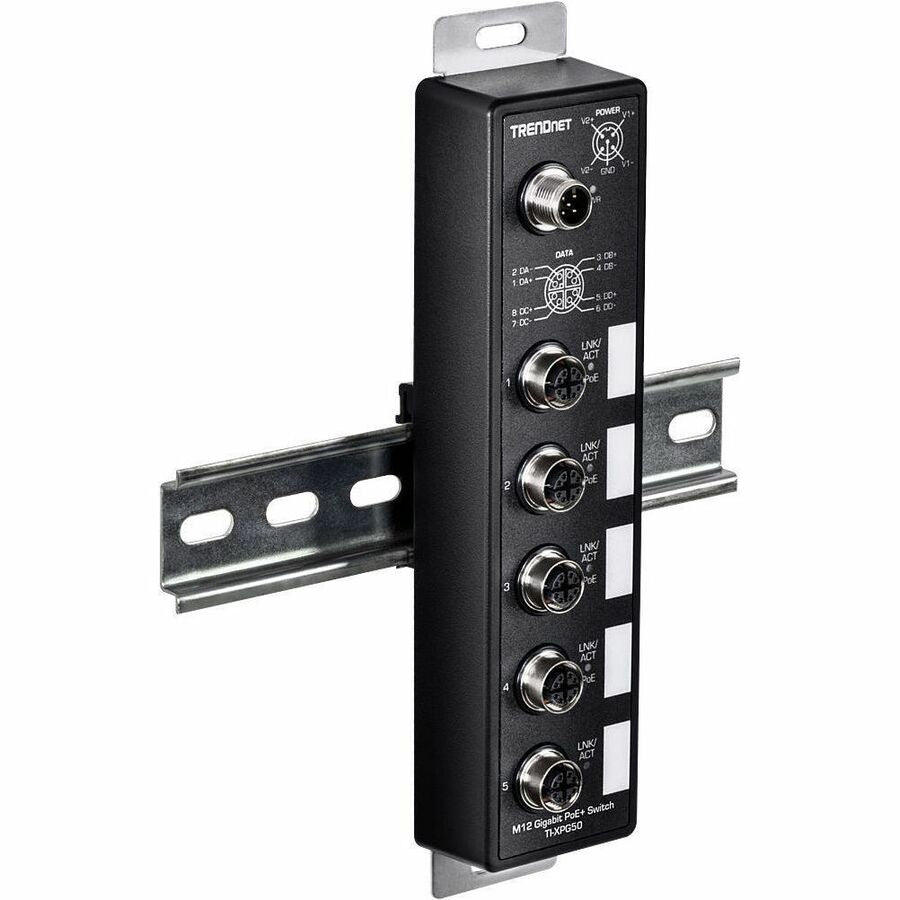

- Form Factor : Wall Mountable,DIN Rail Mountable
- Package Contents :
- 5-Port Industrial EN50155 M12 Gigabit PoE+ Railway Switch
- Quick Installation Guide
- Wall mount and DIN-Rail kit
- Manufacturer Website Address : http://www.trendnet.com
- Network (RJ-45) : Yes
- Product Type : Ethernet Switch
- Networking Standards : IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3x,IEEE802.3af,IEEE 802.3at
- Manufacturer : TRENDnet
- Product Model : TI-XPG50
- Features : IP67
- Total Number of Network Ports : 5
- Power Consumption : 5 W
- Media Type Supported : Twisted Pair
- Country of Origin : Taiwan
- Network Technology : 10/100/1000Base-T
