Description

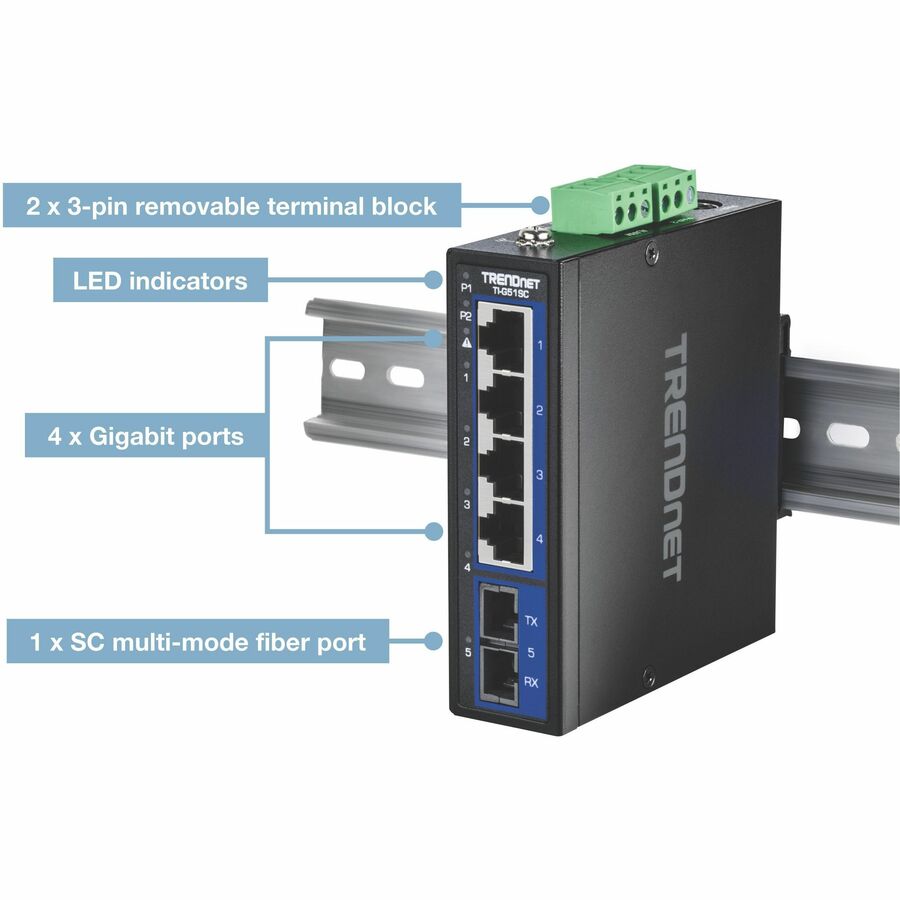

- 4 x Gigabit ports
- 1 x Gigabit Multi-Mode Fiber SC port
- Hardened IP30 rated metal switch
- Extreme -40° - 75° C (-40° - 167° F) operating temperature range
- Redundant power inputs with overload current protection
- Alarm output triggered by power failure
- 10Gbps switching capacity
- Includes DIN-Rail and wall mounts
- Power supply sold separately (models: TI-M6024, TI-S15052, 48VDC3000)
- Lifetime Warranty
TRENDnet's 5-Port Industrial Gigabit DIN-Rail Switch with Multi-Mode SC Port, model TI-G51SC, features a rugged IP30 rated metal enclosure and is designed to work in the harshest networking environments. This industrial switch with a fiber port is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures of industrial environments within - 40° - 75° C (-40° - 167° F). Redundant power inputs with overload current protection on the industrial unmanaged switch minimizes network downtime. This hardened industrial switch features copper gigabit ports for high-speed device connections, and a gigabit multi-mode SC port for long-distance fiber networking applications up to 550 meters.

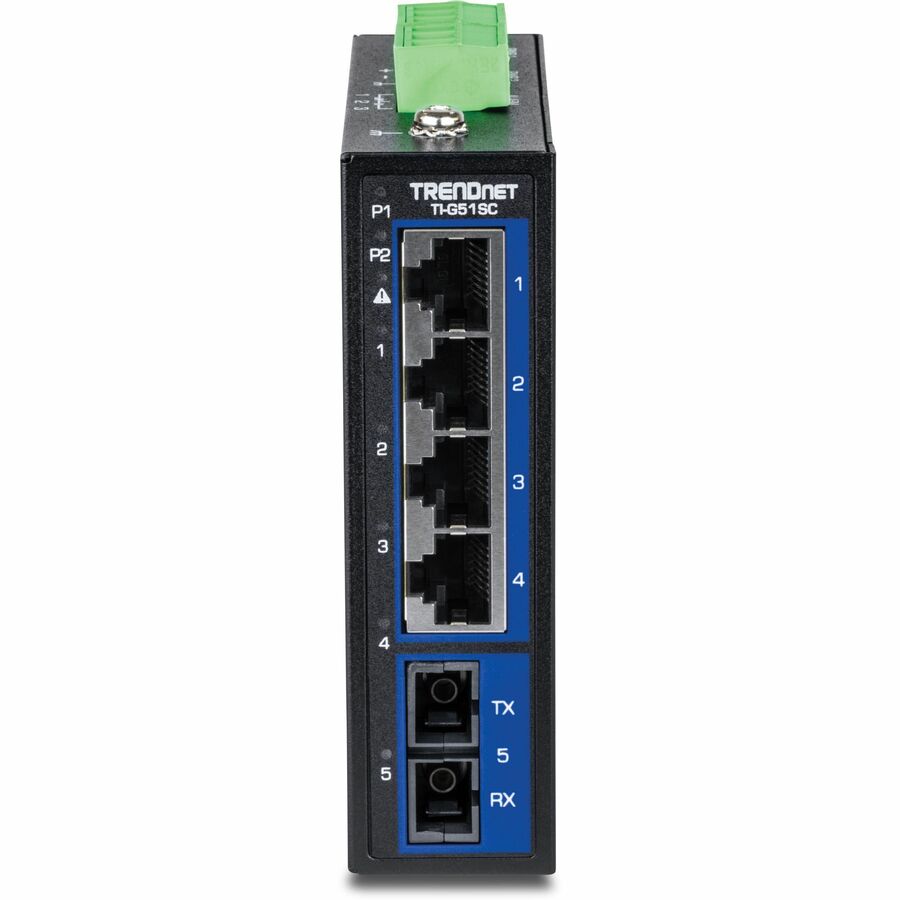

Gigabit Ports
This reliable industrial switch features high-performance gigabit RJ-45 ports for high-speed device connections.
SC Multi-Mode Fiber Port

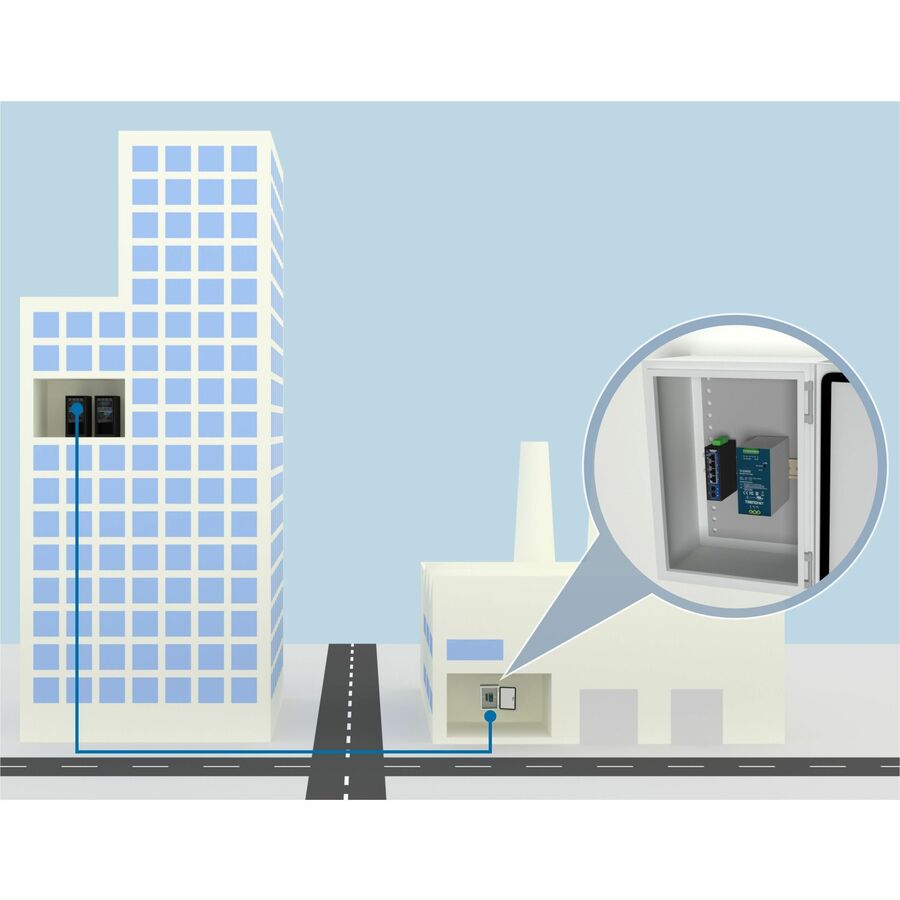

The SC multi-mode fiber port supports long-distance fiber networking applications up to 550 meters.
Industrial Hardened Design
Equipped with a rugged IP30 rated housing, designed to withstand a high degree of vibration and shock, and operate within an extreme temperature range of -40° - 75° C (- 40° - 167° F).
FEATURES | Gigabit Ports
Industrial switch with fiber port features gigabit RJ-45 ports for high-speed device connections, and a gigabit SC multi-mode fiber port that supports long-distance fiber networking applications up to 550 meters

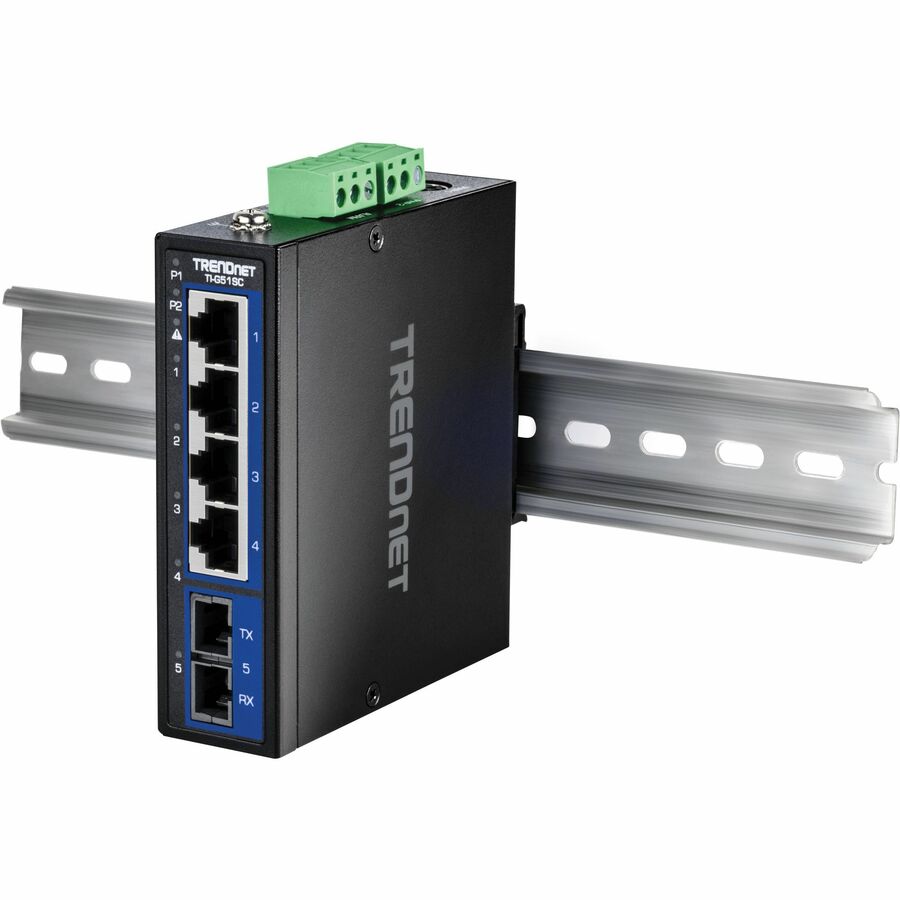

DIN-Rail / Wall Mounts

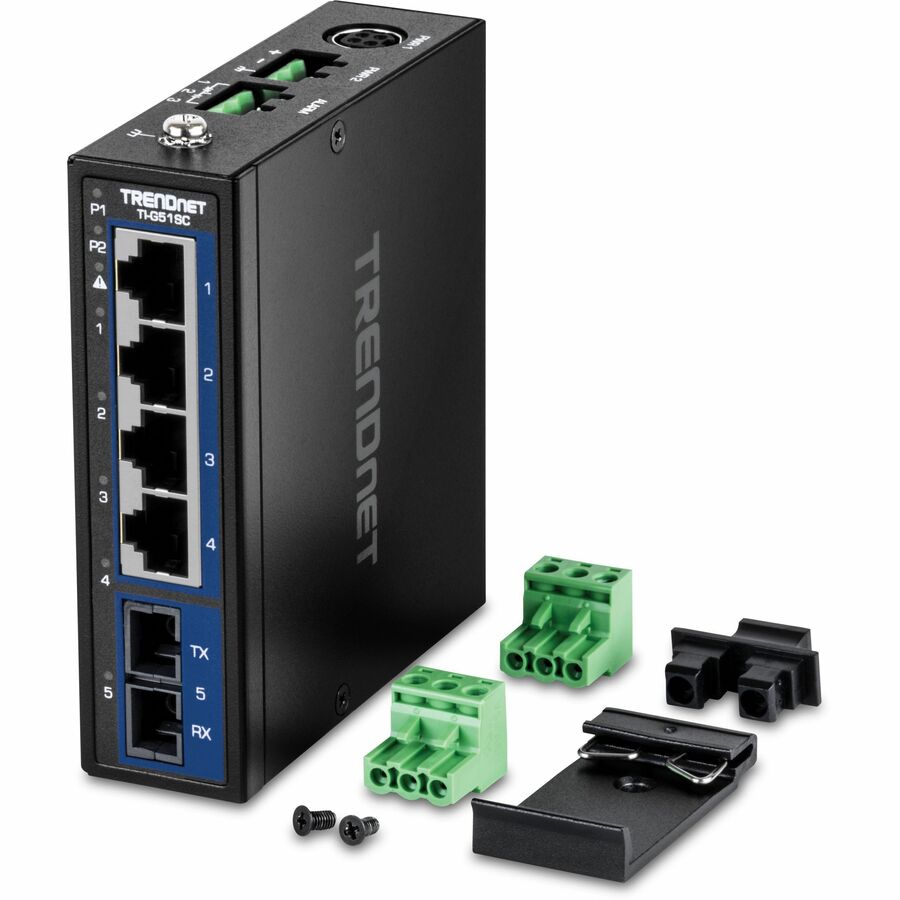

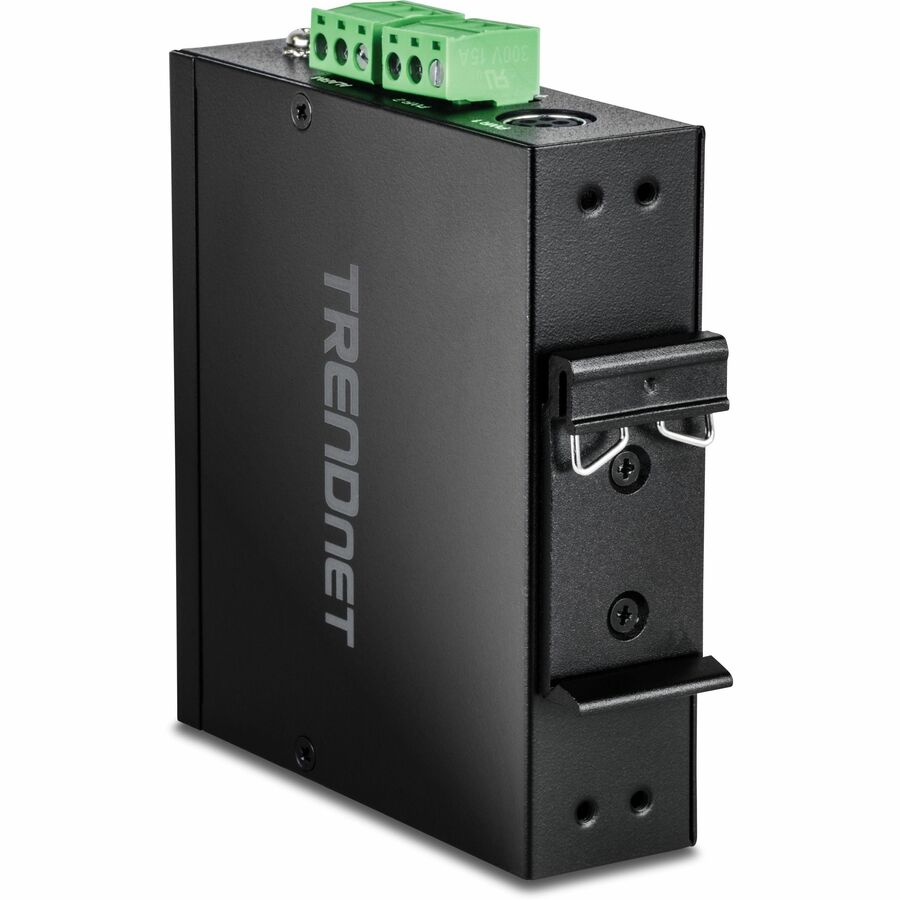

The industrial switch with a fiber SC port features an IP30 rated metal enclosure, with included DIN- Rail mount and wall mount hardware
Redundant Power
Multiple power inputs provide redundant power with overload current protection (power supply sold separately, models: TI-M6024, TI-S15052)
Alarm Relay
Alarm relay on the industrial network switch with a fiber optic port is triggered by power failure of primary and/or redundant power
Jumbo Frame
Supports larger packets, or Jumbo Frames (up to 9KB), for increased performance
Extreme Temperature Range
Operating temperature range of - 40° - 75° C (-40° - 167° F) allows for installations in environments with extreme hot or cold conditions
Shock and Vibration Resistant
Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
Electro Magnetic Compliance
Complies with industrial EMS certifications (IEC 61000-4-2) ESD: Contact: 6kV | Air: 8kV, (IEC 61000-4-4) EFT: Power: 2kV | Signal: 2kV, (IEC 61000-4-5) Surge: Power: 2kV | Signal: 6kV
Grounding Point
Grounding point for high- voltage protection
