Description
MANAGED POWER DISTRIBUTION UNIT: Supports individual controllable power outlets, and ability to assign a power schedule to automate the process.
MANAGE OUTLET CONTROL: Each managed power outlet can be individually controlled. Utilize port power on/off delay for custom applications.

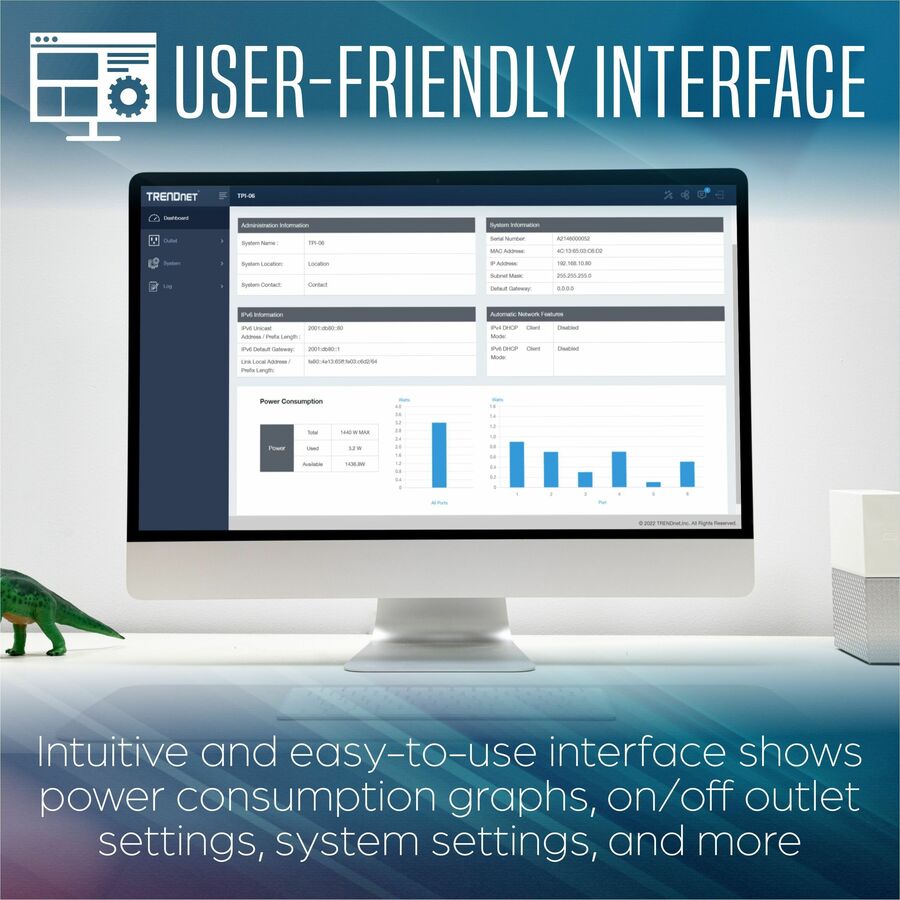

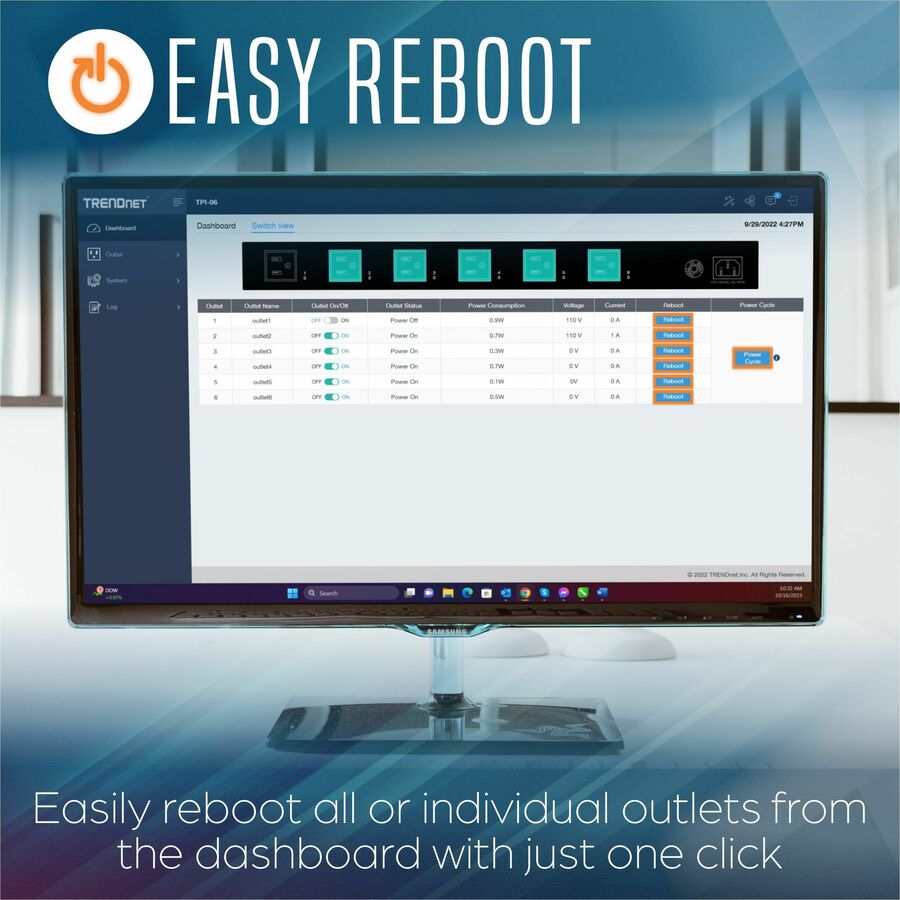

MONITOR POWER CONSUMPTION: View per outlet energy usage via dashboard.
OVERLOAD AND SURGE PROTECTION: Protect your connected equipment from power surges with overload protection 15A and dangerous voltage conditions with surge protection 2160J
EMAIL NOTIFICATIONS: Set up email notifications for safe voltage, overload break, and host timeout events
OPTIMIZED PERFORMANCE: Power distribution unit filters the alternating current (AC) for best electronic performance, while simultaneously reducing excess energy usage with power scheduling.
LED INDICATORS: The LED indicators conveniently convey AC ground status
Input Voltage 100-120VAC
Certifications: UL 62368-1
NDAA / TAA compliant (U.S. and Canada only)

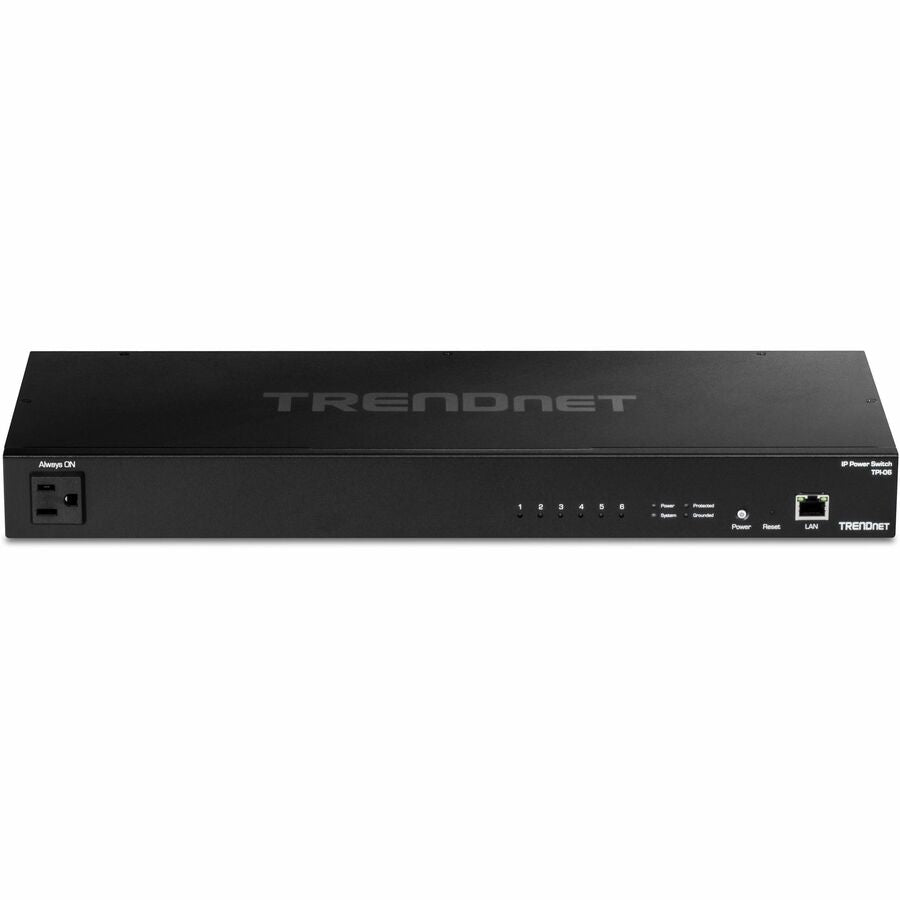

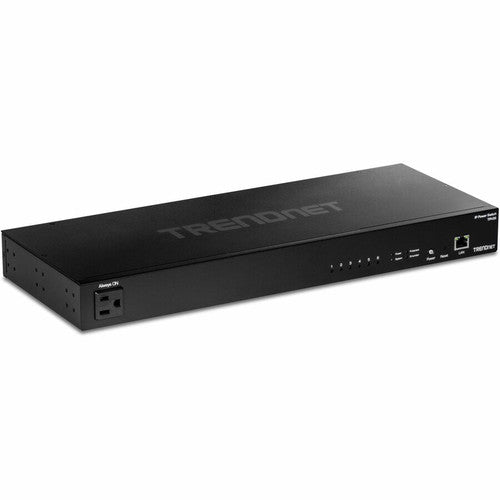

TRENDnet's 6-Outlet Managed Rackmount Power Distribution Unit, model TPI-06, provides a networkable power solution with intelligent monitoring and management capabilities. Automate outlet reboot settings in case of connection loss to ensure efficient usage of available resources, control power consumption, and protect the safety of connected equipment. Fanless design eliminates operating noise.

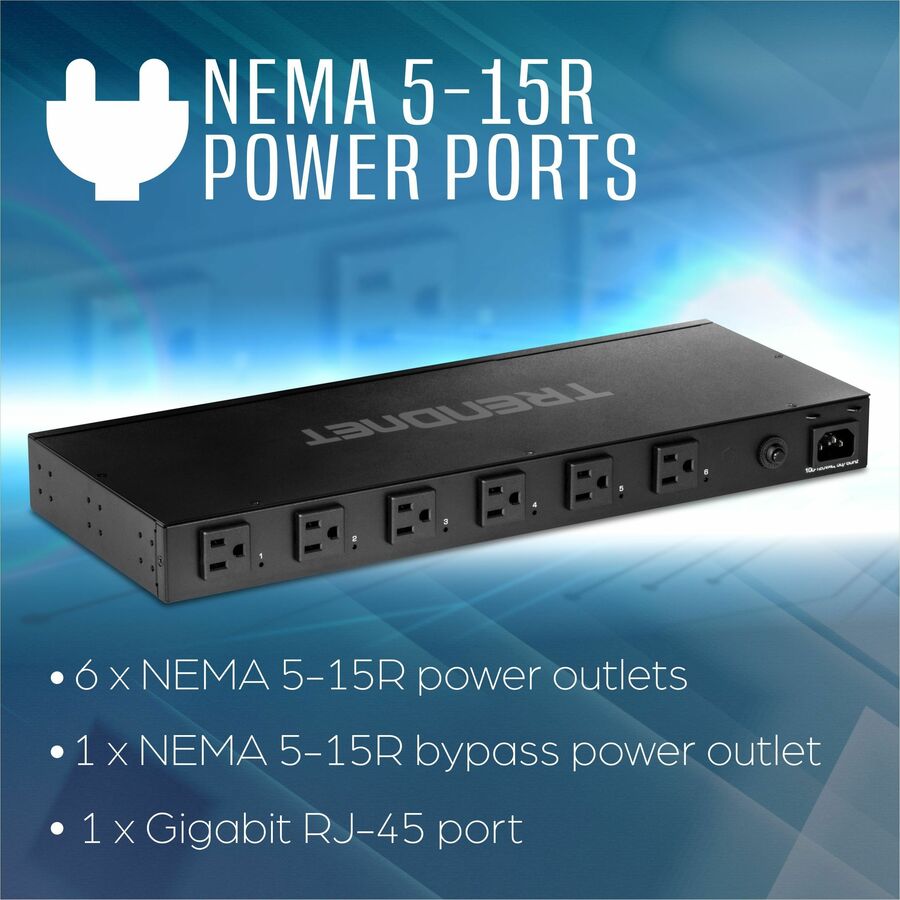

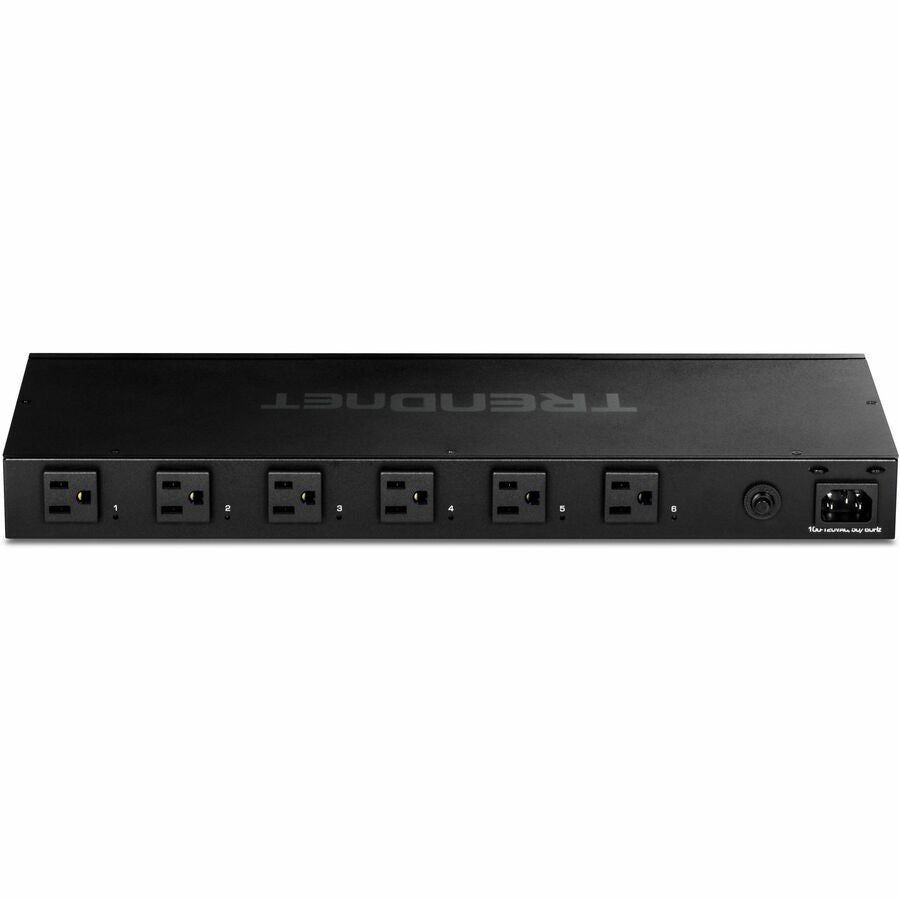

The 6-Outlet Managed Rackmount Power Distribution Unit features six NEMA 5-15R managed power outlets, one NEMA 5-15R bypass power outlet, and one gigabit port. Each managed power outlet is controllable individually. The TPI-06 PDU filters AC for best electronics performance, while simultaneously reducing excess energy usage with power scheduling.
Easily manage and configure the power distribution unit remotely with TRENDnet Hive. TRENDnet Hive is a network cloud manager that reduces management time and cost. No additional hardware, server, or personal cloud is required with TRENDnet's reliable cloud service.
Managed PDU
Supports individual control of power outlets, and to assign a power schedule to automate the process
Ports
6 x NEMA 5-15R managed power outlets, 1 x NEMA 5-15R bypass power outlet, 1 x Gigabit RJ-45 Port
Hive Enabled
Remotely manage, configure, and diagnose this power distribution unit via TRENDnet's cloud service (Additional fee applies)
Fanless
Fanless design eliminates operating noise
Email Notifications Email
notifications for safe voltage, overload break, and host timeout events

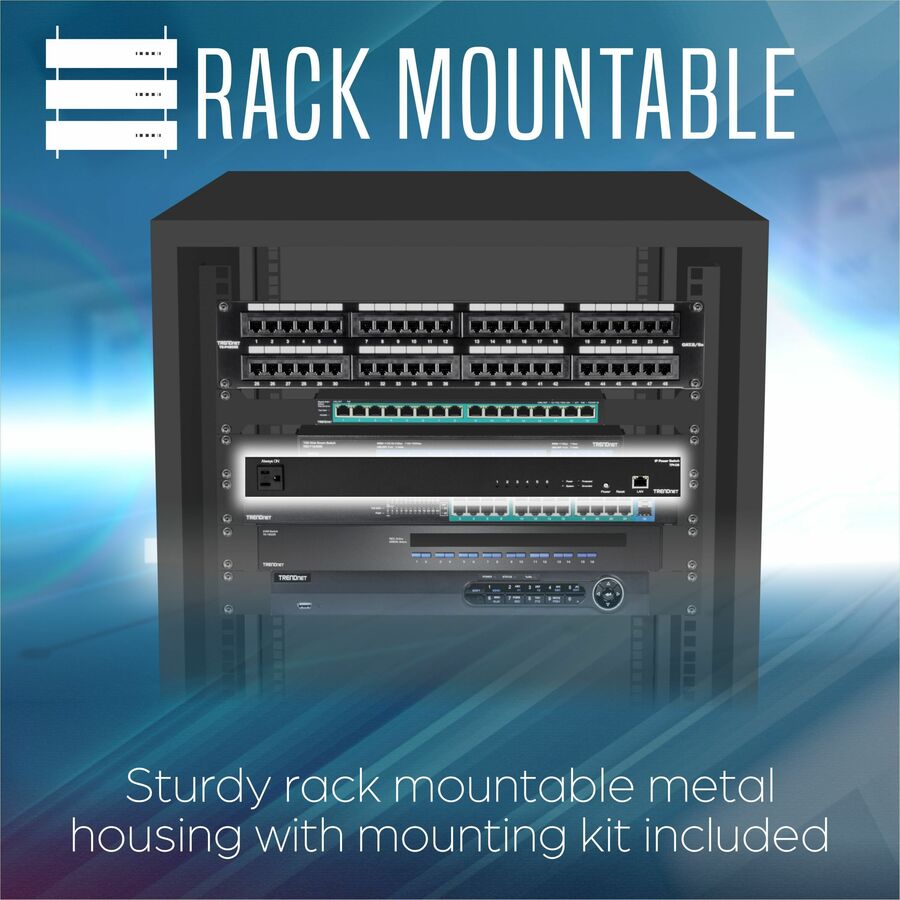

1U 19" Rack Mountable
Sturdy rack mountable metal housing with mounting kit included
LED Indicators
LED indicators conveniently convey AC ground status

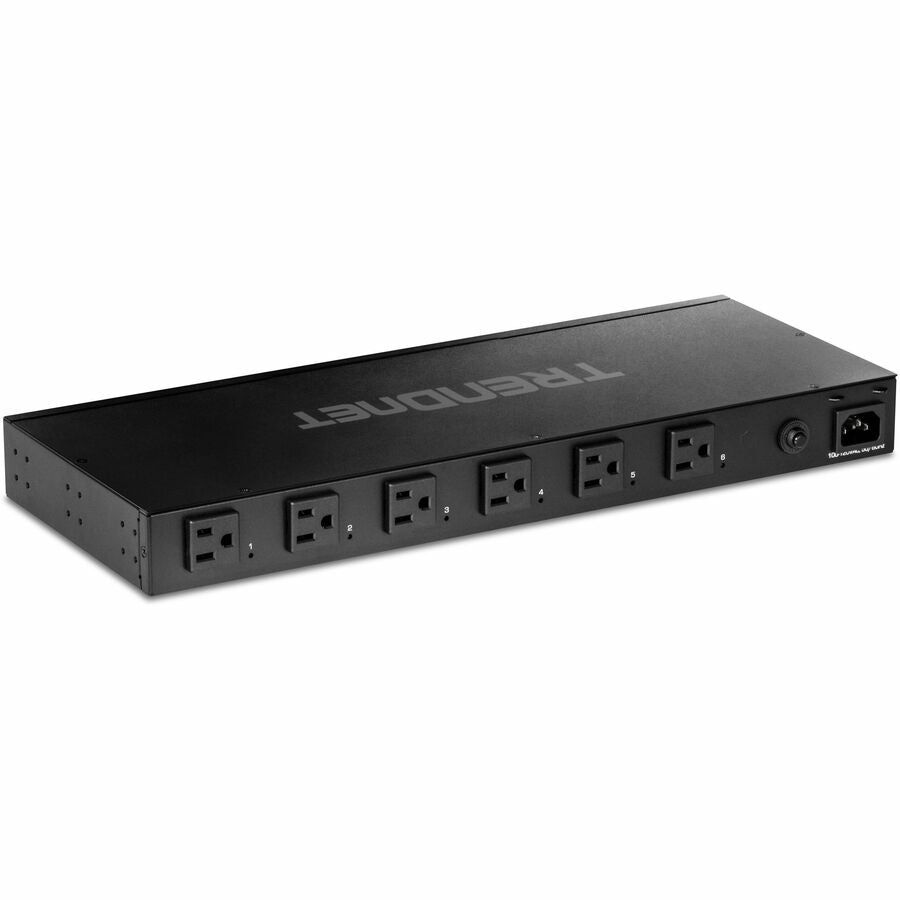

- 6 x NEMA 5-15R managed power outlets
- 1 x NEMA 5-15R bypass power outlet
- 1 x Gigabit port
- Individual controllable outlets
- Automate outlet reboot settings in case of connection loss
- Port power on/off delay for custom applications

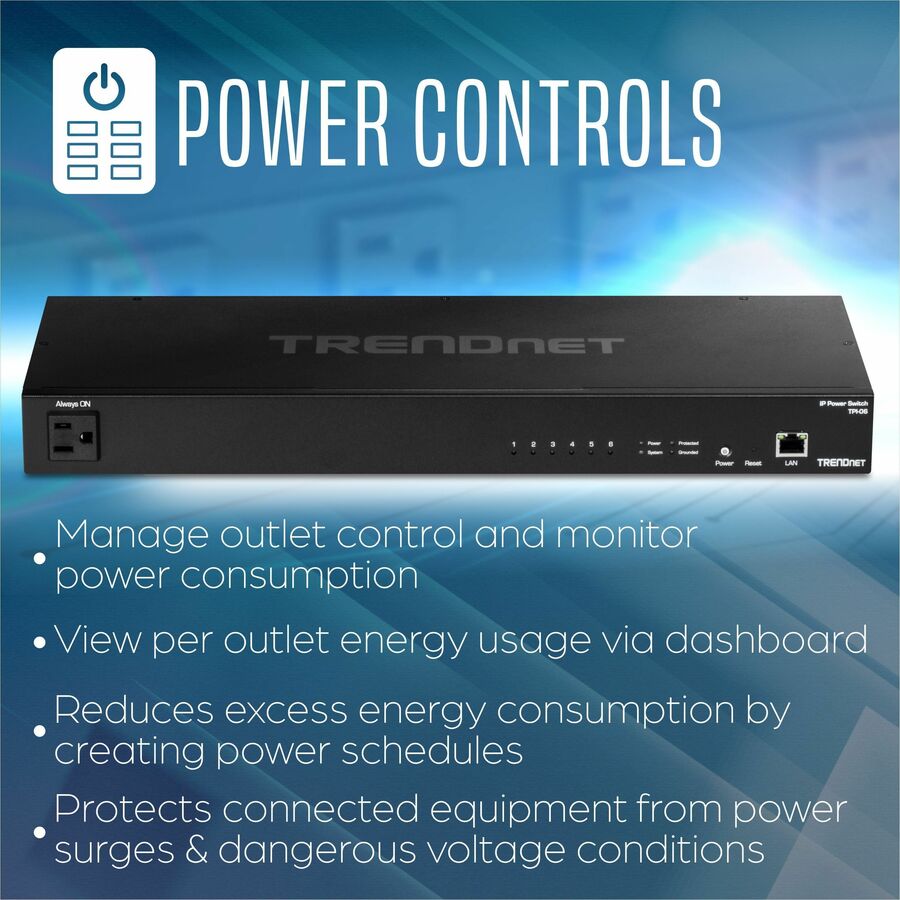

- Manage outlet control and monitor power consumption
- Remote cloud management with TRENDnet Hive (Additional fee applies)
- Protects connected equipment from power surges & dangerous voltage conditions
- Filters AC for best electronics performance
- LED indicators conveniently convey AC ground status
- View per outlet energy usage via dashboard
- Reduces excess energy consumption by creating power schedules
- Event email notifications
- 1U 19" Rack mountable
- Input Voltage 100-120VAC
- Certifications: UL 62368-1
- Receptacle Type : NEMA 5-15R
- Receptacle Detail : 6 x NEMA 5-15R,1 x NEMA 5-15R
- Power Source : Power Supply
- PDU Type : Managed,Bypass
- Power Rating (Watt) : 6.87 W
- Input Voltage : 120 V AC
- Management :
Hive Cloud
- Limited Warranty : 3 Year
- Package Contents :
- 6-Outlet Managed Rackmount Power Distribution Unit
- Quick Installation Guide
- Power Cord (1.8m / 6 ft.)
- Rack Mount Kit
- Manufacturer Website Address : http://www.trendnet.com
- Network (RJ-45) : Yes
- Product Type : PDU
- Mount Type : Rack-mountable
- Protection Type : Surge Protection
- Application/Usage : Server Rack/Cabinet
- Manufacturer : TRENDnet
- Product Model : TPI-06
- Input Voltage Range : 100 V AC - 120 V AC
- Output Voltage Range : 100 V AC - 120 V AC
- Rack Height : 1U
- Country of Origin : Taiwan
