Description
TRENDnet's Industrial Gigabit PoE+ Wall-Mounted Front Access Switch Series is well suited for IP surveillance, IoT, and automation networks for homes and businesses. These hardened industrial gigabit flat switches provide front access to ports and power interfaces for easier installation. The flat and compact size make them ideal for cabinet installations where space is limited. Each hardened industrial front access switch features gigabit PoE+ ports for connecting devices, such as wireless access points, IP cameras, and IoT appliances. These hardened front access switches come equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments.

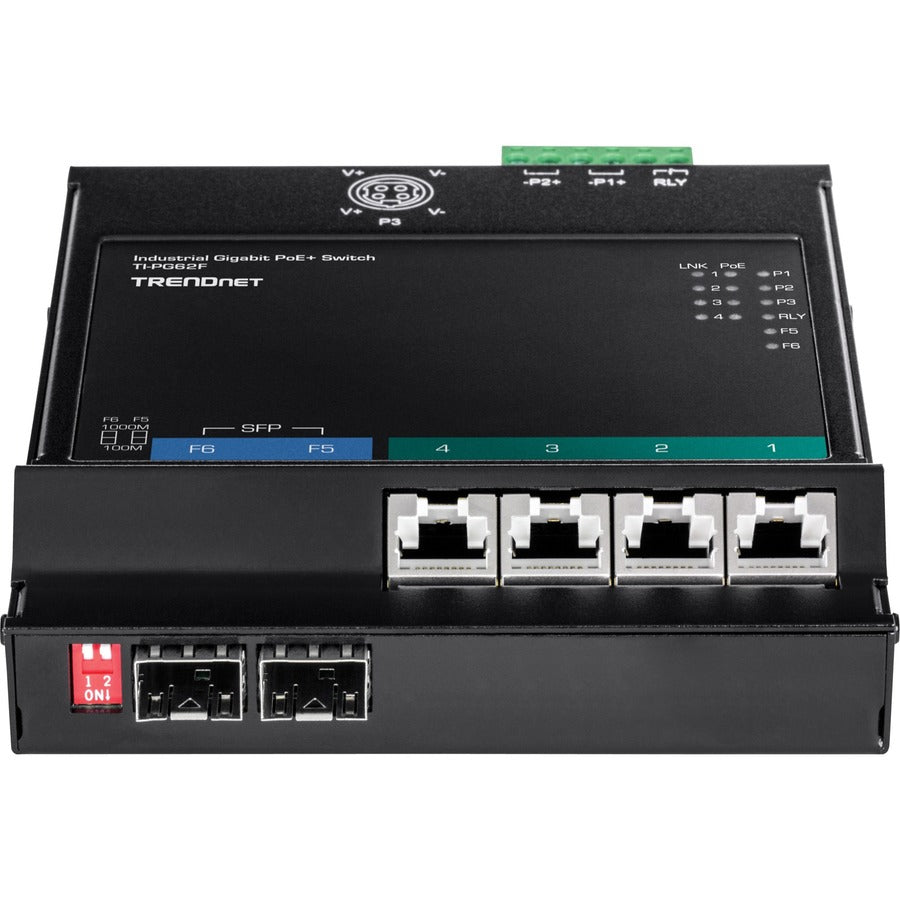

Wall-Mounted Front Access Switch
The wall mountable flat switch provides front access to ports and power interfaces for easier installation. It's flat and compact size make it ideal for cabinet installations where space is limited.
PoE+ Power
A 120W PoE power budget supplies PoE power from the hardened industrial front access switch to up to eight Power over Ethernet devices.
Hardened Industrial Design
Equipped with an IP30 rated metal enclosure, this front access switch is designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments.
Network Ports
4 x Gigabit PoE+ ports, and 2 x Gigabit SFP Slots
PoE Power
Supplies up to 30W of PoE+ power per port with a 120W power budget
Hardware Design
Wall mountable hardware design provides front access to ports and power interfaces for easier installation
Compact
The flat and compact size is ideal for cabinet installations where space is limited

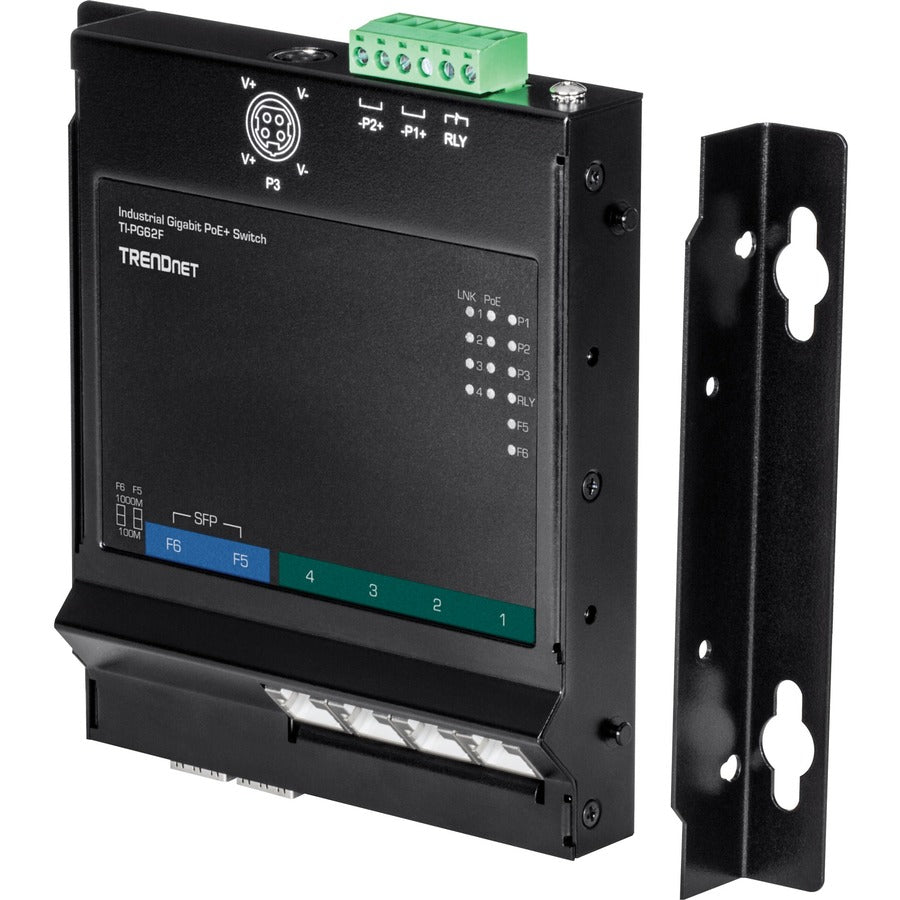

Mounting Hardware

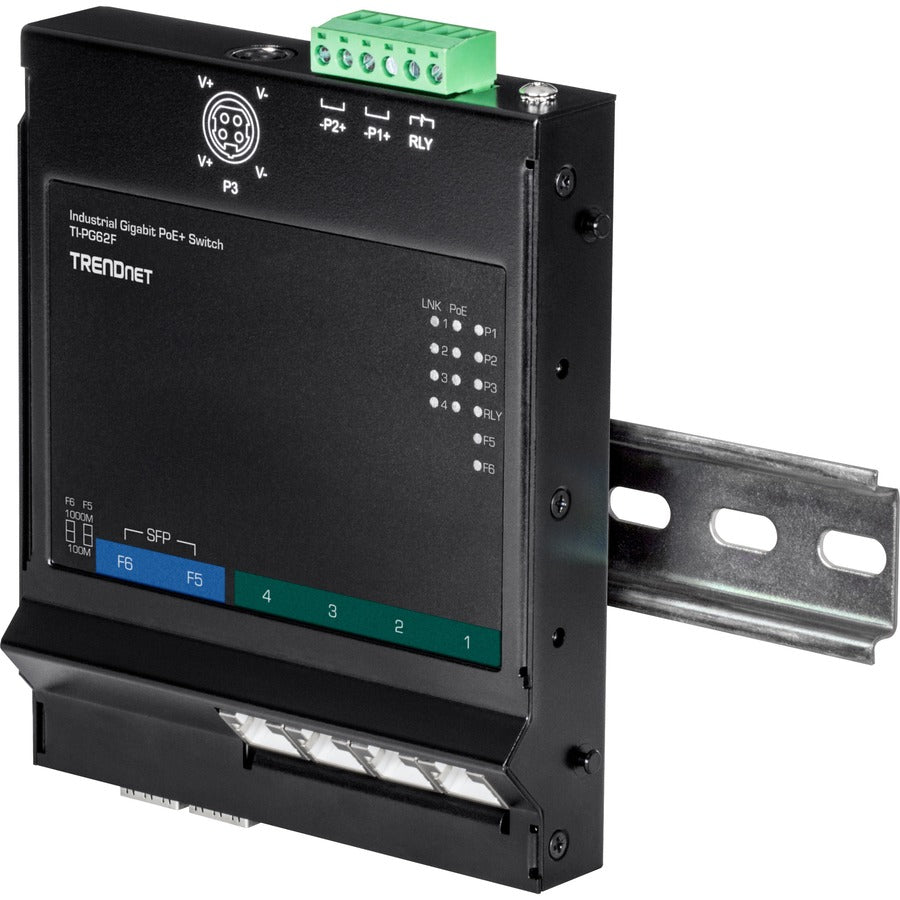

Includes DIN-Rail bracket and magnetic wall mount kit
Switching Capacity
12Gbps switching capacity
Redundant Power
Dual power inputs provide redundant power with overload current protection, and an output alarm relay to indicate input power failure. (Power supply sold separately (models: TI-S15052, TI-S24052, TI-S12048, TI-S24048, and 48VDC3000)
Alarm Relay
Alarm relay output triggered by power failure of primary or secondary power inputs
Jumbo Frames
Sends larger packets, or jumbo frames (up to 10KB), for increased performance
Wide Temperature Range
Hardened industrial housing offers a wide operating temperature range of -40° - 75° C (-40° - 167° F), allowing for installations in extreme hot and cold environments
Shock and Vibration Resistant
Hardened design rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6) for industrial settings
- 4 x Gigabit PoE+ ports
- 2 x Gigabit SFP slots
- 120W PoE power budget
- 12Gbps switching capacity
- Forwarding rate: 8.9Mpps (64-byte packet size)
- Supports jumbo frames up to 10KB
- Hardened IP30 rated metal housing
- Includes DIN-Rail bracket and magnetic wall mount kit
- Operating temperature range of -40° - 75° C (-40° - 167° F)
- Redundant power inputs with overload current protection
- NDAA / TAA compliant (U.S. and Canada only)
- Power supply sold separately (models: TI-S15052, TI-S24052, TI-S12048, TI-S24048, and 48VDC3000)
- Power Source : AC/DC
- Modular : Yes
- PoE (RJ-45) Port : Yes
- Form Factor : DIN Rail Mountable,Wall Mountable,Magnetic Mount,Compact,Cabinet Mount,Enclosure
- Package Contents :
- 6-Port Industrial Gigabit PoE+ Wall-Mounted Front Access Switch
- Quick Installation Guide
- Removable Terminal Block
- DIN-Rail, Wall and Magnet Mount Kit
- Manufacturer Website Address : http://www.trendnet.com
- Manufacturer : TRENDnet
- Product Model : TI-PG62F
- Manageable : No
- Network Technology : 1000Base-T,1000Base-FX
- Ethernet Technology : Gigabit Ethernet
- TAA Compliant : Yes
- Layer Supported : 2
- PoE Budget : 120 W
- Port/Expansion Slot Details : 4 x Gigabit Ethernet PoE+,2 x Gigabit Ethernet Expansion Slot
- Limited Warranty : Lifetime
- Product Material : Metal
- Network (RJ-45) : Yes
- Plug/Connector Type : Terminal Block
- Product Type : Ethernet Switch
- Number of Total Expansion Slots : 2
- Networking Standards : IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3x,IEEE 802.3af,IEEE 802.3at
- Total Number of Network Ports : 6
- Power Consumption : 7.20 W
- Media Type Supported : Optical Fiber,Twisted Pair
- Country of Origin : Taiwan
- Number of SFP Slots : 2
- Expansion Slot Type : SFP (mini-GBIC)
