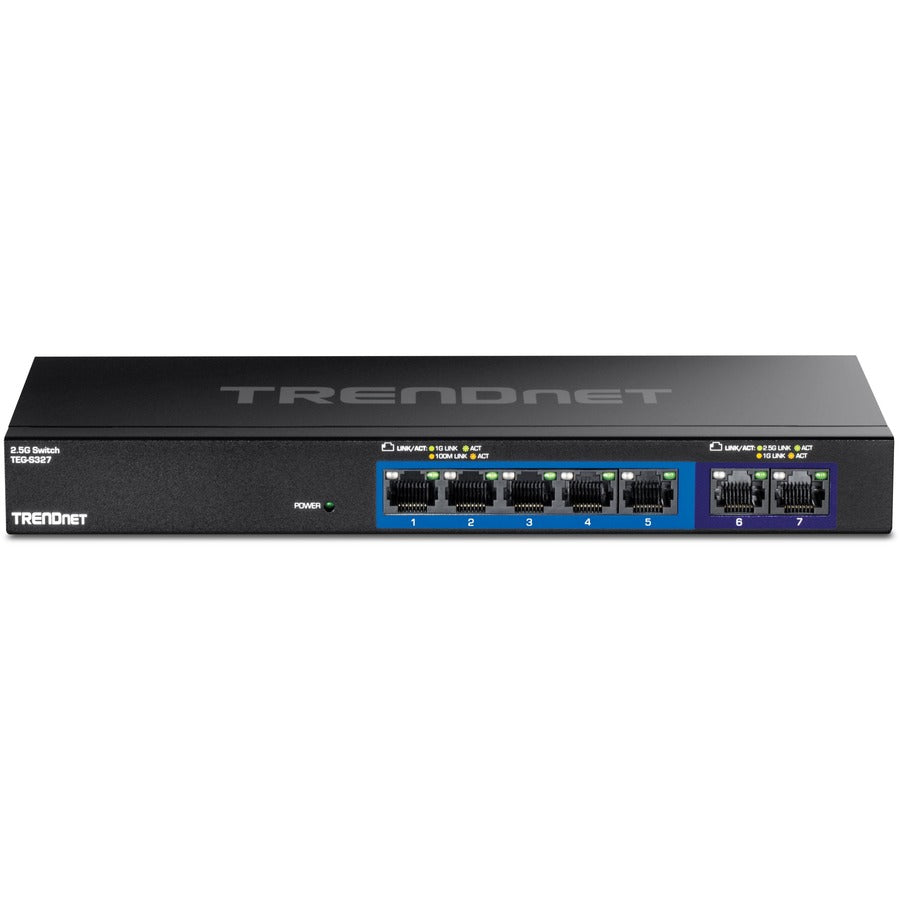

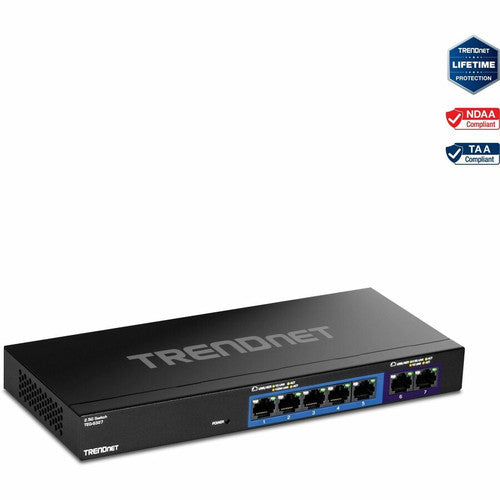

Commutateur multi-Gig TRENDnet 7 ports TEG-S327

TRENDnet's 7-Port Multi-Gig Switch, model TEG-S327, is an affordable 2.5G switch that provides advanced high-bandwidth performance, ease of use, and reliability. The TEG-S327 multi-gig switch offers two dedicated 2.5G ports and five dedicated 1G ports for high-speed network connections with a 20Gbps switching capacity. With a sturdy compact metal housing and fanless design, this multi-gig switch is a cost-effective switch solution for high-speed network connections.

2.5G Ports

Equipped with two 2.5GBASE-T RJ-45 ports that provide multi-gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.

Wall Mountable

Well-suited for desktop installations, but also features a wall-mountable design for greater installation flexibility.

Fanless

Convenient fanless design on this multi-gig switch lowers power consumption and energy costs, and eliminates operating noise.

FEATURES | Network Ports

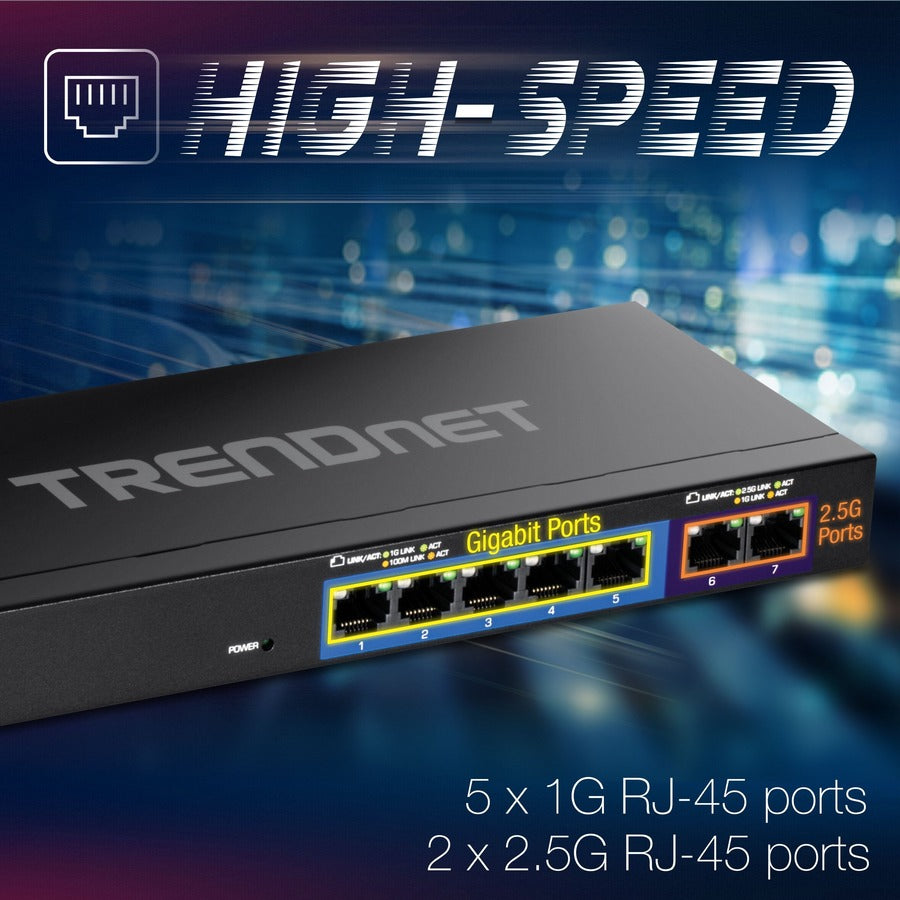

Affordable multi-gig switch provides 5 x 1G ports and 2 x 2.5G ports for high-speed network connections

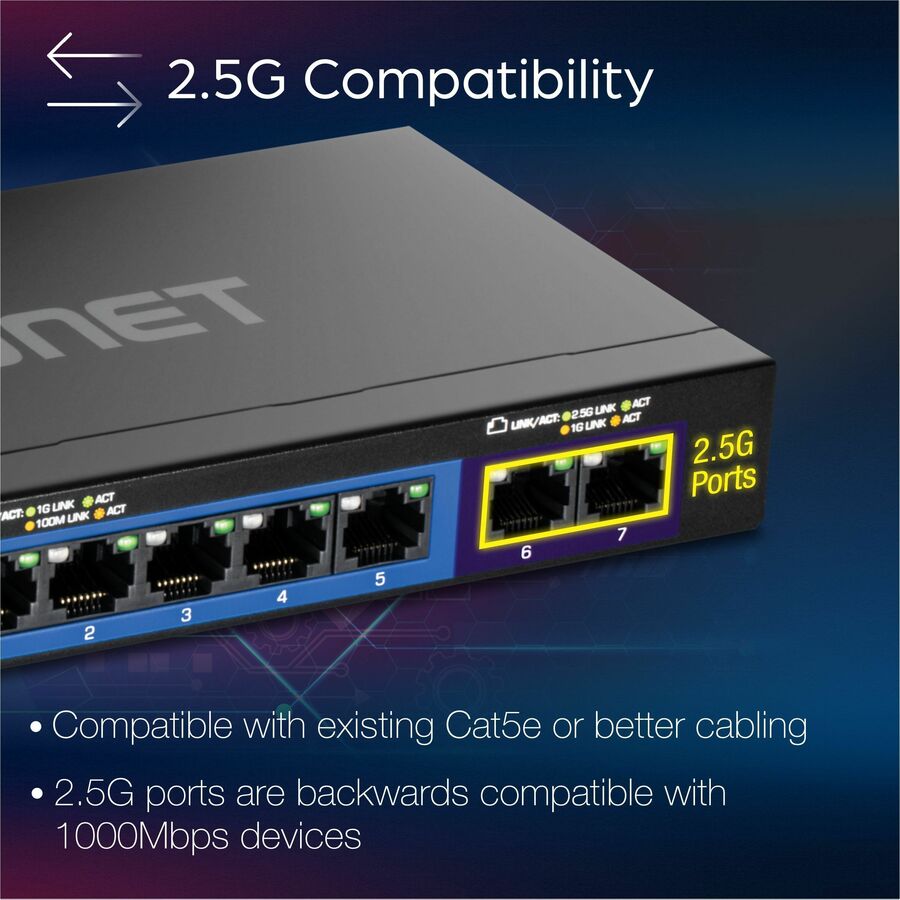

2.5G Ports
Connect 2.5GBASE-T supported devices at 2.5Gbps for increased throughput over existing Cat5e or better cabling
Fanless
Fanless design on this multi-gig switch lowers energy consumption and eliminates operating noise
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 15KB) for increased performance

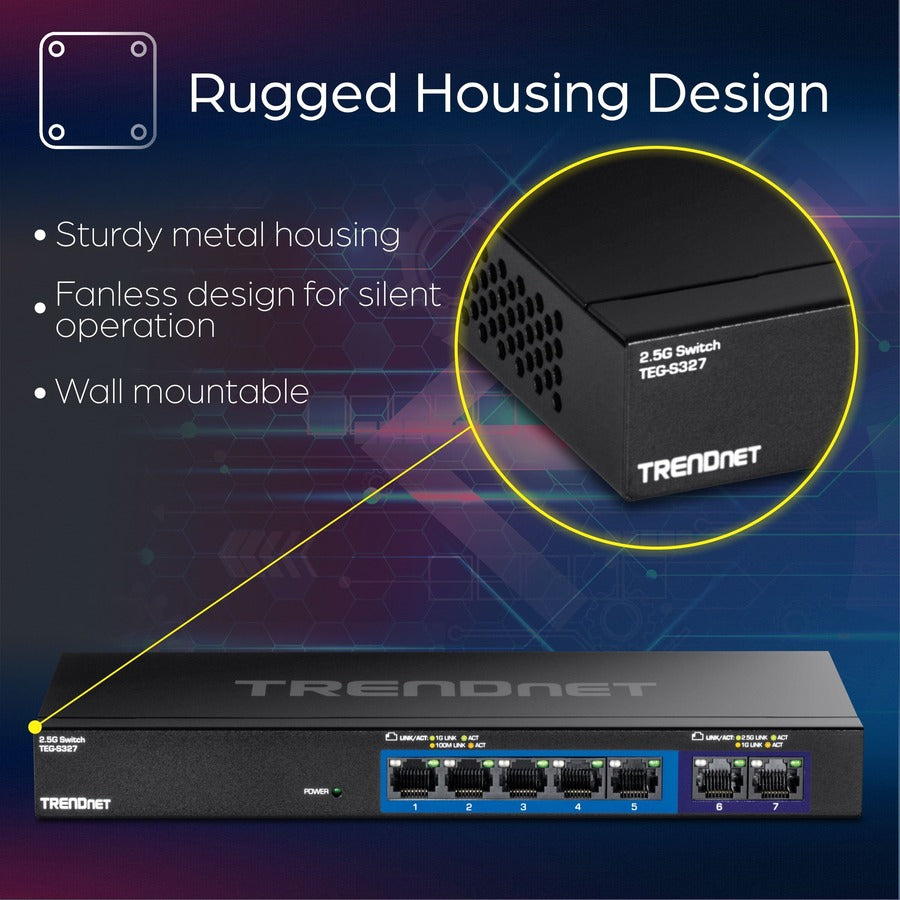

Housing Design
Sturdy metal housing on the affordable 2.5G switch is also compact and lightweight
Wall Mountable
Well-suited for desktop installations, but also features a convenient wall- mountable design for greater installation flexibility

More from the Manufacturer

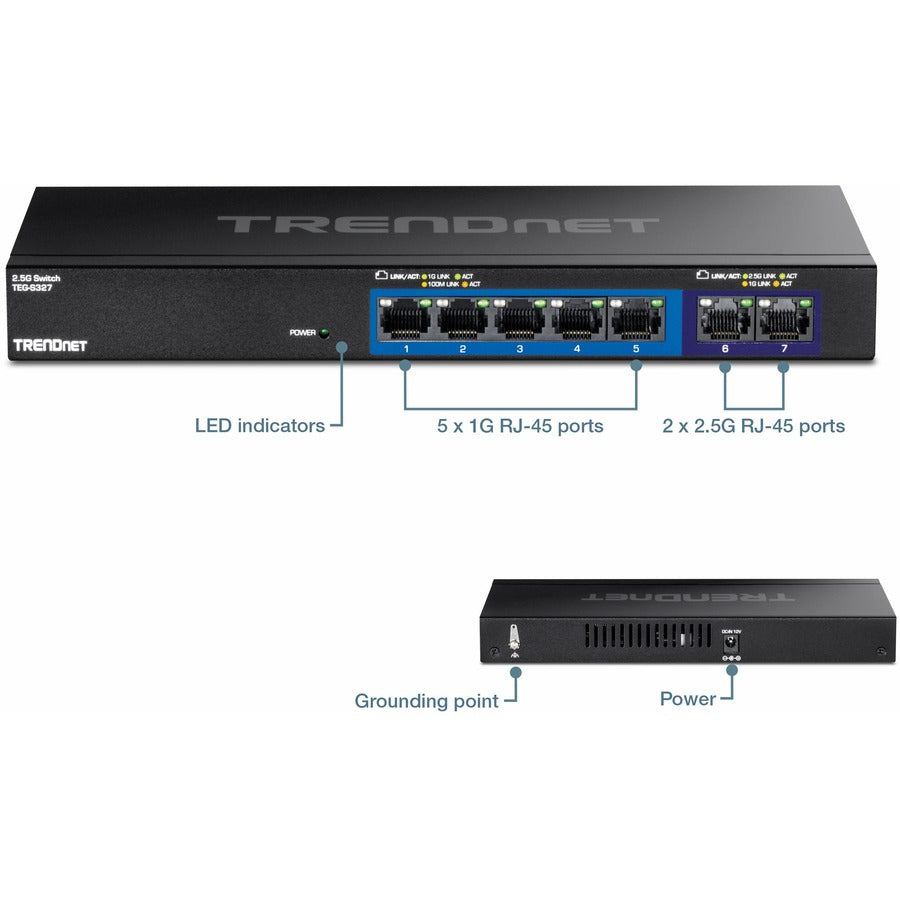

• DEVICE INTERFACE: 5 x Gigabit ports; 2 x 2.5GBASE-T ports (100Mbps/1Gbps/2.5Gbps); LED Indicators
• 2.5G PORTS: This 7 Port Multi-Gig Ethernet switch is equipped with two 2.5GBASE-T RJ-45 ports that provide multi-gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.
• FANLESS DESIGN: The compact fanless design of the 2.5G network switch lowers energy consumption costs and eliminates operating noise
• EASY INSTALLATION: No configuration needed, simply connect network devices to the Gigabit Ethernet switch
• SWITCHING CAPACITY: 20Gbps switching capacity
• COMPATABILITY: 2.5G ports are backwards compatible with 100/1000Mbps devices
• WALL MOUNTABLE: Features a convenient wall mountable design for greater installation flexibility
• LIFETIME PROTECTION: TRENDnet LIFETIME PROTECTION: The TEG-S327 multi-gig switch comes with Lifetime TRENDnet Manufacturer Protection.
• NDAA / TAA compliant (U.S. and Canada only)

. .

• Power Source : Power Adapter
• Form Factor : Compact,Desktop,Wall Mountable

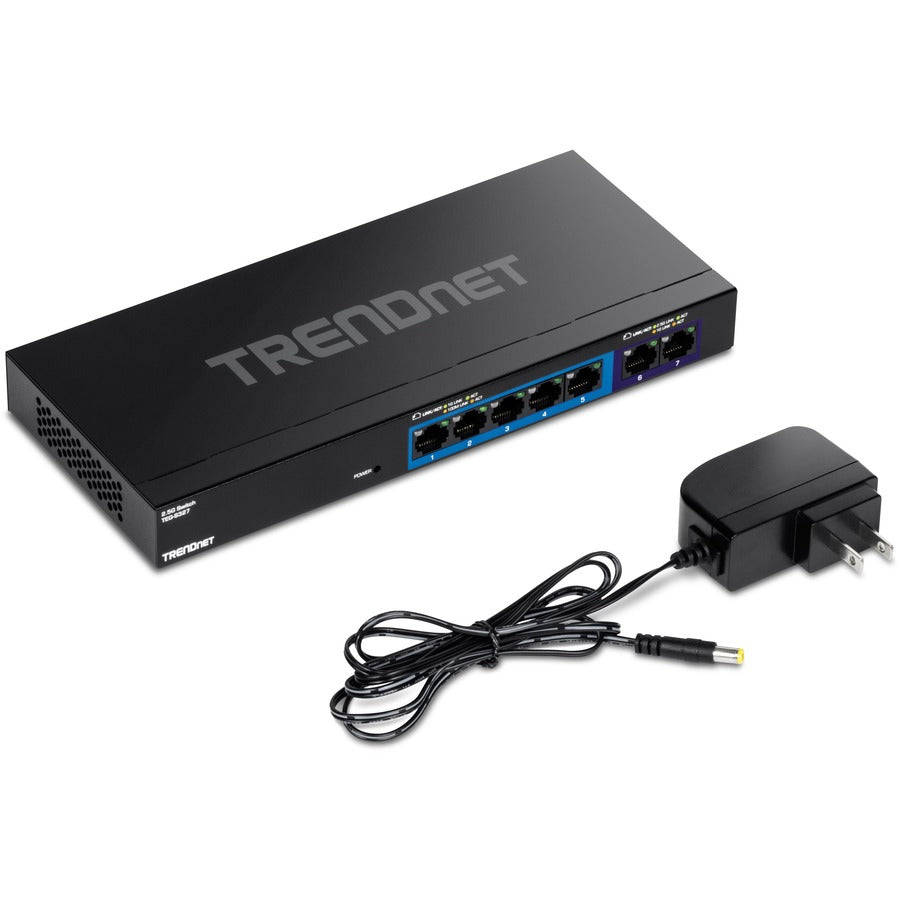

• Package Contents :
  • 7-Port Multi-Gig Switch
  • Quick Installation Guide
  • Power adapter (12V DC, 1A)
• Manufacturer Website Address : http://www.trendnet.com
• Maximum Data Transfer Rate : 640 MB/s
• Manufacturer : TRENDnet
• Product Model : TEG-S327
• Features : Fanless
• Manageable : Yes
• Network Technology : 1000Base-T,2.5GBase-T
• Ethernet Technology : Gigabit Ethernet,2.5 Gigabit Ethernet
• TAA Compliant : Yes
• Layer Supported : 2
• Input Voltage : 120 V AC,230 V AC
• Port/Expansion Slot Details : 5 x Gigabit Ethernet Network,2 x 2.5 Gigabit Ethernet Network
• Limited Warranty : Lifetime
• Product Material : Metal
• Network (RJ-45) : Yes
• Product Type : Ethernet Switch
• Length : 6.30" (160 mm)
• Total Number of Network Ports : 7
• Power Consumption : 60 W
• Media Type Supported : Twisted Pair
• Country of Origin : Taiwan
• Networking Standards : IEEE 802.3x,IEEE 802.3z,IEEE 802.3ab,IEEE 802.3bz
