Description

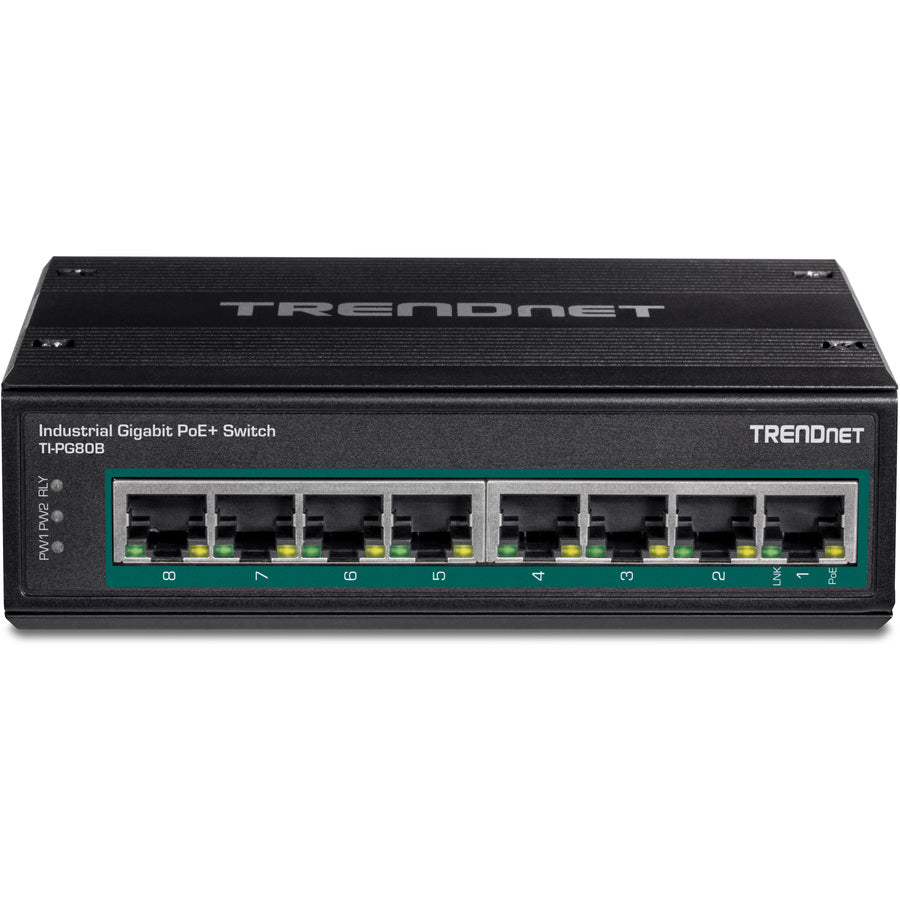

- 8 x Gigabit PoE+ ports
- PoE power budget 120W@24V - 200W@48V
- 16Gbps switching capacity
- Power supply sold separately (models: TI-S24048, TI-S12024)
- Hardened IP30 rated metal switch

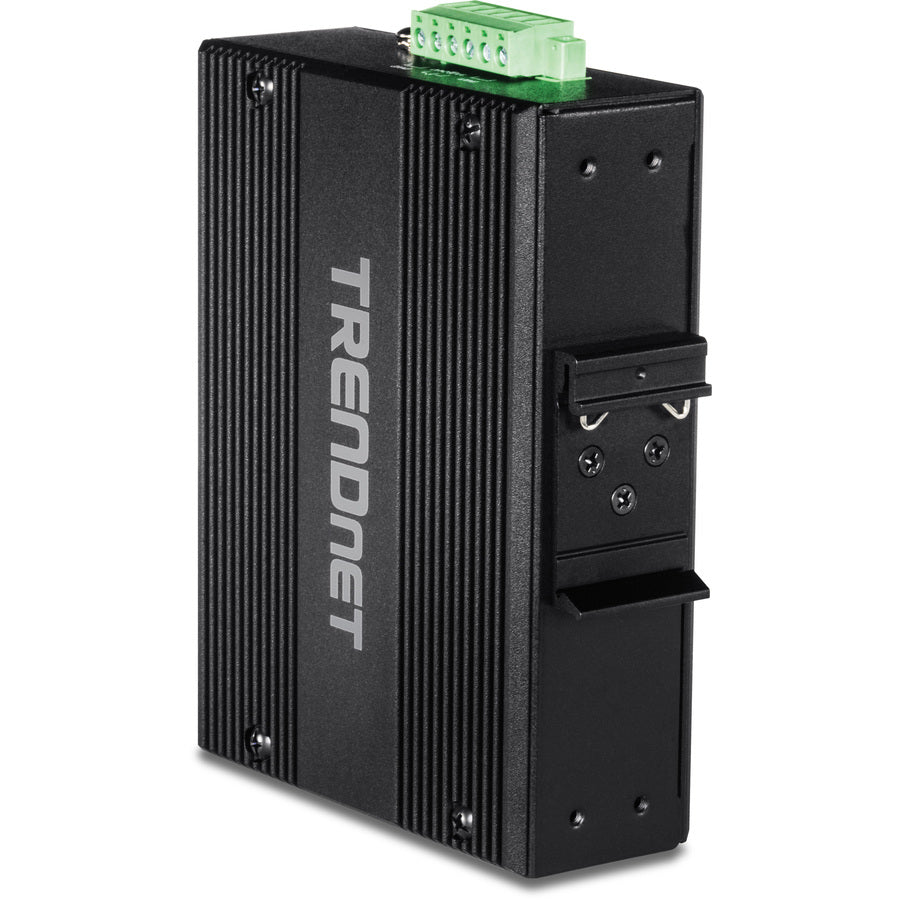

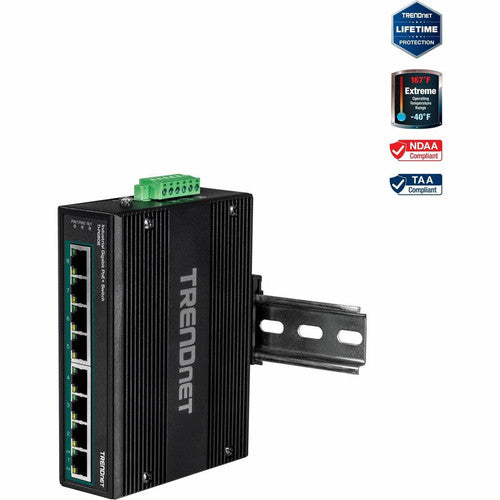

- Includes DIN-Rail and wall mounts
- Operating temperature range of -40° - 75° C (-40° - 167° F)

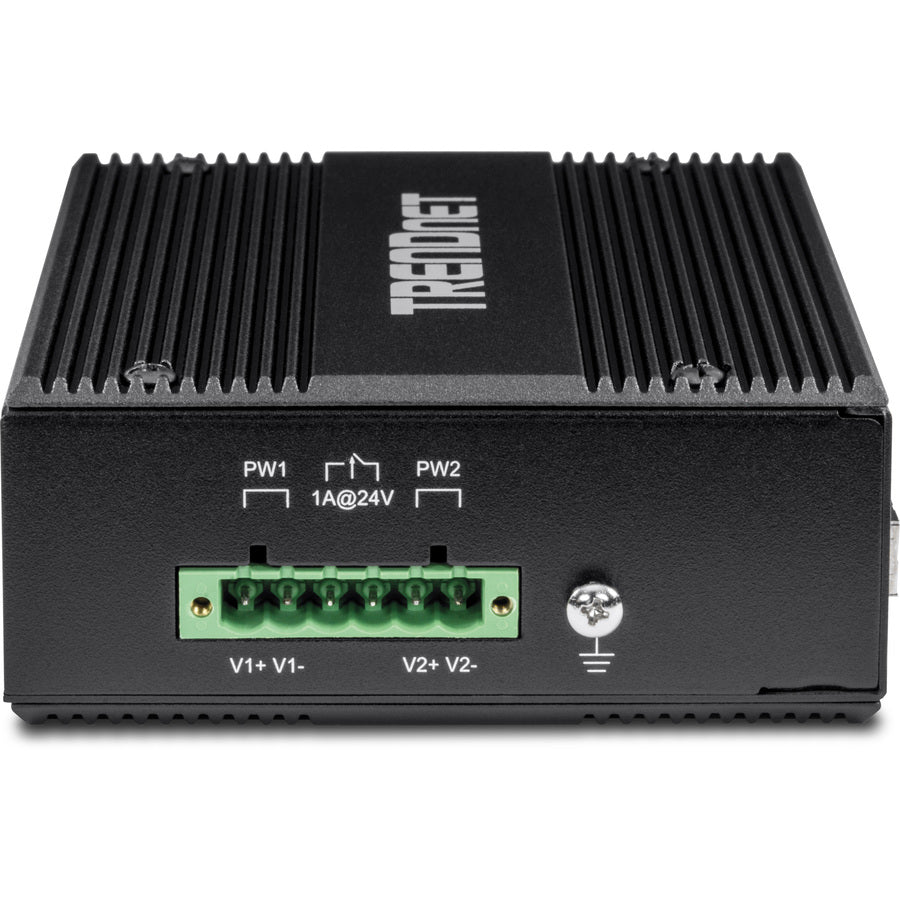

- Dual 24 - 56V DC power inputs for redundancy
- Power supply sold separately (models: TI-S15052, TI-S24052, TI-S12024, TI-S24048)

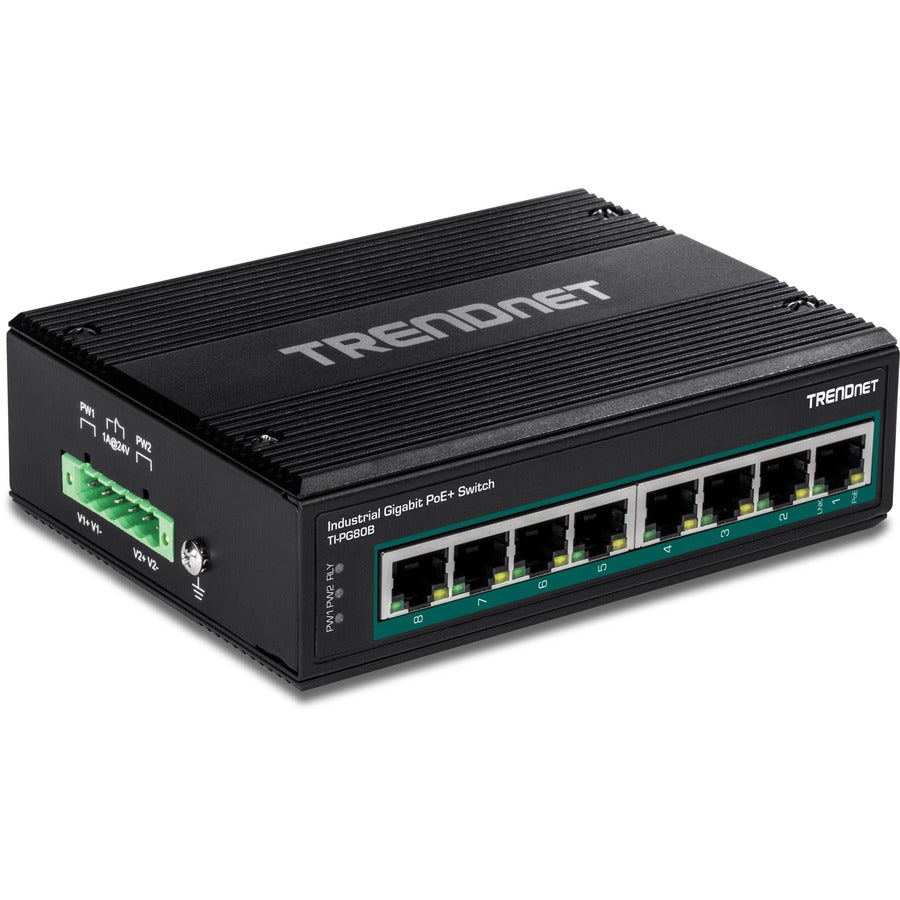

TRENDnet's 8-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG80B, is an industrial variable voltage switch with eight gigabit PoE+ ports and a 200W PoE power budget. Users are able to connect eight PoE+ devices to this industrial variable voltage PoE+ switch for high-speed connectivity to the network. The industrial variable voltage PoE+ switch is equipped with a rugged IP30 rated metal enclosure, and designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments. Dual 24 - 56V DC power inputs on the industrial variable voltage switch provide redundancy with power failure alarm relay. PoE Power The industrial variable voltage PoE switch features a 200W PoE+ power budget, and supplies up to eight Power over Ethernet devices with PoE+ power. Fault Tolerance The industrial variable voltage PoE switch features dual 24V - 56V DC power inputs for redundancy with overload current protection. Industrial Design Equipped with a rugged IP30 rated housing, resistant to a high degree of vibration and shock, and operates within a wide temperature range of -40° - 75° C (-40° - 167° F). PACKAGE CONTENTS TI-PG80B Quick Installation Guide Removable terminal block DIN-Rail and wall mount kit
- 8 x Gigabit PoE+ ports
- PoE power budget 120W@24V - 200W@48V
- 16Gbps switching capacity
- Power supply sold separately (models: TI-S24048, TI-S12024)
- Hardened IP30 rated metal switch
- Includes DIN-Rail and wall mounts
- Operating temperature range of -40° - 75° C (-40° - 167° F)
- Dual 24 - 56V DC power inputs for redundancy
- NDAA / TAA compliant (U.S. and Canada only)
- Power supply sold separately (models: TI-S15052, TI-S24052, TI-S12024, TI-S24048)
- Environmental Certification : China Environmental United Certification Center (CEC)
- Redundant Power Supply Supported : Yes
- Ethernet Technology : Gigabit Ethernet
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Power Source : Power Supply
- Layer Supported : 2
- Product Condition : New
- Port/Expansion Slot Details : 8 x Gigabit Ethernet PoE+
- Limited Warranty : Lifetime
- Form Factor : DIN Rail Mountable,Wall Mountable

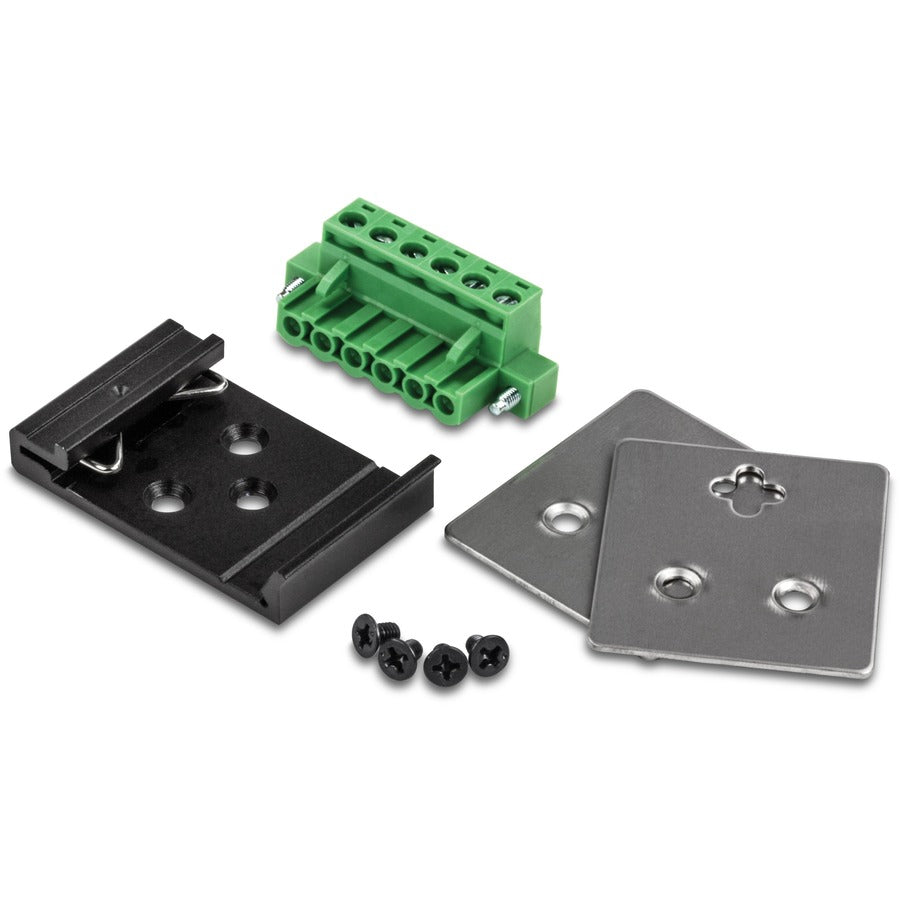

- Package Contents :
- 8-Port Industrial Gigabit PoE+ DIN-Rail Switch
- Quick Installation Guide
- Removable Terminal Block
- DIN-Rail and Wall Mount Kit
- Manufacturer Website Address : http://www.trendnet.com
- Product Type : Ethernet Switch
- Manufacturer : TRENDnet
- Product Model : TI-PG80B
- Total Number of Network Ports : 8
- Media Type Supported : Twisted Pair
- Country of Origin : Taiwan
- Network Technology : 10/100/1000Base-T
