Description

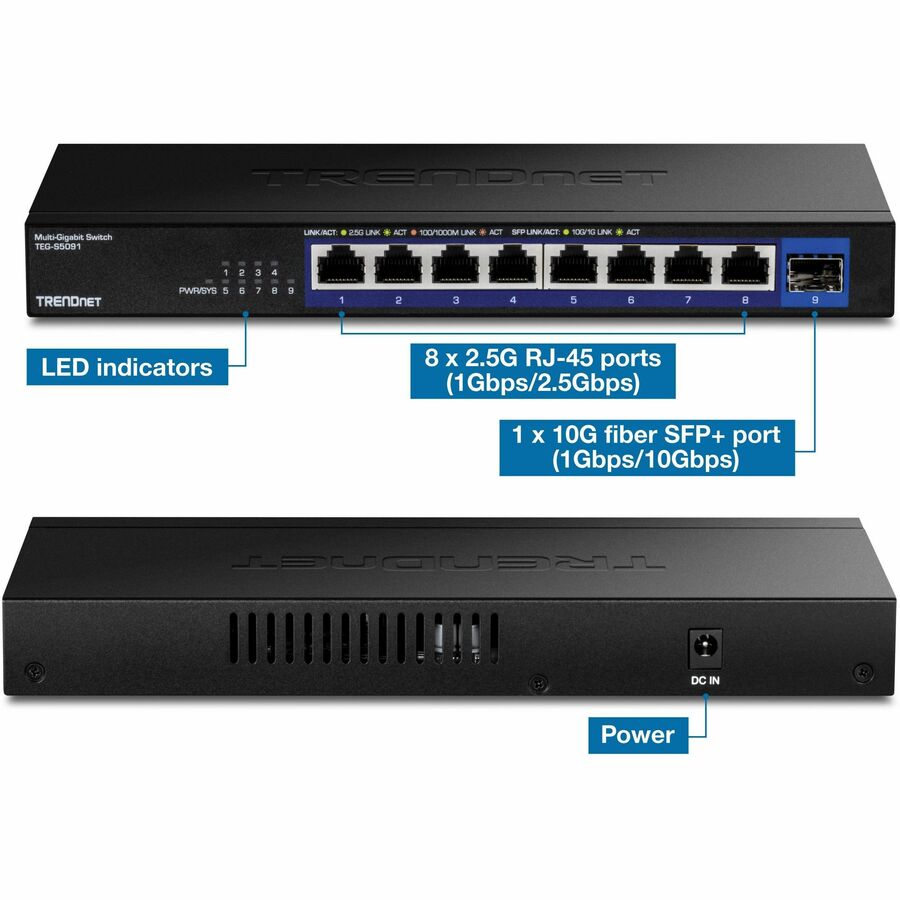

- DEVICE INTERFACE: 8 x 2.5GBASE-T ports (100Mbps/1Gbps/ 2.5Gbps); 1 x 10G SFP+ slot (1Gbps / 10Gbps); LED indicators
- 2.5G PORTS: The 9 Port network switch is equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.
- 10 GIGABIT SFP+ SLOT: A dedicated 10G SFP+ slot for high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network.
- SWITCHING CAPACITY: The unmanaged switch is equipped with a 60Gbps Switching Capacity
- COMPATABILITY: The 9 Port Ethernet switch is backwards compatible with 10/100/1000Mbps devices.
- WALL MOUNTABLE: The 2.5G unmanaged switch features a durable metal housing with a convenient wall mountable design for greater installation flexibility.
- FANLESS DESIGN: The fanless design lowers energy consumption and eliminates distracting operating noise.
- IEEE STANDARD: IEEE 802.3bz (2.5G) and IEEE 802.3ae (10G SFP+) Compliant
- TRENDnet LIFETIME PROTECTION: The TEG-S5091 9-Port Unmanaged 2.5G Switch is backed with Lifetime Manufacturer Protection
- NDAA / TAA compliant (U.S. and Canada only)
Expand your network's bandwidth and reduce digital bottlenecks with TRENDnet's 9-Port 2.5G Unmanaged Switch with 10G SFP+ Port. This 2.5G switch with an SFP+ port comes equipped with 2.5GBASE-T RJ-45 ports that provide speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling, and a 10G SFP+ slot for ultra-fast, long-distance fiber networking. Each 2.5G switch with an SFP+ port features a durable metal enclosure and can be mounted to the wall for setup flexibility. The fanless design lowers energy consumption and eliminates operating noise. TRENDnet's reliable 2.5G Ethernet switches with a 10G SFP+ port are cost-effective solutions to increase your network's throughput.
2.5G Ports
Equipped with 2.5GBASE-T RJ-45 ports that provide ultra-fast speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.
10G SFP+ Port
A dedicated 10G fiber SFP+ port for an ultra-fast network connection provides a cost-effective solution in adding 10G link capability.
Fanless
The fanless design of the 2.5G switches with an SFP+ port lowers energy consumption costs and eliminates operating noise.
FEATURES | Easy Installation
No configuration needed, simply connect network devices to the 2.5G switch with an SFP+ port
2.5G Ports
Equipped with 2.5GBASE-T RJ-45 ports, the 2.5Gb Ethernet switch provides ultra-fast speeds capable of up to 2.5Gbps over existing Cat5e or better cabling
10G SFP+ Port
Dedicated 10G fiber SFP+ port for an ultra-fast network connection provides a cost-effective solution in adding 10G link capability to an SMB network
Switching Capacity
60Gbps switching capacity
Fanless
Fanless design on the 2.5G switch with an SFP+ port lowers energy consumption and eliminates operating noise
Housing Design
Sturdy metal housing
- Expand your network capacity with the help of 8 networking ports and transfer your data quickly and easily
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree

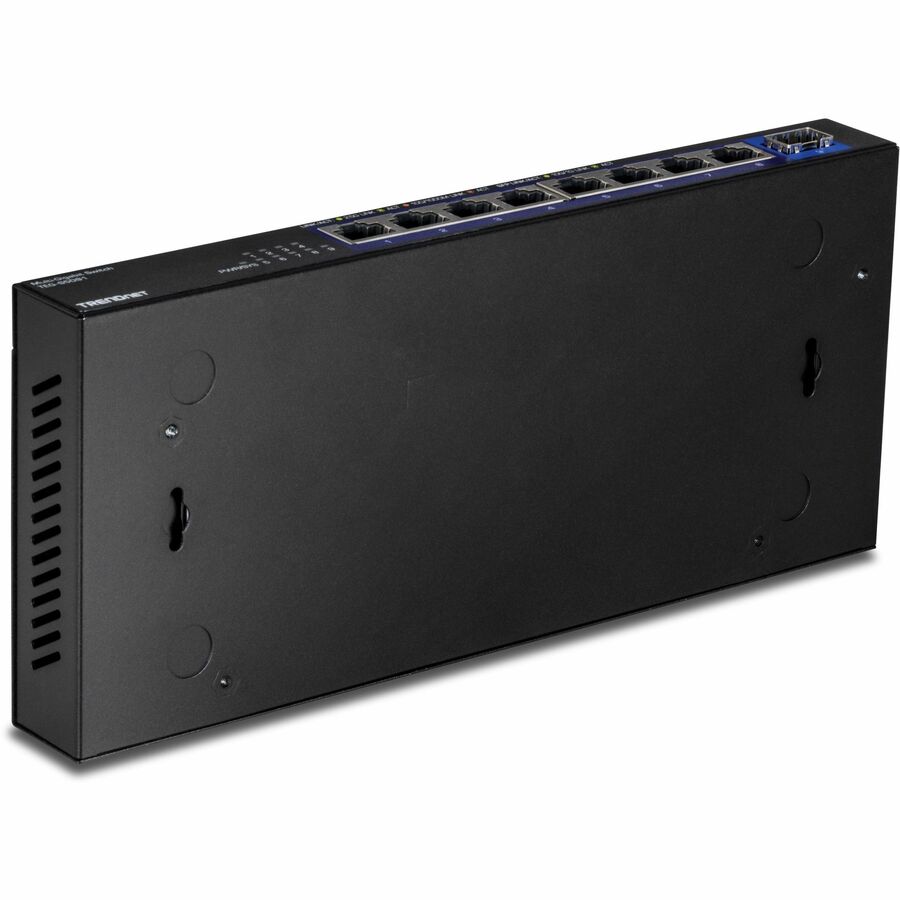

- With Wall mounting feature, you can conveniently install the switch while keeping the wires and cables organized
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
- Power Source : Power Adapter
- Modular : Yes
- Form Factor : Wall Mountable
- Package Contents :
- 9-Port 2.5G Unmanaged Switch with 10G SFP+ Port
- Quick Installation Guide
- Power Adapter (12V DC, 1A)
- Manufacturer Website Address : http://www.trendnet.com
- Manufacturer : TRENDnet
- Product Model : TEG-S5091
- Features : Fanless
- Manageable : No
- Network Technology : 2.5GBase-T,10GBase-X
- Ethernet Technology : 2.5 Gigabit Ethernet,10 Gigabit Ethernet
- TAA Compliant : Yes
- Layer Supported : 2
- Input Voltage : 120 V AC,230 V AC
- Port/Expansion Slot Details : 8 x 2.5 Gigabit Ethernet Network,1 x 10 Gigabit Ethernet Expansion Slot
- Limited Warranty : Lifetime
- Product Material : Metal
- Network (RJ-45) : Yes
- Product Type : Ethernet Switch
- Length : 9.45" (240 mm)
- Number of Total Expansion Slots : 1
- Networking Standards : IEEE 802.3bz,IEEE 802.3ae,IEEE 802.3x,IEEE 802.3z,IEEE 802.3ab,IEEE 802.3az
- Total Number of Network Ports : 8
- Power Consumption : 9.50 W
- Media Type Supported : Twisted Pair,Optical Fiber
- Country of Origin : Taiwan
- Expansion Slot Type : SFP+
- Number of SFP+ Slots : 1
