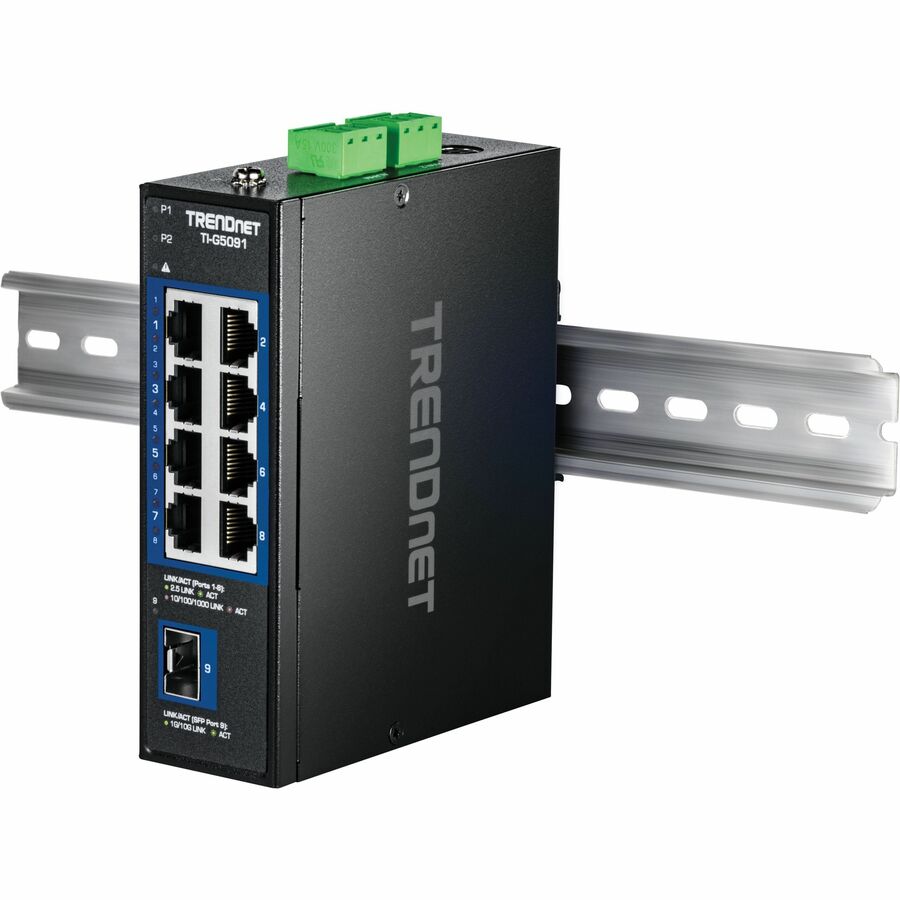

TRENDnet 9-Port Industrial 2.5G DIN-Rail Switch with 10G SFP+ Port TI-G5091

TRENDnet's 9-Port Industrial 2.5G DIN-Rail Switch with 10G SFP+ Port, model TI-G5091, features a rugged IP50 rated metal enclosure and is designed to work in the harshest networking environments. This industrial 2.5G switch is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° - 75° C (-40° - 167° F). Redundant power inputs with overload current protection, and a power failure alarm relay minimize network downtime. This industrial multi-gig switch features 2.5G RJ-45 ports for high-speed device connections, and a 10G SFP+ port for backbone fiber networking applications.

Multi-Gigabit Ports

This industrial 2.5G switch features 2.5G RJ-45 ports for high-speed device connections, and a 10G SFP+ port that support high-speed and long-distance fiber networking applications.

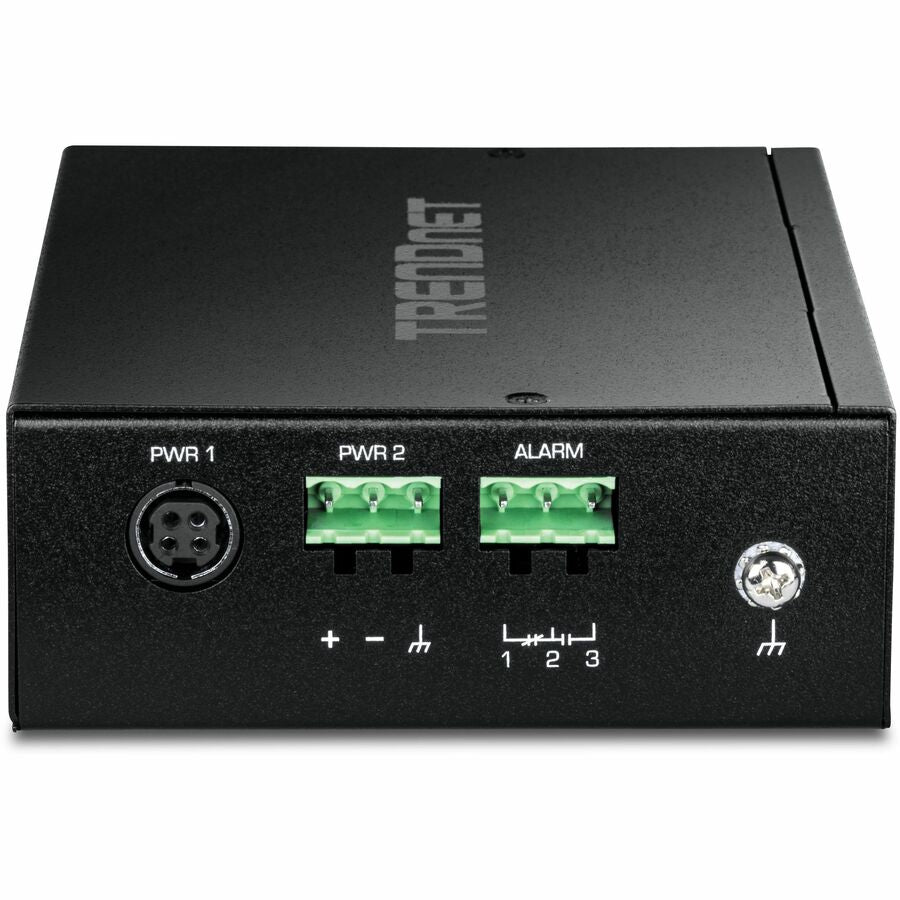

Redundant Power

Multiple power inputs provide redundant power with overload current protection on this industrial multi-gig switch, minimizing overall network downtime (power supply sold separately).

Industrial Hardened Design

Equipped with a rugged IP50 rated housing, designed to withstand a high degree of vibration and shock, and operate within an extreme temperature range of -40° - 75° C (- 40° - 167° F).

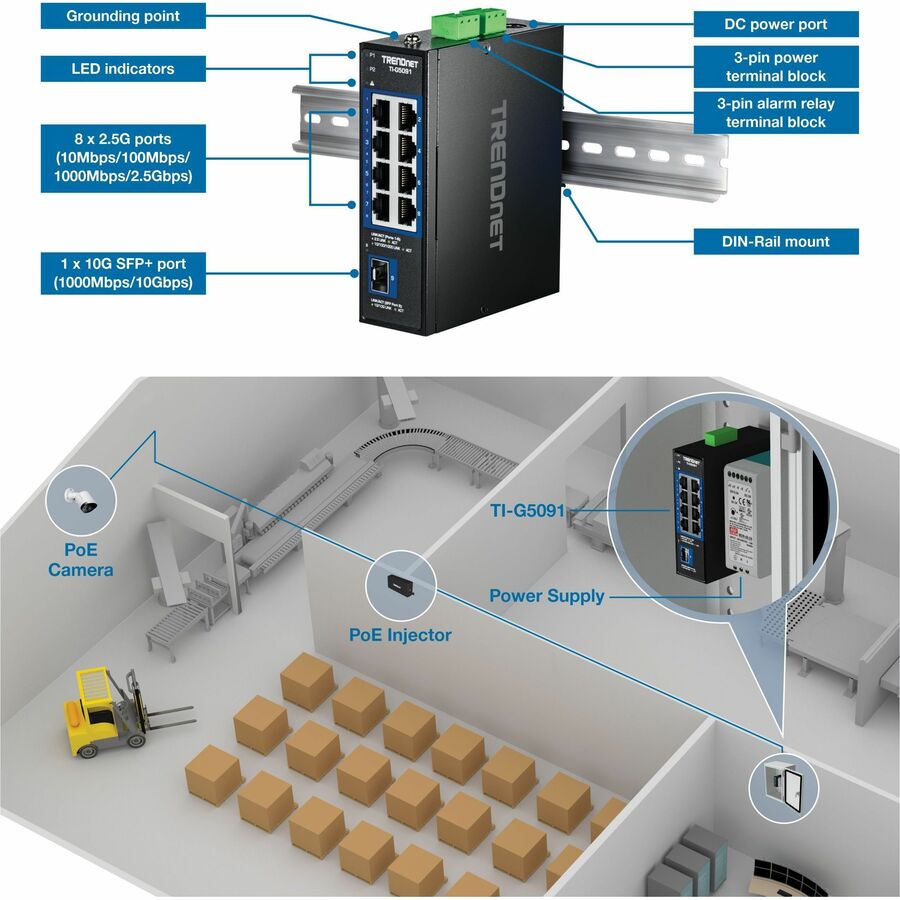

FEATURES | Multi-Gigabit Ports

The industrial 2.5Gb Ethernet switch features 2.5G RJ-45 ports for high-speed device connections, and a 10G SFP+ port that supports long-distance fiber networking applications

DIN-Rail / Wall Mounts

IP50 rated metal enclosure with included DIN-Rail mount and wall mount hardware

Redundant Power

Multiple power inputs on the industrial 2.5G switch provide redundant power with overload current protection (power supply sold separately, models: TI-M6024, 48VDC3000)

Alarm Relay

Alarm relay on the industrial 2.5G switch is triggered by power failure of primary and/or redundant power

Jumbo Frame

Supports larger packets, or Jumbo Frames (up to 12KB), for increased performance

Extreme Temperature Range

Operating temperature range of - 40° - 75° C (-40° - 167° F) allows for the installation of the industrial 2.5G switch in environments with extreme hot or cold conditions

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

Electro Magnetic Compliance

Complies with industrial EMS certifications (IEC 61000-4-2) ESD: Contact: 6kV | Air: 8kV, (IEC 61000-4-4) EFT: Power: 2kV | Signal: 1kV, (61000-4-5) Surge: Power: L-G 2kV/L-L 1KV | Signal: 2kV

Grounding Point

Grounding point for high voltage protection

Switching Capacity

60Gbps switching capacity

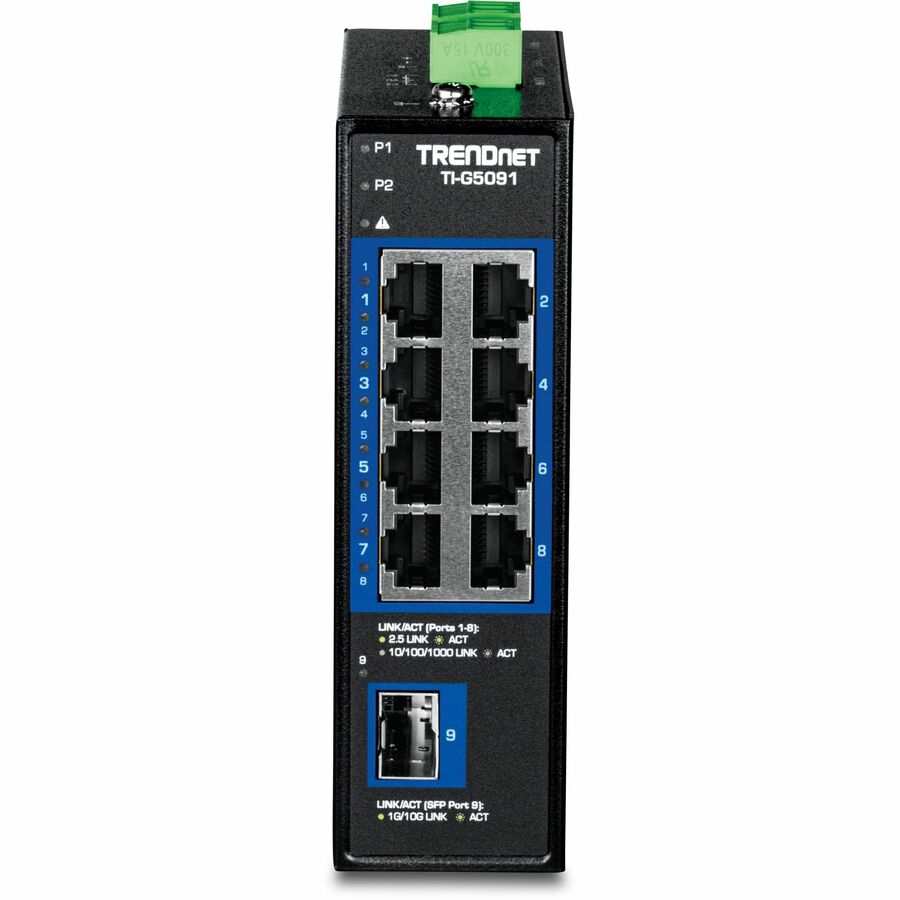

LED Indicator

LED Indicators on the industrial 2.5G switch convey port status

• Quickly and easily set up a wired network with 8 networking ports
• Built-in power supply to ensure all components are being supplied with accurate voltage
• Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
• Gigabit Ethernet port for ultra-fast network speeds
• Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
