Description
- SC-type single-mode fiber port connects over distances of up to 30km
- 10/100Base-TX port supports Auto-Negotiation, Auto-MDIX and Full-Duplex mode
- Supports port level SNMP management
- Functions as a stand alone converter or with the TFC-1600 fiber chassis
- Lifetime TRENDnet Manufacturer's Warranty
- NDAA / TAA compliant (U.S. and Canada only)

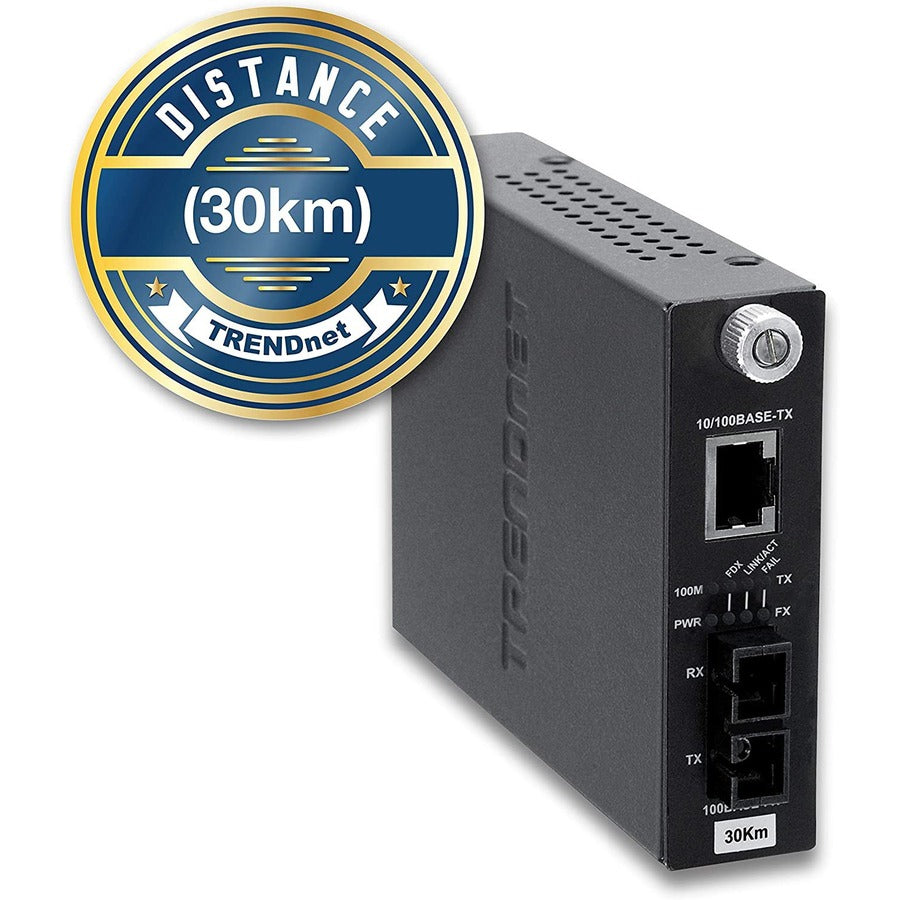

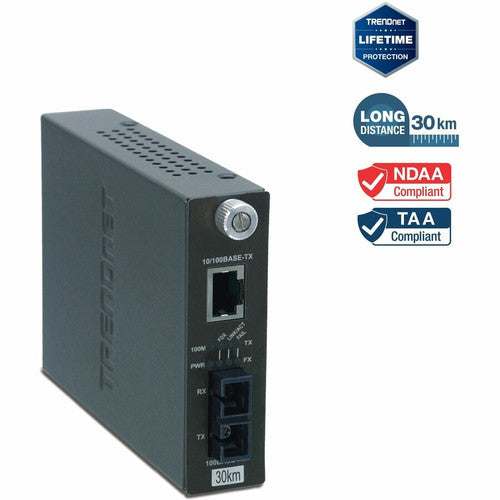

The TFC-110S30i Intelligent Fiber Converter works with the TFC-1600 chassis system or as standalone unit. This converter is a Single Mode SC-Type fiber converter that supports SNMP management and spans distances of up to 30km (18.6 miles). Ports include 1 x 10/100Base-TX (RJ-45) port and 1 x 100Base-FX fiber port (SC-Type).
Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX / 100Base-FX standards
One 10/100Base-TX auto-negotiation RJ-45 port
Auto-negotiation 10/100Mbps connection speed and Half/Full-duplex mode on TX port
Auto MDIX for 10/100Base-TX port and one 100Mbps fiber port with single-mode SC-type connector
Provides Dip switch to set: Fiber (FDX/HDX), Ethernet (Forced/Auto-Negotiation), Ethernet Speed (10M/100M), LLR (Enable/Disable), LLCF (Enable/Disable)
Half / Full-Duplex mode selector on Fiber port
Support LLCF (Link Loss Carry Forward, Link Pass Through)
Support LLR (link Loss Return) for FX port
Monitor and configure Ethernet or Fiber's duplex mode, speed, LLCF, LLR, and receive link down information via management module (TFC-1600MM) and chassis (TFC-1600)
Status LED indicators for Power, Link/Activity, Full-Duplex, Link Fail, and Speed
Wall-Mountable
Optional 19" system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters
Lifetime TRENDnet Manufacturer's Warranty
PACKAGE CONTENTS
TFC-110S30i
Multi-Language Quick Installation Guide
Power Adapter (5V, 1A)
- NDAA / TAA compliant (U.S. and Canada only)
- SC-type single-mode fiber port connects over distances of up to 30km
- Supports port level SNMP management
- 10/100Base-TX port supports Auto-Negotiation, Auto-MDIX and Full-Duplex mode
- Lifetime TRENDnet Manufacturer's Warranty
- Functions as a stand alone converter or with the TFC-1600 fiber chassis
- Ethernet Technology : Fast Ethernet
- TAA Compliant : Yes
- SC Port Type : Duplex
- Product Condition : New
- Number of SC Ports : 1
- Limited Warranty : 3 Year Lifetime
- Form Factor : Wall Mountable
- Manufacturer Website Address : http://www.trendnet.com
- Network (RJ-45) : Yes
- Total Number of Ports : 2
- Product Type : Transceiver/Media Converter
- Manufacturer : TRENDnet
- Product Model : TFC-110S30i
- Maximum Distance Supported : 18.6 Mile
- Media Type Supported : Twisted Pair,Optical Fiber
- Fiber Mode Supported : Single-mode
- Country of Origin : Taiwan
- Number of Network (RJ-45) Ports : 1
- Network Technology : 10/100Base-TX,100Base-FX
