TRENDnet Intelligent 100Base-TX vers 100Base-FX Convertisseur de média fibre SC monomode à double longueur d'onde (40 km / 24,9 miles) ; Port RJ-45 ; Convertisseur fibre vers Ethernet ; Protection à vie ; TFC-110S40D3i TFC-110S40D3i

• Must use with TFC-110S40D5i
• Port level SNMP management support
• SC-type dual-wavelength single-mode fiber port
• 10/100Base-TX RJ-45 port
• Spans distances up to 40 km (24.9 miles)

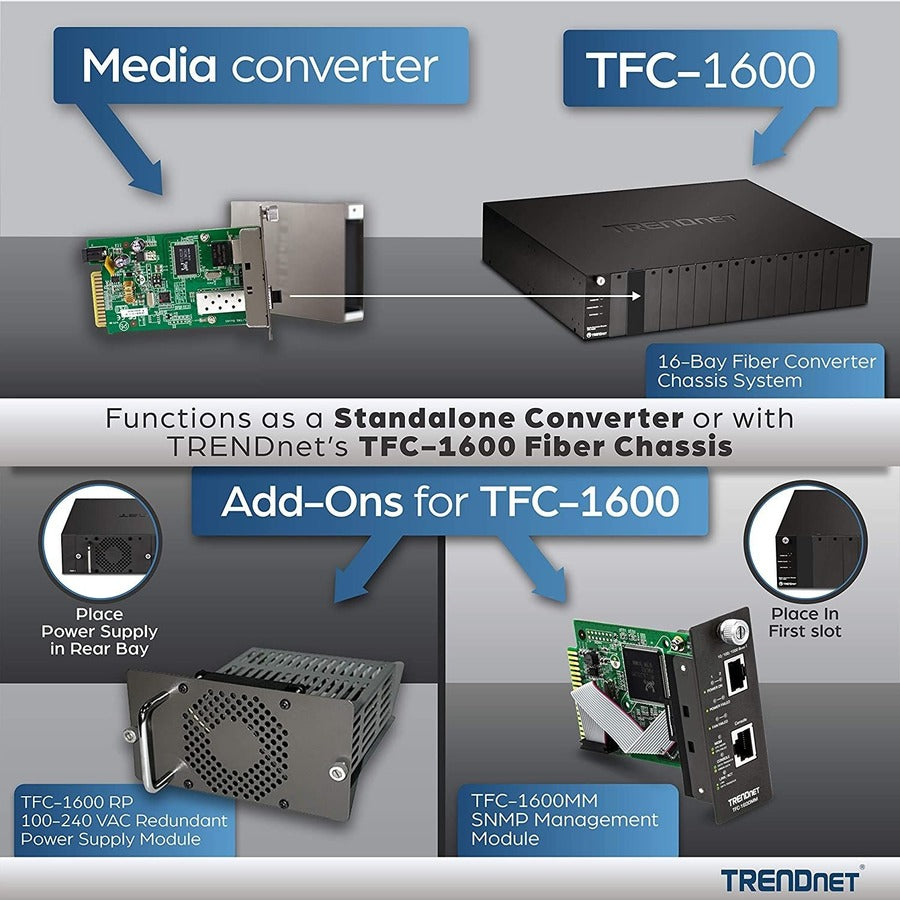

• Functions as a standalone converter or with the TFC-1600 fiber chassis

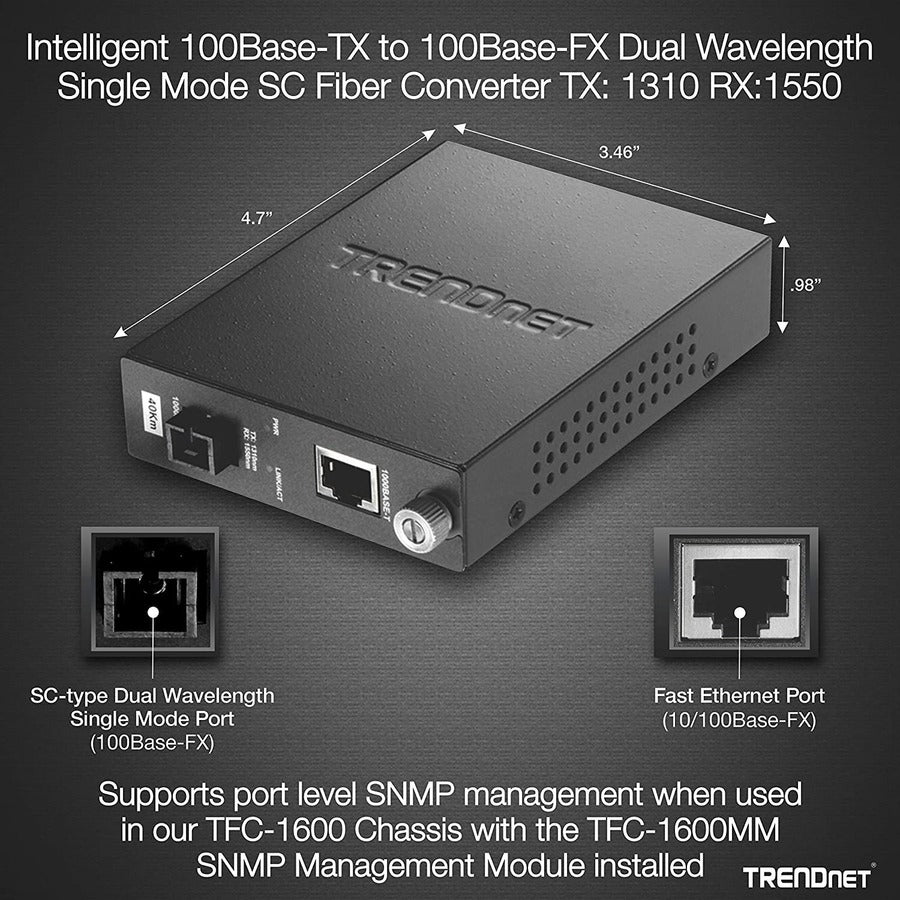

The TFC-110S40D3i intelligent fiber converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Dual Wavelength Single Mode SC-Type fiber converter that spans distances up to 40km (24.9 miles). This module must be used with the TFC-110S40D5i module. Ports include 1 x 10/100Base-TX (RJ-45) port and 1 x 100Base-FX (SC Simplex Type) port.
Must use with TFC-110S40D5i
Compliant with IEEE 802.3u 100Base-TX and 100Base-FX standards
1 x 10/100Base-TX RJ-45 port
1 x 100Base-FX single-mode bi-directional simplex-SC type fiber port
Port level SNMP management support
Monitor and configure Ethernet or Fiber's duplex mode, LLR, port on / off and receive link down information via management module TFC-1600MM and chassis TFC-1600
Dip switch controls: Fiber (Full / Half-Duplex), UTP (Auto negotiation / Manual), Speed (10 Mbps / 100 Mbps),
Copper (Full / Half-Duplex), LLR (Enable / Disable), and LLCF (Enabled / Disable)
Link Loss Carry Forward (LLCF) support
Link Loss Return (LLR) support
Status LED indicators for Power and Link / Activity
Removable metal enclosure
Wall mountable
Functions as a standalone converter or with the TFC-1600 fiber chassis
Lifetime TRENDnet Manufacturer's Warranty
PACKAGE CONTENTS
TFC-110S40D3i
Multi-Language Quick Installation Guide
Power adapter (5 V DC, 1 A)

More from the Manufacturer

• Functions as a standalone converter or with the TFC-1600 fiber chassis
• 10/100Base-TX RJ-45 port
• Spans distances up to 40 km (24.9 miles)
• SC-type dual-wavelength single-mode fiber port
• Port level SNMP management support
• Must use with TFC-110S40D5i

• Environmental Certification : RoHS,WEEE
• Ethernet Technology : Fast Ethernet
• Environmentally Friendly : Yes
• SC Port Type : Simplex
• Product Condition : New
• USB : No
• Number of SC Ports : 1
• Limited Warranty : 3 Year Lifetime
• Form Factor : Desktop,Wall Mountable
• Package Contents :
  • TFC-110S40D3i Media Converter
  • Multi-Language Quick Installation Guide
  • Power Adapter (5 V DC, 1 A)
• Manufacturer Website Address : http://www.trendnet.com
• Network (RJ-45) : Yes
• Total Number of Ports : 2
• Product Type : Transceiver/Media Converter
• DVI : No
• Manufacturer : TRENDnet
• Product Model : TFC-110S40D3i
• Management Port : No
• Maximum Distance Supported : 24.9 Mile
• Media Type Supported : Twisted Pair,Optical Fiber
• Fiber Mode Supported : Single-mode
• Country of Origin : Taiwan
• Number of Network (RJ-45) Ports : 1
• Network Technology : 10/100Base-TX,100Base-FX
