Convertisseur de média fibre intelligent TRENDnet ; Fibre SC monomode double longueur d'onde 1000Base-T à 1000Base-LX (40 km / 24,85 miles)Convertisseur fibre vers Ethernet ; RJ-45 ; Protection à vie ; TFC-1000S40D3 TFC-1000S40D3

• Must use with TFC-1000S40D5

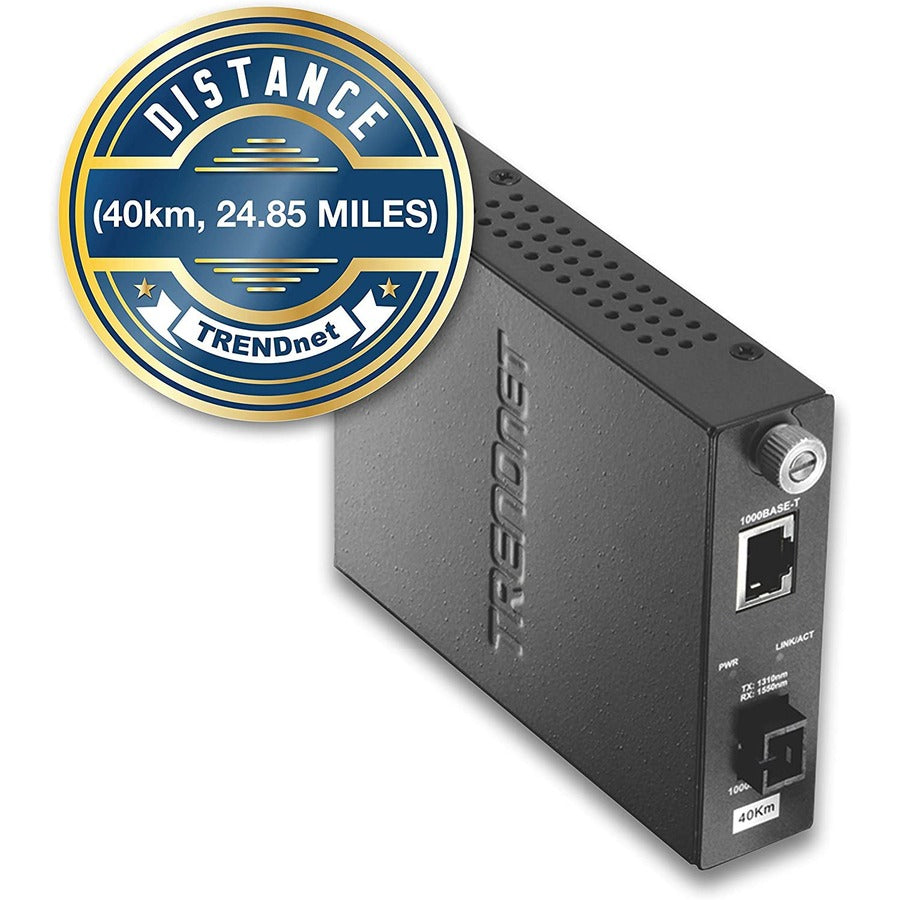

• SC-type dual-wavelength single-mode fiber port connects over distances of up to 40km (24.85 miles)
• 1000Base-T Gigabit copper port supports Full-Duplex mode
• Supports port level SNMP management

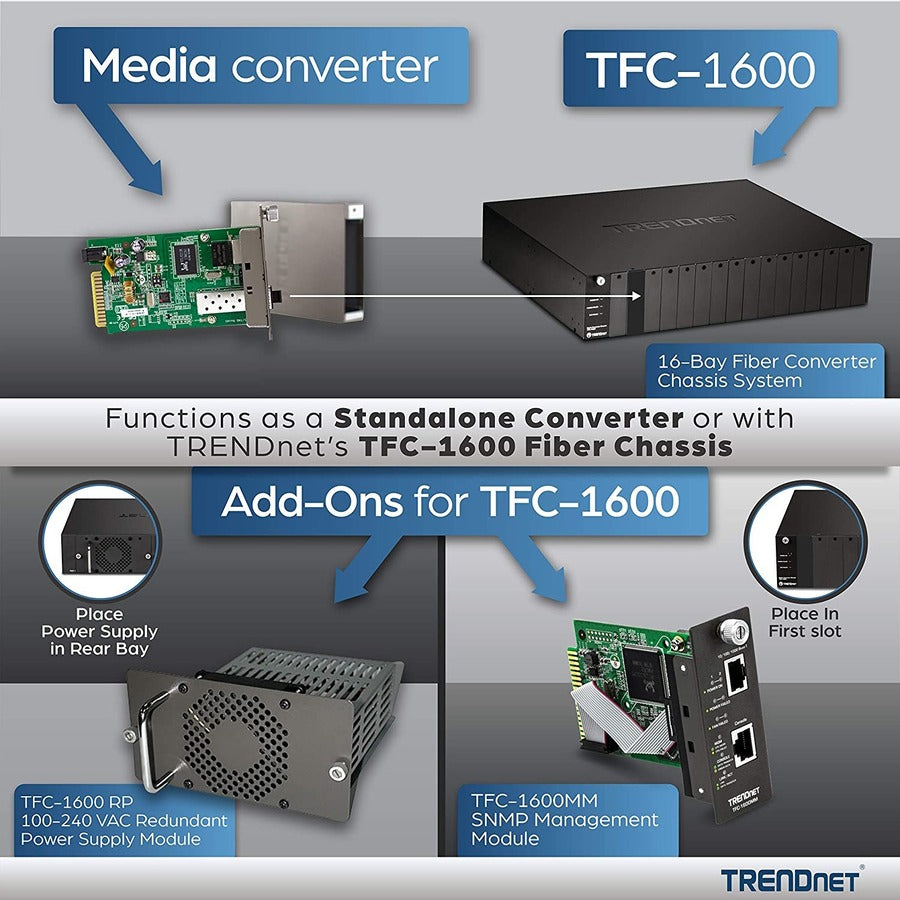

• Functions as a stand alone converter or with the TFC-1600 fiber chassis
• Status LED indicators for Power and Link/Activity
• Wall mountable
• Lifetime TRENDnet Manufacturer's Warranty

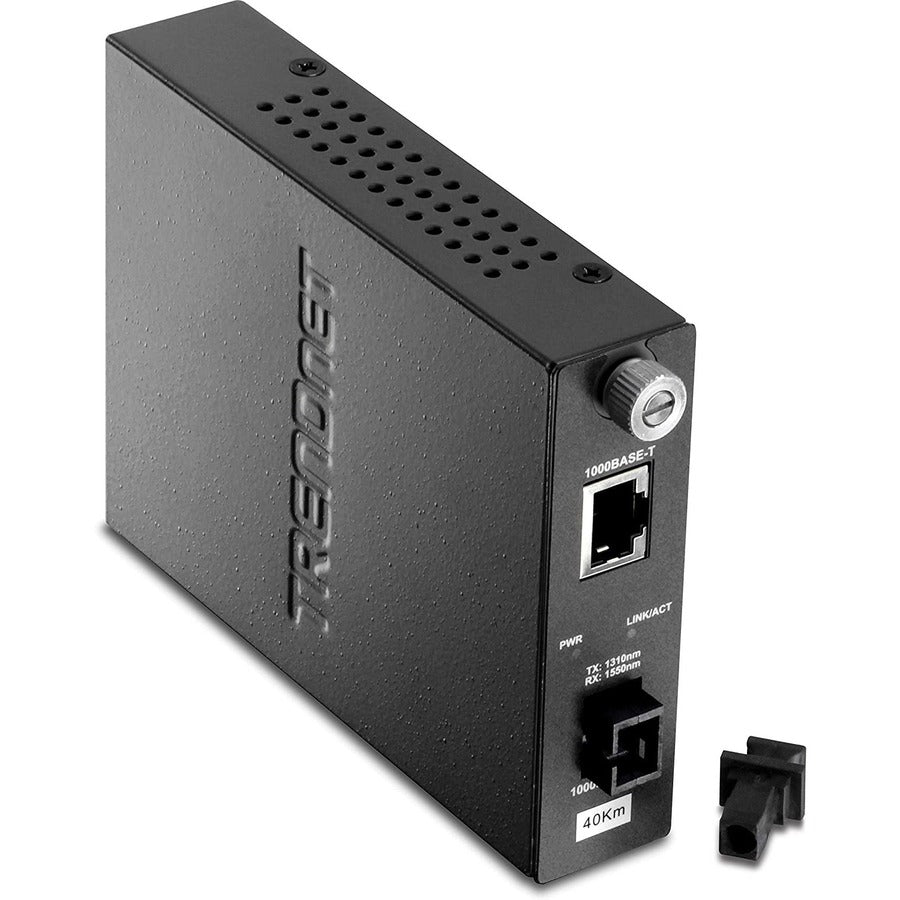

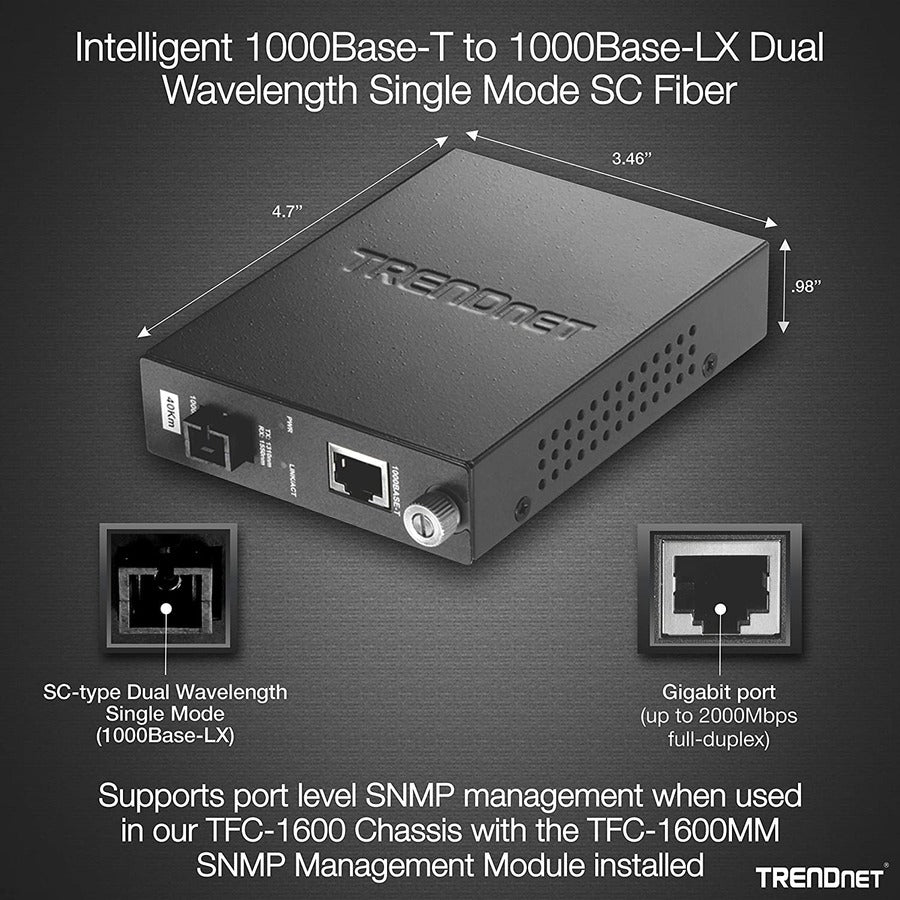

The TFC-1000S40D3 Bi-Directional Intelligent Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Dual Wavelength Single Mode SC-Type fiber converter that supports port-based SNMP reporting and spans distances up to 40 km (24.85 miles). This module must be used with the TFC-1000S40D5 module. Ports include 1 x 1000Base-T (RJ-45) port and 1 x 1000Base-LX (SC Simplex Type) port.
Compliant with IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-LX standards
1 x 1000Base-T RJ-45 port
1 x 1000Base-LX single-mode bi-directional simplex-SC type fiber port
Provides Dip switch to set: Fiber (Forced / Auto-Negotiation), LLR (Enable / Disable)
Support LLCF (Link Loss Carry Forward, Link Pass Through)
Support LLR (Link Loss Return) for FX port
Monitor and configure Ethernet or Fiber's duplex mode, LLR, port on / off and receive link down information via management module TFC-1600MM and chassis TFC-1600
Status LED indicators for Power and Link / Activity
Wall mountable
Optional 19" system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters
Lifetime TRENDnet Manufacturer's Warranty
PACKAGE CONTENTS
TFC-1000S40D3
Multi-Language Quick Installation Guide
Power Adapter (5V, 1A)

More from the Manufacturer

• Lifetime TRENDnet Manufacturer's Warranty
• Wall mountable
• Status LED indicators for Power and Link/Activity
• Functions as a stand alone converter or with the TFC-1600 fiber chassis
• Supports port level SNMP management
• 1000Base-T Gigabit copper port supports Full-Duplex mode
• SC-type dual-wavelength single-mode fiber port connects over distances of up to 40km (24.85 miles)
• Must use with TFC-1000S40D5

• Ethernet Technology : Gigabit Ethernet
• Product Condition : New
• Number of SC Ports : 1
• Limited Warranty : 3 Year Lifetime
• Form Factor : Wall Mountable
• Package Contents :
  • TFC-1000S40D3 UTP/STP to Fiber Media Converter
  • Power Adapter
  • Quick Installation Guide
• Manufacturer Website Address : http://www.trendnet.com
• Network (RJ-45) : Yes
• Total Number of Ports : 2
• Product Type : Transceiver/Media Converter
• Manufacturer : TRENDnet
• Product Model : TFC-1000S40D3
• Maximum Distance Supported : 24.9 Mile
• Media Type Supported : Twisted Pair,Optical Fiber
• Country of Origin : Taiwan
• Number of Network (RJ-45) Ports : 1
• Network Technology : 1000Base-T,1000Base-LX
