Description
- Extend keyboard, video, and mouse controls for distances of up to 150 m (490 ft.)
- Connect the TK-EX3 to a TRENDnet KVM switch to manage multiple servers / computers
- All required cables included (excluding a fast Ethernet cable to connect the transmit and receive units)
- Features Hot-Key commands and 1600 x 1200 resolution support
- 2 Year TRENDnet Manufacturer's Warranty
- NDAA compliant

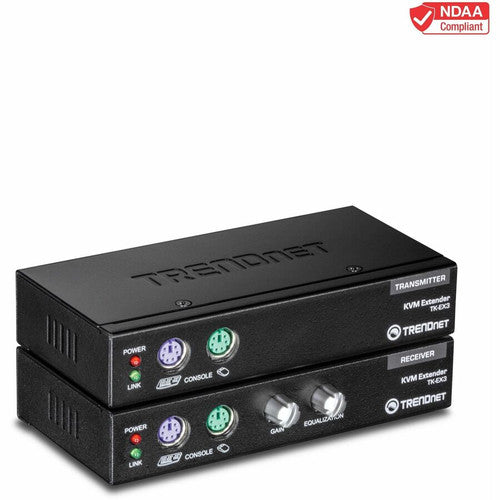

The sturdy KVM Extension Kit extends keyboard, video, and mouse controls for distances of up to 150m (490ft.). Eliminate the time it takes to walk to the networking room by extending KVM controls to your office. Connect the KVM Extension Kit to a TRENDnet KVM switch to control multiple servers from a remote location.

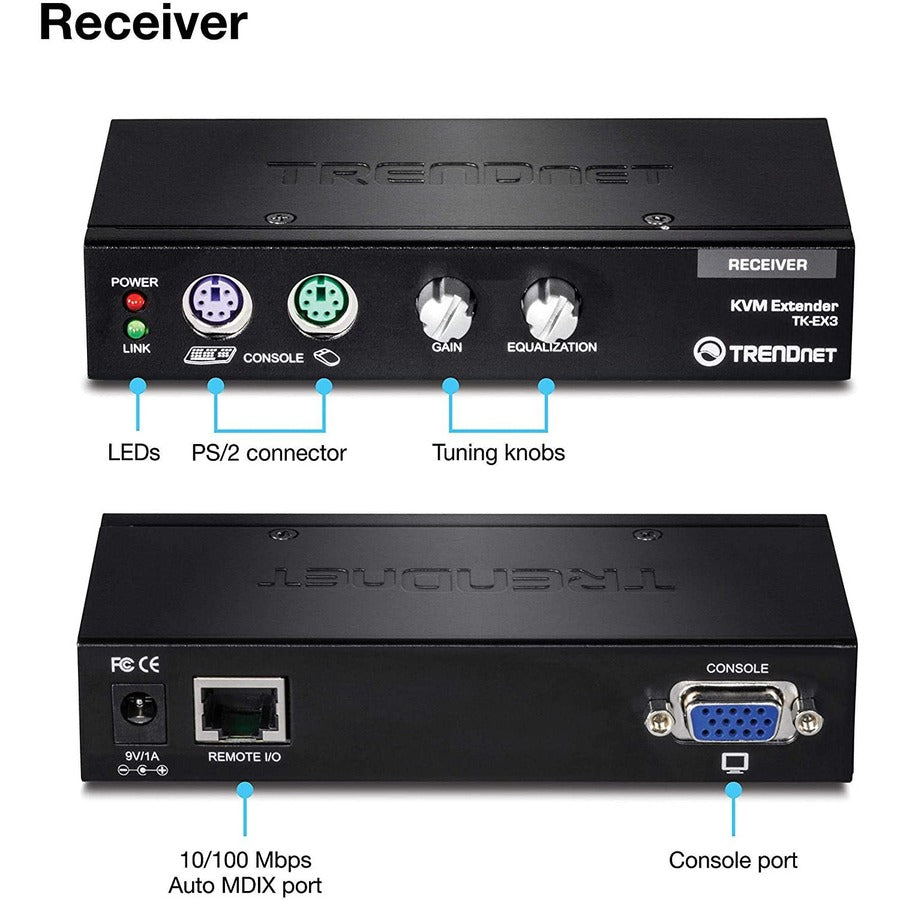

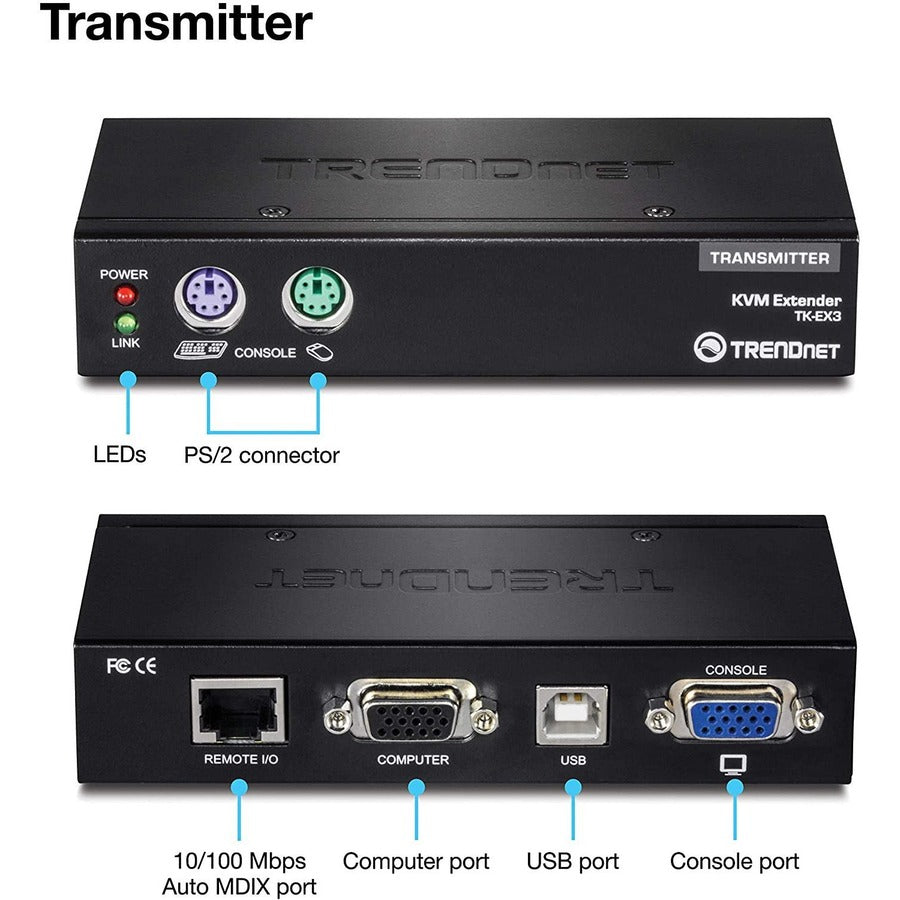

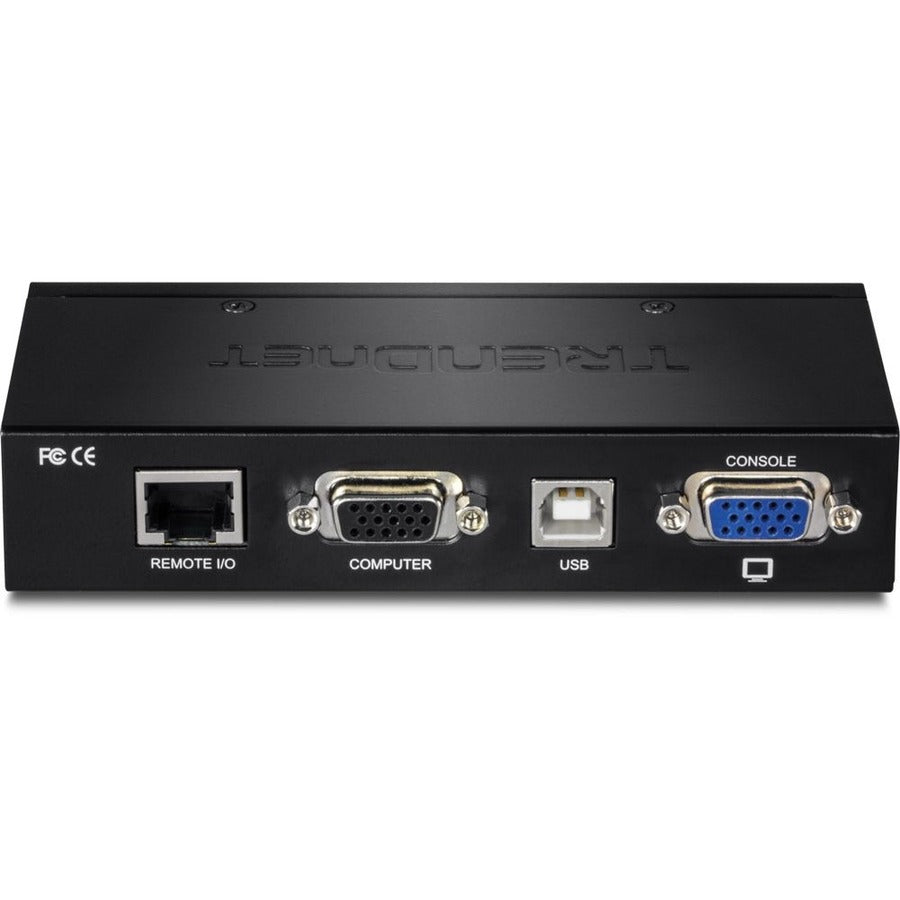

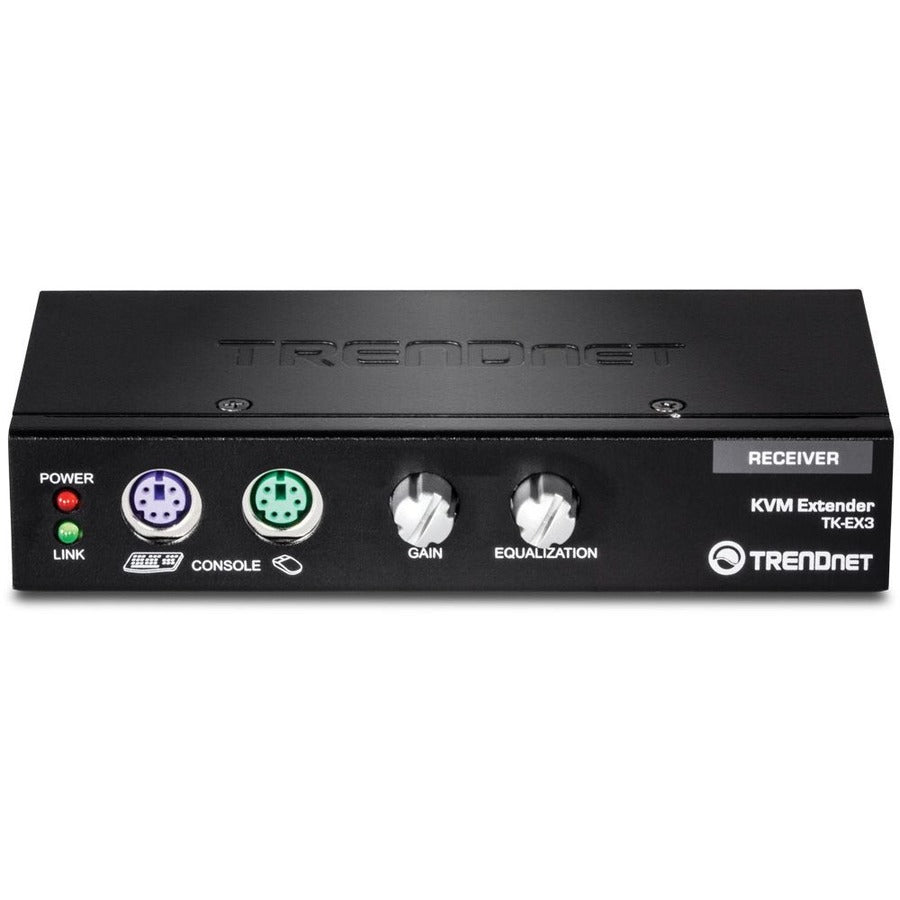

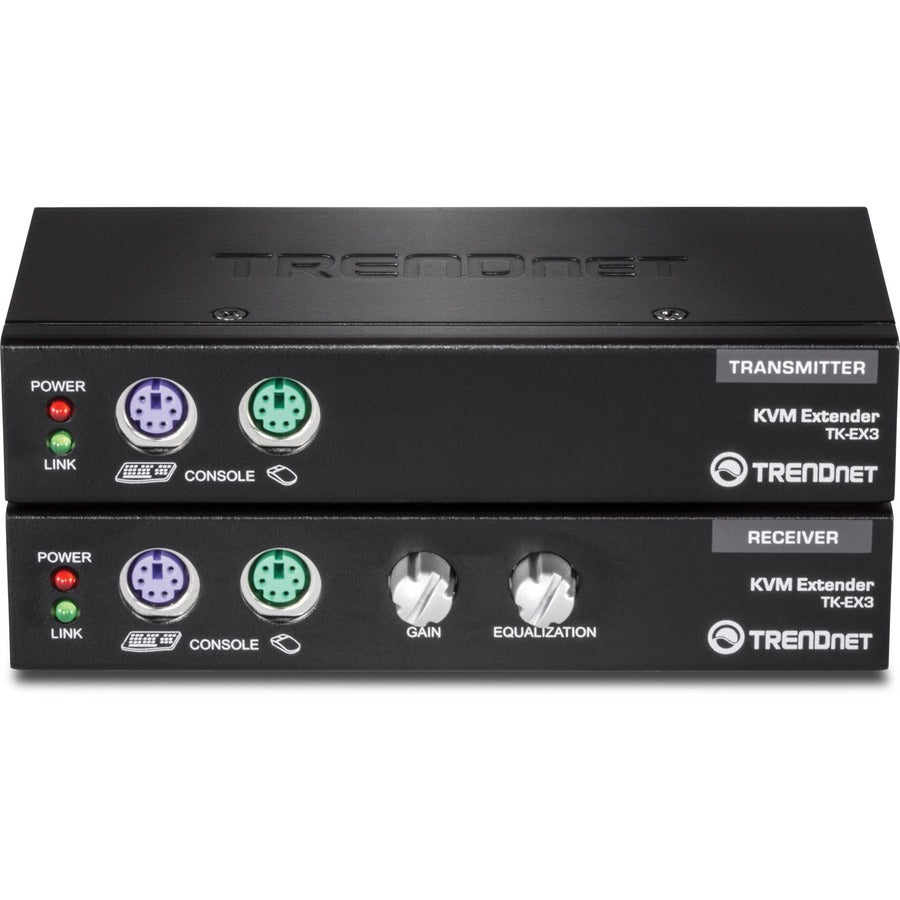

No software installation is required. Simply connect the devices with the included cables for full KVM controls. Use the convenient dials on the front of the remote console unit (receiver unit) to adjust Gain (resolution adjustment) and Equalization (contrast correction). Input hot-key commands to control local and remote console stations. The remote console unit (receiver unit) supports PS/2 Keyboard and mouse devices and monitors with a VGA port. The local console unit (transmitter unit) supports USB, PS/2, and VGA connections.
- Extends keyboard, mouse, and monitor distances up to: 150m (490ft.) at 1280 x 1024 resolution and 100m (328ft.) at 1600 x 1200 resolution
- Controls multiple servers remotely when used with a KVM switch
- Displays high quality resolution up to 1600 x 1200 pixels
- Provides local and remote console ports to access one computer

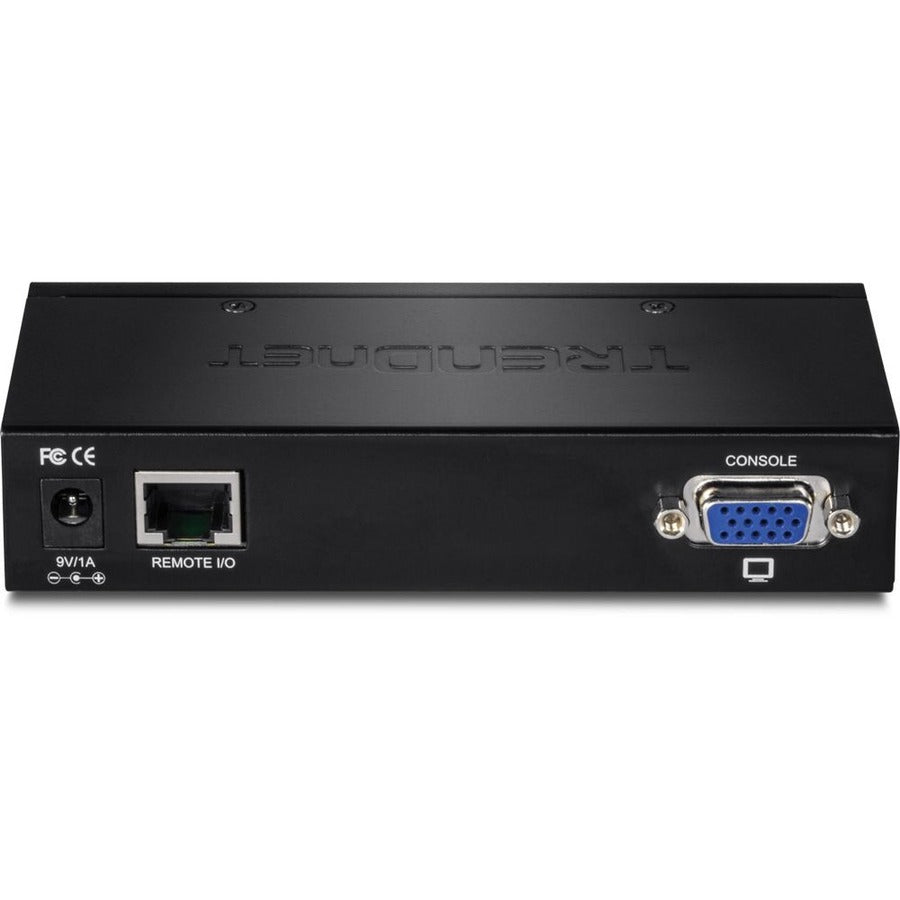

- Connect the local console (transmitter) to the remote console (receiver) with an Ethernet cable
- Cat. 5, Cat. 5E or Cat. 6 Ethernet cable compliant
- Fine-tune resolution on the remote consoles viewing monitor, with Gain (resolution adjustment) and Equalization (contrast correction)
- PS/2 and USB interface support for loca console (transmitter)
- PS/2 interface support for remote console (receiver)
- Data and power LED indicators
- Supports Windows, Mac, and Linux operating systems
- No driver or software installation required
- 2-year limited warranty
PACKAGE CONTENTS

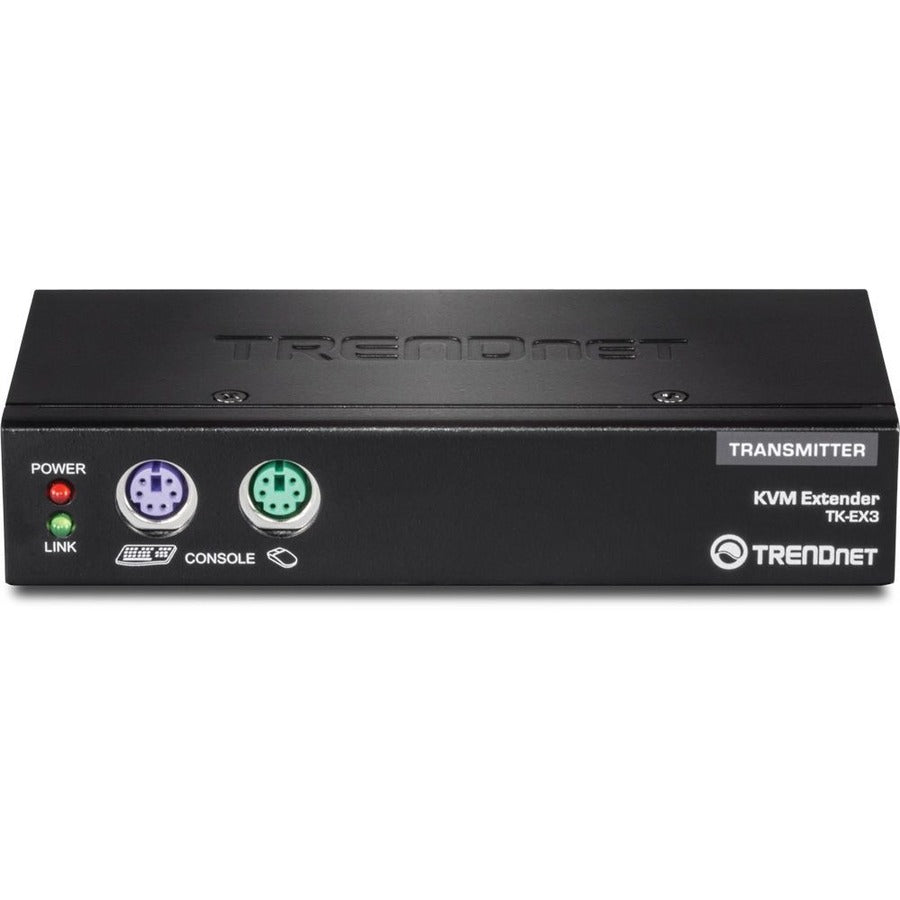

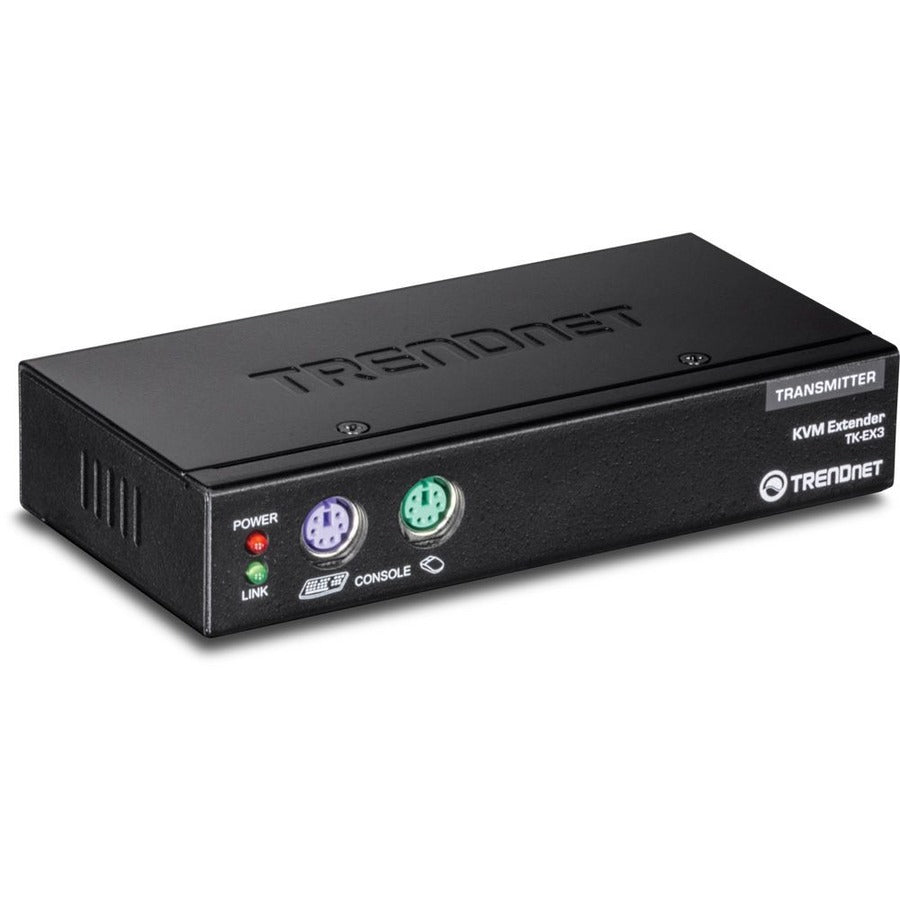

TK-EX3 Transmitter

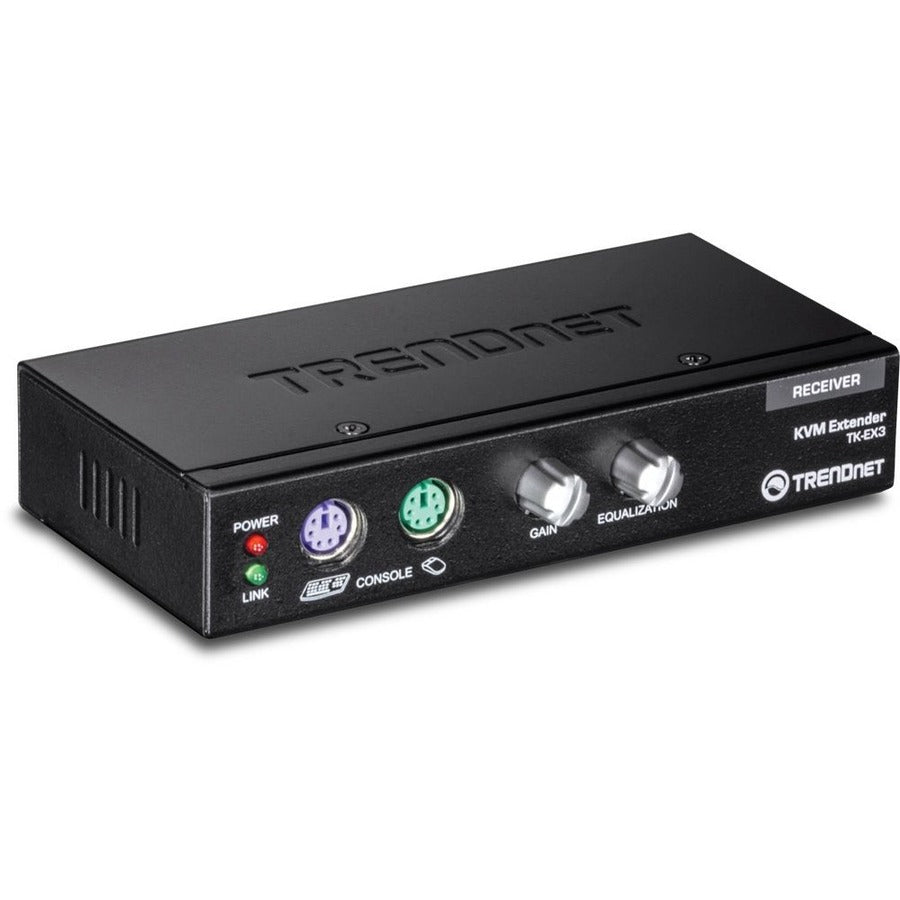

TK-EX3 Receiver
Multi-Language Quick Installation Guide
Power adapter (9V DC, 1A)
VGA combination cable (1.2m/ 4ft.)
USB cable (1.2m/ 4ft.)
- 2 Year TRENDnet Manufacturer's Warranty
- NDAA compliant
- Features Hot-Key commands and 1600 x 1200 resolution support
- All required cables included (excluding a fast Ethernet cable to connect the transmit and receive units)
- Connect the TK-EX3 to a TRENDnet KVM switch to manage multiple servers / computers
- Extend keyboard, video, and mouse controls for distances of up to 150 m (490 ft.)
- Network (RJ-45) : Yes
- Number of Remote Users Supported : 1
- Product Type : KVM Console/Extender
- Number of VGA Ports : 3
- KVM Technology : Analog
- Graphic Mode : UXGA
- Country of Origin : Taiwan
- Number of Network (RJ-45) Ports : 2
- Connectivity Technology : Wired
- PS/2 Port : Yes
- Number of Local Users Supported : 1
- Maximum Operating Distance : 492.13 ft (150000 mm)
- Number of PS/2 Ports : 3
- Transmitter Weight (Approximate) : 275 g
- Package Contents :
- TK-EX3 Transmitter
- TK-EX3 Receiver
- Multi-Language Quick Installation Guide
- Power adapter (9V DC, 1A)
- VGA combination cable (1.2m/ 4ft.)
- USB cable (1.2m/ 4ft.)
- Manufacturer Website Address : http://www.trendnet.com
- Number of USB Ports : 1
- Manufacturer : TRENDnet
- Product Model : TK-EX3
- Receiver Weight (Approximate) : 283.5 g
- Maximum Video Resolution : 1600 x 1200
- Environmentally Friendly : Yes
- Product Condition : New
- USB : Yes
- Number of Computers Supported : 1
- Input Voltage : 9 V DC
- Limited Warranty : 2 Year
- VGA : Yes
