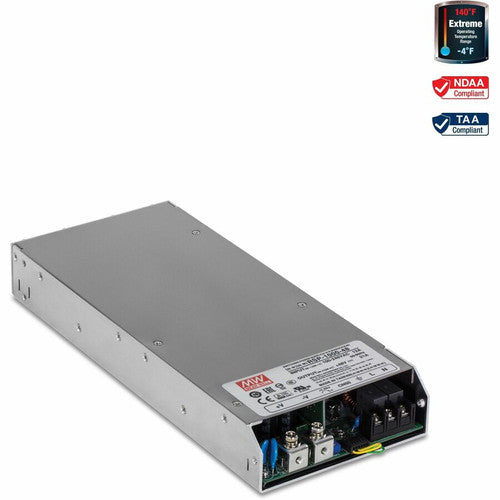

TRENDnet TI-RSP100048, 1000 W, 48 V DC, 21 A AC vers DC, alimentation industrielle avec fonction PFC TI-RSP100048

• DEVICE INTERFACE: Input: 100 - 240V AC, 50/60Hz, 12A; Output: 1008W, 48V, 21A; 2 x Active cooling fans; Compatible 19" 4U rack mounting bracket (Model Number: TI-R4U); Power LED indicator
• INDUSTRIAL APPLICATIONS: Power network devices for manufacturing, general industrial, warehousing, surveillance, and corporate applications.
• 1000W POWER: Provides up to 1000W (48V DC, 21A) of power for PoE devices such as switches, network cameras, and access points.
• EXTREME OPERATING TEMPERATURE: Designed for industrial environments with an operating temperature range of -20° - 60° C (-4° - 140° F)
• PROTECTIONS: Short circuit, overload, over voltage, over temperature
• ACTIVE PFC: Built-in active Power Factor Controller helps eliminate unusable reactive powerr
• Protections: Short circuit, overload, over voltage, over temperature

• High efficiency 94% and low power dissipation
• Built-in active Power Factor Controller
• NDAA / TAA compliant (U.S. and Canada only)

TRENDnet's AC to DC Industrial Power Supply, model TI-RSP100048, supplies up to 1000W (48V DC, 21A) of power to industrial equipment, such as PoE switches and WiFi access points. This industrial power supply comes with active PFC and overload current protection.

1000W Power

Provides up to 1000W (48V DC, 21A) of power for PoE devices, such as switches, network cameras, and access points

Active PFC

Built-in active Power Factor Controller helps eliminate unusable reactive power

Protection

Overload, short circuit, over voltage, and over temperature protection

Full Load Test

Power supply undergoes a 100% full load burn-in test

Operating Temperature

Designed for industrial environments with an operating temperature range of -20° - 60° C (-4° - 140° F)

Safety Certifications

Certified for UL 508 and TUV EN60950-1

Electro Magnetic Emission/Immunity

Compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2/3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A, SEMI F47, and GL approved

Vibration Resistant

Rated for vibration (IEC 60068-2-6)

LED Indicator

LED indicator confirms power to the unit

More from the Manufacturer

• Industrial power supply
• Compatible with 4U 19" Rackmount TI-R4U (sold separately)
• Provides up to 1000W of power (48V DC, 21A)
• High efficiency 94% and low power dissipation
• Built-in active Power Factor Controller

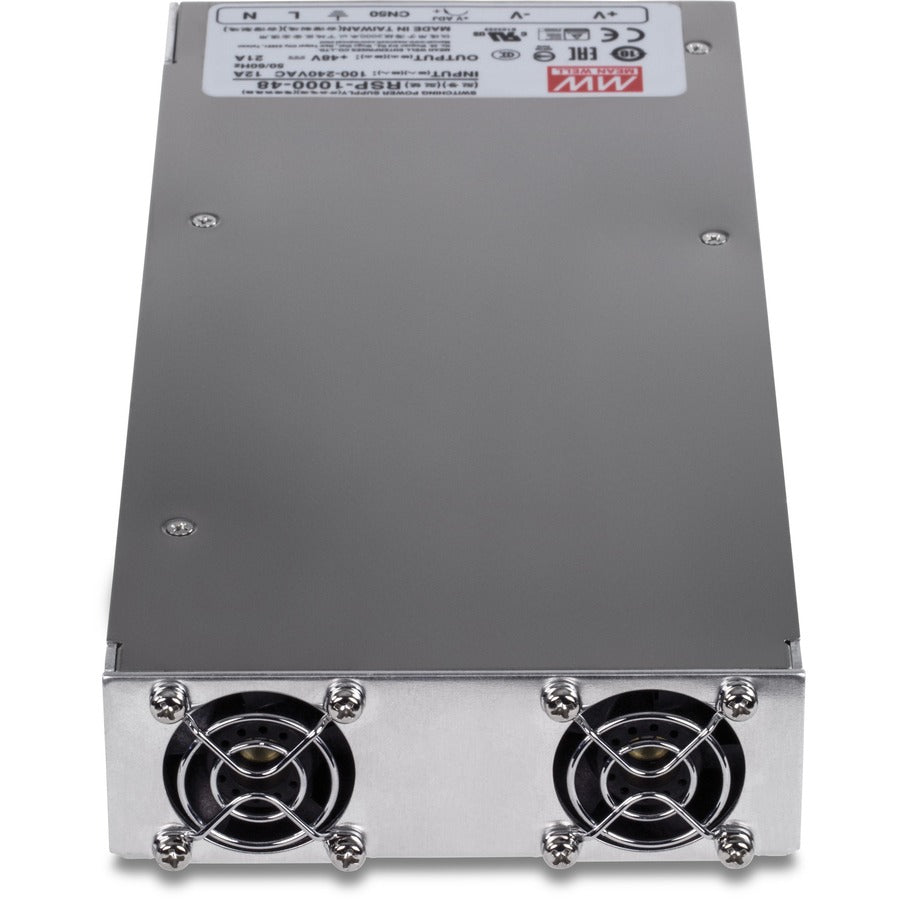

• Forced air cooling via built-in DC fans
• Protections: Short circuit, overload, over voltage, over temperature
• UL 508 approved
• Built-in DC OK relay contact
• 100% full load burn-in test
• -20° - 60° C (-4° - 140° F) operating temperature range
• NDAA / TAA compliant (U.S. and Canada only)

. .

• Form Factor : Rack-mountable
• Manufacturer Website Address : http://www.trendnet.com
• TAA Compliant : Yes
• Product Type : Power Supply
• Efficiency : 94%
• Product Condition : New
• Number of Fans : 2
• Manufacturer : TRENDnet
• Product Model : TI-RSP100048
• Limited Warranty : 3 Year
• Output Voltage : 48 V DC
• Country of Origin : Taiwan
