Tripp Lite 100 Go/120 Go à 40 Go Cassette de dérivation 2 24 fibres vers 6 12 fibres N484-2M24-6M12

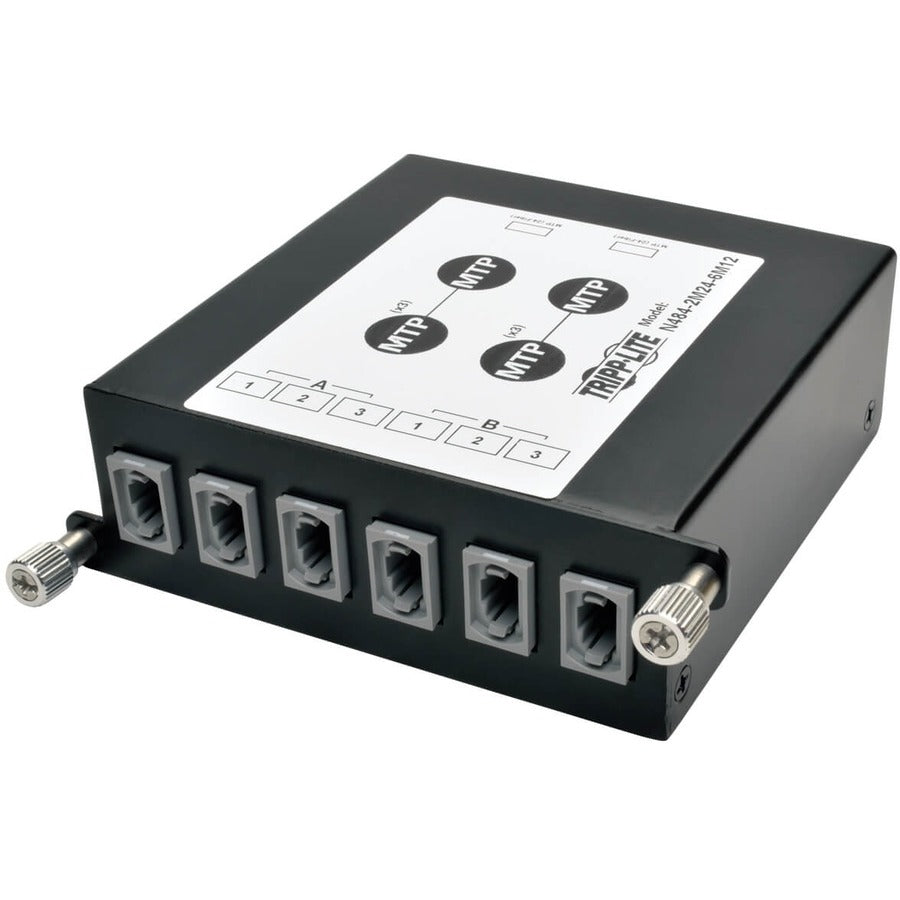

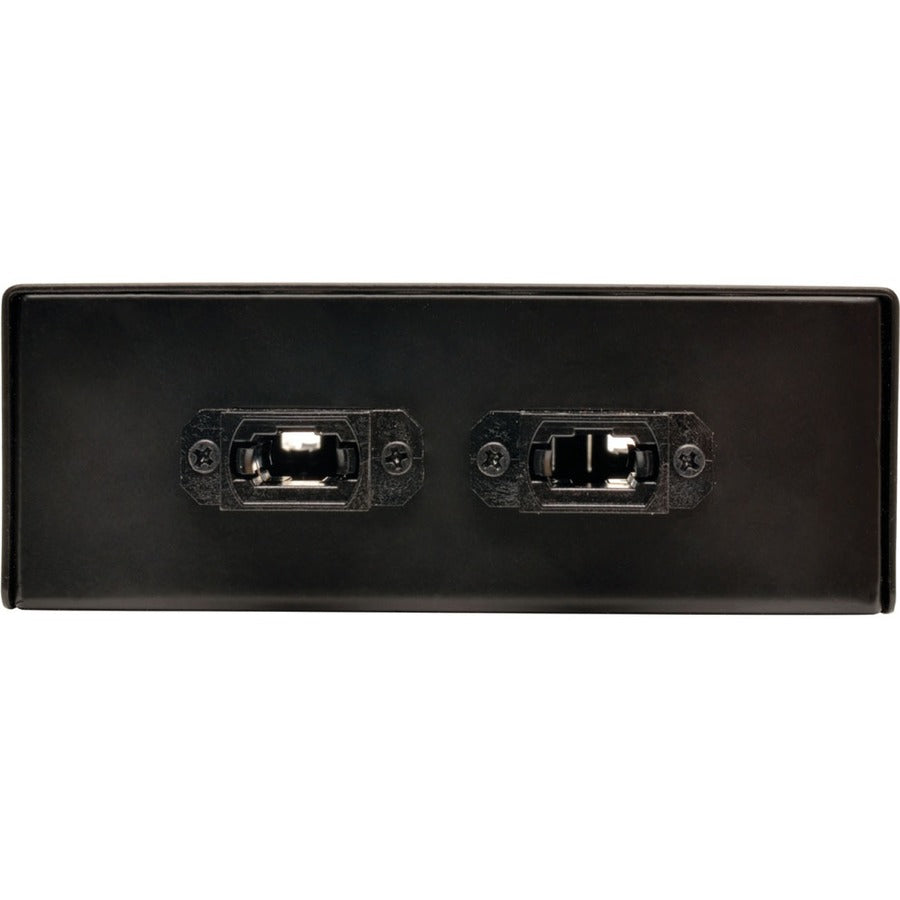

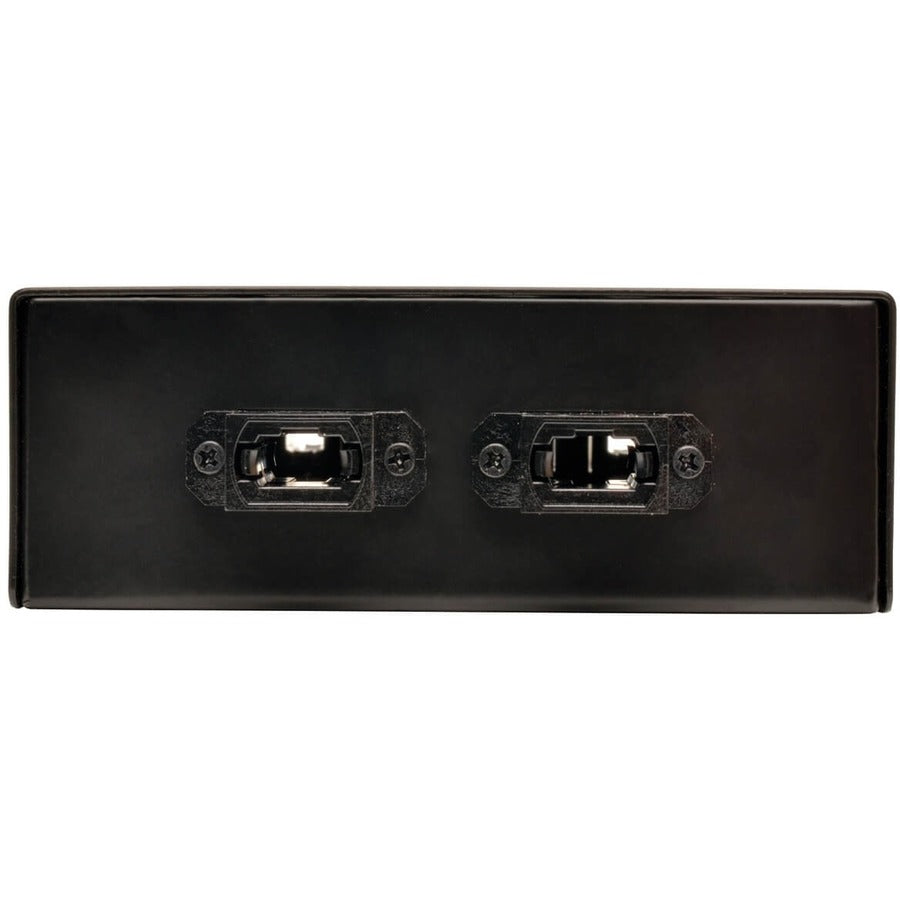

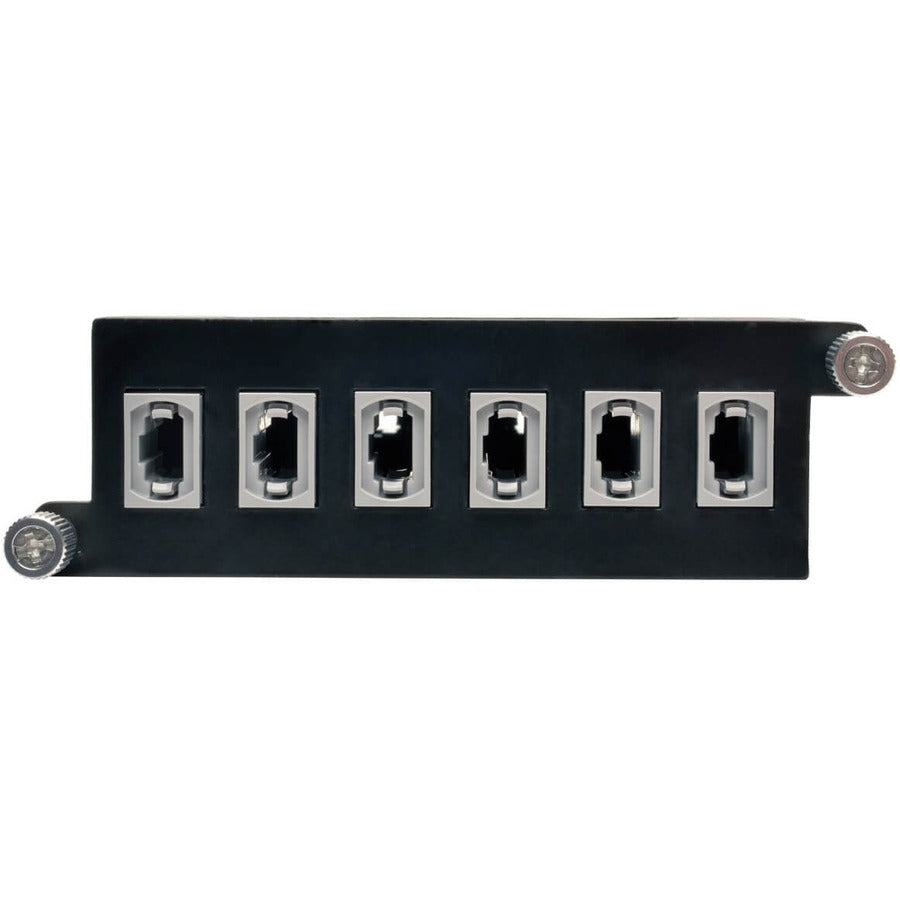

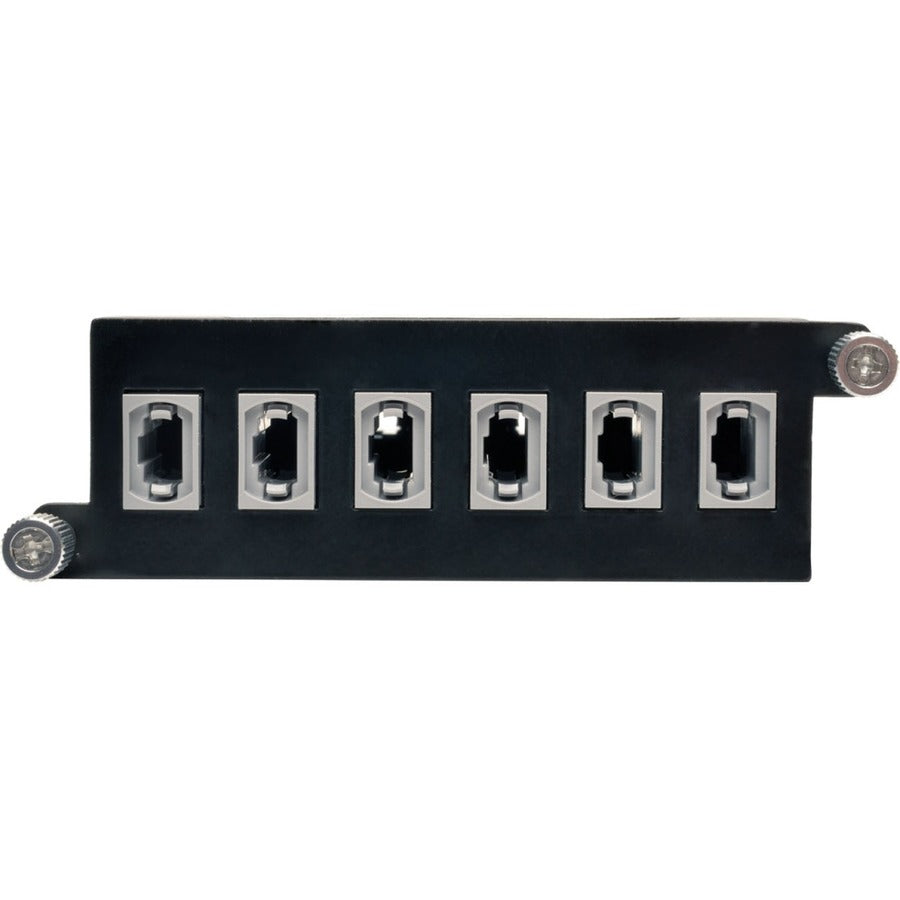

Tripp Lite's N484-2M24-6M12 is a High Density 100/120Gb to 40Gb Breakout Cassette, with (x2) 24-Fiber MTP/MPO connections to (x6) 12-Fiber MTP/MPO connections. Designed specifically for use with Tripp Lite's N484-00U and N484-01U chassis'; up to 4 cassettes per N484-01U, or 1 per N484-00U. Supports 100/120 GbE, internally using OM4 fiber optic cable, with an extremely low insertion loss of 0.35db that is well under the IEEE-802.3ae maximum channel loss spec of <25db. Effectively trunks 48-fibers between IDF's and MDF's with (x2) 24-Fiber MTP/MPO cables, breaking out to (x6) 12-fiber MTP/MPO connections. Polarity B, Optimized for Parallel Optics, Base-8 Connectivity. Guaranteed compatibility when used with recommended Tripp Lite cabling. Designed specifically for use with Tripp Lite cables, such as the N844- and N846-Series cables. Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory terminated connectors that reduce the time and labor required of field connector terminations. Cassette housing made with heavy duty, 1.0mm Cold Rolled Steel.NOTE: Each 24 Fiber cable breaks out to three, 12-fiber MTP ports, with only 8 of the 12 pins populated ( 4 inner pins unused ). QSFP+ and QSFP28 support.

• Max insertion loss of 0.35dB falls well under the IEEE 802.3ae maximum channel loss spec of <25dB
• Supports 100/120 GbE, internally using OM4 fiber optic cable
• 100/120Gb to 40Gb Breakout Cassette, with (x2) 24-Fiber MTP/MPO connections to (x6) 12-Fiber MTP/MPO connections

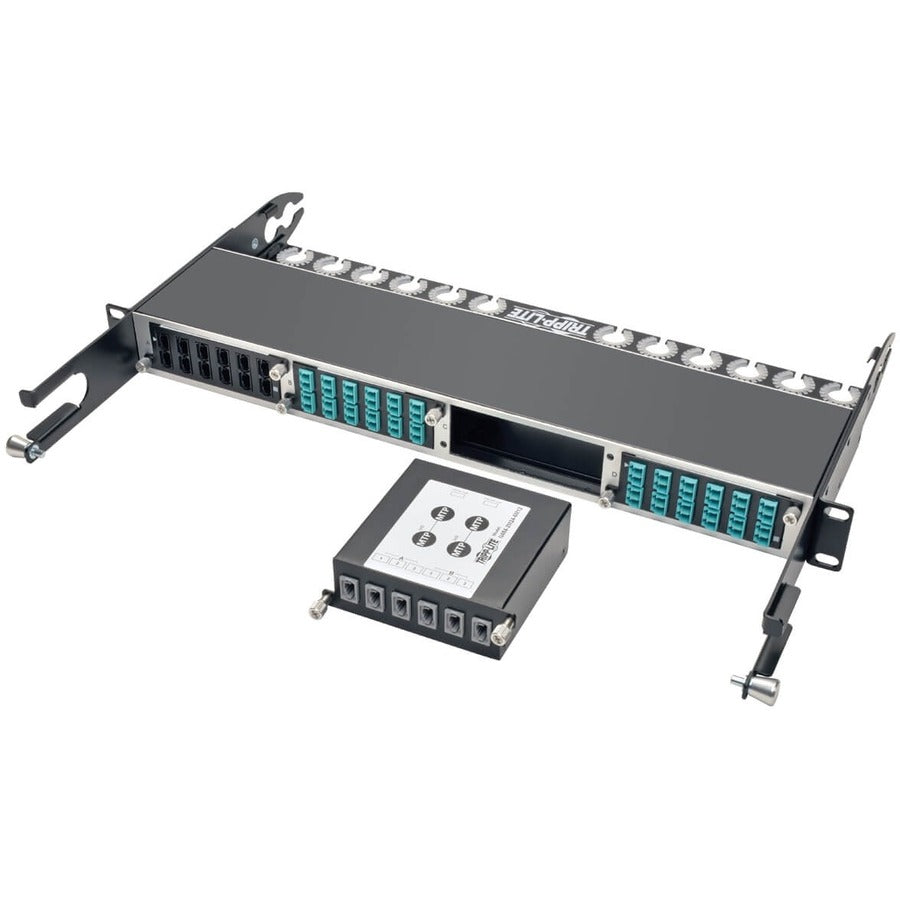

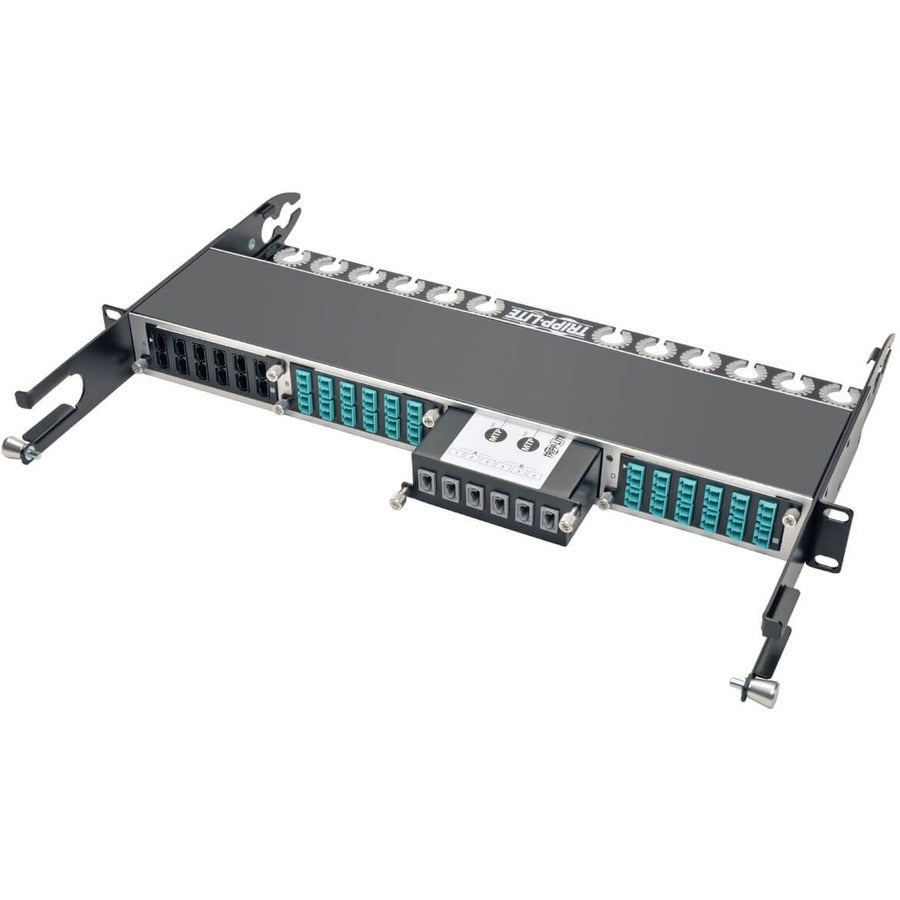

• High Density Fiber Cassette for use with Tripp Lite's N484-00U and N484-01U chassis'

. .

• Number of RJ-11 Ports : 8
• Environmentally Friendly : Yes
• Product Color : Black
• Limited Warranty : Lifetime
• Package Contents :
  • N484-2M24-6M12 Network Patch Panel
  • Quick Start Guide
• Total Number of Ports : 8
• Product Type : Network Patch Panel
• Manufacturer : Tripp Lite by Eaton
• Product Model : N484-2M24-6M12
• Country of Origin : China
• Number of MT Ports : 8
• Manufacturer Website Address : https://tripplite.eaton.com/
• Color Family : Black
