Description

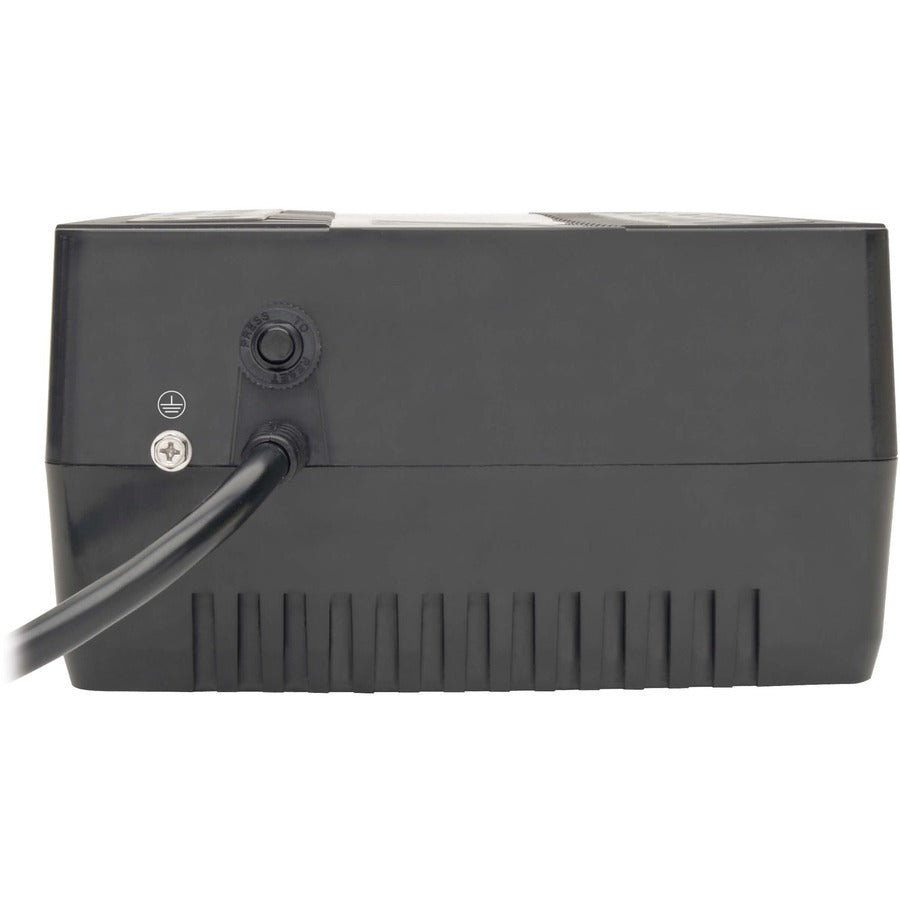

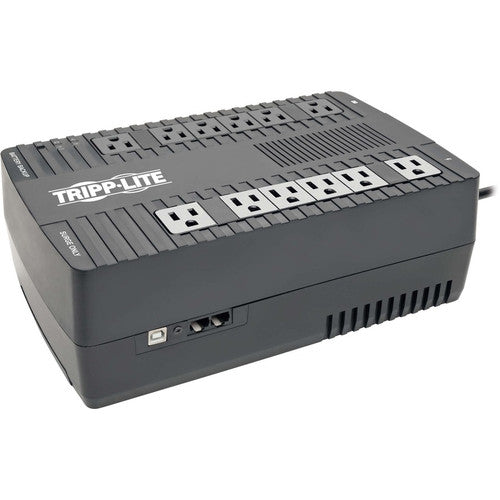

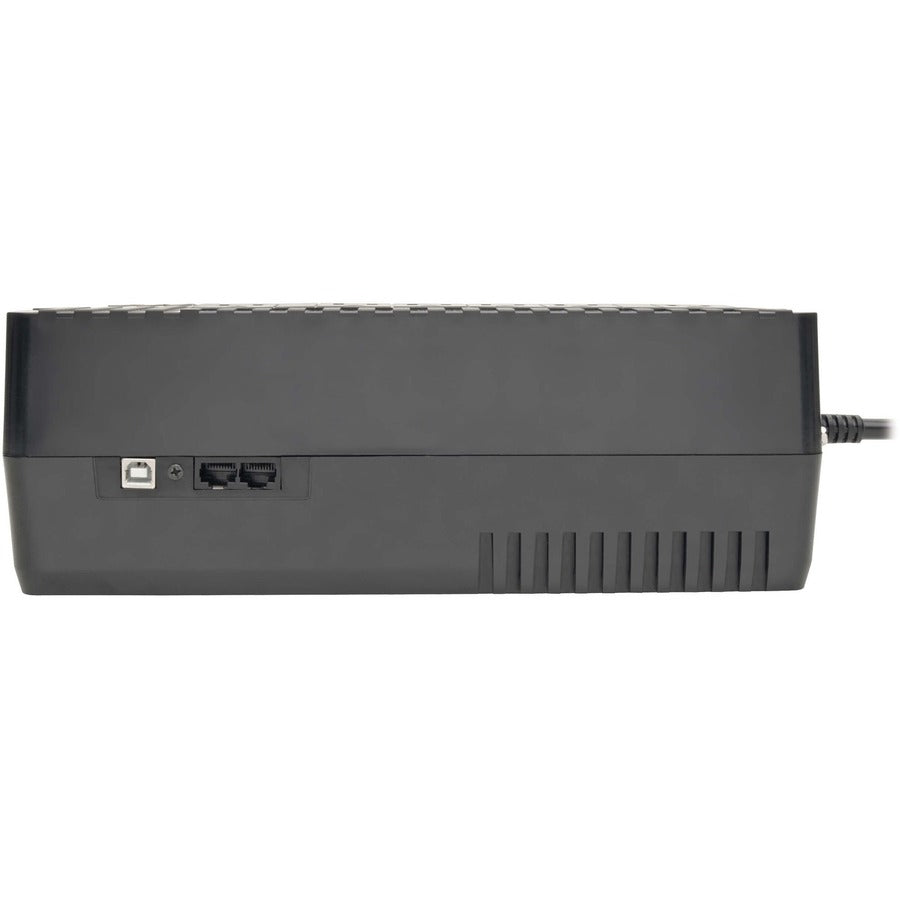

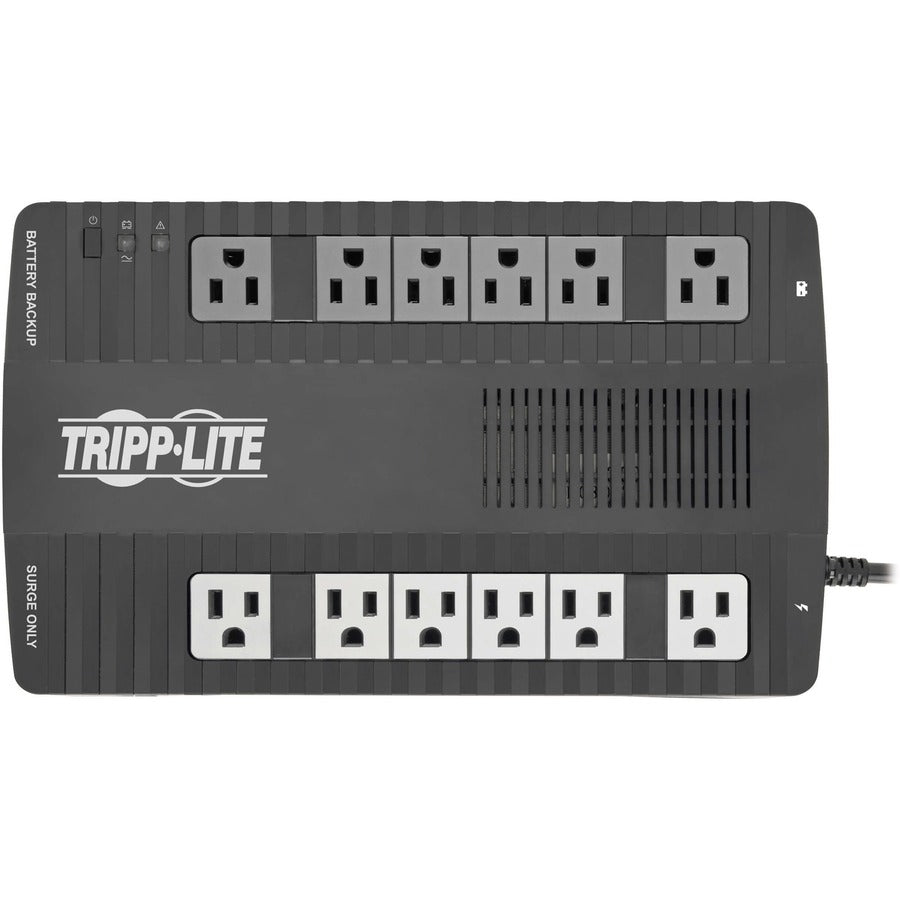

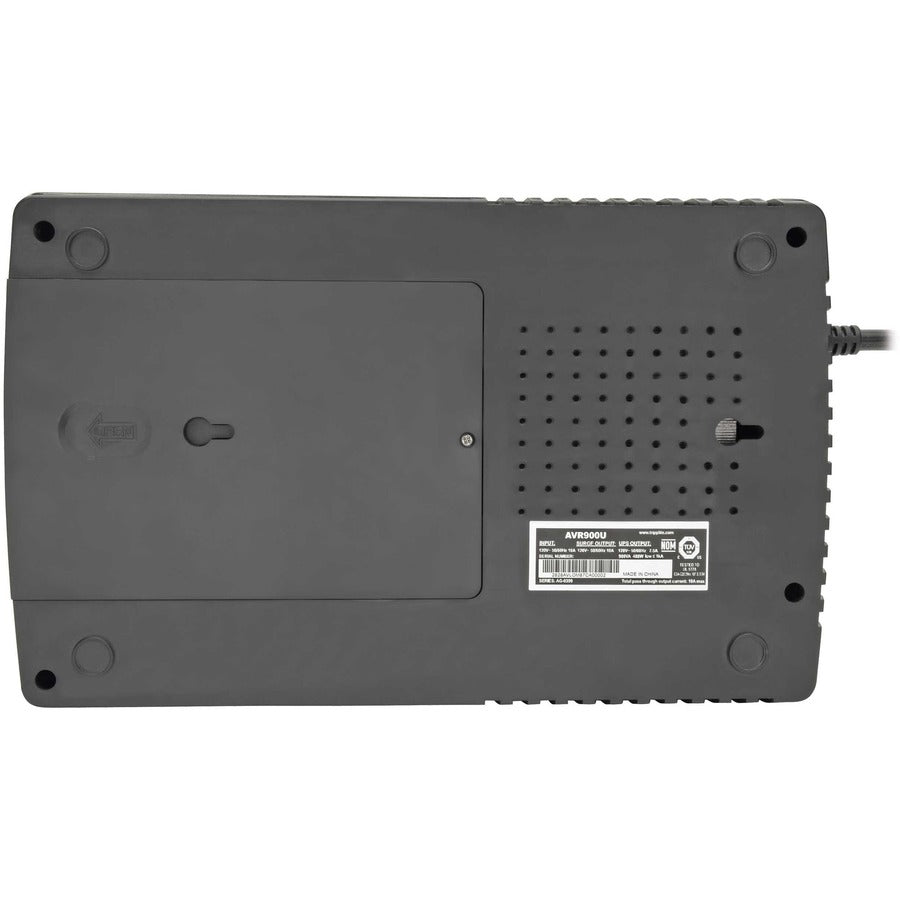

AVR Series Line-Interactive UPS System offers ultra-compact, line-interactive protection for PCs and workstations. System maintains 120 volt nominal output over an input range of 83 to 147 volts. Workstation-optimized features include USB port (HID-PDC compliant), single-line telephone/DSL surge suppression, space saving right-angle input plug, six battery/surge-protected outlets and six additional surge-only outlets (12 total). USB port (included cable) works with free unattended shutdown software. Housing is mountable.
- 3-year limited warranty
- $100,000 Ultimate Lifetime Insurance
- High >96% efficiency with low BTU ratings saves electricity and lowers your energy costs
- Home-friendly alarm remains silent in backup mode, sounding only when imperative
- 12 NEMA 5-15R outlets power and protect PC, home theater or digital signage equipment
- Keeps AC power running during blackouts to allow time for file saves and safe shutdown
- Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
- Environmental Certification : RoHS
- Manufacturer Website Address : http://www.tripplite.com
- Receptacle Type : NEMA 5-15R
- Receptacle Detail : 12 x NEMA 5-15R
- Product Series : AVR
- Input Voltage : 120 V AC
- Transfer Time : 6 ms
- Typical Battery Recharge Time : 8 Hour
- Limited Warranty : 3 Year
- Packaged Quantity : 1 Each
- Form Factor : Ultra-compact Desktop/Tower/Wall Mount
- Backup/Run Time (Full Load) : 2.70 Minute
- Package Contents :
- AVR 900VA Desktop UPS
- Owner's manual
- Plug/Connector Type : NEMA 5-15P
- Product Type : Line-interactive UPS
- Load Capacity : 900 VA/480 W
- Manufacturer : Tripp Lite by Eaton
- AVR : Yes
- Output Voltage : 110 V AC,115 V AC,120 V AC
- Country of Origin : Vietnam
- Phase : Single Phase
- Number of Surge-only Outlets : 6
- Number of Battery & Surge Outlets : 6
- Battery Chemistry : Lead Acid
- Backup/Run Time (Half Load) : 10 Minute
- Waveform Type : Pulse-width Modulated Sine Wave
- Replaceable Battery : Yes
- Additional Warranty Information :
2 year warranty $100,000 Connected equipment guarantee
- DC System Voltage : 12 V DC
- Software Included : PowerAlert Software
- Maximum Operating Temperature : 104°F (40°C)
- Output Frequency : 60 Hz
- Storage Temperature : 5°F (-15°C) - 113°F (45°C)
- USB : Yes
- EMI/RFI Noise Filter : Yes
- AVR Range : Boost +18% / Buck -15%
- Input Frequency : 60 Hz
- Surge Energy Rating : 316 J
- Alarm : Battery Backup,Low Battery,Fault,Overload,Replace Battery
- USB (HID Compliant) Port : Yes
- Status Indicators :
2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions
