Description

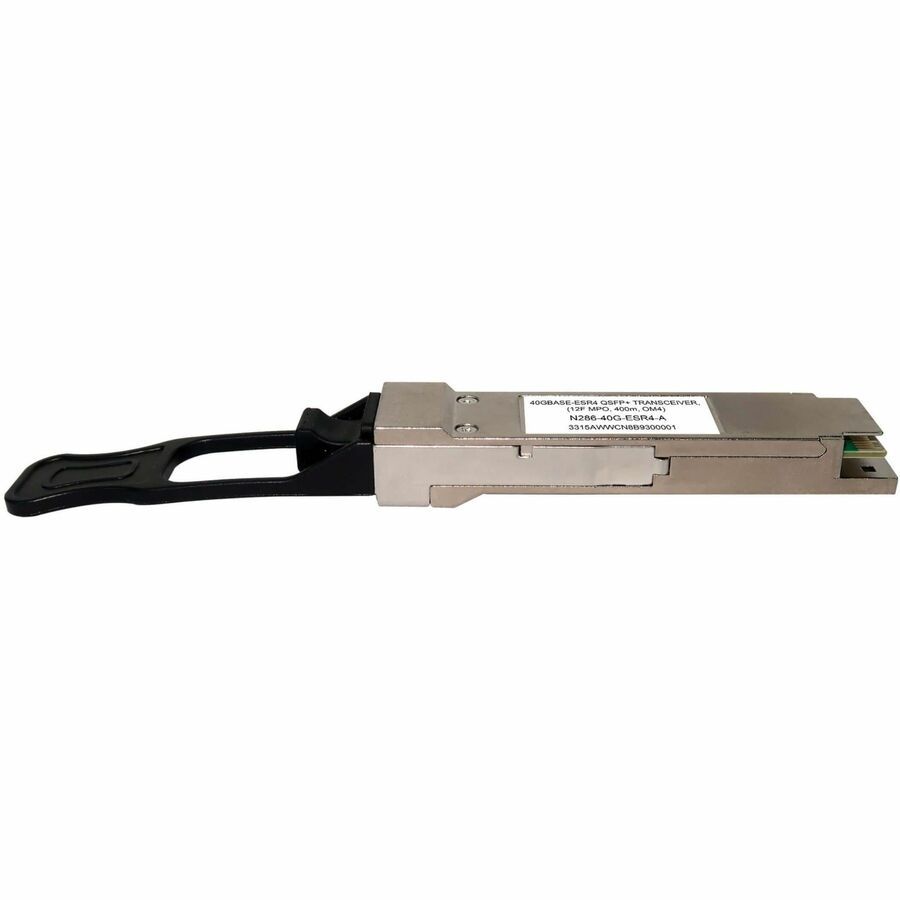

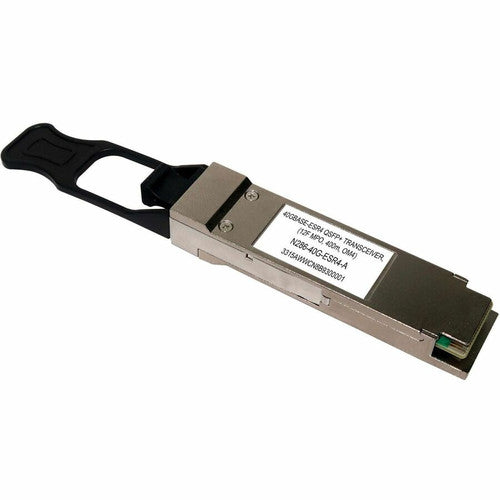

QSFP+ Transceiver for Connecting to Your Arista Network Switch or Server
This QSFP+ transceiver allows you to connect a multimode fiber optic cable to a 40 Gbps network router, server or switch. It transmits data up to 400 meters (1312 feet) using an 850 nm wavelength. The zinc housing protects against electromagnetic interference (EMI) and excessive power dissipation.
Functionally Equivalent to Select Arista Transceiver Modules
The MSA-compliant N286-40G-ESR4-A functions just like the equivalent Arista QSFP-40G-SR4 and QSFP-40G-XSR4 transceiver modules and is manufactured to meet or exceed Arista specifications. You can use this transceiver with any compatible Arista router, server or switch and receive the same performance as the QSFP-40G-SR4.
Hot-Swappable for Installation Without Network Interruption

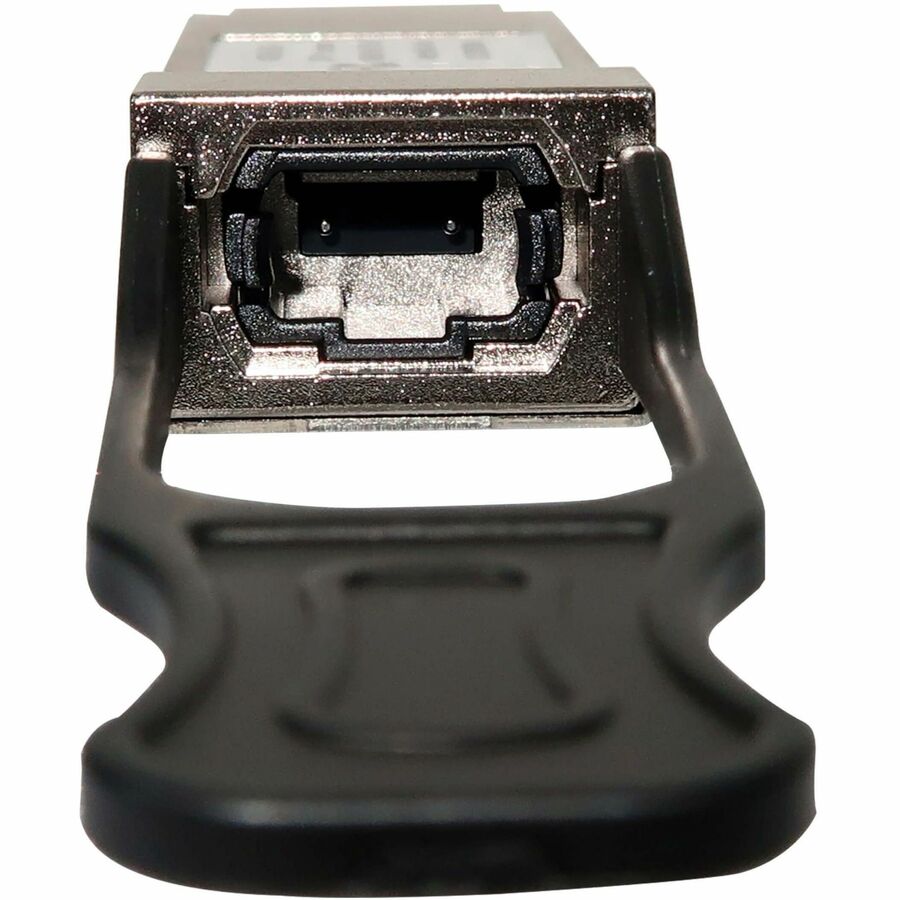

This input/output device is fully hot-swappable, so you can install it without a potentially costly 40 Gbps network shutdown or device reboot. Just plug the QSFP+ end of the transceiver into your Arista network device. The other end has an MTP/MPO connector to link with multimode fiber optic cable (sold separately). A push/pull tab connector is easily accessible in high-density data center applications and makes the plug-and-play transceiver easy to install and remove with one hand.
Supports Digital Diagnostic Monitoring (DDM) for Real-Time Status Monitoring
DDM support lets you keep track of operating information in real time, such as transceiver temperature, input and output power and supply voltage.
- 40Gigabit Ethernet - Designed to provide high-performance Ethernet connection while minimizing power and CPU cycles' utilization
- Optical fiber cable compatible - Spans afar and provides speedy data transmission rates between servers and network components
- Environmental Certification : RoHS
- Ethernet Technology : 40 Gigabit Ethernet
- Environmentally Friendly : Yes
- Limited Warranty : 3 Year
- Form Factor : Hot-swappable
- Manufacturer Website Address : https://tripplite.eaton.com/
- Total Number of Ports : 1
- Product Type : QSFP+
- Application/Usage : Optical Network,Data Networking,Server,Switching Network
- Connector Type : MPO/MTP
- Manufacturer : Tripp Lite by Eaton
- Product Model : N286-40G-ESR4-A
- Compatibility :
MSA Compliant
- Maximum Distance Supported : 1312.34 ft (400000 mm)
- Media Type Supported : Optical Fiber
- Fiber Mode Supported : Multi-mode
- Interfaces/Ports Details : 1 x 400GBase-SR4 Network
- Network Technology : 400GBase-SR4
