Description

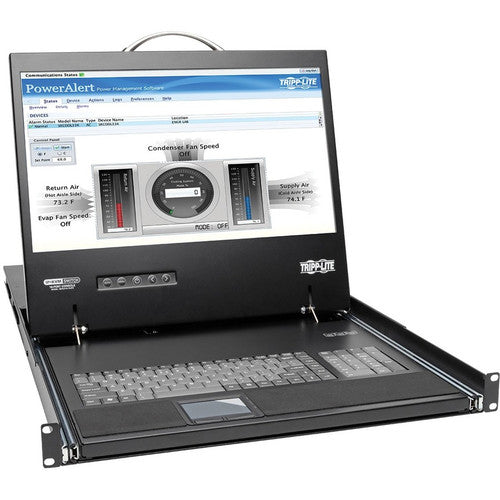

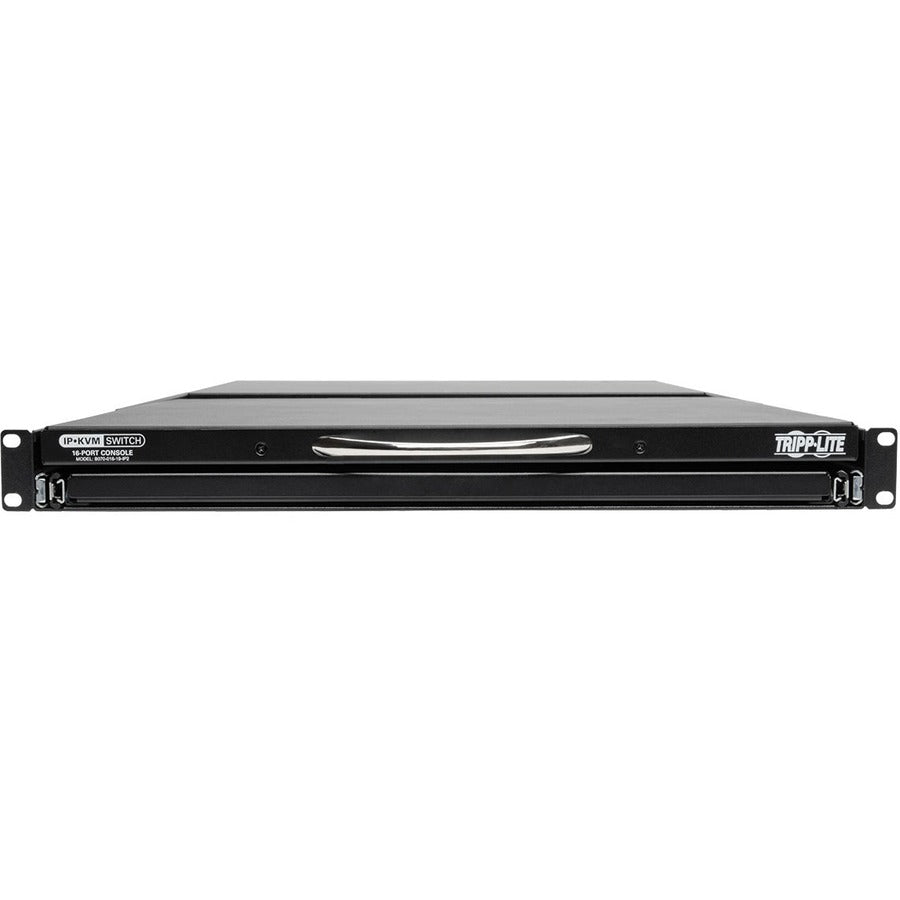

Tripp Lite's B070-016-19-IP2 NetCommander® 16-Port Cat5 1U Rack-Mount Console KVM Switch includes a full keyboard, 19-inch LCD screen and touchpad in a 1U rack-mount console. It connects up to 16 computers and/or servers and allows you to control them locally or remotely via LAN, WAN or web browser.Connect computers/servers up to 100 feet away using Cat5e/6 cabling and a compatible Tripp Lite B078-Series server interface unit (B078-101-USB2 required for Fast Virtual Media speeds up to 12 Mbps). Dual 10/100 LAN ports ensure uninterrupted remote access in case one port should fail. A local user and two remote users can log on simultaneously and switch between the 16 ports using an on-screen display, hotkeys or remote toolbar. Multi-level password protection prohibits unauthorized access.The LCD supports video resolutions up to 1366 x 768. Dual serial ports allow control of serial devices, such as IP PDUs, firewalls and routers. You can assign individual ports to an IP PDU port to power on/off the server connected to that port. The heavy-duty steel housing slides neatly into the rack when not in use. Free NetCommander-AXS management software is available to access and control your Tripp Lite NetCommander IP KVM switches (B070 and B072 Series). From a single interface, you can access server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDUs, and manage KVM settings. This software can be found at the Technical Support link in the right-hand column.
Features
Includes 16-Port KVM Switch, 19 in. LCD, Keyboard and Touchpad
- Mounts in 1U of space in EIA-standard 19 in. rack
- Connects up to 16 computers/servers up to 100 ft. away via Cat5e/6 cabling and Tripp Lite B078 Series SIUs
- Computers with DisplayPort or HDMI connectors require Tripp Lite VGA adapters, such as P134-06N-VGA-V2 or P131-06N
- Fast Virtual Media KVM system: U.S. Patent #9,417,720
- BIOS-level control of any server brand and model
IP Remote Access for Fewer Trips to the Server Room
- Java-based application allows 24/7 remote access from anywhere via web browser over secure IP connection
- Non-browser client that can bypass browser-related Java security prompts is available
- Up to 3 users (1 local, 2 remote) can sign in simultaneously
- Up to 5 users can share a single session
- Supports both IPv4 and IPv6
- Dual 10/100 Mbps LAN ports for uninterrupted remote access in case one port should fail
Simplifies IT Tasks
- Users can switch between ports via on-screen display, hotkeys or remote toolbar

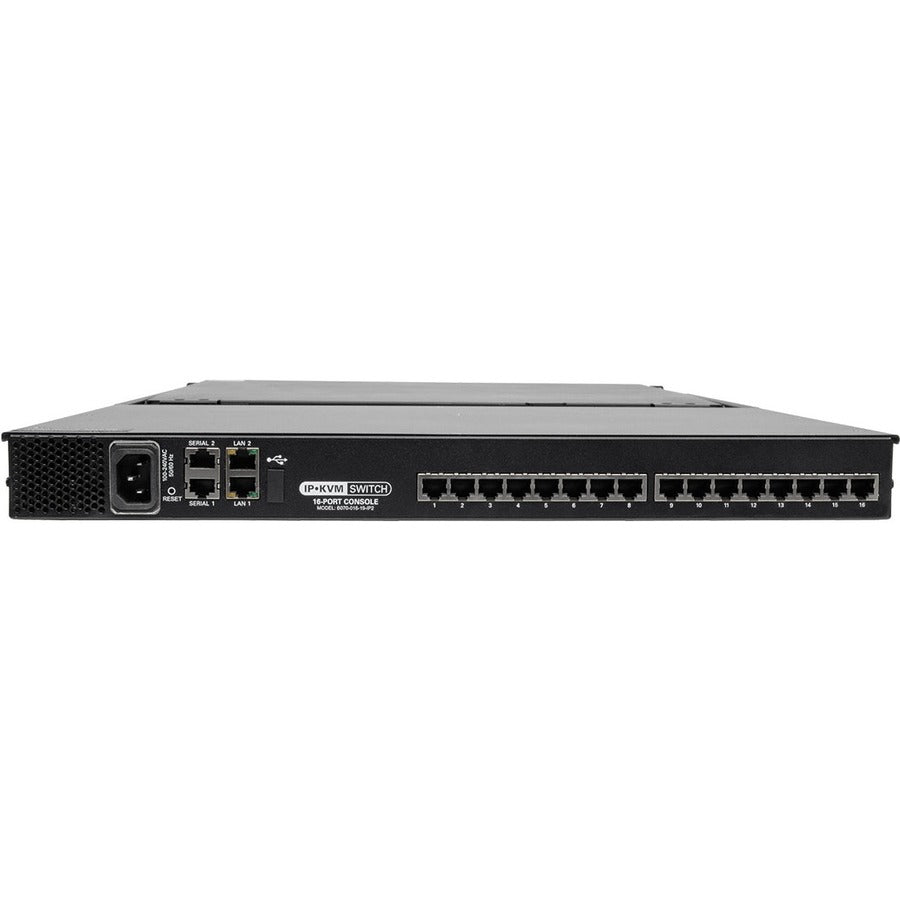

- Dual RJ45 serial ports for connecting IP devices, such as PDUs, firewalls and routers
- Assign individual ports to an IP PDU port to power on/off the server connected to that port
- Virtual Media allows.iso file to be mounted to target server and accessed directly
- Supports RADIUS and LDAP/S authentication
- Log tracks events on your installation
Large 19 in. LCD Screen
- Supports video resolutions up to 1366 x 768; 1920 x 1080 remotely
- DDC emulation allows for optimal output to LCD
Advanced Security Features
- Multi-level password protection-create administrator accounts with full access and user accounts with limited access
- 128-bit AES and HTTPS encryption for highest security standards
- Platform Supported : PC,Linux
- KVM Switch : Yes
- Package Contents :
- B070-016-19-IP2 NetCommander 16-Port Cat5 1U Rack-Mount Console KVM Switch
- C13 to NEMA 5-15P Power Cord, 6 ft.
- Rack-Mounting Hardware
- Quick Start Guide
- Number of USB Ports : 1
- Pointing Device Type : TouchPad
- Manufacturer : Tripp Lite by Eaton
- Product Model : B070-016-19-IP2
- Screen Resolution : 1366 x 768
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Screen Size : 19"
- USB : Yes
- Number of Computers Supported : 3
- Product Color : Black
- Keyboard : Yes
- Device Type : LCD Rack Console
- Input Voltage : 120 V AC,230 V AC
- Limited Warranty : 1 Year
- Network (RJ-45) : Yes
- Product Type : LCD Rack Console
- Display Screen Type : LCD
- KVM Technology : Digital
- Country of Origin : Taiwan
- Number of Network (RJ-45) Ports : 2
- Product Line : NetCommander
- PS/2 Port : Yes
- Manufacturer Website Address : https://tripplite.eaton.com/
- Color Family : Black
