Description

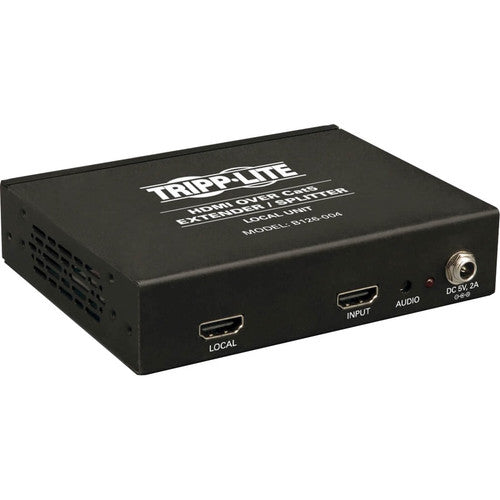

The B126-004 4-Port HDMI over Cat5/Cat6 Extender/Splitter works with Tripp Lite B126-Series remote receivers to split a single HDMI audio/video signal into five separate signals-one local and four remote. It's ideal for digital signs, trade shows, presentations, retail settings and other applications where the video source is located farther than conventional cables allow or that require multiple displays connected to one source. It uses HDMI cable (see Tripp Lite's P568-Series) to connect to the source and the local monitor and Cat5e/6 cable to transmit to the remote monitors (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite's N202-Series).When used with Tripp Lite's B126-1A0 or B126-1A0-WP-1 active remote receivers, the Extender/Splitter can extend a 1080i (60 Hz) signal up to 200 ft., a 1080p signal (60 Hz) up to 150 ft. and a 3D signal up to 125 ft. With a B126-1P0 or B126-1P0-WP-1 passive remote receiver, it can extend a 1080i (60 Hz) signal up to 100 ft. and a 1080p (60 Hz) signal up to 50 ft. By daisy-chaining up to three Extender/Splitters, one video source can transmit to as many as 13 monitors-one local and 12 remote. Add up to three B126-110 remote repeaters to each channel to fully extend the signal range or add more displays.In addition to crystal-clear video, the B126-004 delivers full, rich stereo and 7.1-channel surround sound (multi-channel or PCM) audio. Easy to set up with no software or drivers to install. Mounts to a wall, rack or pole using the included hardware. Included HDMI cable with latching connectors provides a more secure connection.
- Supports stereo and 7.1-channel surround sound audio
- Plug and play-no software or drivers to install
- Works with all operating systems and HDMI video sources

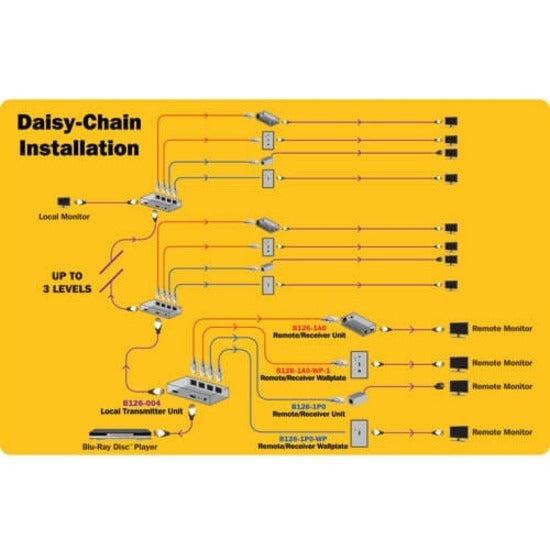

- Can daisy-chain up to 3 units to extend signal to 13 monitors
- Perfect for digital signs, trade shows and classrooms
- Number of HDMI Outputs : 1
- Maximum Operating Distance : 200 ft (60960 mm)
- Number of Input Devices Supported : 1
- Transmitter Depth : 4" (101.60 mm)
- Number of Output Devices Supported : 5
- Form Factor : Rack-mountable

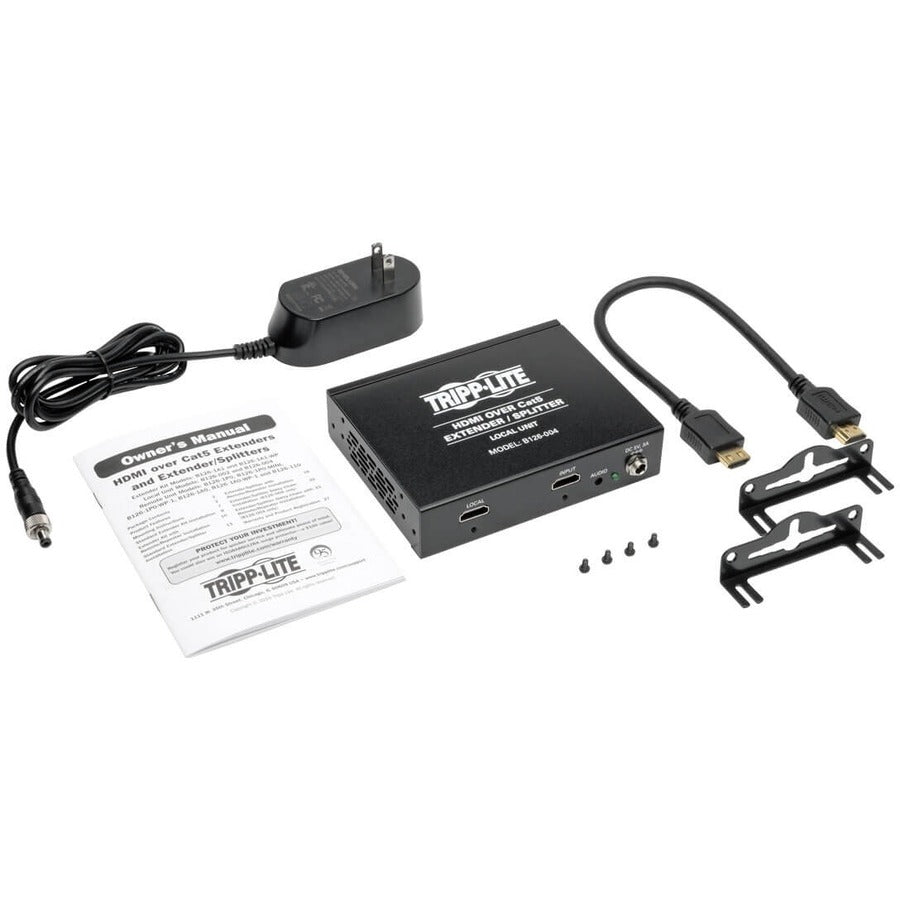

- Package Contents :
- B126-004 Video Extender
- 1 ft. HDMI Daisychain Cable
- Mounting Hardware
- External Power Supply
- Owner Manual
- HDMI Out : Yes
- Twisted Pair Cable Standard : Category 6
- Manufacturer : Tripp Lite by Eaton
- Product Model : B126-004
- Transmitter Height : 1.13" (28.58 mm)
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- HDMI In : Yes
- Product Color : Black
- Limited Warranty : 1 Year
- Network (RJ-45) : Yes
- Number of HDMI Inputs : 1
- Product Type : Video Extender Transmitter
- Transmitter Width : 5" (127 mm)
- Media Type Supported : Twisted Pair
- Country of Origin : Taiwan

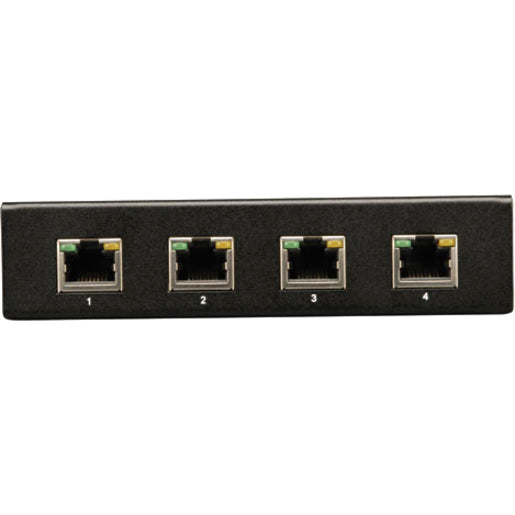

- Number of Network (RJ-45) Ports : 4
- Connectivity Technology : Wired
- Manufacturer Website Address : https://tripplite.eaton.com/
- Color Family : Multicolor
