Tripp Lite par Eaton B126-1A0-U Récepteur B126-1A0-U

Economisez $88.61
Tripp Lite by EatonSKU: B126-1A0-U

Prix:
Prix réduit$136.99 Prix normal$225.60
Stock:
Rupture de stock

Description

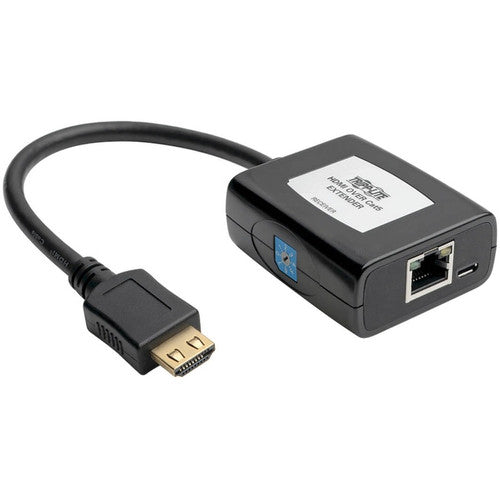

The B126-1A0-U HDMI over Cat5/Cat6 Active Extender works with Tripp Lite's B126-002 or B126-004 transmitter to extend an HDMI audio/video signal to an HDMI projector, monitor or television. It's ideal for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than conventional cables allow.

The receiver's built-in HDMI cable connects to the display. Cat5e/6 cable connects the receiver to the B126-Series transmitter(for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite's N202-Series). Power is supplied by the included USB Micro-B to USB-A cable, which connects between the receiver and a USB port on the display or a USB wall charger.

The B126-1A0-U can extend a 1080p(@ 60 Hz) signal up to 125 feet with full, rich stereo. Built-in RJ45 LEDs indicate the units are receiving power and a signal from the source. Built-in equalization control lets you fine-tune the image quality at the display. Easy to set up with no software or drivers to install. Works with all operating systems and HDMI sources.

Features

Extends HDMI Audio/Video Signals to an HDMI Display

  • Extends a 1080p (@ 60 Hz) signal up to 125 ft.
  • Ideal for digital signs, trade shows, presentations, classrooms, churches and retail settings
  • Connects to transmitter with one Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite's N202-Series)
  • Supports stereo audio and HDCP

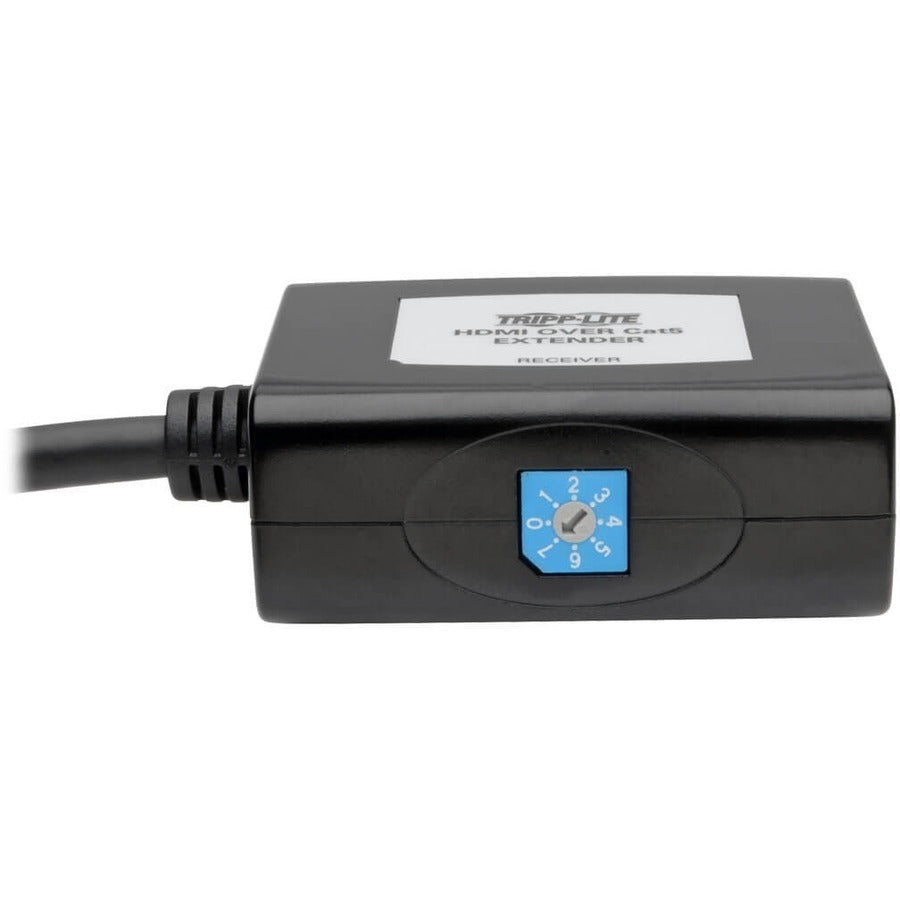

  • Built-in equalization control lets you adjust the image

Easy to Set Up and Use

  • Plug-and-play engineering-no software, drivers or external power supply
  • Powered via included USB cable
  • Connects quickly to display with built-in HDMI cable

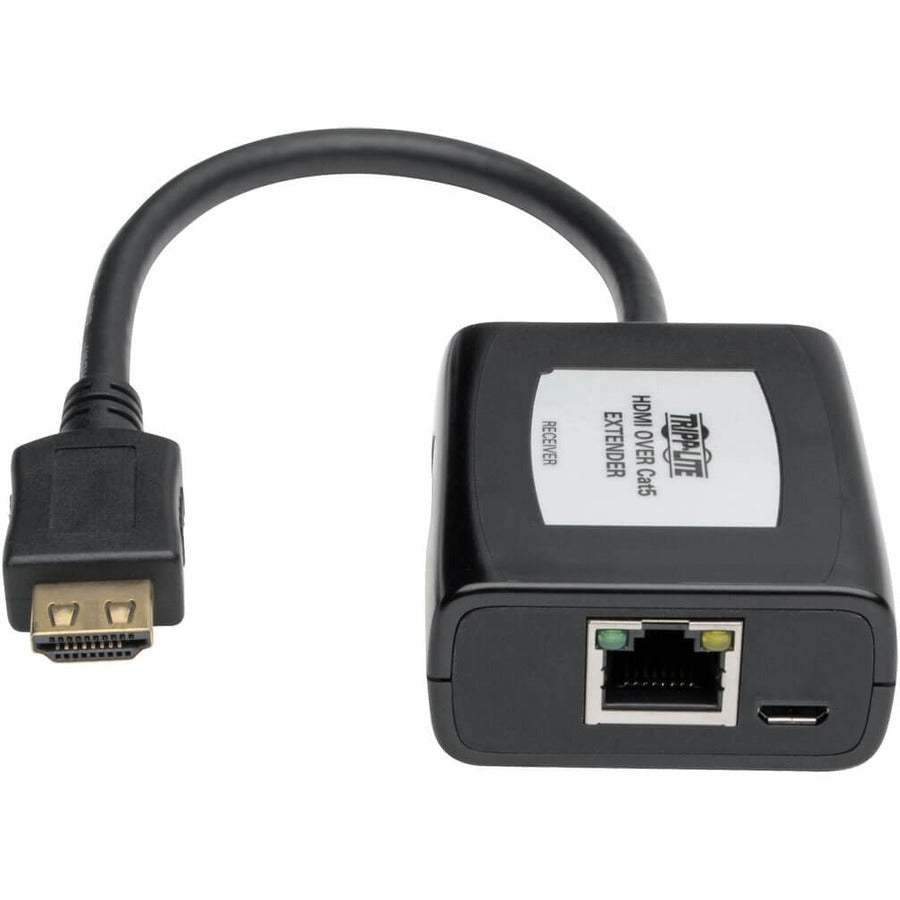

  • LEDs indicate when units are receiving power and a signal from the source
  • Works with all operating systems and HDMI sources

TAA-Compliant

  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

System Requirements

  • Display with HDMI port
  • Plug and play-no software, drivers or external power supply
  • Built-in equalization control lets you adjust monitor image
  • Supports high-definition video resolutions up to 1080p (@ 60 Hz)
  • Supports stereo audio and HDCP
  • Works with all operating systems and HDMI sources
. .
  • Maximum Video Resolution : 1920 x 1080
  • TAA Compliant : Yes
  • Environmentally Friendly : Yes
  • Number of HDMI Outputs : 1
  • Maximum Operating Distance : 125 ft (38100 mm)
  • Limited Warranty : 1 Year
  • Number of Output Devices Supported : 1

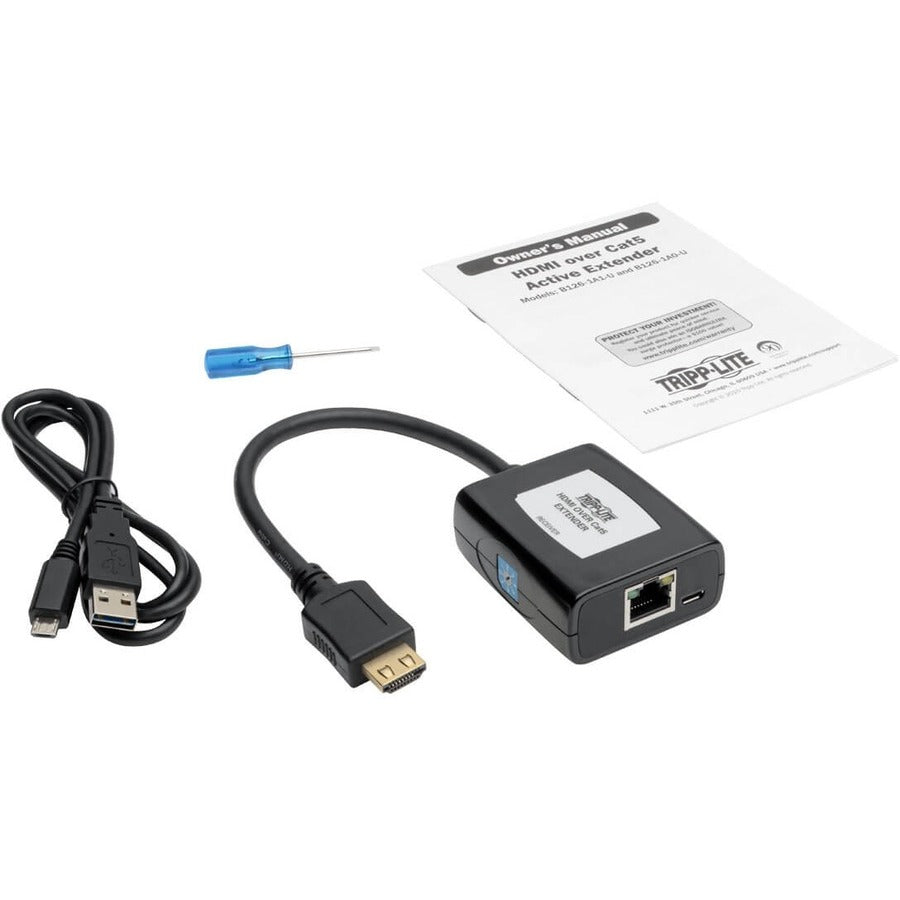

  • Package Contents :
    • B126-1A0-U Receiver Unit
    • USB Micro-B to USB-A Cable, 3 ft.
    • Screwdriver for Adjusting Equalization
    • Owner's Manual
  • Network (RJ-45) : Yes
  • HDMI Out : Yes
  • Product Type : Video Extender Receiver
  • Graphics Modes : Full HD
  • Twisted Pair Cable Standard : Category 6
  • Manufacturer : Tripp Lite by Eaton
  • Product Model : B126-1A0-U
  • Media Type Supported : Twisted Pair
  • Country of Origin : Taiwan
  • Number of Network (RJ-45) Ports : 1
  • Connectivity Technology : Wired
  • Manufacturer Website Address : https://tripplite.eaton.com/
