Description

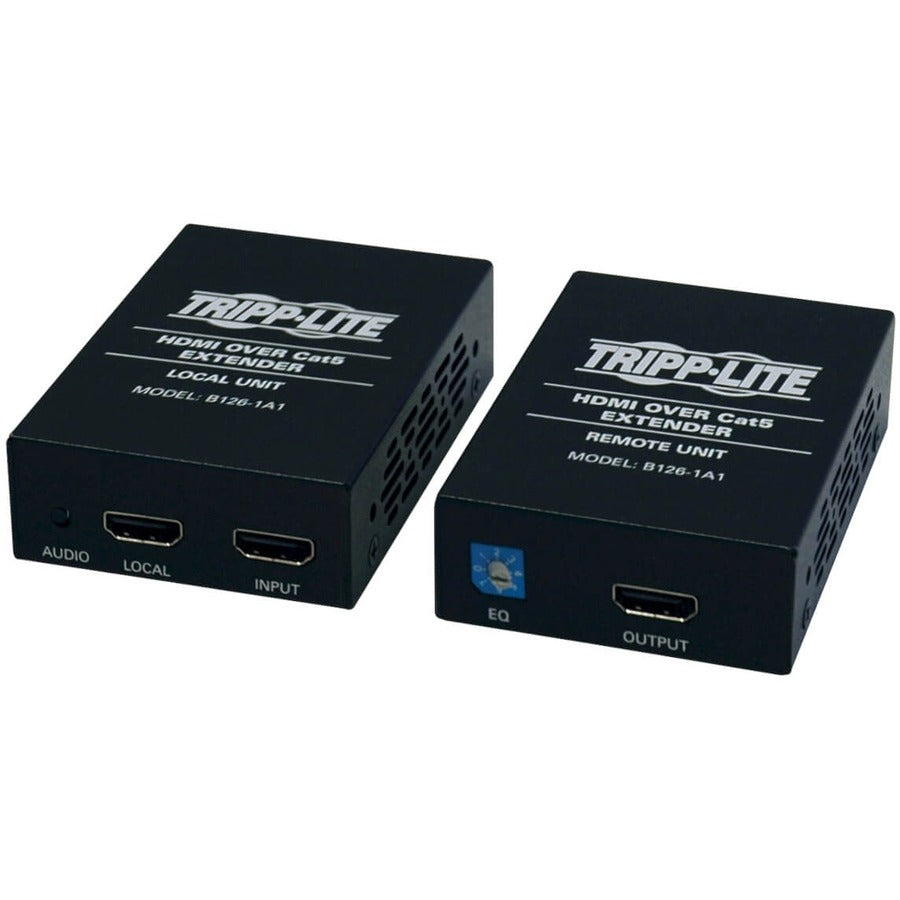

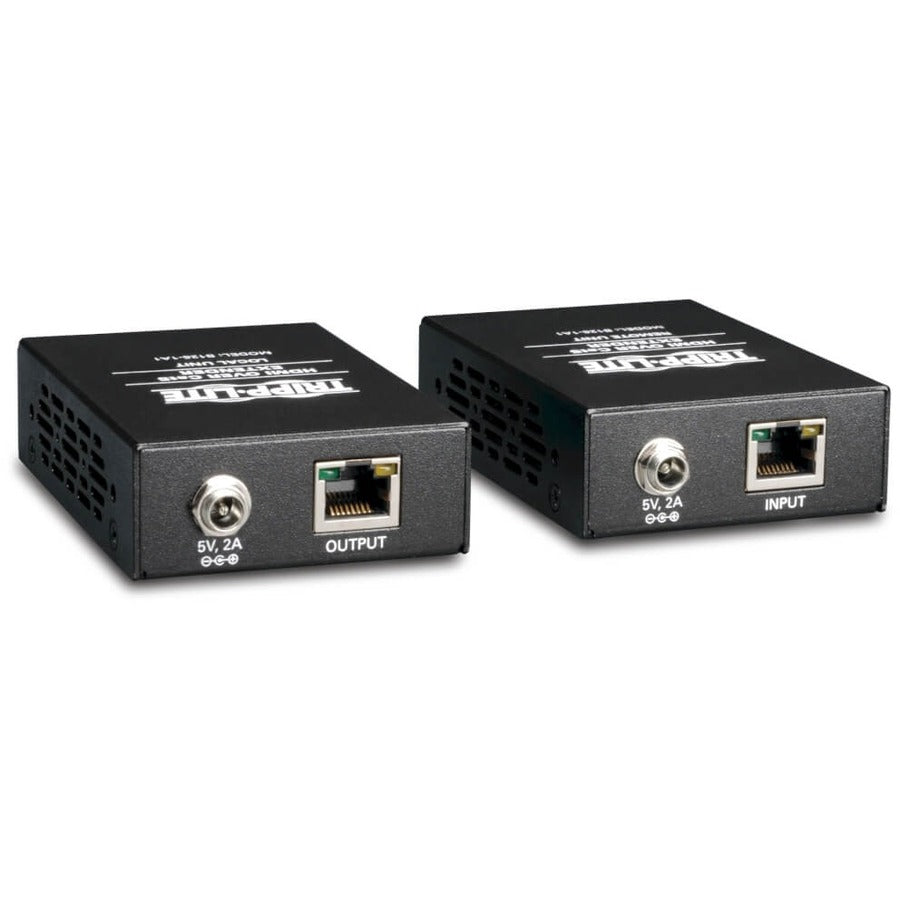

The B126-1A1 transmits a 1080p (60Hz) signal to a monitor up to 150 ft. away using Cat5e/6 cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) The transmitter unit features an HDMI port for the connection of a local monitor. The receiver unit features a built-in Equalization control for adjustment of the video image. Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM). Installation is simple. Connect the transmitter unit to an HDMI source using a Tripp Lite P568-Series HDMI cable (not included). Connect the receiver unit to a display using a Tripp Lite P568-Series HDMI cable (not included). Finally, connected the receiver to the RJ45 port on the transmitter using a single Cat5e/6 cable. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
- Built-in equalization control lets you adjust monitor image
- Plug and play-no software or drivers to install
- Supports stereo and 7.1-channel surround sound audio
- Works with all operating systems and HDMI video sources
- Supports high-definition video resolutions up to 1080p (60 Hz)
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- HDMI In : Yes
- Number of HDMI Outputs : 2
- Product Color : Black
- Maximum Operating Distance : 150 ft (45720 mm)
- Number of Input Devices Supported : 2
- Limited Warranty : 1 Year
- Number of Output Devices Supported : 2
- Form Factor : Rack-mountable,Wall Mountable

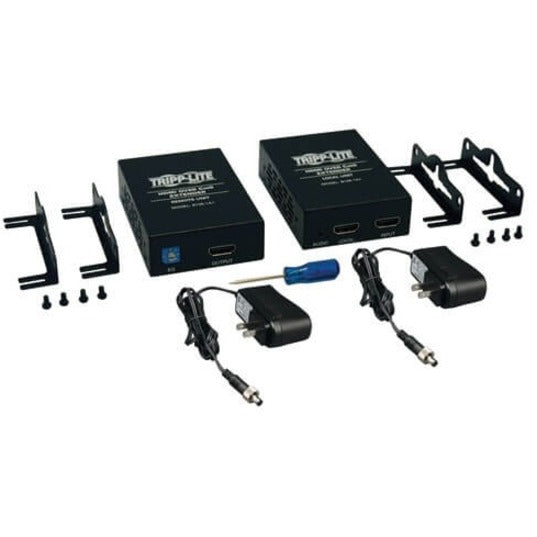

- Package Contents :
- B126-1A1 Video Extender/Console
- Screwdriver for Adjustment of Equalization
- 2 x Mounting Hardware
- 2 x External Power Supply
- Owner's manual
- Network (RJ-45) : Yes
- HDMI Out : Yes
- Number of HDMI Inputs : 1
- Product Type : Video Extender Transmitter/Receiver
- Twisted Pair Cable Standard : Category 6
- Manufacturer : Tripp Lite by Eaton
- Product Model : B126-1A1
- Media Type Supported : Twisted Pair
- Country of Origin : Taiwan
- Number of Network (RJ-45) Ports : 2
- Connectivity Technology : Wired
- Manufacturer Website Address : https://tripplite.eaton.com/
- Color Family : Multicolor
