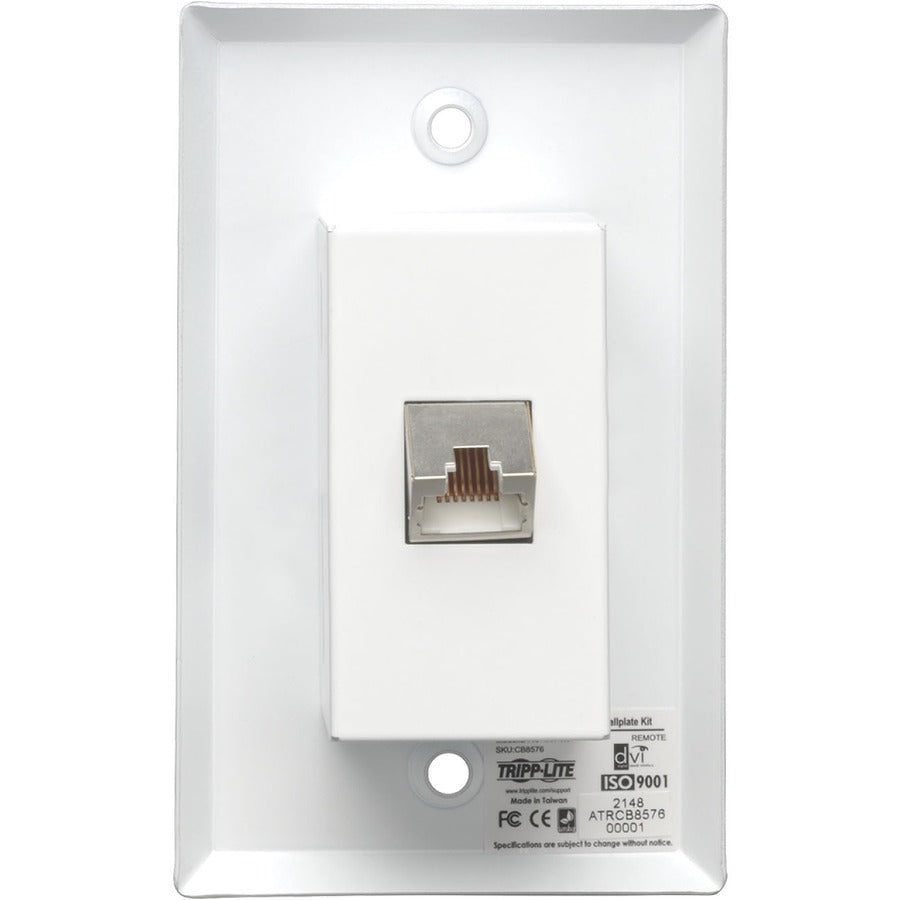

Tripp Lite by Eaton B140-1A0-WP-1 DVI over Cat5/6 Extender B140-1A0-WP-1

The B140-1A0-WP-1 DVI over Cat5/6 Extender works in tandem with Tripp Lite's B140-002 or B140-004 extender/splitter transmitter unit(sold separately) to extend a DVI-D single-link signal over a single Cat5e/6 patch cable. It can extend a 1920 x 1080(@ 60 Hz) signal up to 150 feet and a 1024 x 768 signal(@ 60 Hz) up to 200 feet. It's ideal for digital sign applications in schools, churches, trade shows, retail settings and anywhere else a high-resolution DVI signal needs to be delivered over a long distance.

Just connect a B140-002 or B140-004 transmitter to the DVI source using a DVI cable, such as Tripp Lite's P561-Series. Connect the B140-1A0-WP-1 to the transmitter using a Cat5e/6 cable(for best results, we recommend Tripp Lite N202-Series 24 AWG solid-wire Cat5e/6 cable) and connect to the display using a DVI cable.

To expand the range and the number of displays, add up to three B140-110 remote repeaters and an active receiver to each channel for a total of four displays per channel. A 1920 x 1080(@ 60 Hz) signal can be extended up to 125 feet to the next unit in the chain, and a 1024 x 768 signal(@ 60 Hz) up to 175 feet.

The B140-1A0-WP-1 works with all operating systems. Its plug-and-play technology means no software or drivers need to be downloaded and installed. Built-in equalization control allows for manual adjustment of the video image. Complies with the Federal Trade Agreements Act(TAA) for GSA Schedule purchases.

• Maximum Operating Distance : 200 ft (60960 mm)
• Number of Output Devices Supported : 1
• Form Factor : Wall Mountable
• Package Contents :
  • B140-1A0-WP-1 DVI over Cat5/6 Extender
  • External Power Supply w/NEMA 1-15P plug and 5 ft. cord (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V, 2A)
  • Screwdriver for Adjusting Equalization
  • Mounting Hardware
  • Owner's Manual
• Receiver Width : 2.75" (69.85 mm)
• Twisted Pair Cable Standard : Category 6
• Manufacturer : Tripp Lite by Eaton
• Number of DVI Outputs : 1
• Product Model : B140-1A0-WP-1
• Maximum Video Resolution : 1920 x 1080
• TAA Compliant : Yes
• Environmentally Friendly : Yes
• Receiver Height : 4.50" (114.30 mm)
• Receiver Depth : 1" (25.40 mm)
• Limited Warranty : 1 Year
• Network (RJ-45) : Yes
• Product Type : Video Extender Receiver
• Graphics Modes : Full HD
• DVI Out : Yes
• Media Type Supported : Twisted Pair
• Country of Origin : Taiwan
• Number of Network (RJ-45) Ports : 1
• Connectivity Technology : Wired
• Manufacturer Website Address : https://tripplite.eaton.com/
