Description
Features | 7-Port Multi-Format Presentation Switch Connects 7 Video Sources to One HDMI Display

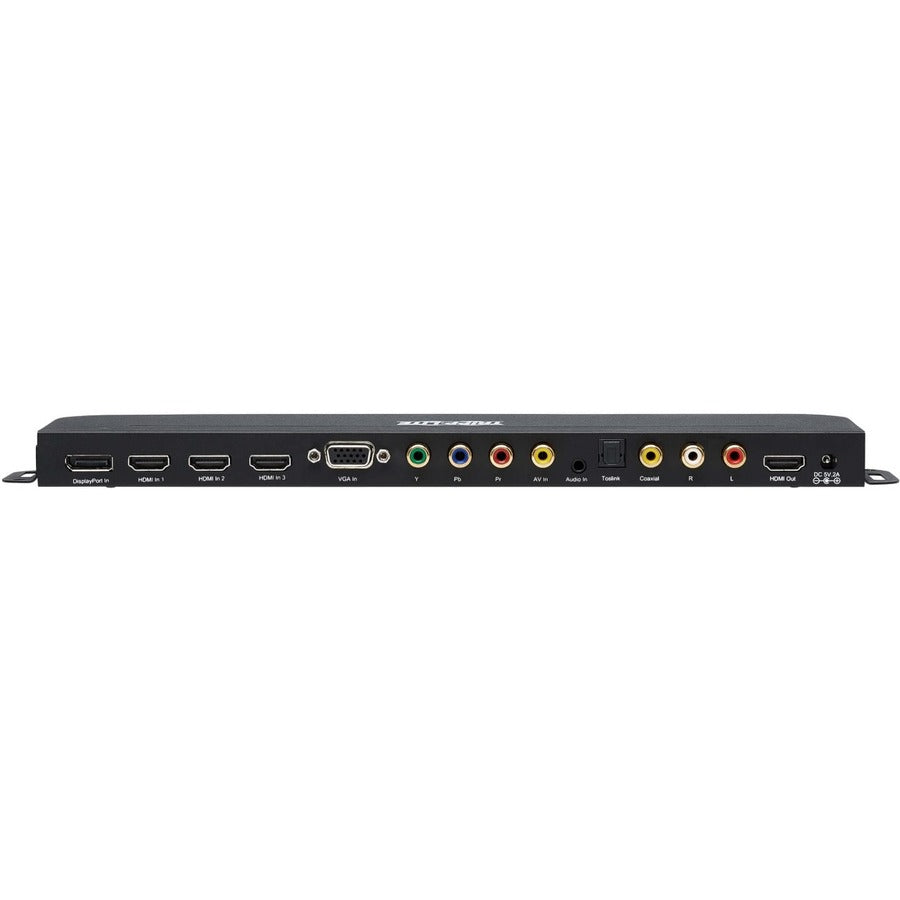

This presentation switch connects seven separate digital and analog source devices to your television, projector or monitor's HDMI input and switches between them. The B310-701-4K features HDMI, DisplayPort, VGA + Audio, Component (YPbPr) and Composite (Y) inputs for connecting Windows laptops, cable boxes, media servers, DVD and Blu-ray players, video game consoles and other video sources. Switch from one source to another using the manual push buttons or the included remote control.
Suitable for a Wide Range of Audio/Video Applications for Work or Play
This switch is recommended anywhere a variety of video signals is transmitted to a high-definition display. It is suitable for home theaters, video and multimedia presentations, security applications or digital signage in classrooms, bars, restaurants, conference rooms, lecture halls, exhibition centers and trade shows.
Transmits Video from an Upscaled 1080p All the Way to True 4K
Video resolutions include true 4K (4096 x 2160) at 60 Hz (HDMI), 4K (3840 x 2160) at 60 Hz (DisplayPort), 1280 x 768 at 60 Hz (VGA), 1920 x 1080 at 60 Hz (Component YPbPr) and 1280 x 720 at 60 Hz (Composite Y). This switch automatically upscales lower-resolution content to fit the screen. Use the menu options to change picture mode, aspect ratio, resolution output of each port, color temperature and sound output.
Supports HDCP 2.2 and 4:4:4 Color for Up-to-Date Presentations

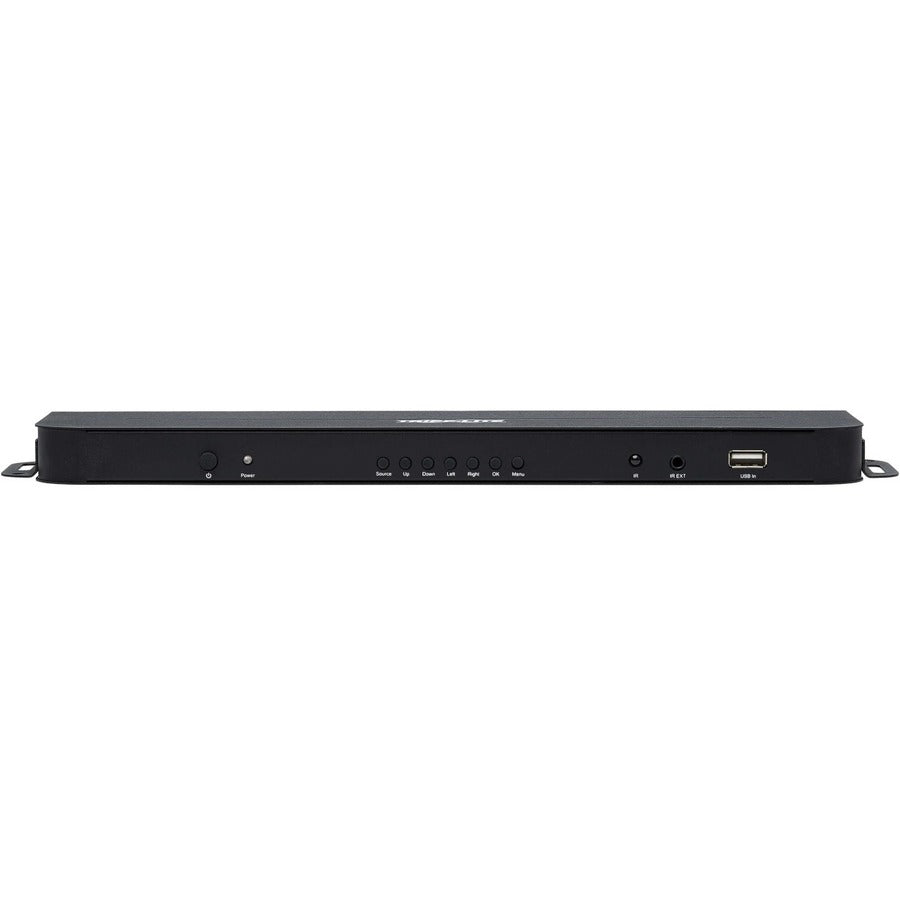

HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This switch also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. You can also connect a U-disk for audio (MP3), video (MP4, WMA), picture (JPG, BMP) or text (English) via the front-panel USB 2.0 port.
Built-In Audio Extractor Lets You Control Sound
TOSLINK, coaxial and RCA right/left audio ports allow you to connect an amplifier, receiver, soundbar or speakers for optical, digital or analog sound. All three audio ports can be used simultaneously. The B310- 701-4K supports uncompressed LPCM digital audio, compressed DTS Digital and Dolby Digital (including DTS-HD and Dolby True HD) digital audio and analog audio.
Plug-and-Play Operation for Quick Setup and Immediate Use
The switch works right out of the box with no software required. Mounting hardware is included for installing the switch on a wall, pole or 19-inch rack. Connect your devices to the switch's ports with usersupplied cables (sold separately), and plug the switch's external power supply into an AC power source.
This presentation switch connects seven separate digital and analog source devices to your television, projector or monitor's HDMI input and switches between them. The B310-701-4K features HDMI, DisplayPort, VGA + Audio, Component (YPbPr) and Composite (Y) inputs for connecting Windows laptops, cable boxes, media servers, DVD and Blu-ray players, video game consoles and other video sources. Switch from one source to another using the manual push buttons or the included remote control.
Suitable for a Wide Range of Audio/Video Applications for Work or Play
This switch is recommended anywhere a variety of video signals is transmitted to a high-definition display. It is suitable for home theaters, video and multimedia presentations, security applications or digital signage in classrooms, bars, restaurants, conference rooms, lecture halls, exhibition centers and trade shows.
Transmits Video from an Upscaled 1080p All the Way to True 4K
Video resolutions include true 4K (4096 x 2160) at 60 Hz (HDMI), 4K (3840 x 2160) at 60 Hz (DisplayPort), 1280 x 768 at 60 Hz (VGA), 1920 x 1080 at 60 Hz (Component YPbPr) and 1280 x 720 at 60 Hz (Composite Y). This switch automatically upscales lower-resolution content to fit the screen. Use the menu options to change picture mode, aspect ratio, resolution output of each port, color temperature and sound output.
Supports HDCP 2.2 and 4:4:4 Color for Up-to-Date Presentations
HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This switch also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. You can also connect a U-disk for audio (MP3), video (MP4, WMA), picture (JPG, BMP) or text (English) via the front-panel USB 2.0 port.
Built-In Audio Extractor Lets You Control Sound
TOSLINK, coaxial and RCA right/left audio ports allow you to connect an amplifier, receiver, soundbar or speakers for optical, digital or analog sound. All three audio ports can be used simultaneously. The B310- 701-4K supports uncompressed LPCM digital audio, compressed DTS Digital and Dolby Digital (including DTS-HD and Dolby True HD) digital audio and analog audio.
Plug-and-Play Operation for Quick Setup and Immediate Use
The switch works right out of the box with no software required. Mounting hardware is included for installing the switch on a wall, pole or 19-inch rack. Connect your devices to the switch's ports with usersupplied cables (sold separately), and plug the switch's external power supply into an AC power source.
- Switch between sources by using this audio video switchbox without degradation of video quality and eliminate the need to manually switch cables between sources
- Quickly and easily connect with the display
- Switch between 5 sources to a single display
- Enjoy watching any class of content on 4096 x 2160 resolution
- Number of VGA Inputs : 1
- Maximum Video Resolution : 4096 x 2160
- Number of Displays Supported : 1
- HDMI In : Yes
- Number of HDMI Outputs : 1
- Number of Input Devices Supported : 5
- Device Supported : Display
- Number of DisplayPort Inputs : 1
- Limited Warranty : 3 Year
- Form Factor : Rack-mountable,Wall Mountable,Pole
- Package Contents :
- B310-701-4K 7-Port MultiFormat Presentation Switch
- IR Remote control
- IR Receiver head cable
- External power supply with 5 ft. cord (Input: 100-240V, 50/60 Hz, 0.4A; Output: 5V 2A)
- 4 x International plug adapters (North America, U.K., Europe, Australia)
- Mounting hardware
- Owner's manual
- Number of USB Ports : 1
- VGA In : Yes
- HDMI Out : Yes
- Number of HDMI Inputs : 3
- Product Type : Audio/Video Switchbox
- Graphics Modes : 4K
- DisplayPort : Yes
- Manufacturer : Tripp Lite by Eaton
- Product Model : B310-701-4K
- Country of Origin : Vietnam
- Connectivity Technology : Cable
- Manufacturer Website Address : https://tripplite.eaton.com/
