Description

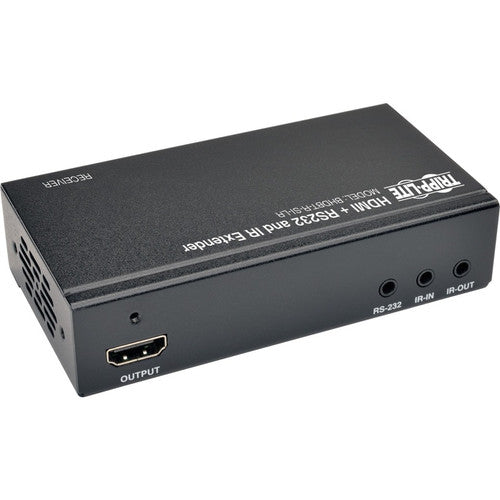

The BHDBT-R-SI-LR HDBaseT Extender Receiver works in tandem with the Tripp Lite BHDBT-Series matrix transmitter in your HDBaseT installation to extend uncompressed HDMI video and audio, RS-232 serial and IR remote control signals.
Using a single Cat5e/6/6a cable, the BHDBT-R-SI-LR can extend a 1920 x 1080(1080p) signal at 60 Hz or an Ultra High Definition(UHD) 3840 x 2160(4K x 2K) video signal up to 328 feet(100 m). To further extend and expand your installation, you can insert up to five BHDBT-TR-SI-LR Extender Transceivers between the receiver and transmitter for a total range up to 2,000 feet(610 m) with a monitor connected to each transceiver.

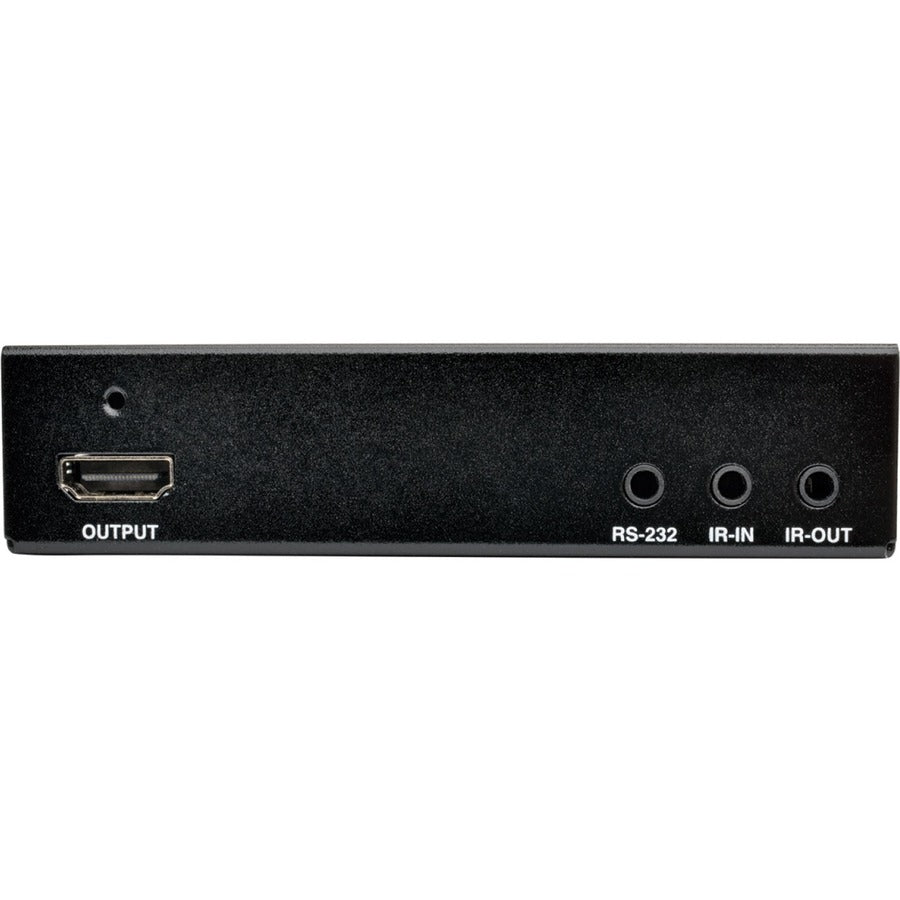

You can control RS-232 serial devices, such as touchscreen displays or scanners, at baud rates up to 115 Kbps. The 2-way IR Remote Control feature(@ 39 KHz) lets you also control your Blu-ray player using its remote when at the remote monitor and vice versa. The monitor connects to the rear locking HDMI port(ideal for use with Tripp Lite's P569-006-LOCK High-Speed HDMI cables with locking connectors) that prevents the cable from coming loose or undone, ensuring an intact signal.
The BHDBT-R-SI-LR supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video, EDID and HDCP. Included mounting hardware lets you attach the receiver to a wall, rack or pole. Sets up quickly with no software to download or install.
Using a single Cat5e/6/6a cable, the BHDBT-R-SI-LR can extend a 1920 x 1080(1080p) signal at 60 Hz or an Ultra High Definition(UHD) 3840 x 2160(4K x 2K) video signal up to 328 feet(100 m). To further extend and expand your installation, you can insert up to five BHDBT-TR-SI-LR Extender Transceivers between the receiver and transmitter for a total range up to 2,000 feet(610 m) with a monitor connected to each transceiver.
You can control RS-232 serial devices, such as touchscreen displays or scanners, at baud rates up to 115 Kbps. The 2-way IR Remote Control feature(@ 39 KHz) lets you also control your Blu-ray player using its remote when at the remote monitor and vice versa. The monitor connects to the rear locking HDMI port(ideal for use with Tripp Lite's P569-006-LOCK High-Speed HDMI cables with locking connectors) that prevents the cable from coming loose or undone, ensuring an intact signal.
The BHDBT-R-SI-LR supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video, EDID and HDCP. Included mounting hardware lets you attach the receiver to a wall, rack or pole. Sets up quickly with no software to download or install.
- Mounts easily to wall, rack or pole
- Plug and play-no software or drivers to install
- Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD
- Extends a 1080p @ 60 Hz signal up to 328 ft. (100 m)
- Extends a 3840 x 2160 (4K x 2K) signal up to 328 ft. (100 m)
- Number of HDMI Outputs : 1
- Maximum Operating Distance : 328 ft (99974.40 mm)
- Number of Output Devices Supported : 1
- Form Factor : Wall Mountable,Rack-mountable,Pole-mountable
- Package Contents :
- BHDBT-R-SI-LR HDBaseT HDMI over Cat5e/6/6a Extender Receiver
- IR-IN Cable
- IR-OUT Cable
- 3.5 mm Male to DB9 Female Adapter Cable
- 3.5 mm Male to DB9 Male Adapter Cable

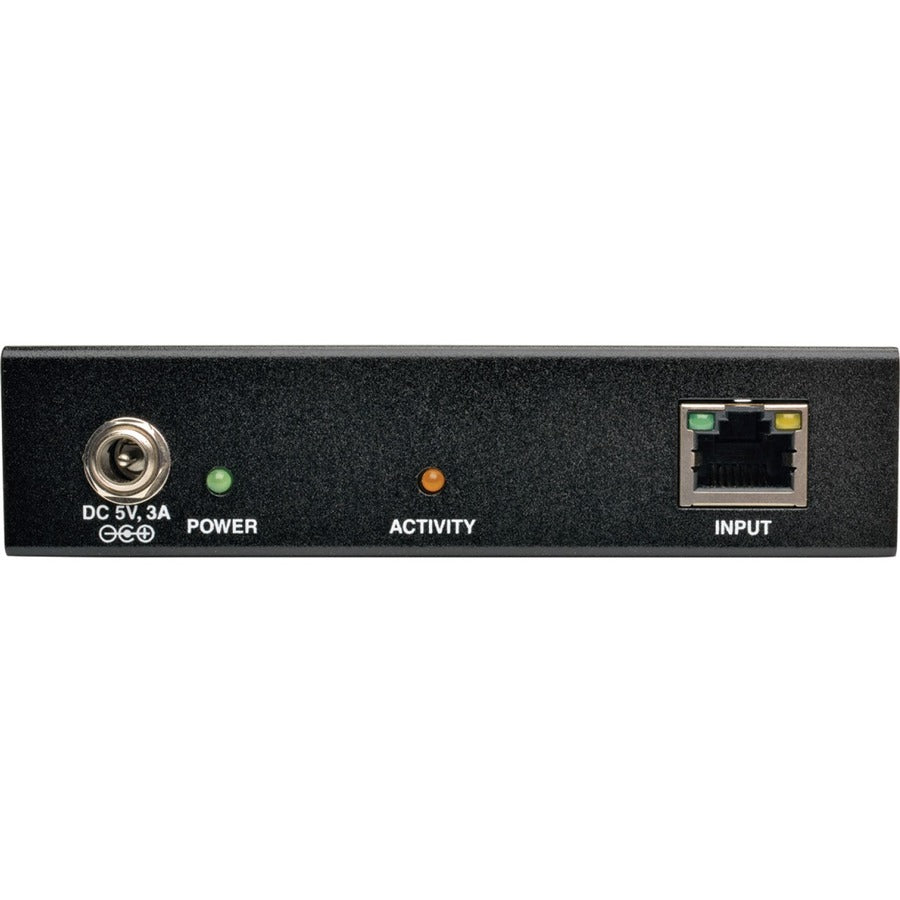

- External Power Supply (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V, 3A)
- Mounting Hardware
- Owner's Manual
- Receiver Width : 4.50" (114.30 mm)
- HDMI Out : Yes
- Twisted Pair Cable Standard : Category 6a
- Manufacturer : Tripp Lite by Eaton
- Product Model : BHDBT-R-SI-LR
- Receiver Weight (Approximate) : 249.5 g
- Maximum Video Resolution : 3840 x 2160
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Receiver Height : 1.10" (27.94 mm)
- Product Color : Black
- Receiver Depth : 2.50" (63.50 mm)
- Limited Warranty : 1 Year
- Network (RJ-45) : Yes
- Product Type : Video Extender Receiver
- Graphics Modes : 4K
- Media Type Supported : Twisted Pair
- Country of Origin : Taiwan
- Number of Network (RJ-45) Ports : 1
- Connectivity Technology : Wired
- Manufacturer Website Address : https://tripplite.eaton.com/
- Color Family : Multicolor
