Description

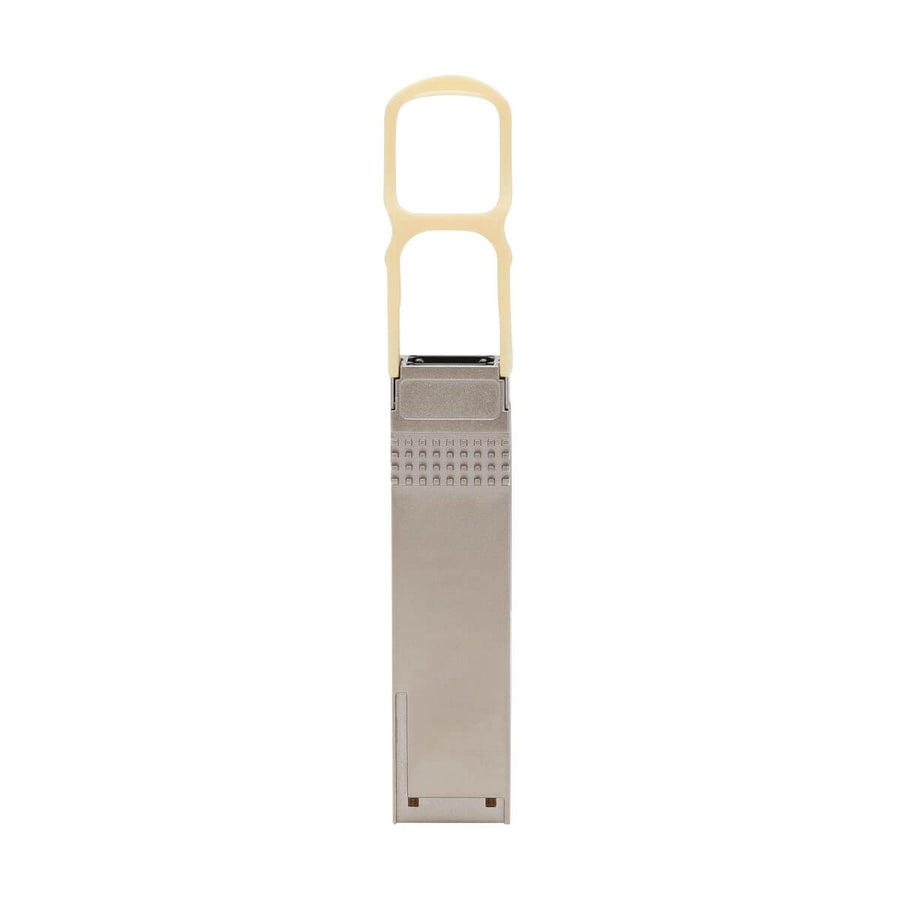

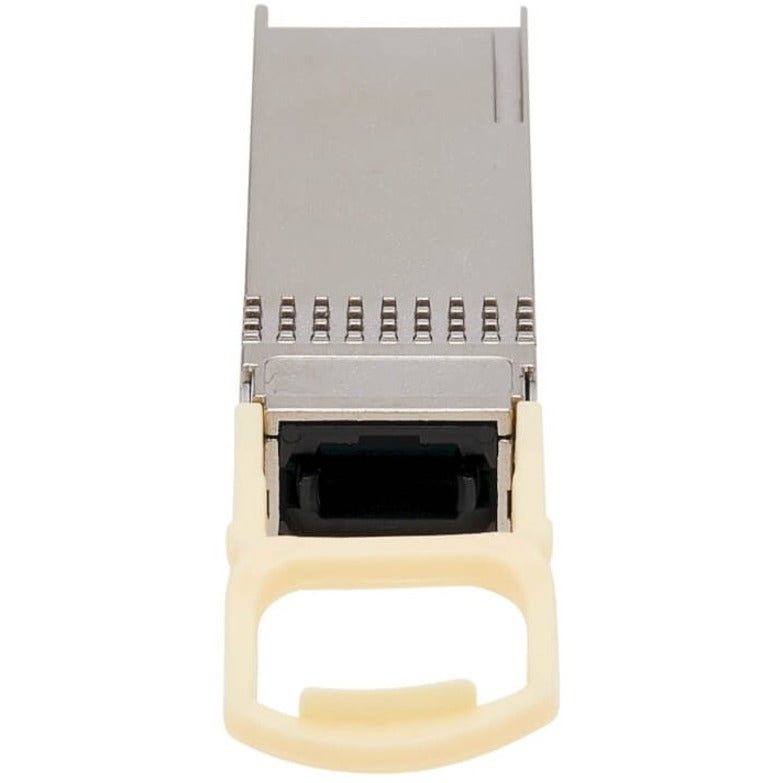

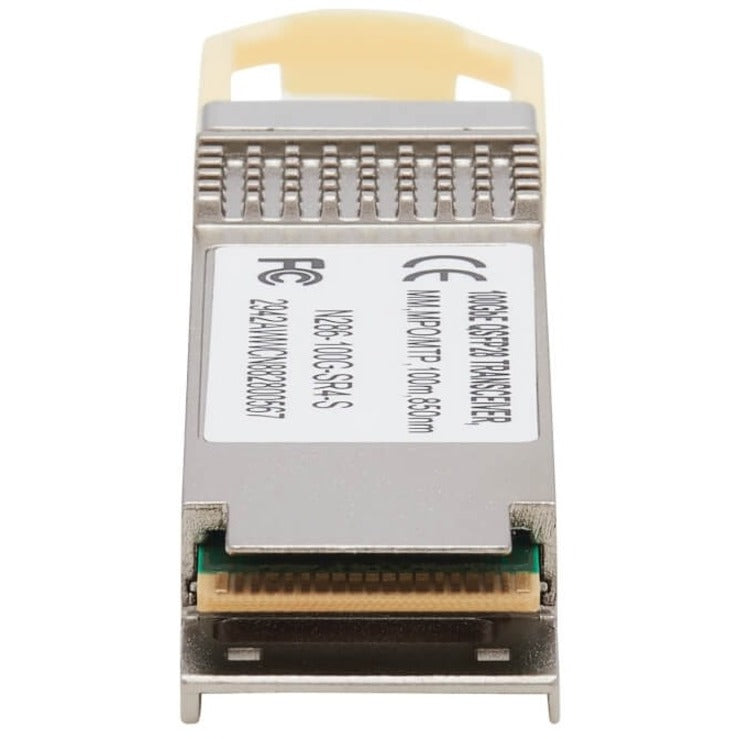

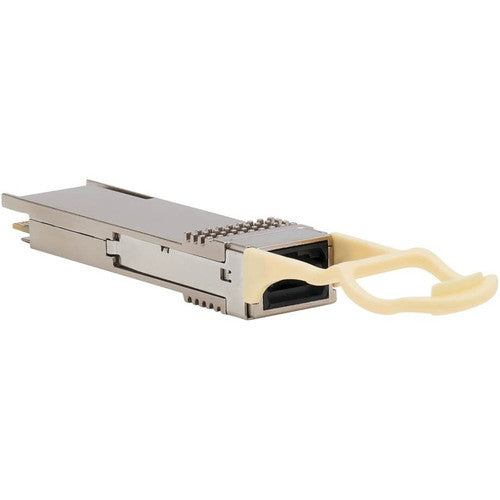

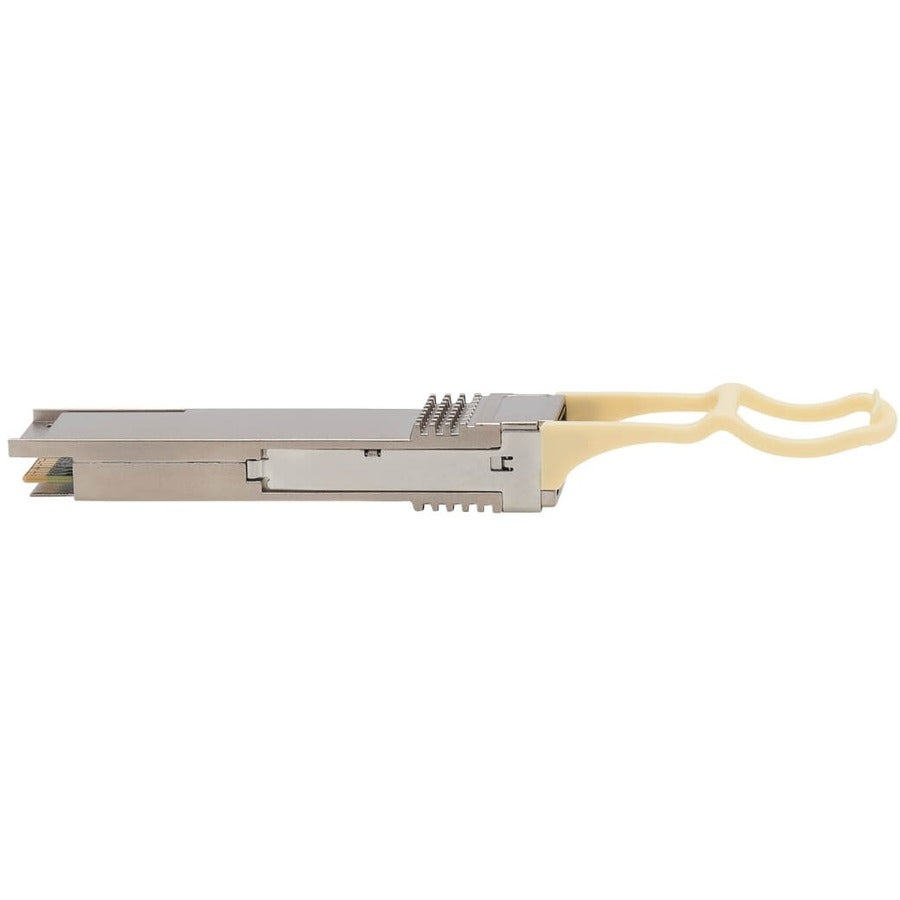

QSFP28 Transceiver Designed for Connection to Your Cisco Network Switch or Server
This QSFP28 transceiver allows you to connect a multimode fiber optic cable to a 100 Gbps network router, server or switch. It transmits data up to 100 meters (328 feet) using an 850 nm wavelength. The zinc housing protects against electromagnetic interference (EMI) and excessive power dissipation.
Functionally Equivalent to Cisco GLC-TE Transceiver Module
The MSA-compliant N286-100G-SR4-S functions just like the equivalent Cisco QSFP-100G-SR4-S transceiver module and is manufactured to meet or exceed Cisco specifications. You can use this transceiver with any compatible Cisco router, server or switch and receive the same performance as the QSFP-100G-SR4-S.
Hot-Swappable for Installation Without Network Interruption
This input/output device is fully hot-swappable, so you can install it without a potentially costly 100 Gbps network shutdown or device reboot. Just plug the QSFP28 end of the transceiver into your Cisco network device. The other end has an MTP/MPO connector to link with multimode fiber cable (sold separately). A push/pull tab connector is easily accessible in high-density data center applications and makes the plug-and-play transceiver easy to install and remove with one hand.
- QSFP28 transceiver module 100% compatible with Cisco's equivalent module
- Provides 100 Gbps throughput up to 100 m (328 ft.) via multimode fiber cabling
- 12-strand MTP/MPO connector supports 100GBase-LR4 signal at 850 nm wavelength
- Hot-swappable interface lets you install and uninstall without shutting down
- Meets or exceeds MSA standards and works in all MSA-compliant platforms
- 3-year limited warranty
- Ethernet Technology : 100 Gigabit Ethernet
- Environmentally Friendly : Yes
- Limited Warranty : 3 Year
- Form Factor : Hot-swappable
- Total Number of Ports : 1
- Product Type : QSFP28
- Application/Usage : Optical Network,Data Networking
- Connector Type : MPO/MTP
- Manufacturer : Tripp Lite by Eaton
- Compatibility :
MSA Compliant
- Media Type Supported : Optical Fiber
- Fiber Mode Supported : Multi-mode
- Country of Origin : China
- Interfaces/Ports Details : 1 x MPO/MTP 100GBase-SR4 Network
- Network Technology : 100GBase-SR4
- Manufacturer Website Address : https://tripplite.eaton.com/
