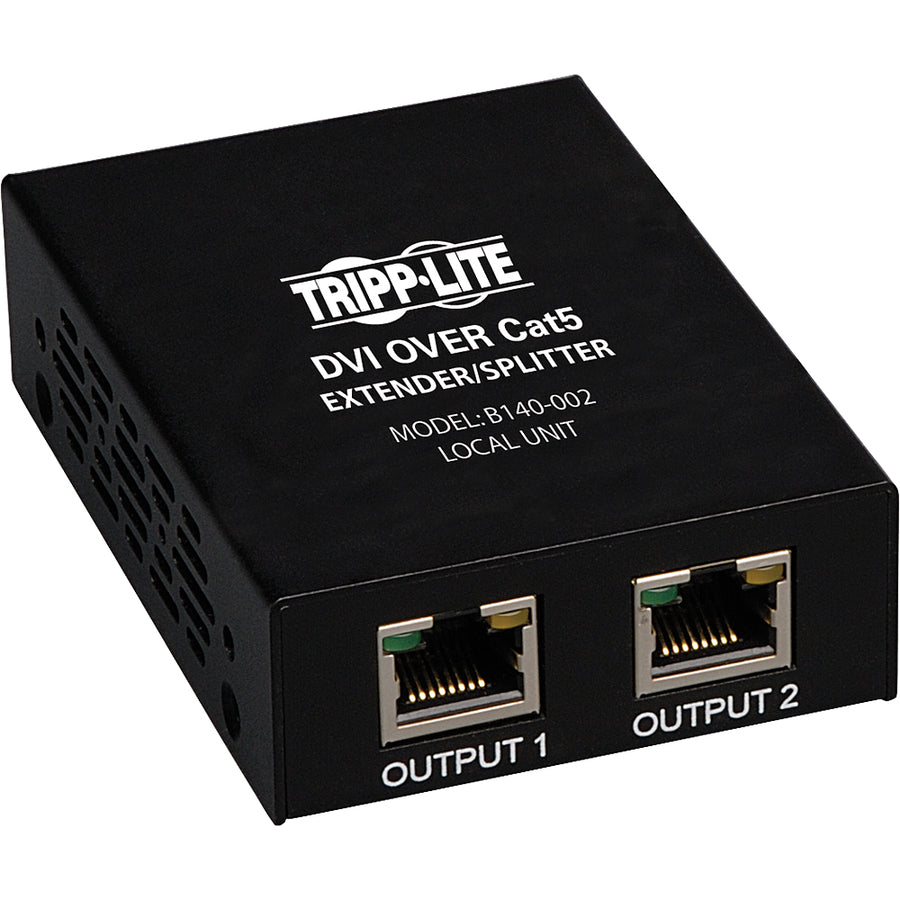

Tripp Lite par Eaton DVI sur prolongateur/répartiteur Cat5, unité émetteur locale à 2 ports B140-002

The B140-002 transmits a DVI-D Single-Link signal to two monitors up to 200 ft. away using a single Cat5e/6 patch cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable (Tripp Lite's N202-Series). The B140-002 is compatible with all operating systems, and is plug and play, with no software or drivers required. It also comes with mounting hardware that allows it to be wallmounted, rackmounted, or pole-mounted. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Installation is simple. Connect the B140-002 transmitter to a DVI source using a Tripp Lite P561-Series DVI cable (not included). Connect a Tripp Lite B140-series receiver (not included) to each display using a Tripp Lite P561-Series DVI cable (not included). Finally, each remote receiver is connected to an RJ45 port on the B140-002 using a single Cat5e/6 cable.

For longer extension distances, use a B140-1A0 or B140-1A0-WP active receiver unit to extend a 1920 x 1080 @ 60Hz signal up to 150 ft., or a 1024 x 768 @ 60Hz signal up to 200 ft..

For shorter extension distances, use a B140-1P0 or B140-1P0-WP passive receiver unit to extend a 1920 x 1080 @ 60Hz signal up to 50 ft., or a 1024 x 768 @ 60Hz signal up to 100 ft..

Further expand the range and number of monitors by using a B140-110 repeater unit. Add up to four remote units (three repeaters and one active receiver) to each channel of the B140-002, for a total of 4 displays per channel. (An active receiver should be the last unit in a channel) A 1920 x 1080 @ 60Hz signal can be extended up to 125 ft. from each repeater to the next unit in the channel, or a 1024 x 768 @ 60Hz signal can be extended up to 175 ft..

• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
• Plug and play, no software or drivers required
• Compatible with all operating systems
• Can further expand the range and number of monitors by adding B140-110 repeaters
• Use 24AWG, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, to achieve maximum distance and resolution
• For shorter distances - Use a B140-1P0 or B140-1P0-WP-1 passive receiver unit to extend a 1920 x 1080 @ 60Hz signal up to 50 ft., or a 1024 x 768 @ 60Hz signal up to 100 ft.
• For longer distances - Use a B140-1A0 or B140-1A0-WP active receiver unit to extend a 1920 x 1080 @ 60Hz signal up to 150 ft., or a 1024 x 768 @ 60Hz signal up to 200 ft.
• Supports DVI-D Single-Link video resolutions up to 1920 x 1080 @ 60Hz

• Maximum Operating Distance : 200 ft (60960 mm)
• Number of Input Devices Supported : 1
• Number of DVI Inputs : 1
• Transmitter Depth : 3.60" (91.44 mm)
• Number of Output Devices Supported : 2
• Package Contents :
  • B140-002 DVI Over Cat5 Extender/Splitter, 2-Port Local Transmitter Unit
  • Mounting Hardware
  • External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
  • Owner's Manual
• Twisted Pair Cable Standard : Category 6
• Manufacturer : Tripp Lite by Eaton
• Product Model : B140-002
• Transmitter Height : 1" (25.40 mm)
• Maximum Video Resolution : 1920 x 1080
• TAA Compliant : Yes
• Environmentally Friendly : Yes
• Product Color : Black
• DVI In : Yes
• Limited Warranty : 1 Year
• Network (RJ-45) : Yes
• Product Type : Video Extender Transmitter
• Graphics Modes : Full HD
• Transmitter Width : 2.50" (63.50 mm)
• Media Type Supported : Twisted Pair
• Country of Origin : Taiwan

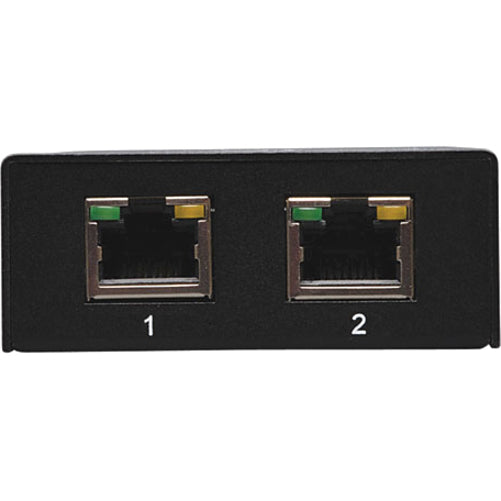

• Number of Network (RJ-45) Ports : 2
• Connectivity Technology : Wired
• Manufacturer Website Address : https://tripplite.eaton.com/
• Color Family : Multicolor
