Description
UPS Battery Pack Extends the Runtime of Your SV-Series 3-Phase UPS System

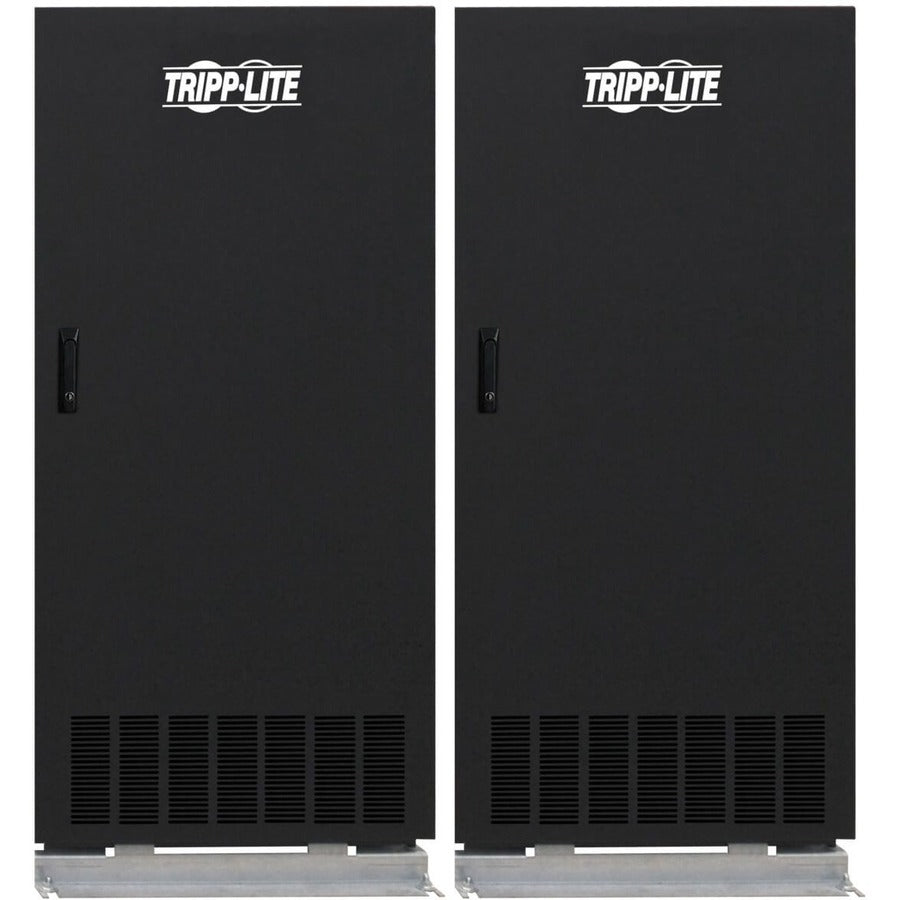

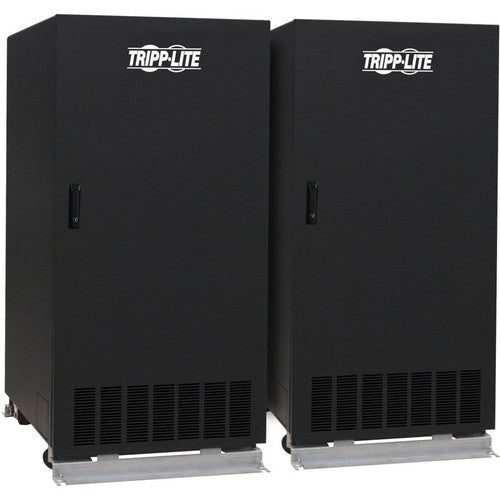

This external backup battery pack consists of two battery cabinets containing sealed lead acid batteries designed to give your Tripp Lite SV-Series UPS system more runtime. It uses a +/-120VDC configuration and must be hardwired to a compatible UPS system. You can also connect more battery packs in parallel to increase runtime even longer. A UL-listed DC circuit breaker protects against too much current. The EBP240V5002 is compatible with all Tripp Lite UPS models that begin with SV20, SV40, SV60, SV80, SV100, SV120 and SV140.
Designed and Constructed to Ensure Consistent Power for a Long Time
This 120V UPS battery pack is made from heavy-gauge welded steel with a baked powder-coated finish that protects the cabinets from chipping and corrosion. The hinged cabinet door locks to prevent tampering and to facilitate easy access to the internal batteries. User-supplied power output cables feed into the cabinets through conduit knockouts built into the cabinets' exterior. Front and rear vents allow the free flow of warm air out of the cabinets to maintain cool internal temperatures. Sturdy metal casters allow you to smoothly roll the backup battery pack into position.
TAA-Compliant for GSA Schedule Purchases
The EBP240V5002 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
- Extends runtime of Tripp Lite SV-Series UPS systems using a +/-120VDC configuration
- Sealed lead acid batteries offer safety, little maintenance and high power density
- Hardwired installation with circuit breakers providing overcurrent protection
- Multiple battery cabinets may be connected in parallel to increase runtime
- Complies with Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Limited Warranty : 1 Year
- Package Contents :
- EBP240V5002 External Battery Pack
- Owner's Manual
- Product Type : External Battery Pack
- Battery Chemistry : Lead Acid
- Manufacturer : Tripp Lite by Eaton
- Product Model : EBP240V5002
- Compatibility :
Tripp Lite SV-Series 3-phase UPS systems:
- SV20
- SV40
- SV60
- SV80
- SV100
- SV120
- SV140
- Output Voltage : 120 V DC
- Country of Origin : Taiwan
- Battery Characteristics : Sealed
- Manufacturer Website Address : https://tripplite.eaton.com/
