Description
Energy-Saving 550VA/300W/120V Battery Backup for PCs, Home Theater and Digital Signage
Allows Time to Back Up Critical Files During a Blackout
Backup support allows you to work through short power failures and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the ECO550UPS should keep an energy-efficient desktop computer with small LCD monitor powered as long as 16 minutes. During normal operation, incoming utility power keeps the replaceable internal battery fully charged, so backup power will always be available.

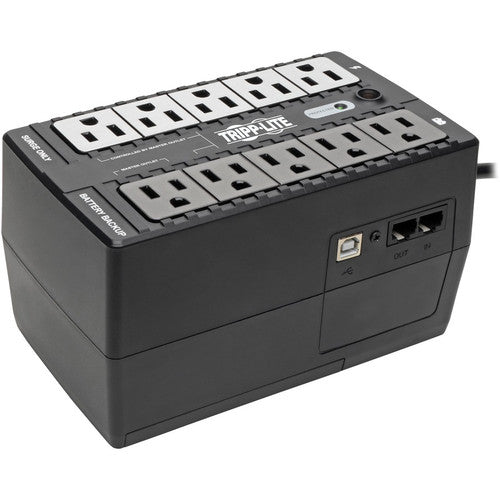

10 NEMA 5-15R Outlets Protect Your Connected Components
Five 5-15R outlets provide battery backup and surge protection for your computer, monitor and other crucial components. The other five 5-15R outlets provide surge suppression only for printers, speakers and other desktop equipment regarded as non-essential during a blackout.
ENERGY STAR-Certified to Help You Save Money and Protect the Environment
By meeting strict EPA efficiency guidelines, this ENERGY STAR-certified UPS system helps you save money and energy. An ECO power-saving option features three switched ECO outlets (two surge-only, one surge- and battery-protected) that turn off automatically when the device connected to the Battery Backup Master Outlet is powered down or in sleep mode. These outlets are recommended for printers, desk lamps and other non-essential peripherals that don't need to be operational all the time.
316 Joules Fight Back Against Unexpected Power Surges
A 316-joule surge suppression rating protects connected components from the harmful effects of power surges.

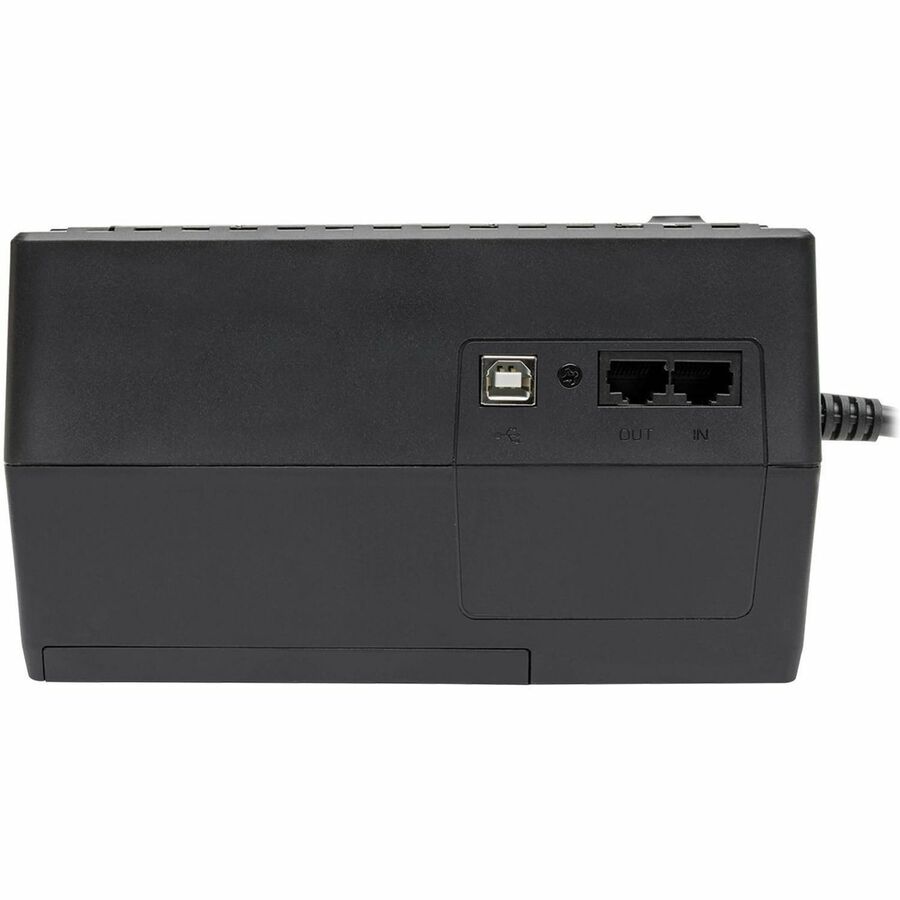

HID-Compliant USB Port Allows for Automatic Saves and Shutdowns
This USB port connects the ECO550UPS to a computer running free downloadable PowerAlert® software to enable safe unattended file saves and system shutdown in case of a prolonged power failure. USB cable is included.
Combats Electromagnetic Interference That Can Harm Equipment
Various electromagnetic and radio sources found in virtually every home and business can cause disruptive interference on the AC line. Known as EMI (electromagnetic interference) and RFI (radio frequency interference), this line noise is a common cause of performance problems and can lead to incremental hardware damage, data corruption and audio/video transmission problems. The ECO550UPS incorporates technology that filters out disruptive line noise so that it won't affect your equipment.
Home-Friendly Alarm and Diagnostic LEDs Keep You Informed 24/7
The UPS remains silent in both line and battery backup modes. The alarm sounds only to warn you of a low battery, overload or fault condition. A front-panel green LED indicates operating mode, ECO mode and fault status.
- ENERGY STAR-certified to save electricity, lower costs, and protect the environment
- 10 NEMA 5-15R outlets power and protect PC, home theater or digital signage equipment
- Home-friendly alarm remains silent in backup mode, sounding only when imperative
- Keeps AC power running during blackouts to allow time for file saves and safe shutdown
- Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
- Receptacle Type : NEMA 5-15R
- Product Color : Black
- Additional Warranty Information :
2 year $100,000 connected equipment guarantee
- Input Voltage : 120 V AC
- Product Series : ECO
- Limited Warranty : 3 Year
- Packaged Quantity : 1 Each
- Backup/Run Time (Full Load) : 1.20 Minute
- Battery Life : 6 Year
- Plug/Connector Type : NEMA 5-15P
- Product Type : Standby UPS
- Load Capacity : 550 VA/300 W
- Manufacturer : Tripp Lite by Eaton
- Product Model : ECO550UPS
- Output Voltage : 110 V AC,115 V AC,120 V AC
- Backup/Run Time (Half Load) : 5 Minute
- Country of Origin : Vietnam
- Software Included : PowerAlert software available via free download
- Thermal Dissipation : 4 BTU/h
- Sound Emission : 40 dB
- USB : Yes
- Dataline Protection : RJ-11
- Status Indicators :
2 LED Indicator:
- Line power
- Battery power status
Main Power Switch Controls :
- ON
- OFF
- SELF-TEST
- ALARM CANCEL
- Second switch enables "ECO" outlet switching
- Manufacturer Website Address : https://tripplite.eaton.com/
- Typical Battery Recharge Time : 6.50 Hour
- Waveform Type : Pure Sine Wave
- Receptacle Detail : 10 x NEMA 5-15R

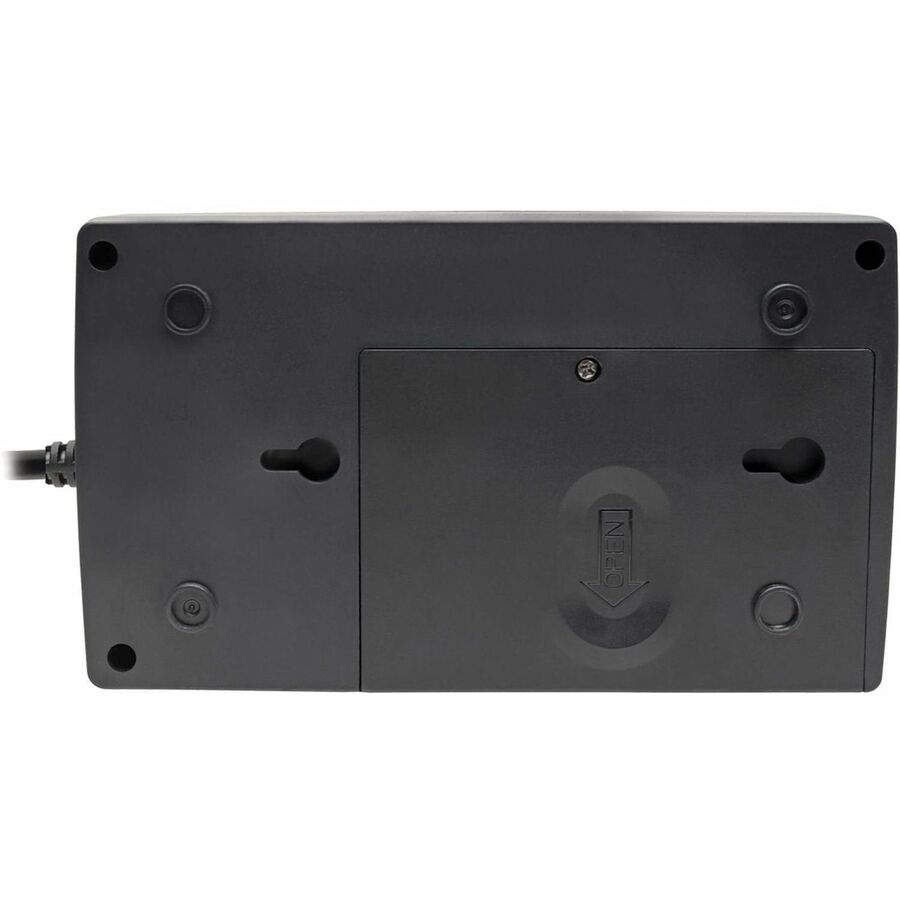

- Form Factor : Ultra-compact Desktop/Tower/Wall Mount
- Package Contents :
- ECO550UPS 550VA Ultra-compact Desktop/Tower/Wall Mount UPS
- USB Cable
- Owner's Manual
- Maximum Operating Temperature : 104°F (40°C)
- Surge Energy Rating : 316 J
- Alarm : Battery Fault,Overload,Low Battery
- DC System Voltage : 12 V DC
- Energy Star : Yes
- Output Frequency : 60 Hz
- Environmental Certification : RoHS
- Environmentally Friendly : Yes
- Replaceable Battery : Yes
- USB (HID Compliant) Port : Yes
- Phase : Single Phase
- Number of Surge-only Outlets : 5
- Battery Chemistry : Lead Acid
- Battery Characteristics : Valve-regulated
- Storage Temperature : 5°F (-15°C) - 133°F (56.1°C)
- Transfer Time : 6 ms
- Minimum Operating Temperature : 32°F (0°C)
- Overload Protection : Yes
- Application/Usage : Retail,Hospital,Computer Peripheral
- Maximum Storage Elevation : 6561 ft (1999792.80 mm)
- Cord Length : 6 ft
