Description

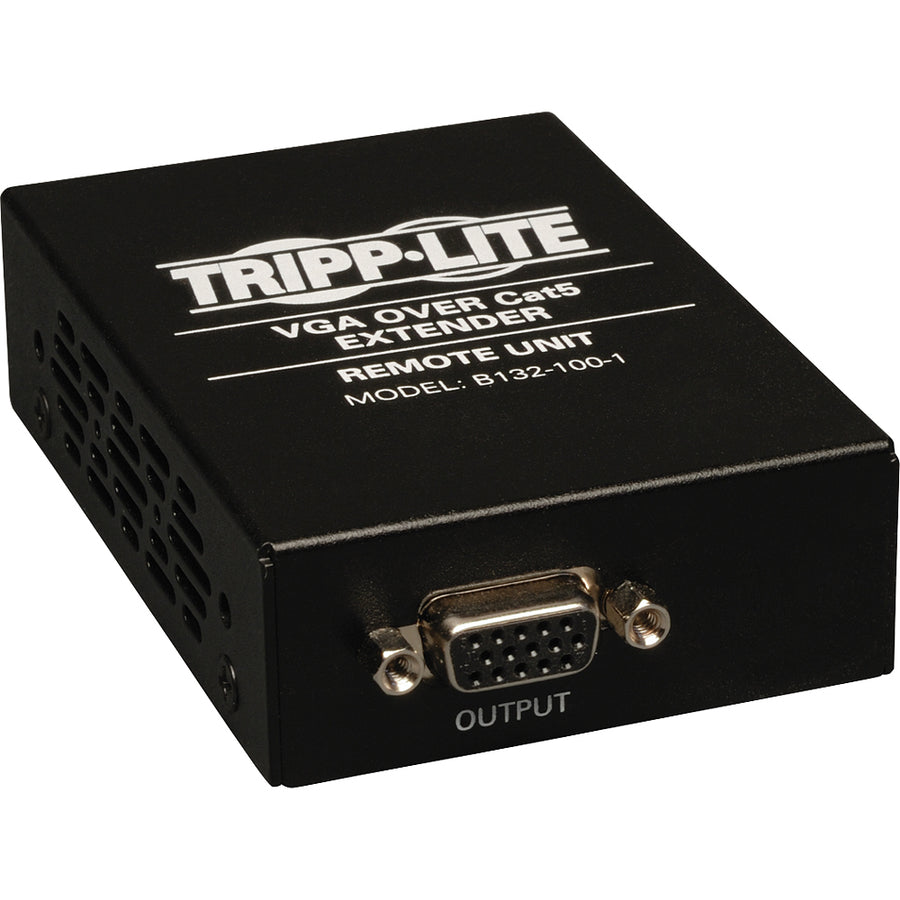

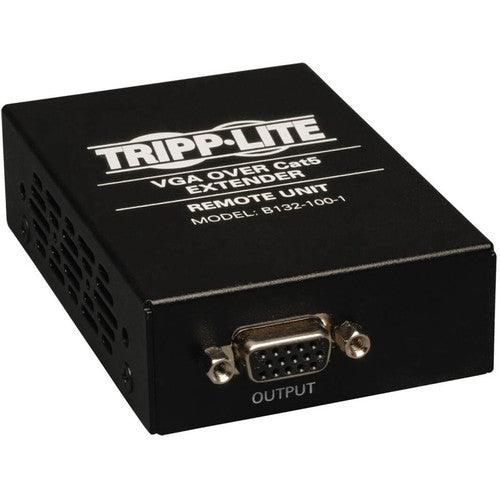

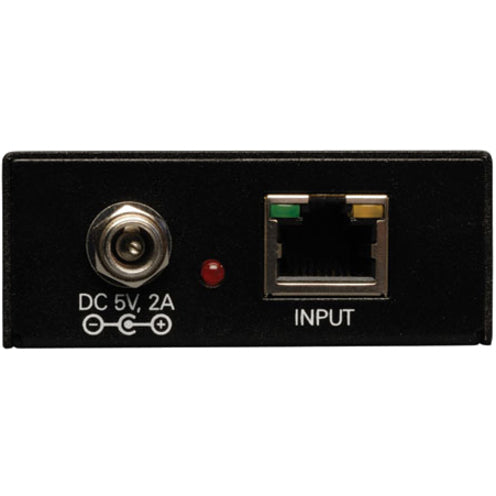

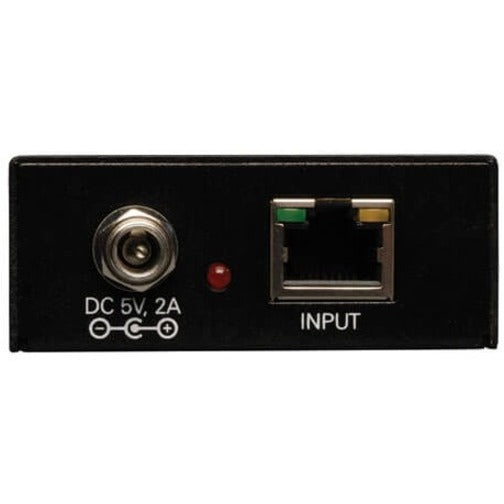

Tripp Lite's B132-100-1 works with a B132-002-2 or B132-004-2 local transmitter unit to extend a 1920 x 1440 (60Hz) video signal up to 500 ft., or a 1024 x 768 (60Hz) video signal up to 1,000 ft.. 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6), is required to achieve maximum distance and resolution. For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K. Features built-in Equalization and Gain controls to adjust the video image. Includes mounting hardware that allows unit to be wallmounted, rackmounted or pole mounted. Ideal for digital signage situations, such as retail, schools, churches, etc. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Features
- Works with a B132-002-2 or B132-004-2 local transmitter unit to extend a 1920 x 1440 (60Hz) video signal up to 500 ft., or a 1024 x 768 (60Hz) video signal up to 1,000 ft.
- 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6), is required to achieve maximum distance and resolution
- For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K
- Features built-in Equalization and Gain controls to adjust the video image
- Includes mounting hardware that allows unit to be wallmounted, rackmounted or pole mounted
- Ideal for digital signage situations, such as retail, schools, churches, etc..
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- 1 year limited waranty.
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K
- 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6), is required to achieve maximum distance and resolution
- Works with a B132-002-2 or B132-004-2 local transmitter unit to extend a 1920 x 1440 (60Hz) video signal up to 500 ft., or a 1024 x 768 (60Hz) video signal up to 1,000 ft.
- Maximum Operating Distance : 1000 ft (304800 mm)
- Number of Input Devices Supported : 1
- Number of Output Devices Supported : 1
- Form Factor : Wall Mountable,Rack-mountable,Pole-mountable
- Package Contents :
- B132-100-1 TAA/GSA Compliant Video Console
- Mini-Screwdriver
- Mounting Hardware
- External Power
- Owner's Manual
- Receiver Width : 2.50" (63.50 mm)
- Twisted Pair Cable Standard : Category 6
- Manufacturer : Tripp Lite by Eaton
- Product Model : B132-100-1
- Receiver Weight (Approximate) : 204.1 g
- Maximum Video Resolution : 1920 x 1440
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Receiver Height : 1" (25.40 mm)
- Product Color : Black
- Receiver Depth : 3.60" (91.44 mm)
- Limited Warranty : 1 Year
- Network (RJ-45) : Yes
- Product Type : Video Extender Receiver
- Media Type Supported : Twisted Pair
- Country of Origin : Taiwan
- Number of Network (RJ-45) Ports : 1
- Connectivity Technology : Wired
- Manufacturer Website Address : https://tripplite.eaton.com/
- Color Family : Multicolor
