Description

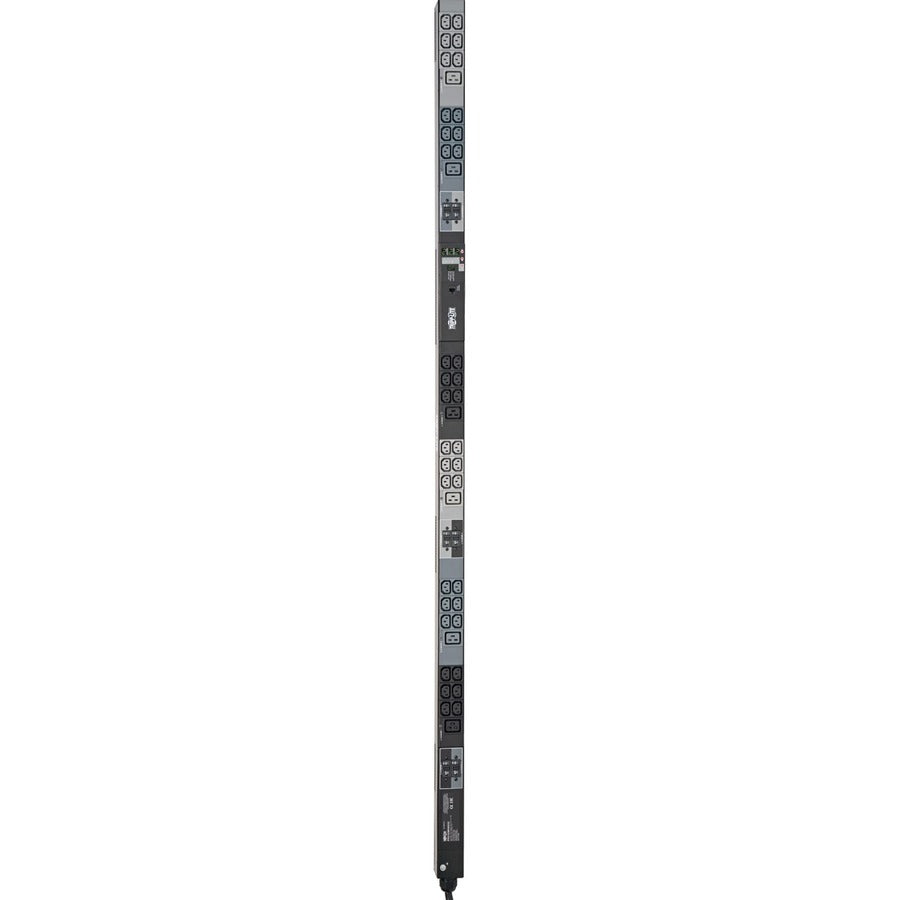

Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of output current, output kW and input voltage via built-in multifunction digital display. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- TAA Compliant
- 0U Vertical Rackmount with Toolless button-mount installation

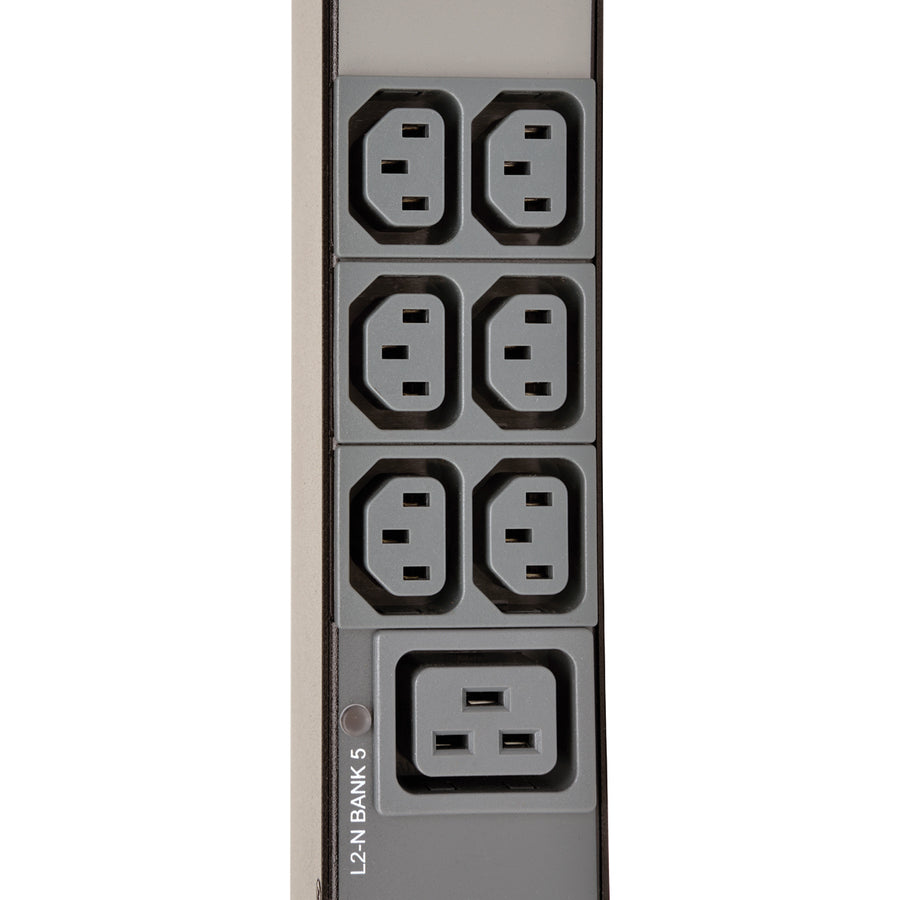

- 42 220/230V outlets (36 C13, 6 C19) with included plug-lock cord retention sleeves

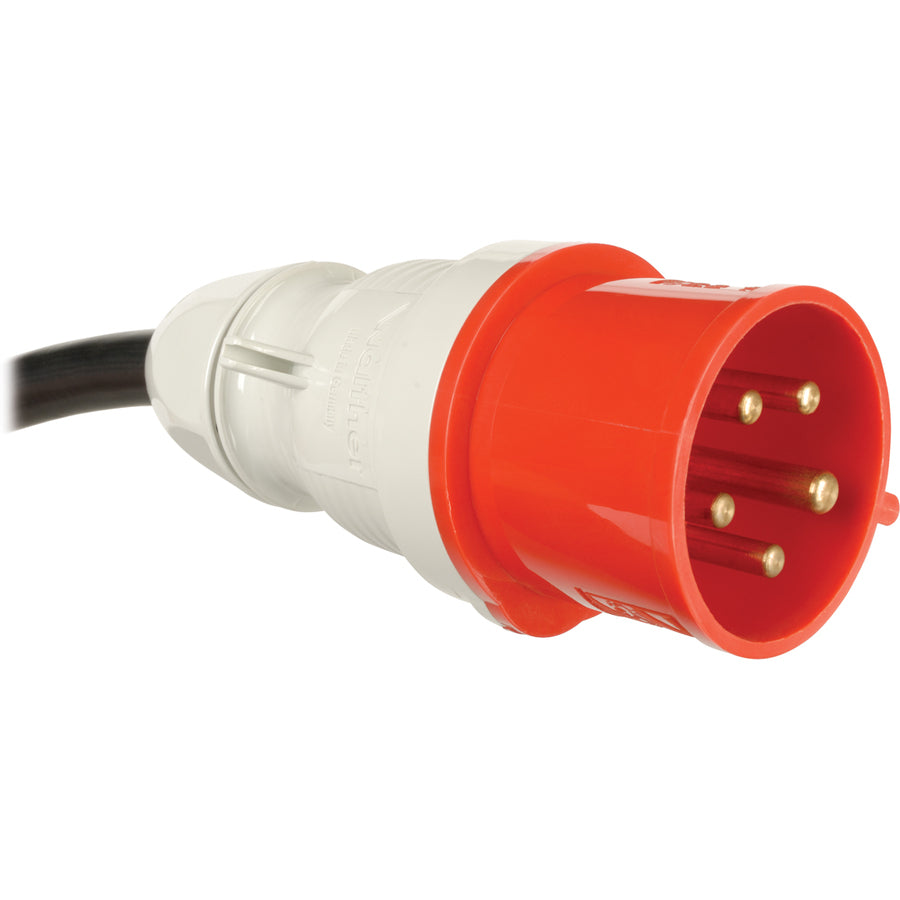

- IEC309 32A Red (3P+N+E) 3 phase 380/400V input, 6 ft. / 1.8m line cord

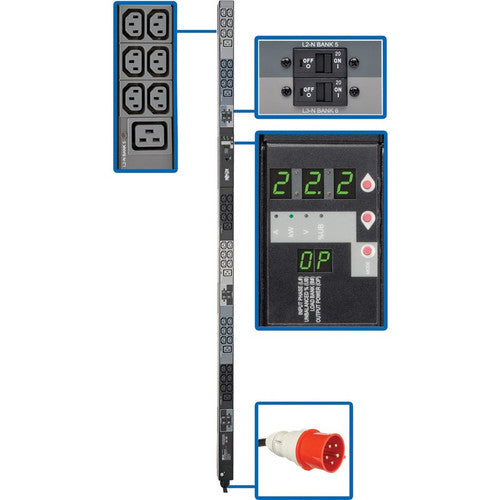

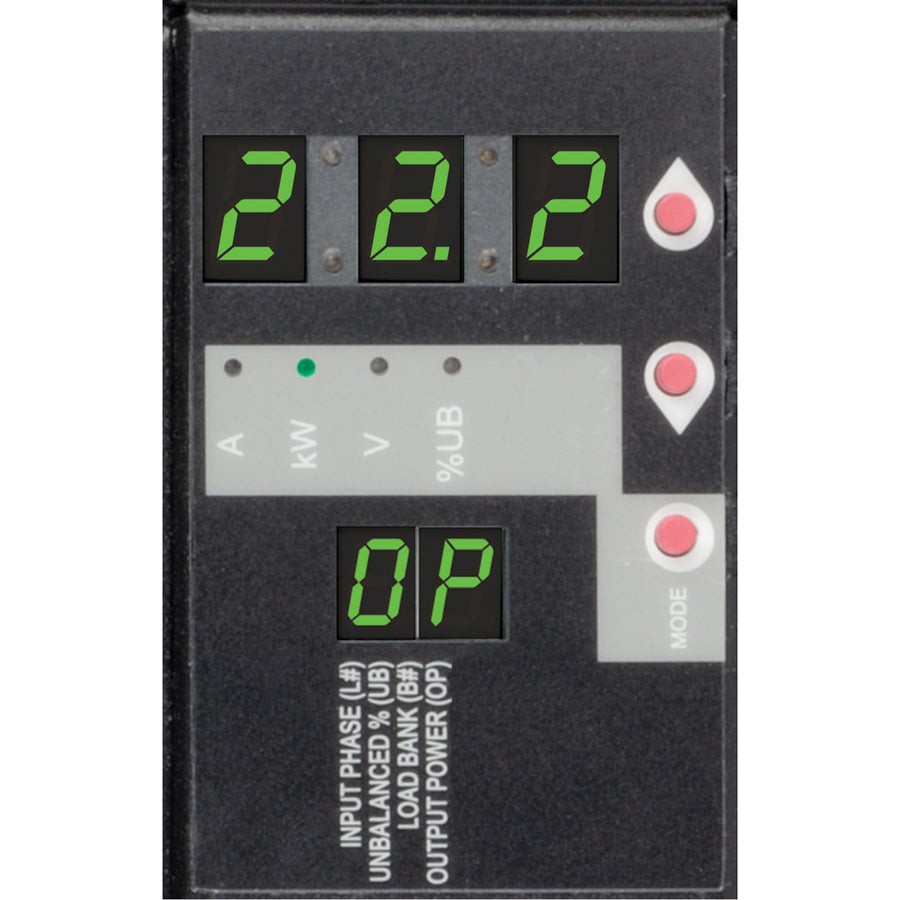

- Visual meter reports output amps per bank, total kW and input voltage
- Metered 22.2kW 3 Phase 380/400V input 220/230V output PDU
- Receptacle Type : IEC 60320 C19,IEC 60320 C13
- Receptacle Detail : 6 x IEC 60320 C19,36 x IEC 60320 C13
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Power Rating (Watt) : 23 kW
- Limited Warranty : 2 Year

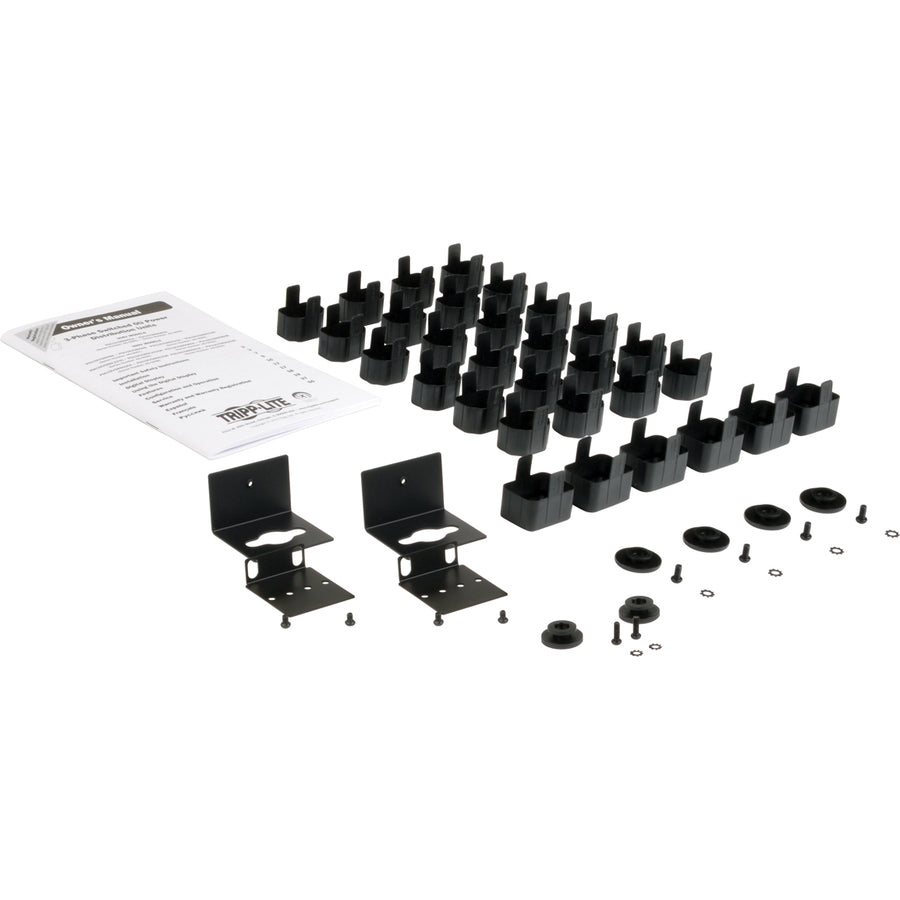

- Package Contents :
- Metered PDU3XMV6G32 42 Outlets PDU
- Cord Retention Sleeves (36 C14, 6 C19)
- Spare Installation Buttons (2 9mm / 4 6mm)
- Rack Mounting Brackets
- Owner's Manual
- Plug/Connector Type : IEC 60309 32A Red 3P+N+E
- Product Type : PDU
- Mount Type : Rack-mountable
- Protection Type : Overload Protection
- Manufacturer : Tripp Lite by Eaton
- Product Model : PDU3XMV6G32
- Input Voltage Range : 380 V AC - 400 V AC
- Output Voltage : 200 V AC,220 V AC,230 V AC,240 V AC
- Mounting Orientation : Vertical
- Input Current : 32 A
- Rack Height : 0U
- Country of Origin : Taiwan
- Product Line : Metered
- Manufacturer Website Address : https://tripplite.eaton.com/
