Description

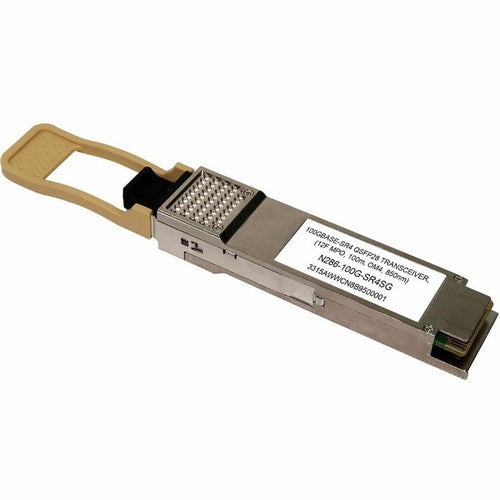

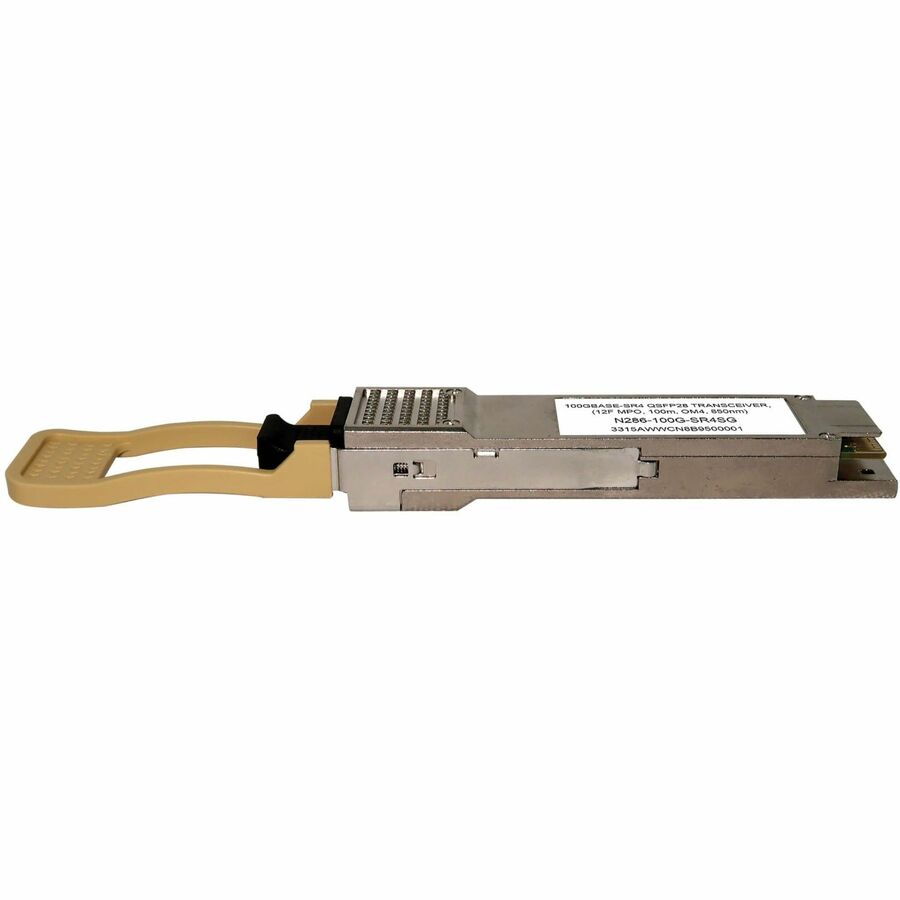

QSFP28 Transceiver for Connecting to Your Network Switch or Server
This QSFP28 transceiver allows you to connect a multimode fiber optic cable to a 100 Gbps network router, server or switch. It transmits data up to 100 meters (328 feet) using an 850 nm wavelength. The zinc housing protects against electromagnetic interference (EMI) and excessive power dissipation.
Functionally Equivalent to QSFP-100G-SR4-S Transceiver Modules
The MSA-compliant N286-100G-SR4SG functions just like equivalent QSFP-100G-SR4-S transceiver modules and is manufactured to meet or exceed their specifications. You can use this transceiver with any compatible router, server or switch and receive the same performance as the QSFP-100G-SR4-S.
Hot-Swappable for Installation Without Network Interruption

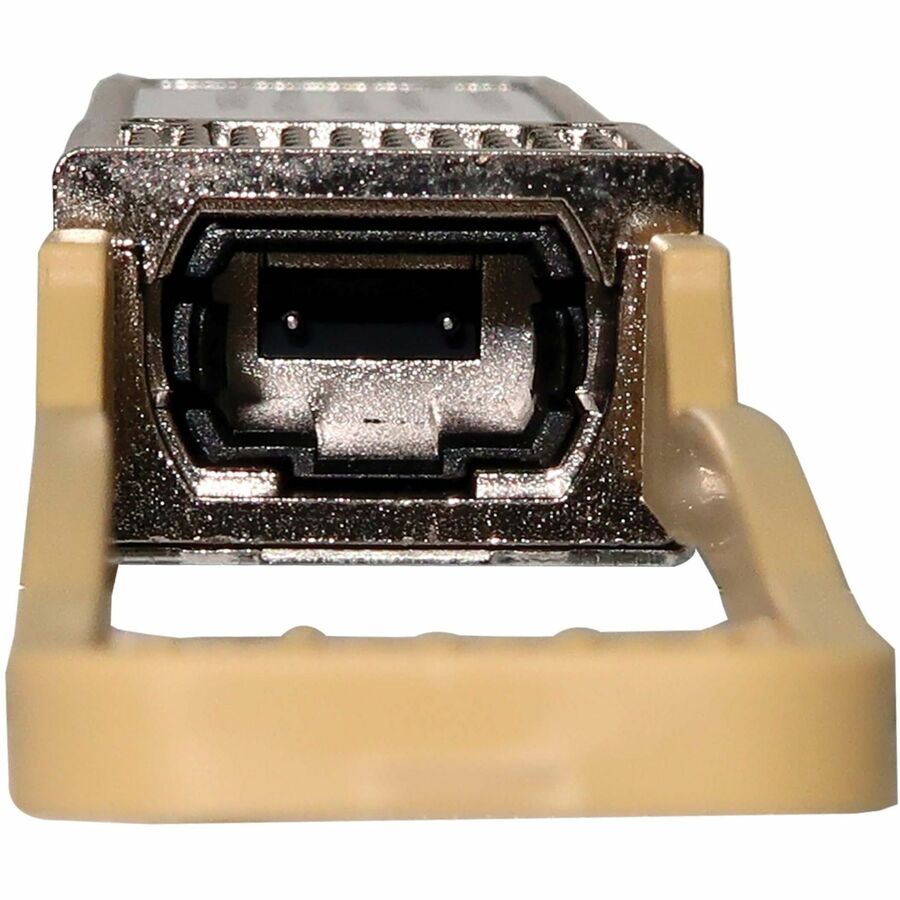

This input/output device is fully hot-swappable, so you can install it without a potentially costly 100 Gbps network shutdown or device reboot. Just plug the QSFP28 end of the transceiver into your network device. The other end has an MTP/MPO connector to link with multimode fiber optic cable (sold separately). A push/pull tab connector is easily accessible in high-density data center applications and makes the plug-and-play transceiver easy to install and remove with one hand.
Supports Digital Diagnostic Monitoring (DDM) for Real-Time Status Monitoring
DDM support lets you keep track of operating information in real time, such as transceiver temperature, input and output power and supply voltage.
- With 100GBase-SR technology, get up to 100Gbps data transfer rate over optical fiber cable
- Provides high performance and flexible solution with 100 Gigabit Ethernet connectivity
- Optical fiber cable compatible - Spans afar and provides speedy data transmission rates between servers and network components
- Environmental Certification : RoHS
- Ethernet Technology : 100 Gigabit Ethernet
- Environmentally Friendly : Yes
- Limited Warranty : 3 Year
- Form Factor : Hot-swappable
- Manufacturer Website Address : https://tripplite.eaton.com/
- Total Number of Ports : 1
- Product Type : QSFP28
- Application/Usage : Optical Network,Data Networking,Server,Switching Network
- Connector Type : MPO/MTP
- Manufacturer : Tripp Lite by Eaton
- Product Model : N286-100G-SR4SG
- Compatibility :
MSA Compliant
- Maximum Distance Supported : 328.08 ft (100000 mm)
- Media Type Supported : Optical Fiber
- Fiber Mode Supported : Multi-mode
- Interfaces/Ports Details : 1 x 100GBase-SR Network
- Network Technology : 100GBase-SR
