Description

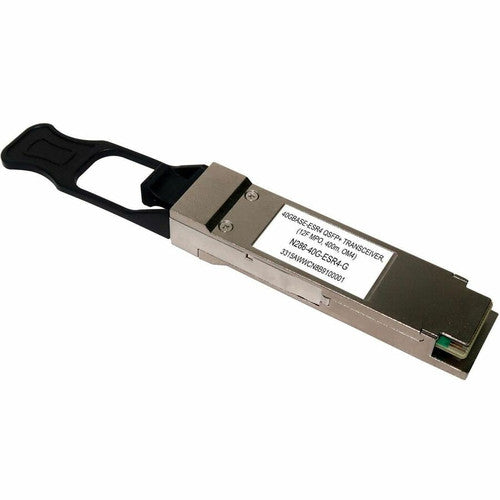

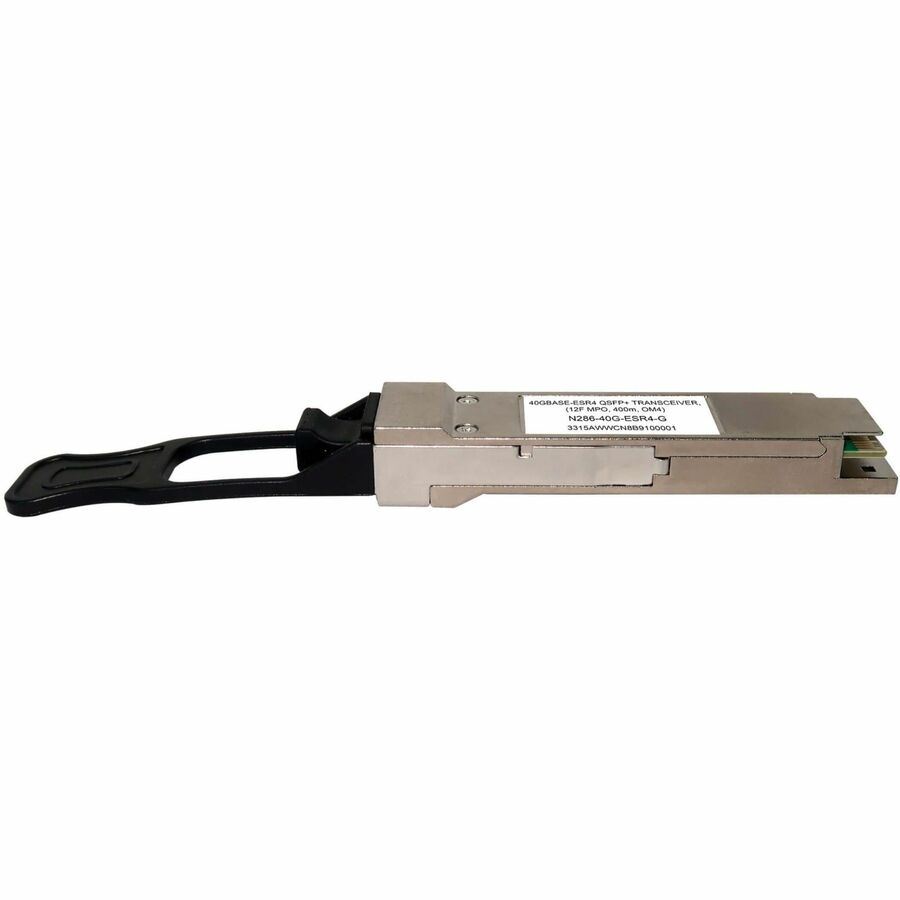

QSFP+ Transceiver for Connecting to Your Network Switch or Server
This QSFP+ transceiver allows you to connect a multimode fiber optic cable to a 40 Gbps network router, server or switch. It transmits data up to 400 meters (1312 feet) using an 850 nm wavelength. The zinc housing protects against electromagnetic interference (EMI) and excessive power dissipation.
Functionally Equivalent to QSFP-40G-SR4 Transceiver Modules
The MSA-compliant N286-40G-ESR4-G functions just like equivalent 40GBase-SR4 transceiver modules and is manufactured to meet or exceed those specifications. You can use this transceiver with any compatible router, server or switch and receive the same performance as the QSFP-40G-SR4.
Hot-Swappable for Installation Without Network Interruption

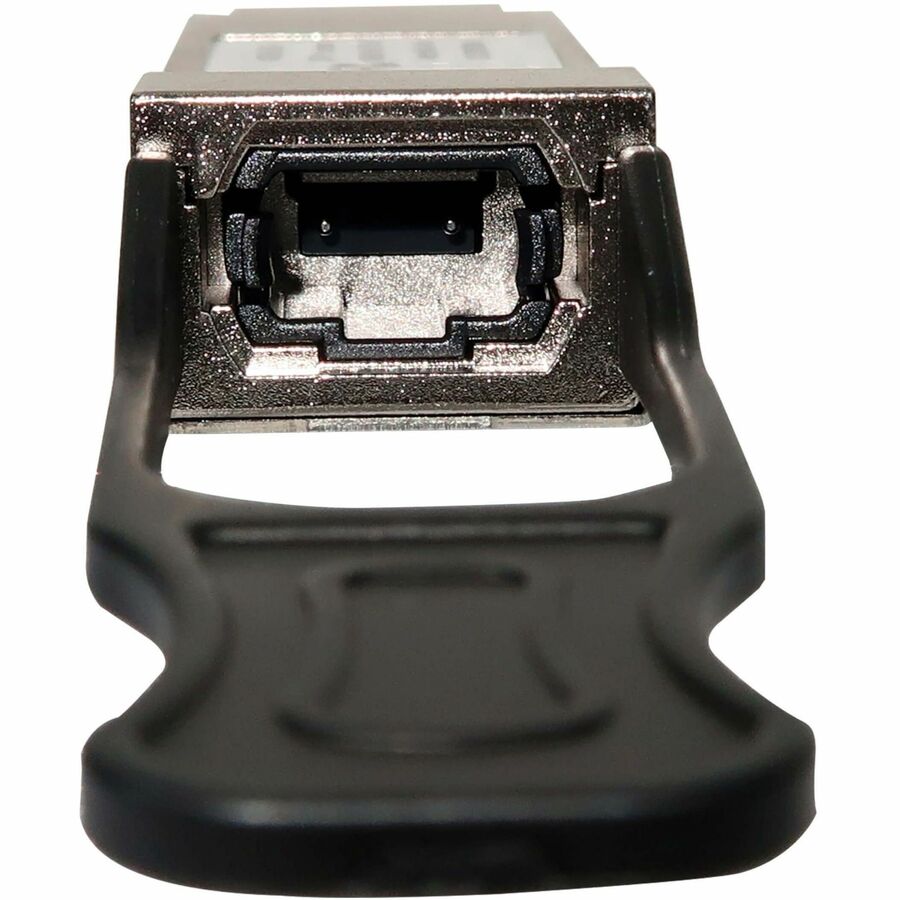

This input/output device is fully hot-swappable, so you can install it without a potentially costly 40 Gbps network shutdown or device reboot. Just plug the QSFP+ end of the transceiver into your network device. The other end has an MTP/MPO connector to link with multimode fiber optic cable (sold separately). A push/pull tab connector is easily accessible in high-density data center applications and makes the plugand-play transceiver easy to install and remove with one hand.
Supports Digital Diagnostic Monitoring (DDM) for Real-Time Status Monitoring
DDM support lets you keep track of operating information in real time, such as transceiver temperature, input and output power and supply voltage.
- 40 Gigabit Ethernet for efficient data transfer and fast connectivity
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- Typically used for short distance, multi-mode fiber optic is ideal to carry data and transmit audio/video applications within a building
- Environmental Certification : RoHS
- Ethernet Technology : 40 Gigabit Ethernet
- Environmentally Friendly : Yes
- Limited Warranty : 3 Year
- Form Factor : Hot-swappable
- Manufacturer Website Address : https://tripplite.eaton.com/
- Total Number of Ports : 1
- Product Type : QSFP+
- Application/Usage : Optical Network,Data Networking,Server,Switching Network
- Connector Type : MPO/MTP
- Manufacturer : Tripp Lite by Eaton
- Product Model : N286-40G-ESR4-G
- Compatibility :
MSA Compliant
- Maximum Distance Supported : 1312.34 ft (400000 mm)
- Media Type Supported : Optical Fiber
- Fiber Mode Supported : Multi-mode
- Interfaces/Ports Details : 1 x 400GBase-SR4 Network
- Network Technology : 400GBase-SR4
