Description
Features | Customize a Network Extension over Fiber Optic Cable

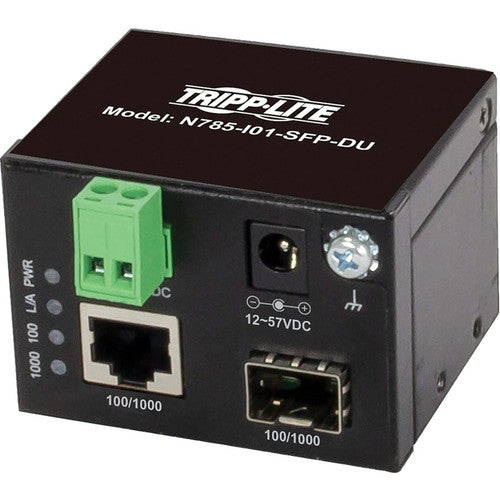

This unmanaged media converter works with a variety of SFP transceivers to convert a copper Gigabit Ethernet signal to fiber optic and extend it to a second network device. The customizable SFP port supports both singlemode and multimode transceivers, allowing your network connection to reach hubs, switches and other devices located farther away than copper cabling's 100-meter limit. Auto-negotiation and automatic MDI/MDI-X configuration seamlessly connect devices without crossover cabling.

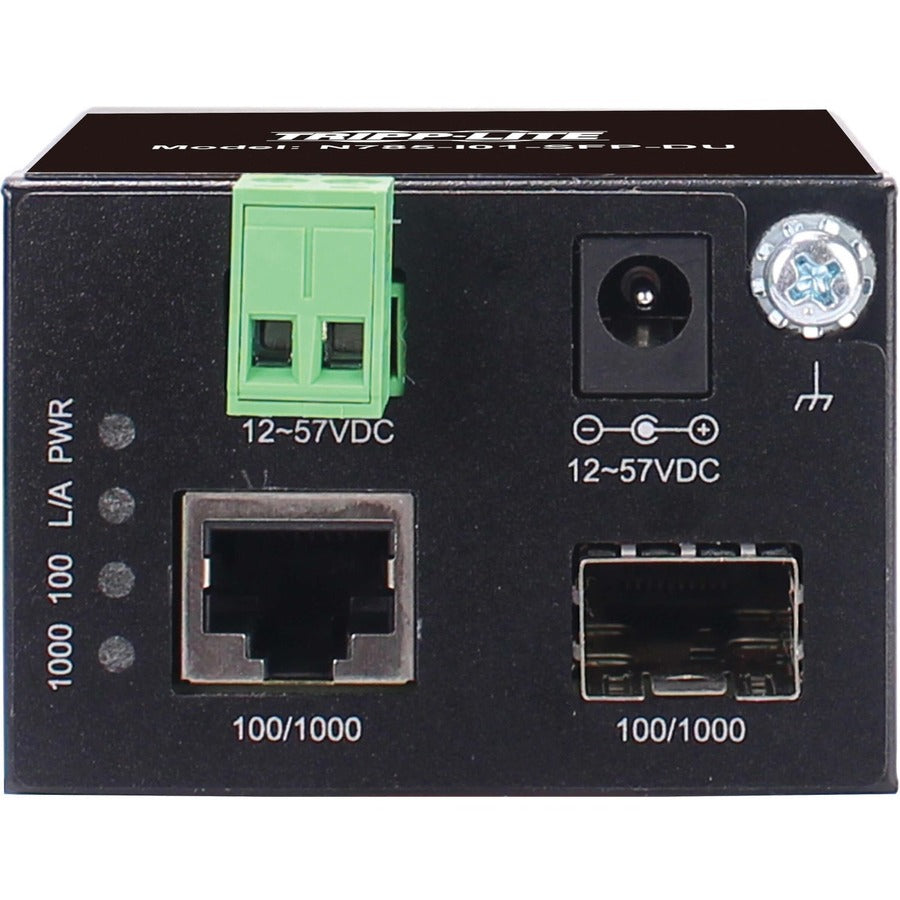

LEDs Indicate Installation Performance and Diagnostic Functions
Easy-to-read LEDs on the side of the unit indicate essential information, including network speed, connection status and unit power. The included 12-57VDC terminal block provides primary and secondary power inputs. You can also power the media converter with a user-supplied 12VDC power supply.
Protective Metal Housing Built to Withstand a Variety of Hazards
The IP30 industrial-grade aluminum case is protected from entry by tools, wires and other solid objects greater than 2.5 millimeters in diameter. It can also operate in extreme temperatures ranging from -40 to 75 degrees Celsius (-40 to 167 degrees Fahrenheit). It is protected from electrostatic discharge (ESD), radio frequency interference (RFI) and power surges. Hardware is included for DIN mounting.
TAA-Compliant for GSA Schedule Purchases
The N785-I01-SFP-DU is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
- Connect different types of media within a network with this single port
- Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between networks and different devices
- With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over twisted pair cable
- The DIN Rail Mountable provides convenient installation
- Power Source : AC Adapter
- Form Factor : DIN Rail Mountable
- Package Contents :
- N785-I01-SFP-DU Transceiver/Media Converter
- SFP Connector Cap
- RJ45 Connector Cap
- Terminal Block (12-57VDC)
- DIN Rail Kit
- Quick Start Guide
- Total Number of Ports : 1
- Manufacturer : Tripp Lite by Eaton
- Product Model : N785-I01-SFP-DU
- Network Technology : 10/100/1000Base-T,100/1000Base-X
- Ethernet Technology : Gigabit Ethernet
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Limited Warranty : 2 Year
- Network (RJ-45) : Yes
- Plug/Connector Type : Terminal Block
- Product Type : Transceiver/Media Converter
- Number of Total Expansion Slots : 1
- Maximum Distance Supported : 328.1 ft
- Power Consumption : 6 W
- Media Type Supported : Twisted Pair,Optical Fiber
- Fiber Mode Supported : Multi-mode,Single-mode
- Country of Origin : Taiwan
- Number of Network (RJ-45) Ports : 1
- Number of SFP Slots : 1
- Expansion Slot Type : SFP (mini-GBIC)
- Manufacturer Website Address : https://tripplite.eaton.com/
