Description
4-Port Smart Gigabit Ethernet Switch Connects Your Network Devices to a LAN
This future-proof Lite-managed switch transmits data over a Gigabit Ethernet network. Four auto-negotiating 10/100/1000 Mbps ports send data via Cat5e/6/6a cable only to the devices designated to receive it, which improves the efficiency and potential throughput of the network. The NGI-S04C2 also features two GbE SFP slots for uplinking data to other switches via optical fiber or copper. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity.
Protective Metal Housing Built to Last in Harsh Environments
The hardened NGI-S04C2 adds 10/100/1000 Mbps Gigabit Ethernet capacity to industrial automation, security, government, military, oil and gas, mining and outdoor applications, as well as other environments with space constraints and wide temperature ranges. The IP30 industrial-grade aluminum case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -10 to 60 degrees Celsius (-10 to 140 degrees Fahrenheit).
Monitors and Controls Devices via CLI and Web Configuration
The NGI-S04C2 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. It also supports QoS, IGMP snooping, SFP DDMI and other device management features that fulfill the needs of high-performance managed industrial networks. IEEE 802.3x flow control allows smooth transmission of large files.
Works with the Most Popular Web Browsers
The NGI-S04C2 is browser-based and works independently from the connected computer's operating system. Because switch compatibility is based on common hardware standards, rather than system software dependencies, the NGI-S04C2 accommodates most platforms. Preferred web browsers include Google Chrome (on both Windows and macOS) and Microsoft Edge (Windows only).

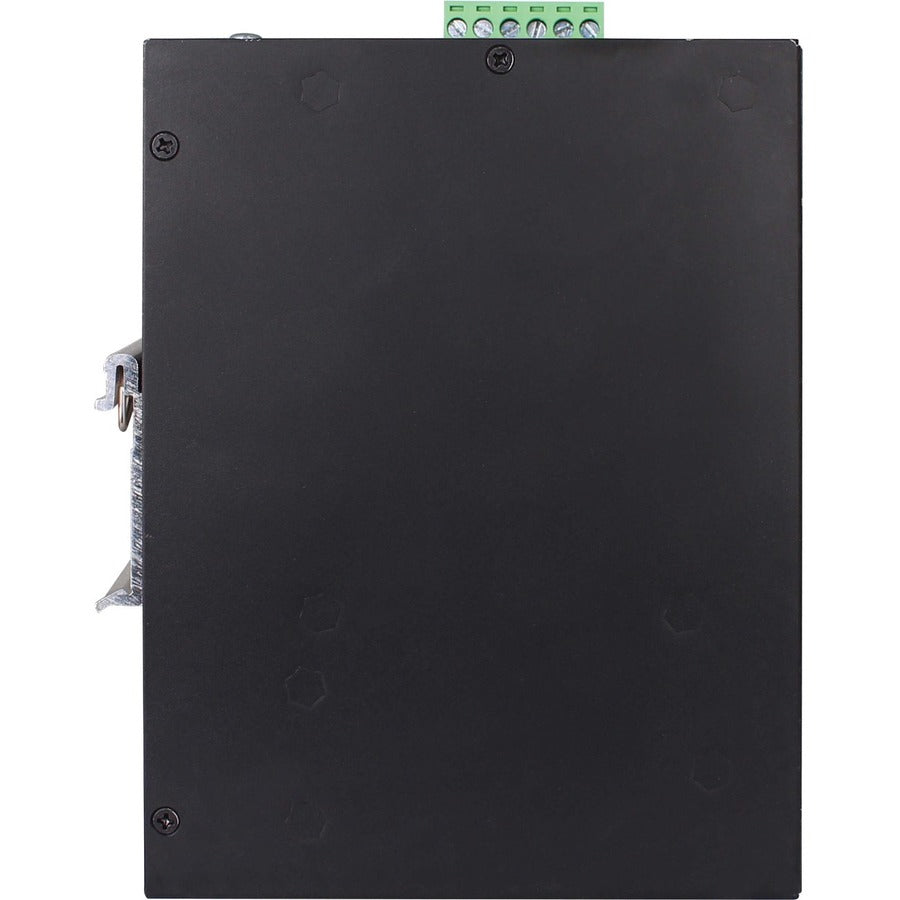

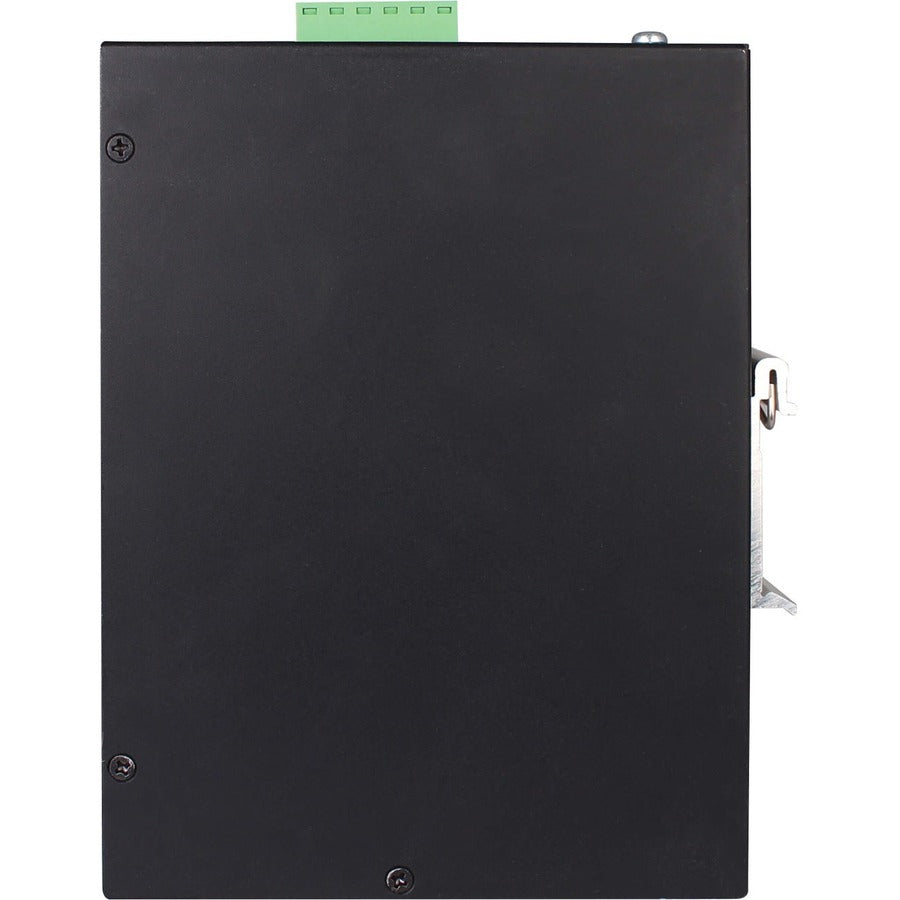

Pre-Installed DIN Rail Clip Allows for Convenient Installation

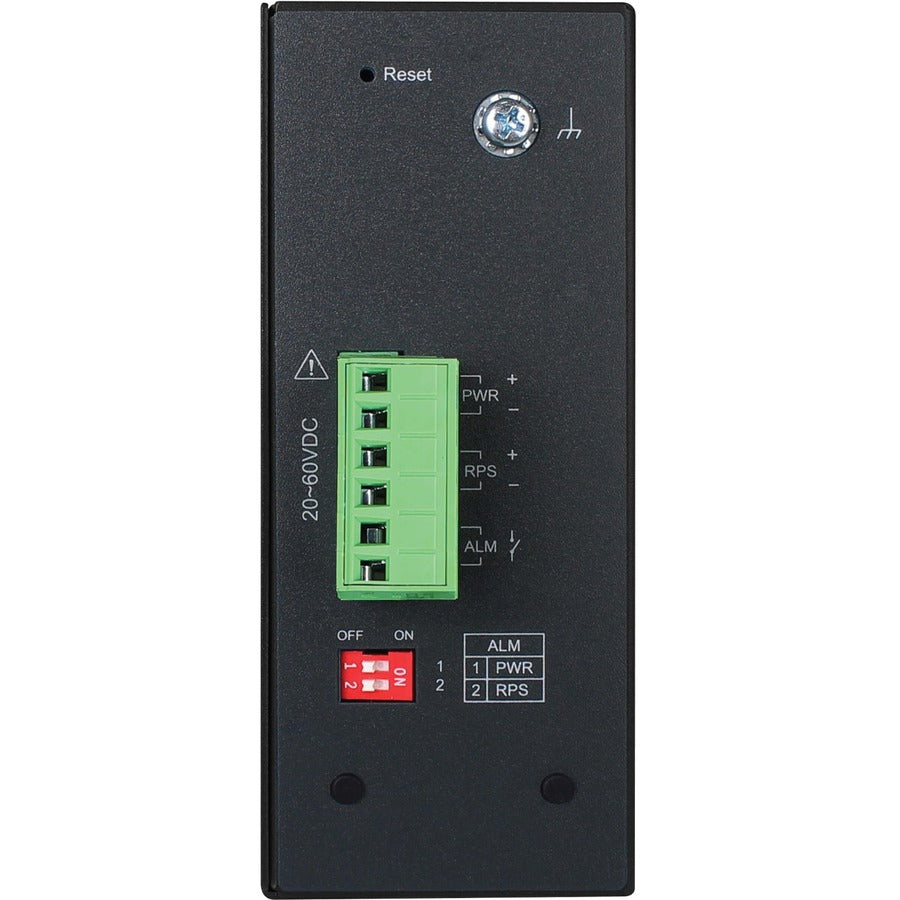

The device may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. Providing seamless operation in the event of power dips or failures, the switch features redundant 6-pin 20-60VDC terminal block power inputs to help prevent unnecessary downtime. When used with two power sources, the switch also supports alarm relay contacts that you can wire to your existing alarm circuit to notify you instantly when a power disruption occurs.
TAA-Compliant for GSA Schedule Purchases
The NGI-S04C2 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

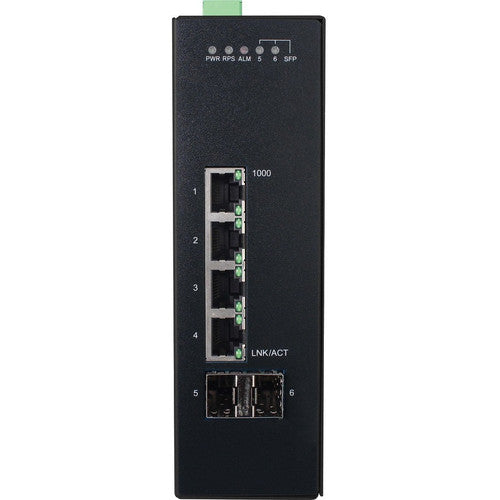

- 4 auto-negotiable RJ45 and 2 GbE SFP ports connect devices over a LAN
- Industrial-grade switch supports operating temperature range of -10° to 60°C
- CLI or web management allows monitoring and control of each connected device
- Heavy-duty IP30 metal housing mounts to standard DIN rail with pre-installed bracket
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- 3-year limited warranty
- Modular : Yes
- PoE (RJ-45) Port : No
- Form Factor : DIN Rail Mountable
- Package Contents :
- NGI-S04C2 Ethernet Switch
- DIN Rail-mounting Clip (Pre-installed)
- Uplink Port : Yes
- Manufacturer : Tripp Lite by Eaton
- Product Model : NGI-S04C2
- Manageable : Yes
- Network Technology : 10/100/1000Base-T,100Base-FX,1000Base-X,1000Base-SX/LX
- Ethernet Technology : Gigabit Ethernet
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Layer Supported : 2
- Shared SFP Slot : No
- Port/Expansion Slot Details : 4 x Gigabit Ethernet PoE+,2 x Gigabit Ethernet Uplink
- Limited Warranty : 3 Year
- Product Material : Metal
- Network (RJ-45) : Yes
- Plug/Connector Type : Terminal Block
- Product Type : Ethernet Switch
- Number of Total Expansion Slots : 2
- Networking Standards : IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3x,IEEE 802.1p,IEEE 802.3az
- Total Number of Network Ports : 4
- Power Consumption : 10 W
- Media Type Supported : Optical Fiber,Twisted Pair
- Country of Origin : Taiwan
- Number of SFP Slots : 2
- Expansion Slot Type : SFP (mini-GBIC)
- Manufacturer Website Address : https://tripplite.eaton.com/
