Description

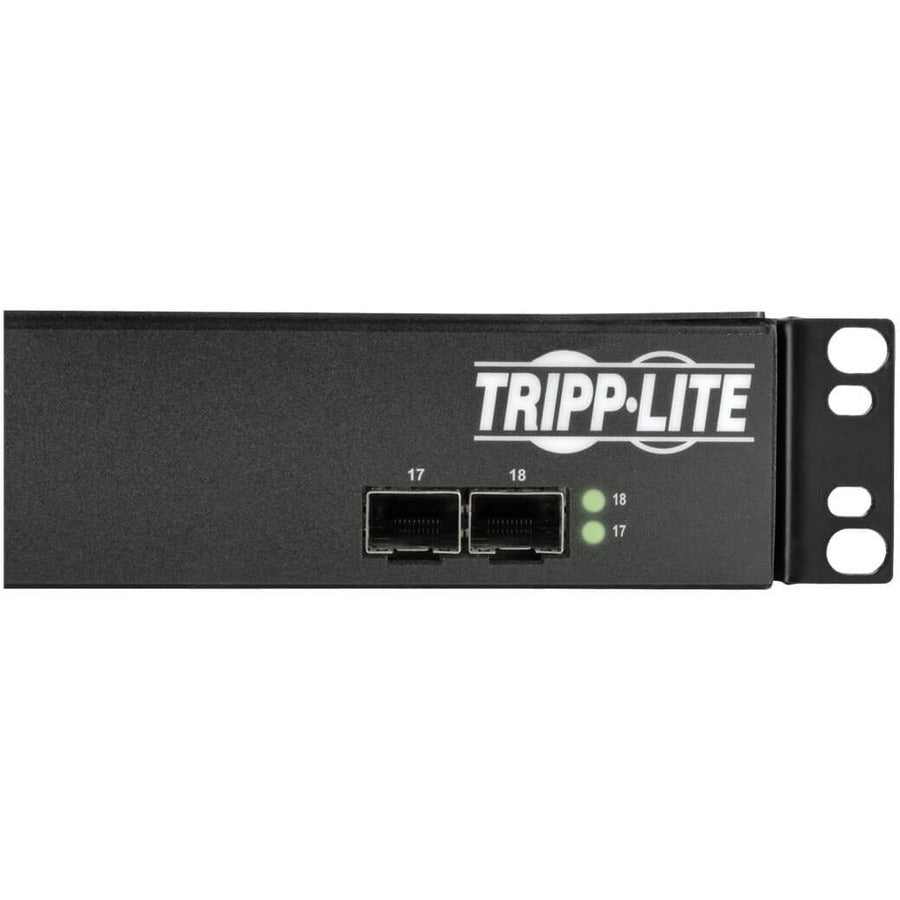

The energy-efficient NSS-G16D2 16-Port Gigabit L2 Managed Network Switch does more than complete your home or office LAN. It also features a basic 120V 15A PDU to distribute reliable AC power to critical IT equipment in your wiring closet, server room or equipment rack. Two dedicated mini-GBIC SFP ports are also included for uplinking data to other switches via optical fiber or copper.

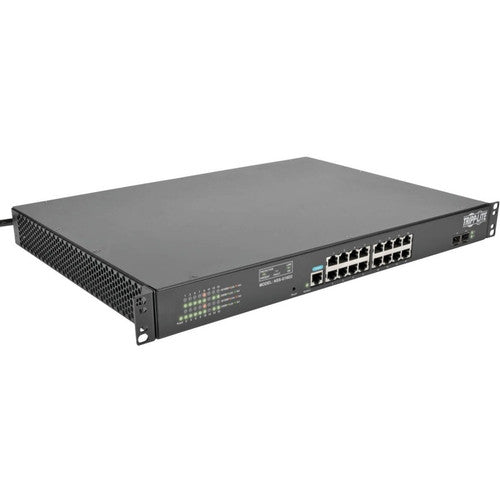

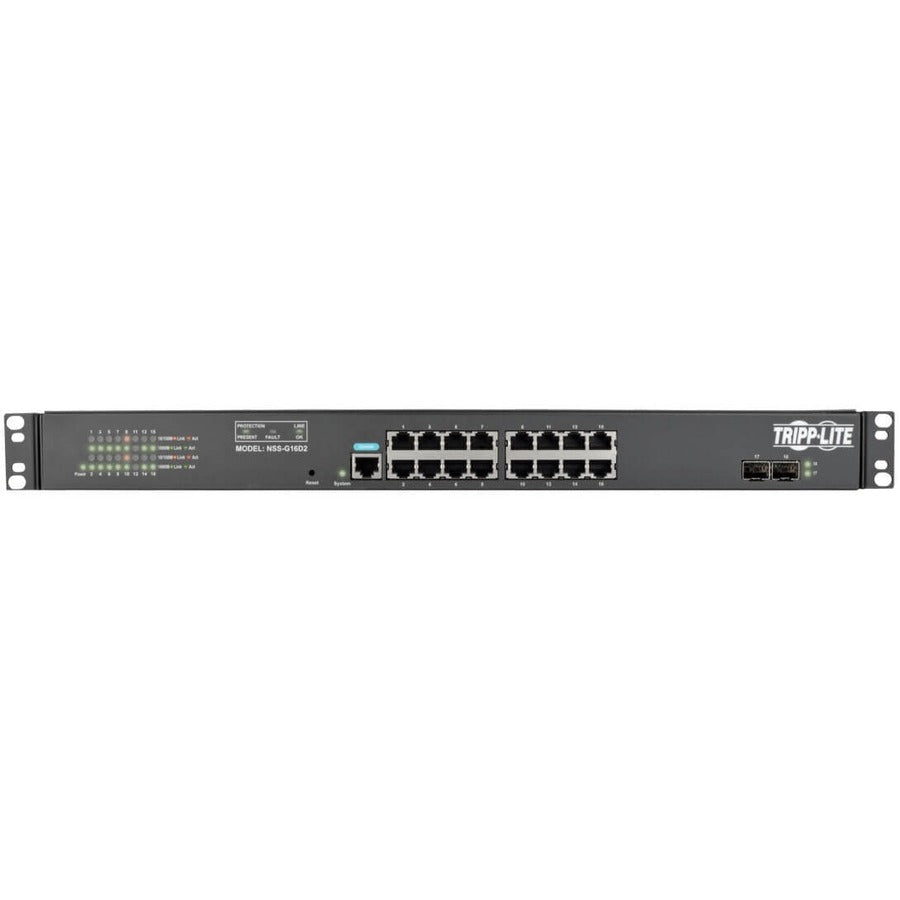

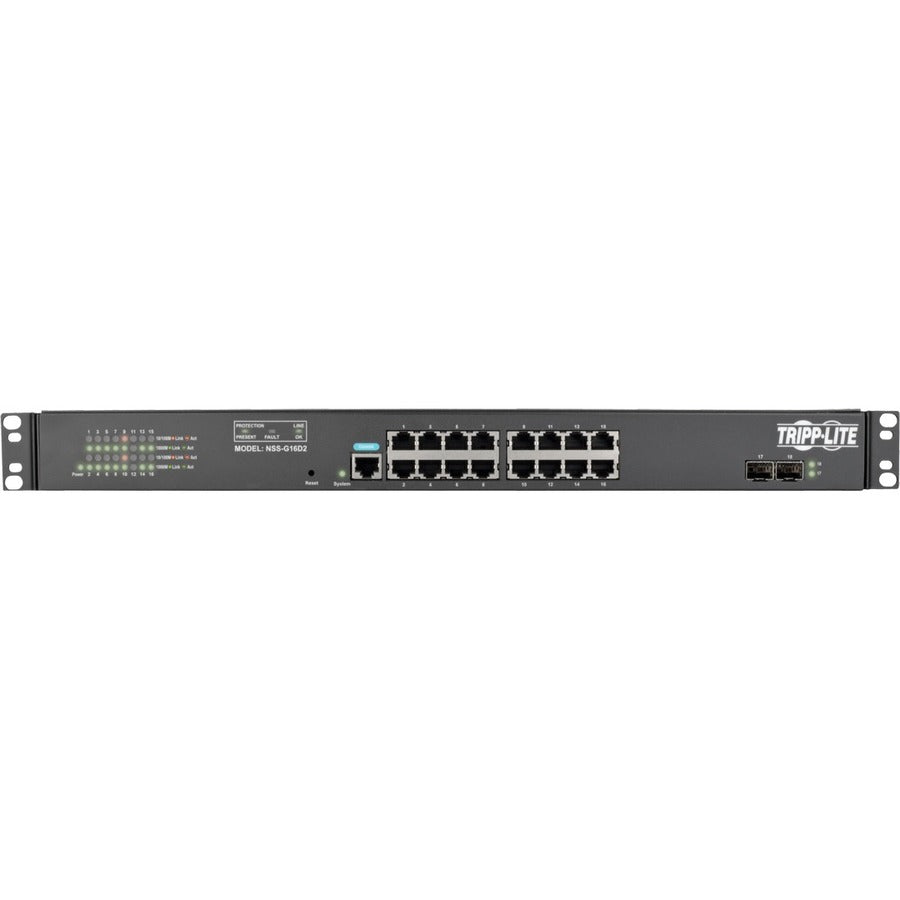

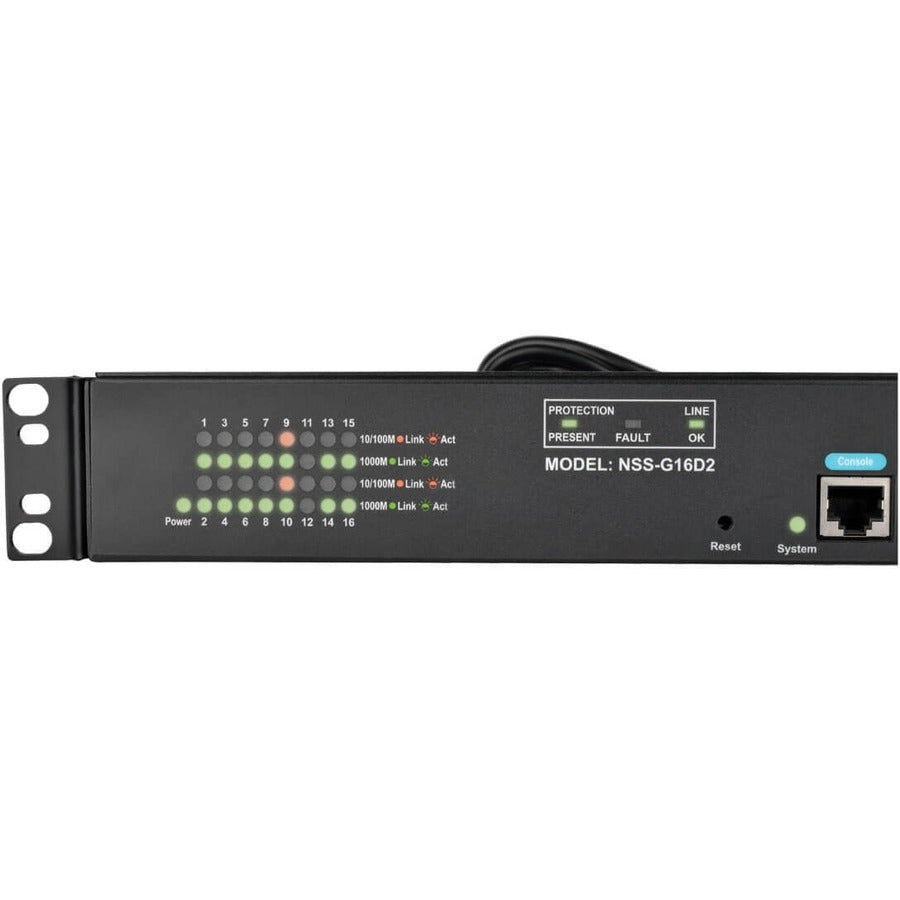

This switch features 16 twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX cross-over detection functions for convenient plug-and-play capability. Easy-to-read LEDs indicate connection and activity status for each port. Built-in management software lets you monitor and control each connected device via secure web-based interface. Each port supports up to 2 Gbps with full duplex.

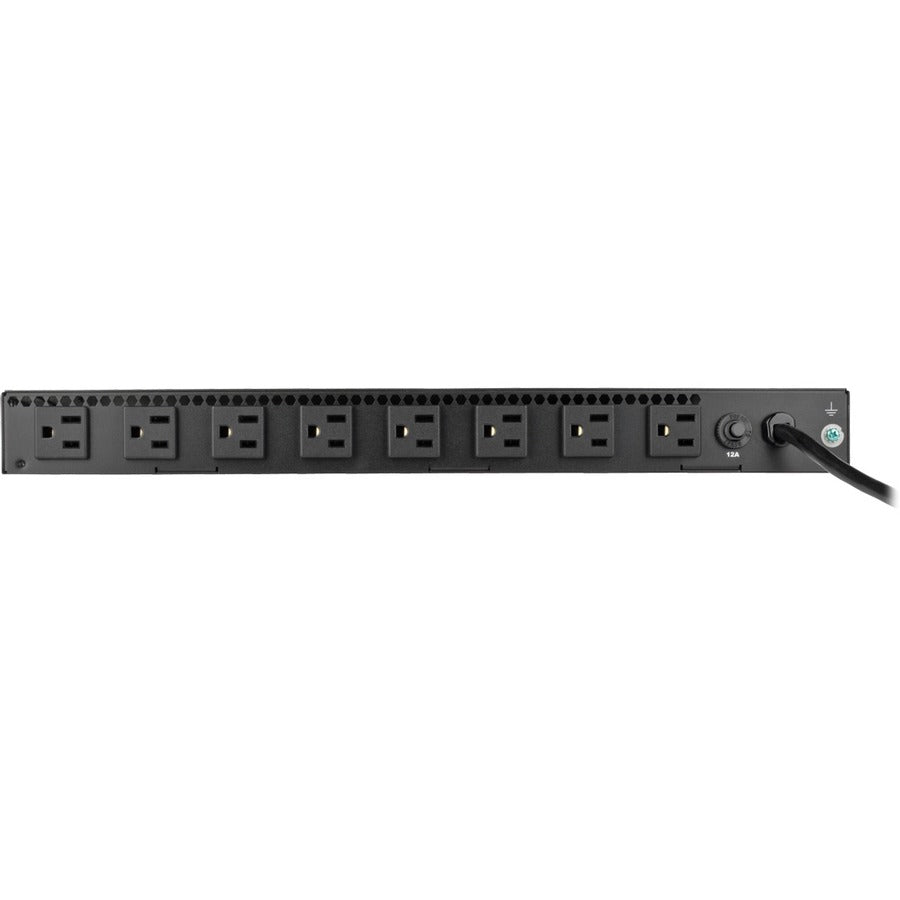

The rear panel contains eight NEMA 5-15R outlets that supply continuous power to connected devices. Your equipment is protected by 3860 joules of surge suppression, as well as front-panel LEDs that let you monitor line status at a glance. A 12A circuit breaker trips if the current drawn by connected equipment exceeds the PDU's maximum load rating.

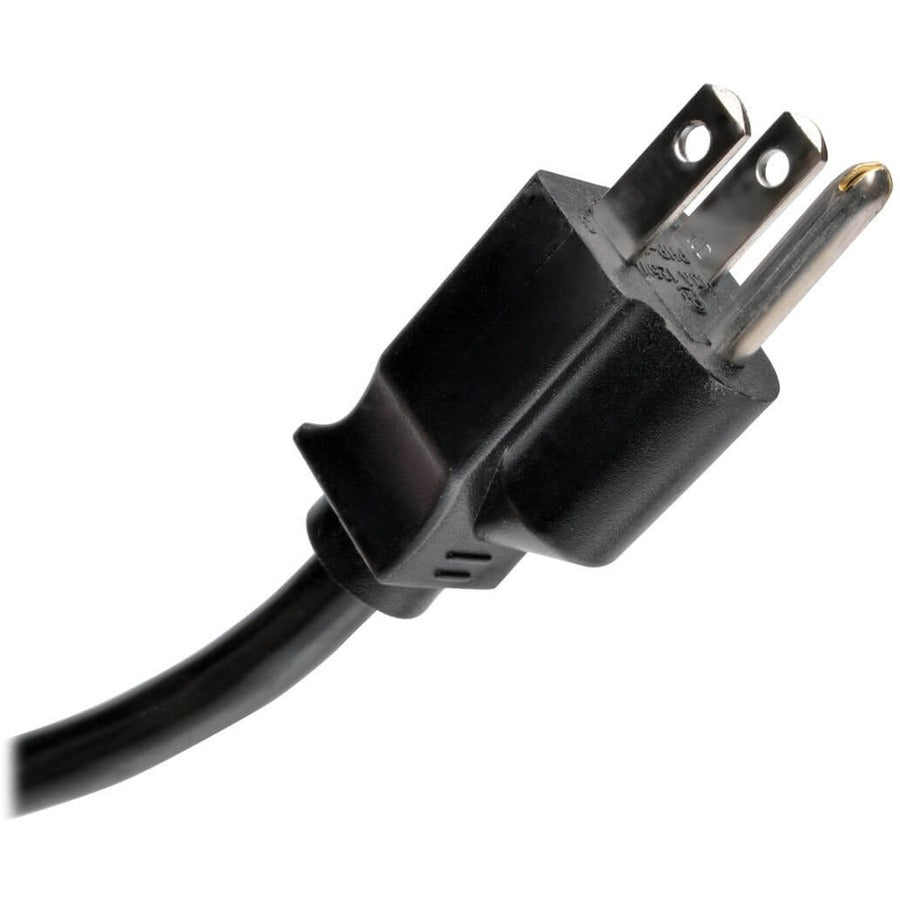

The NSS-G16D2 supports IEEE802.3az Energy Efficient Ethernet standards. The heavy-duty metal housing mounts into 1U of an EIA-standard 19-inch rack using the included hardware. The six-foot input cord with NEMA 5-15P plug connects to a protected UPS, generator or mains input AC source.
- Built-in 8-outlet PDU
- 3860 Joule suppression rating, Diagnostic LEDs
- Cost-effective form factor for small and medium businesses
- Enterprise-level, security and layer 2 management
- WEB management, SNMP, RMON features
- 16 ports and 2 dedicated Mini-GBIC SFP slots
- Port Security, DHCP Snooping, 802.1x, L2
- IP-MAC-Port-Binding, ACL, Storm Control
- Power Source : Power Supply
- Modular : Yes
- Form Factor : Rack-mountable
- Package Contents :
- NSS-G16D2 Ethernet Switch
- Mounting Hardware
- Owner's Manual
- Uplink Port : No
- Manufacturer : Tripp Lite by Eaton
- Product Model : NSS-G16D2
- Compatible Rack Unit : 1U
- Manageable : Yes
- Network Technology : 1000Base-X
- Ethernet Technology : Gigabit Ethernet
- Environmentally Friendly : Yes
- Layer Supported : 2
- Shared SFP Slot : No
- Port/Expansion Slot Details : 16 x Gigabit Ethernet Network,2 x Gigabit Ethernet Expansion Slot
- Limited Warranty : 5 Year
- Product Type : Ethernet Switch
- Stack Port : No
- Number of Total Expansion Slots : 2
- Total Number of Network Ports : 16
- Media Type Supported : Optical Fiber,Twisted Pair
- Country of Origin : China
- Number of SFP Slots : 2
- Expansion Slot Type : SFP
- Manufacturer Website Address : https://tripplite.eaton.com/
