Description
700VA/480W/120V Battery Backup for PC Networks, Security Systems or Digital Signage
The OmniSmart® line-interactive OMNISMART700TSU UPS system with AVR protection provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The eight-outlet 120V battery backup is ideal protection for small networks, wiring closets, security systems, high-end PC gaming, digital signage equipment and other professional applications, including retail, casino and hotel/motel management.
Allows Time to Back Up Critical Files During a Blackout
Backup support allows you to work through short power failures and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the line-interactive UPS system should keep an energy-efficient desktop computer with small LCD monitor powered as long as 89 minutes. During normal operation, incoming utility power keeps the replaceable internal battery fully charged, so backup power will always be available.
8 NEMA 5-15R Outlets Protect Your Connected Components
Six 5-15R outlets provide battery backup, surge protection and voltage regulation for your computer, monitor and other crucial components. The other two 5-15R outlets provide surge suppression only for printers, speakers and other desktop equipment regarded as non-essential during a blackout.
Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts and overvoltages. The OMNISMART700TSU can correct brownouts as low as 89V and overvoltages as high as 145V back to nominal 120V power continuously, all while keeping the battery fully charged and ready to take over in case of power failure.
Combats Line Noise That Can Harm Equipment
EMI (electromagnetic interference) and RFI (radio frequency interference) are common causes of performance problems and can lead to incremental hardware damage, data corruption and audio/video transmission problems. The OMNISMART700TSU filters out this disruptive line noise on the AC line, so that it won't affect your equipment.
Designed for High Efficiency to Help You Save Money and Protect the Environment
A >95% efficiency rating reduces BTU emissions, energy consumption and, ultimately, your energy costs.

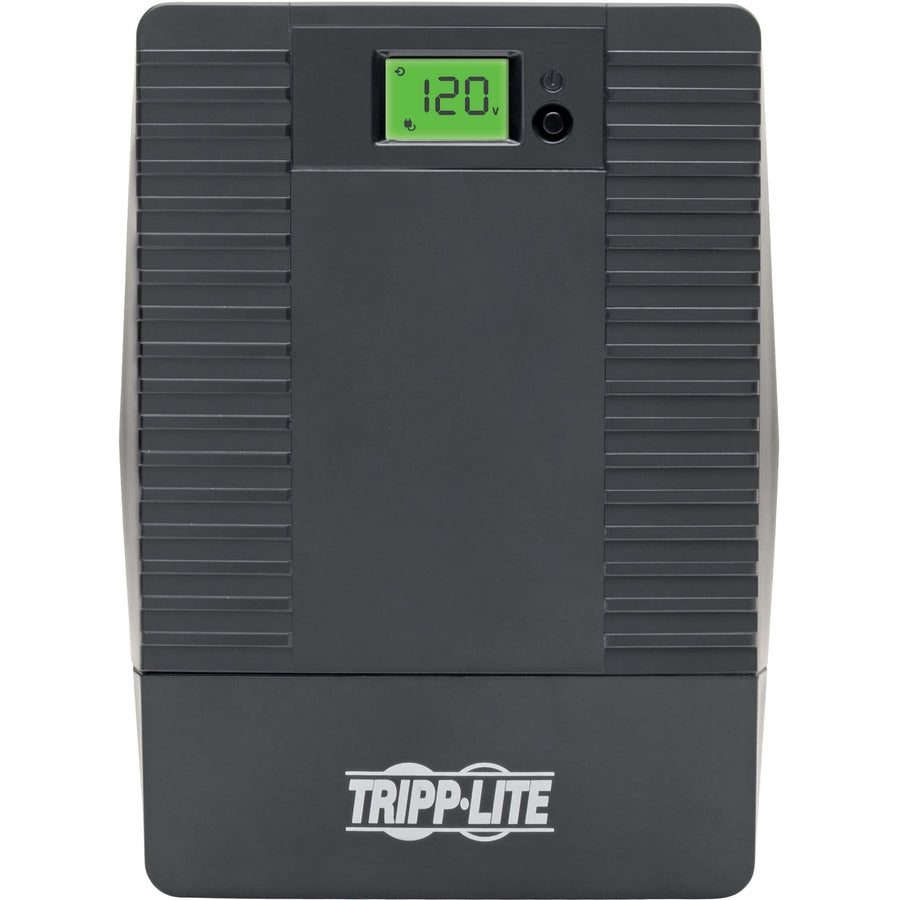

Home-Friendly Silent Alarm and LCD Touchscreen Keep You Informed 24/7
The UPS remains silent in both line and battery backup modes. The alarm sounds only to report low battery, battery replace, overload and fault condition. The LCD touchscreen offers five screens of UPS and site power information when the UPS is operating in either on-line or battery power mode. It displays vital voltage, load and battery data, as well as critical fault status.
Advanced Communications Ports Allow for Automatic Saves and Shutdowns
RS-232 and HID-compliant USB ports connect to a computer running Tripp Lite's free downloadable PowerAlert® software to enable safe unattended file saves and system shutdown in case of a prolonged power failure. Cables are included.
Compact Housing Compatible with Easy Desktop Installation
The space-saving ABS tower fits on a desktop, shelf or any other flat surface convenient to your workstation or home theater. The five-foot power cord with NEMA 5-15P plug connects to any compatible AC outlet.
- Works adequately in situations where the supply is prone to sags and surges
- Keep your sensitive devices powered with a backup of up to 3 minute at full load
- Receptacle Detail : 8 x NEMA 5-15R
- Phase : Single Phase
- Number of Surge-only Outlets : 2
- Number of Battery & Surge Outlets : 6
- Form Factor : Tower
- Package Contents :
- OMNISMART700TSU 700VA Tower UPS
- USB Cable
- DB9 Cable
- Owner's Manual
- Backup/Run Time (Full Load) : 3 Minute
- Load Capacity : 700 VA/480 W
- Manufacturer : Tripp Lite by Eaton
- Product Model : OMNISMART700TSU
- Backup/Run Time (Half Load) : 16.50 Minute
- Receptacle Type : NEMA 5-15R
- Environmentally Friendly : Yes
- Input Voltage : 120 V AC
- Transfer Time : 6 ms
- Limited Warranty : 3 Year
- Typical Battery Recharge Time : 8 Hour
- Waveform Type : Pulse-width Modulated Sine Wave
- Plug/Connector Type : NEMA 5-15P
- Product Type : Line-interactive UPS
- Replaceable Battery : Yes
- Application/Usage : Desktop Computer,Security System,Digital Signage,Network,Retail and Wholesale,Casino,Printer,Monitor,Speaker
- Output Voltage : 110 V AC,115 V AC,120 V AC
- AVR : Yes
- Country of Origin : Vietnam
- Product Line : OmniSmart
- DC System Voltage : 12 V DC
- Serial Port : Yes
- Maximum Operating Elevation : 9842.52 ft (3000000 mm)
- Energy Saving : Greater than 95% efficiency - GREEN UPS
- Thermal Dissipation : 25.30 BTU/h
- Maximum Operating Temperature : 104°F (40°C)
- Output Frequency : 60 Hz
- Storage Temperature : 5°F (-15°C) - 113°F (45°C)
- EMI/RFI Noise Filter : Yes
- Input Frequency : 60 Hz
- Surge Energy Rating : 316 J
- Dataline Protection : RJ-11,RJ-45
- Alarm : Low Battery,Overload,Fault,Replace Battery
- USB (HID Compliant) Port : Yes
- Status Indicators :
Front Panel LCD Display:
- Input voltage
- Output voltage
- Load percentage
- Battery charge percentage
- Overload status
- Manufacturer Website Address : https://tripplite.eaton.com/
