Description
Switched PDU Provides Advanced Network Control and Remote Power Monitoring

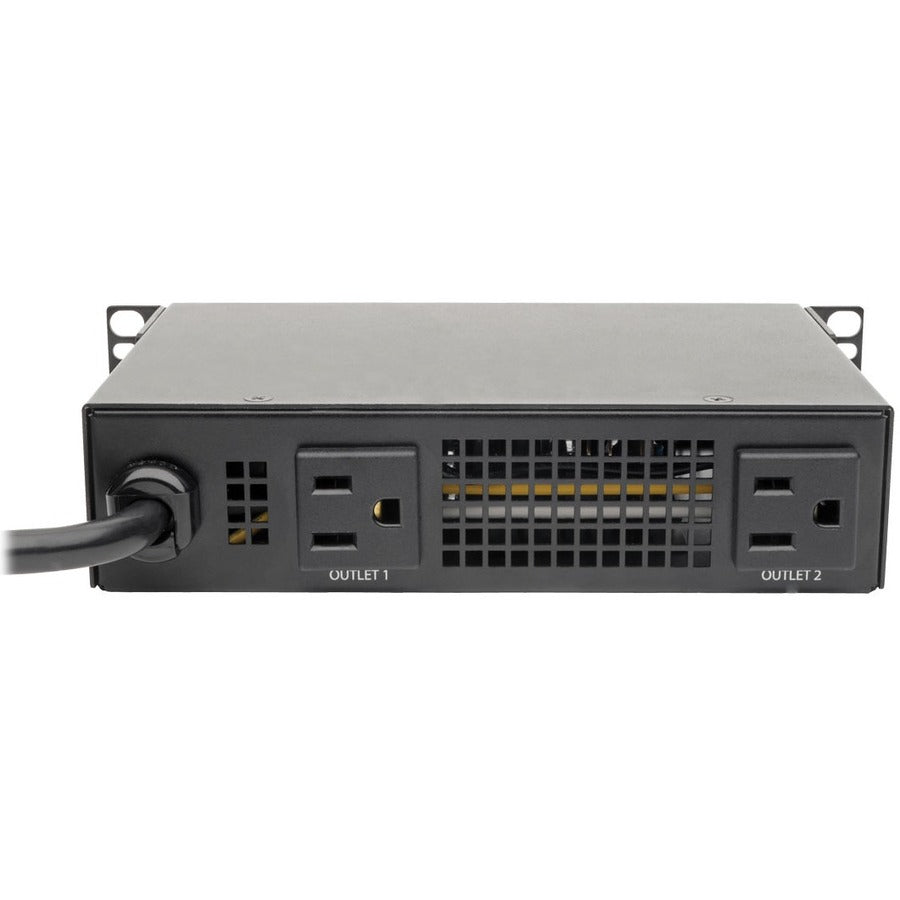

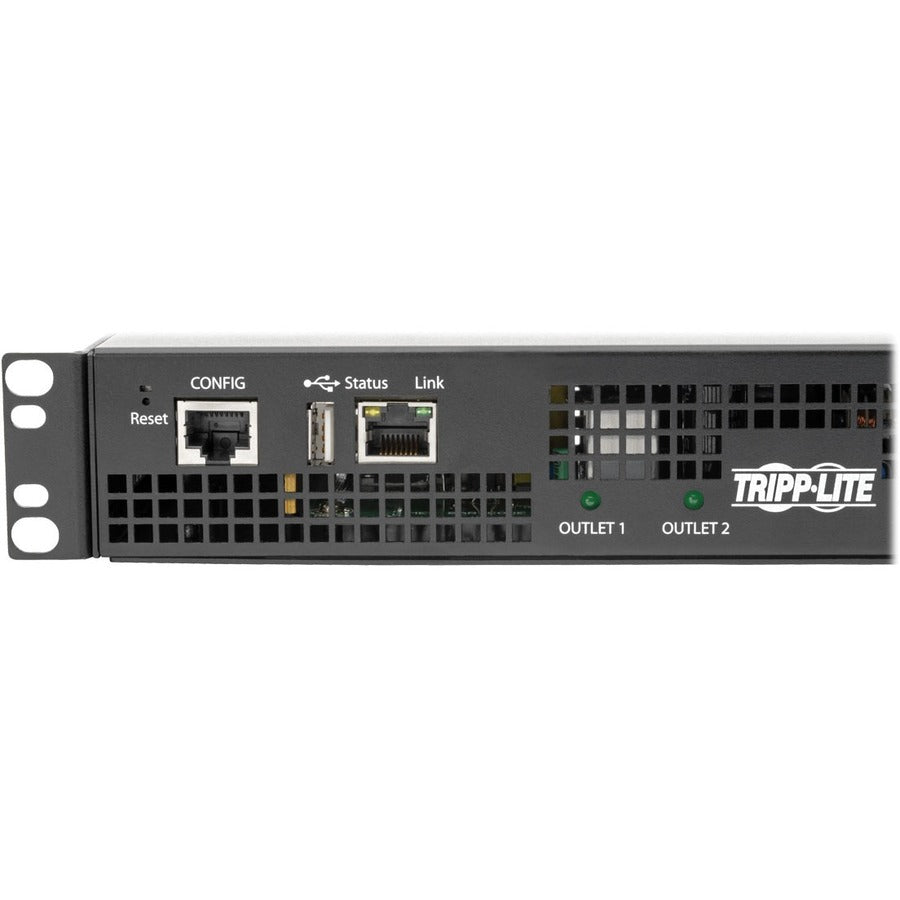

This 0U PDU is an ideal low-cost option for small-scale network configurations where only one or two outlets are needed. It features two NEMA 5-15R individually switched outlets, which can be remotely controlled to turn on, turn off, recycle or lock out power to unresponsive devices. Front-panel LEDs indicate each outlet's on/off status.
Built-In LX Platform Network Interface Offers 24/7 Access
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities, including temperature and humidity conditions. Automated alerts help prevent accidental overloads, power loss and downtime. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2c, SNMPv3, telnet, SSH, FTP, DHCP and NTP. DHCP/Manual configuration lets you assign network settings to the card automatically, reducing the need for manual configuration.
Reduce Service Calls with Auto Probe Autonomous Device Management
The Auto Probe feature (Firmware 15.5.2 and greater) checks the connectivity status of any networked device and automatically takes one or more user-configured actions if the device fails to respond; actions include outlet reboot, set SNMP traps, SNMP OID sets, and even script execution when used in conjunction with the Tripp Lite PowerAlert Network Shutdown Agent (PANSA).
Easy Connection to an AC Power Source
A six-foot power cord with NEMA 5-15P plug connects the PDU15NETLX 0U PDU to a compatible AC power source, generator or protected UPS.
Flexible Installation Options

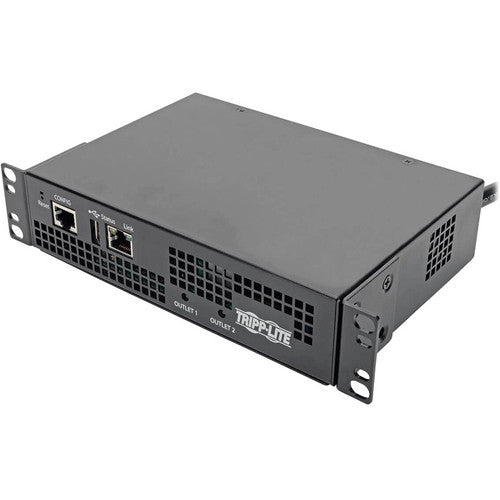

The switched PDU mounts vertically in 0U of rack space, on a wall or under a counter using the included mounting brackets and user-supplied hardware. Its half-width rack-mount form factor allows you to place it on a shelf or desktop.
TAA-Compliant for GSA Schedule Purchases
The PDU15NETLX is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
2-Year Warranty and Environmentally Responsible Design
The rugged metal PDU15NETLX comes with a 2-year warranty. It's manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite's commitment to environmental responsibility.
- PDU distributes AC power to multiple servers and balances the load on the servers
- With a built-in digital current meter avoid potential overloads via switched PDUs
- Receptacle Type : NEMA 5-15R
- Receptacle Detail : 2 x NEMA 5-15R
- TAA Compliant : Yes
- Phase : Single Phase
- Environmentally Friendly : Yes
- PDU Type : Switched
- Power Rating (Watt) : 1.52 kW
- Input Voltage : 120 V AC
- Management :
Protocols:
- IPv4
- IPv6
- HTTP
- HTTPS
- SMTP
- SNMPv1
- SNMPv2
- SNMPv3
- telnet
- SSH
- FTP
- DHCP
- NTP
- DHCP/Manual
- Limited Warranty : 2 Year
- Package Contents :
- PDU15NETLX 2-Outlet PDU
- 2 x Mounting Brackets w/Screws
- Owner's Manual
- Plug/Connector Type : NEMA 5-15P
- Product Type : PDU
- Mount Type : Rack-mountable,Wall-mountable
- Manufacturer : Tripp Lite by Eaton
- Product Model : PDU15NETLX
- Output Voltage : 100 V AC,120 V AC,127 V AC
- Mounting Orientation : Vertical
- Input Current : 15 A
- Rack Height : 0U
- Country of Origin : Taiwan
- Manufacturer Website Address : https://tripplite.eaton.com/
- Placement : Under-counter
