Description
The PDU3EVN10L2130B 10kW 3-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.

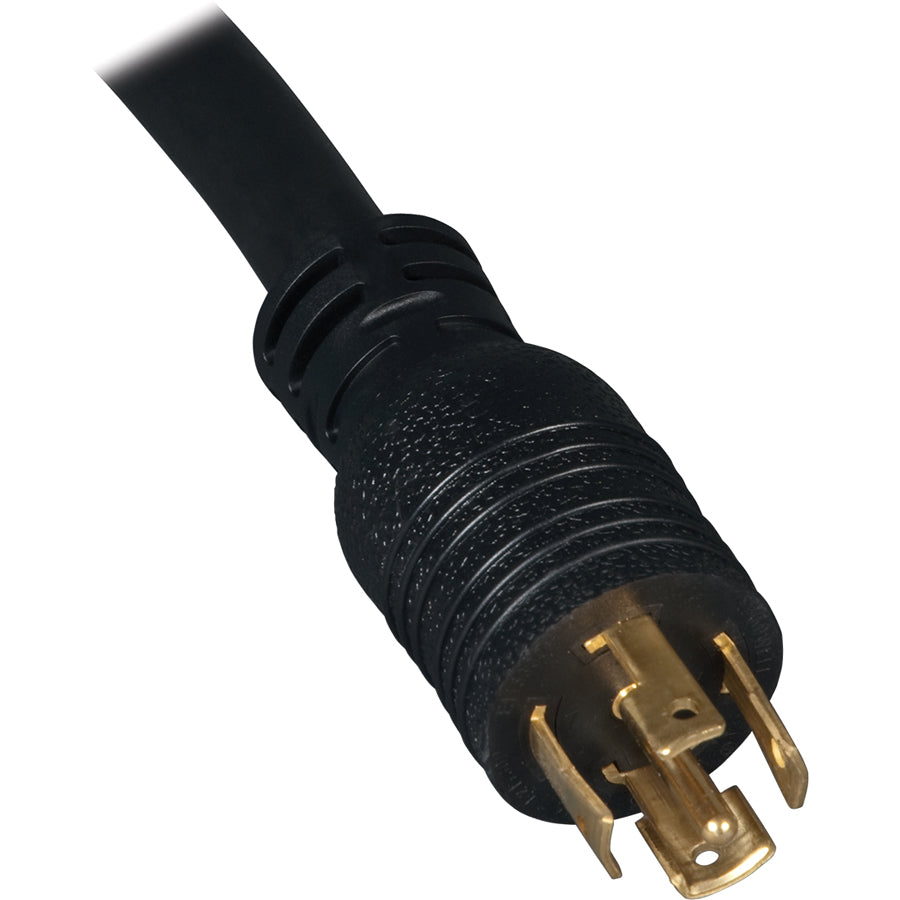

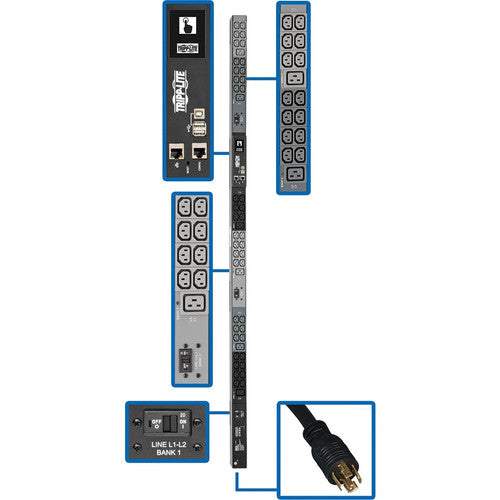

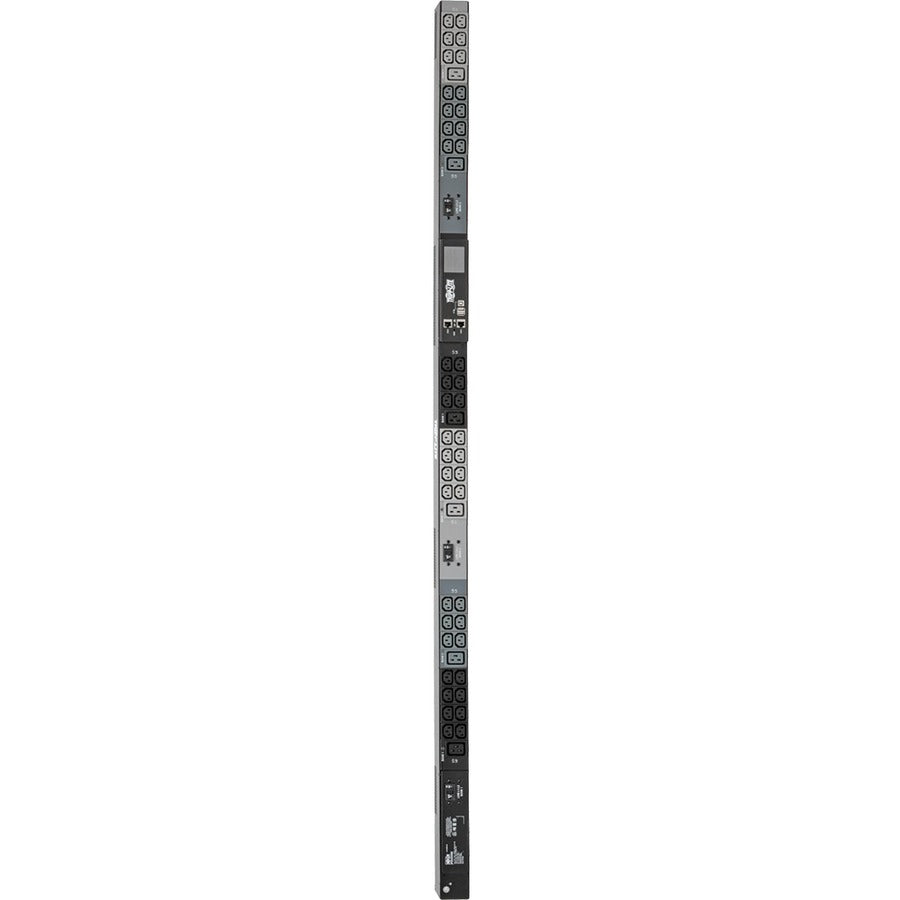

Recommended for your IT or industrial application, the monitored PDU features 48 outlets-42 C13, 6 C19-with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L21-30P input plug connects the 3-phase PDU to a compatible AC power source, generator or protected UPS.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

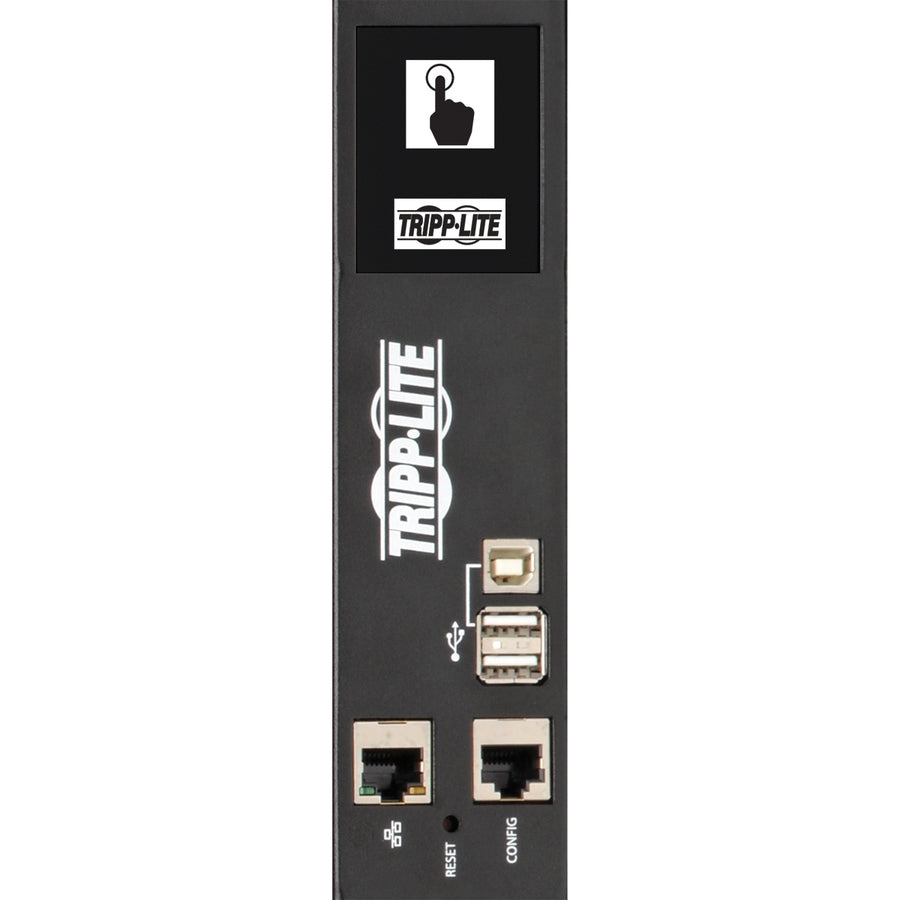

A color touchscreen LCD lets you toggle between menus to monitor input current level per phase and output current per load bank with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the PDU through a mobile device.
Key features
- With PDUs decisions for load balancing and minimizing extra cost can be managed
- Before critical input source become overloaded always be warned with monitored PDUs

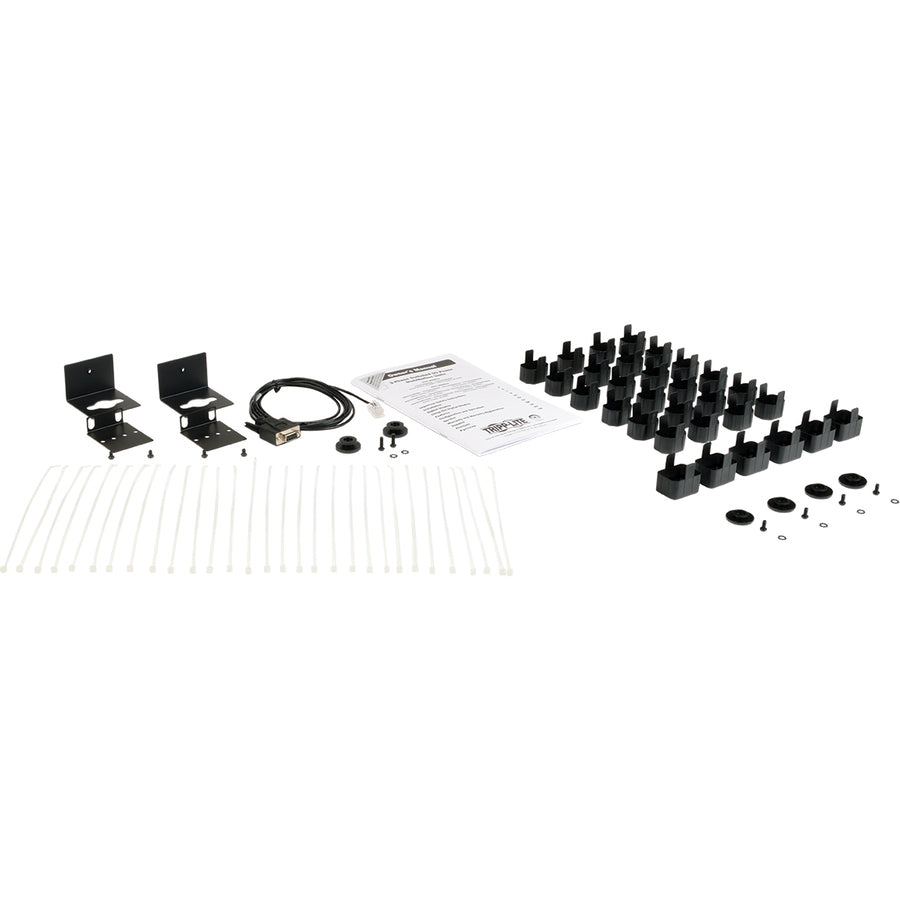

- In the box: PDU3EVN10L2130B 48-Outlet PDU, Built-in LX Platform Interface, Configuration Cable, 48 x Plug-lock Insert Sleeves, Rack-mounting Hardware, Mounting Bracket Accessory, Owner's Manual
Specifications
- Receptacle Detail: 6 x IEC 60320 C19,42 x IEC 60320 C13
- Phase: Three Phase
- PDU Type: Monitored
- Mount Type: Rack-mountable
- Manufacturer: Tripp Lite by Eaton
- Product Model: PDU3EVN10L2130B
- Rack Height: 0U
- Receptacle Type: IEC 60320 C19,IEC 60320 C13
- TAA Compliant: Yes
- Environmentally Friendly: Yes
- Power Rating (Watt): 10 kW
- Input Voltage: 230 V AC
- Management: Protocols: IPv4 IPv6 HTTP HTTPS SMTP SNMPv1 SNMPv2 SNMPv3 telnet SSH FTP DHCP NTP
- Limited Warranty: 2 Year
- Network (RJ-45): Yes
- Plug/Connector Type: NEMA L21-30P
- Product Type: PDU
- Protection Type: Overload Protection
- Output Voltage: 200 V AC,208 V AC,240 V AC
- Mounting Orientation: Vertical
- Input Current: 24 A
- Country of Origin: Taiwan
