Tripp Lite par Eaton PDU3V602D354B PDU 54 prises PDU3V602D354B

Economisez $644.97
Tripp Lite by EatonSKU: PDU3V602D354B

Prix réduit$1,113.99 Prix normal$1,758.96
Rupture de stock


The PDU3V602D354B 17.3kW 3-Phase Vertical PDU Outlet Strip is a required accessory option for Tripp Lite's PDU360AT6G60 and other 3-phase ATS PDUs that specify compatibility with this model. It's recommended for high-density equipment racks in data centers and server rooms.

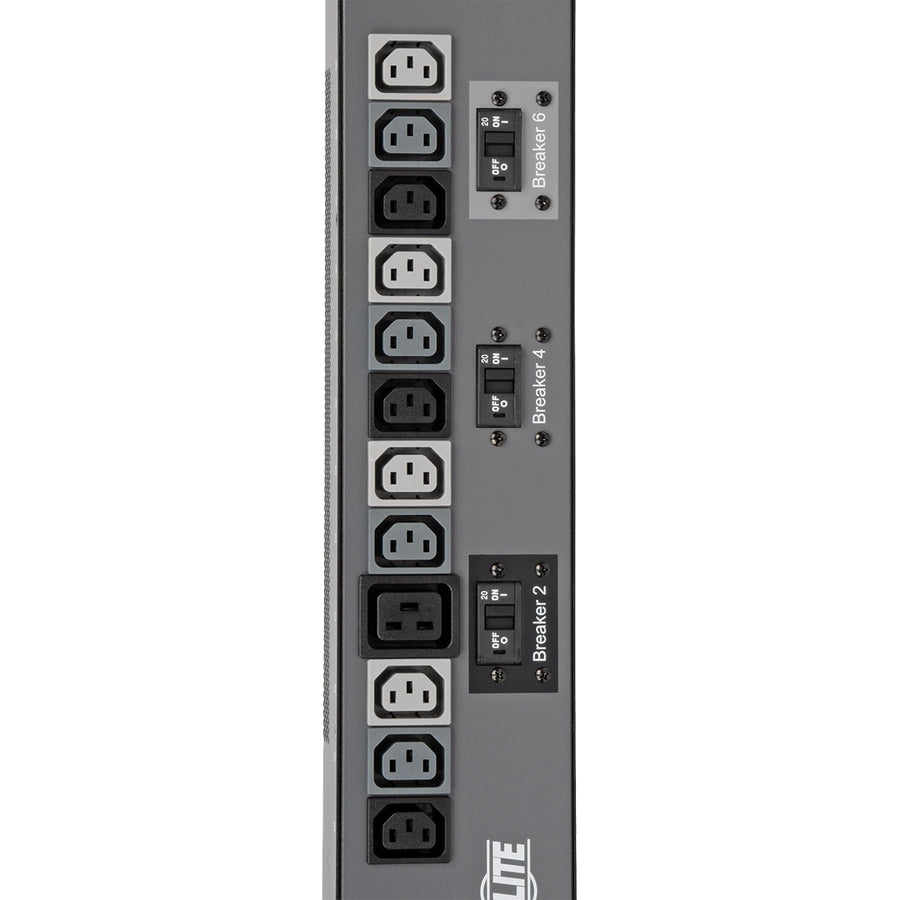

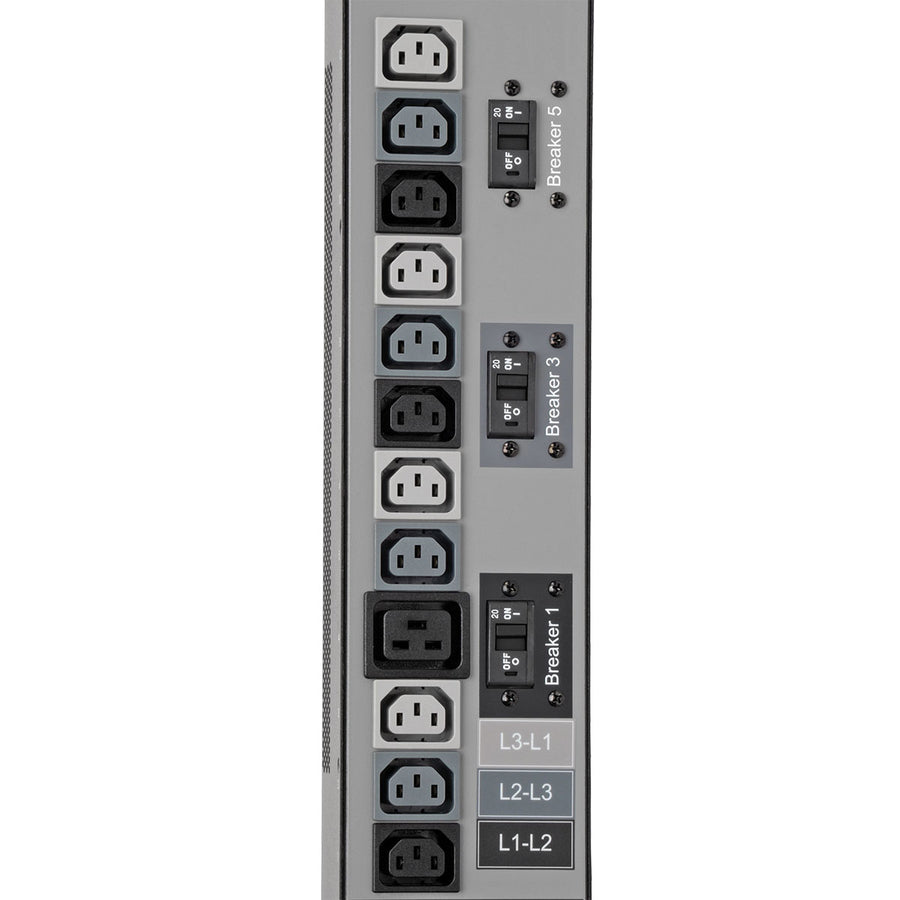

When used with Tripp Lite's PDU360AT6G60, the PDU3V602D354B supports up to 17.3kW total output with 27.8A balanced maximum full load per output phase combination (L1-L2, L2-L3, L3-L1) and 13.9A balanced maximum per breakered output load bank (C1-C6).

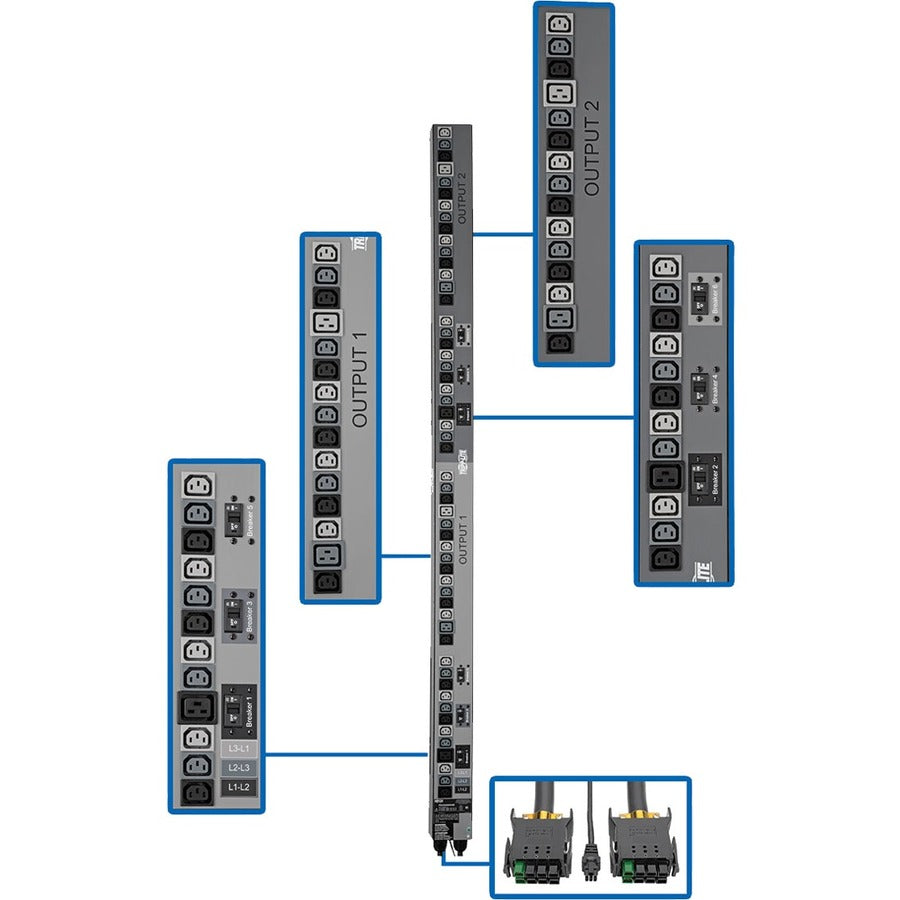

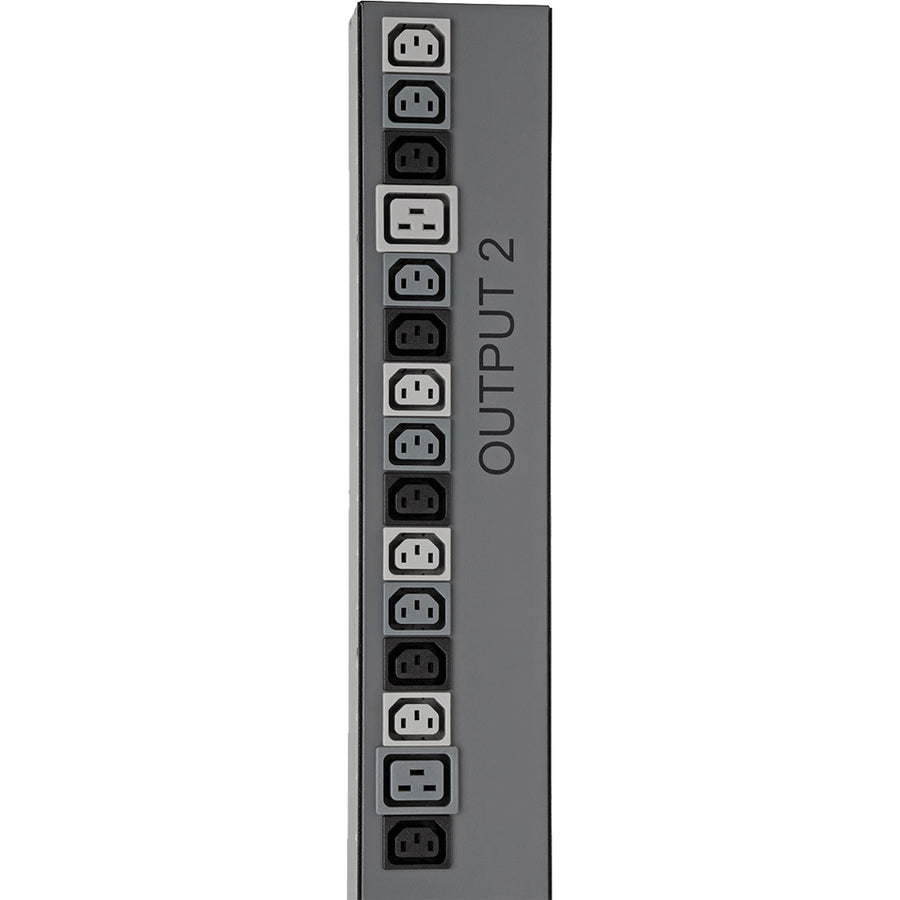

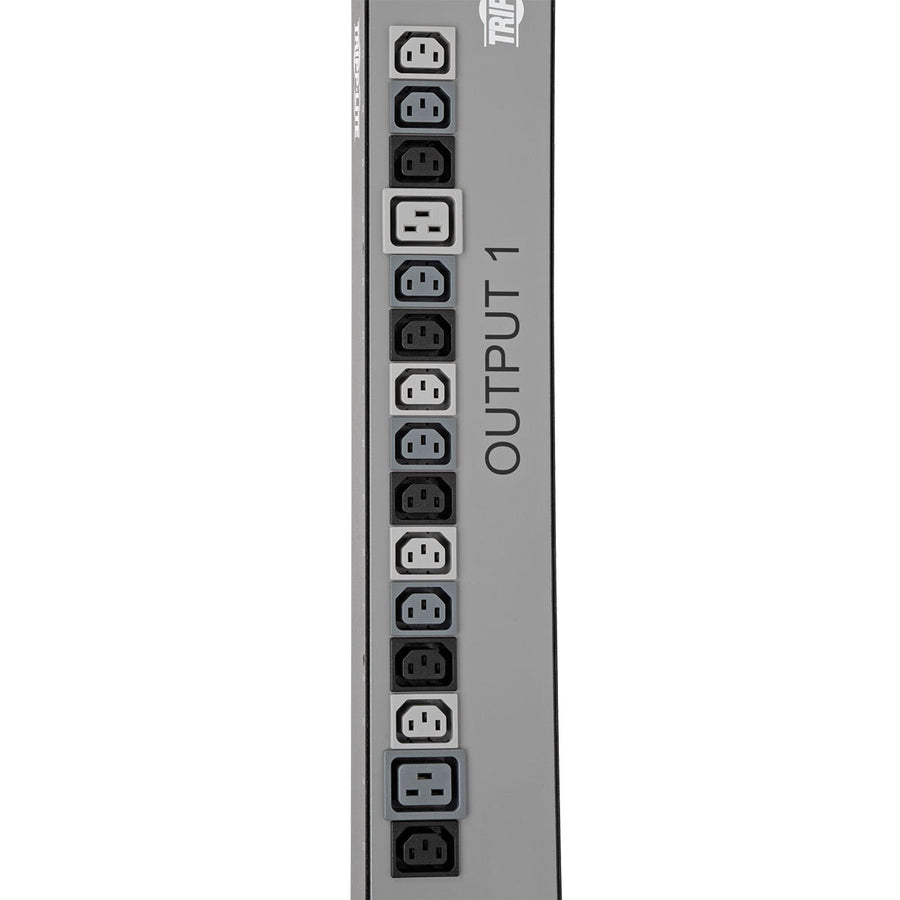

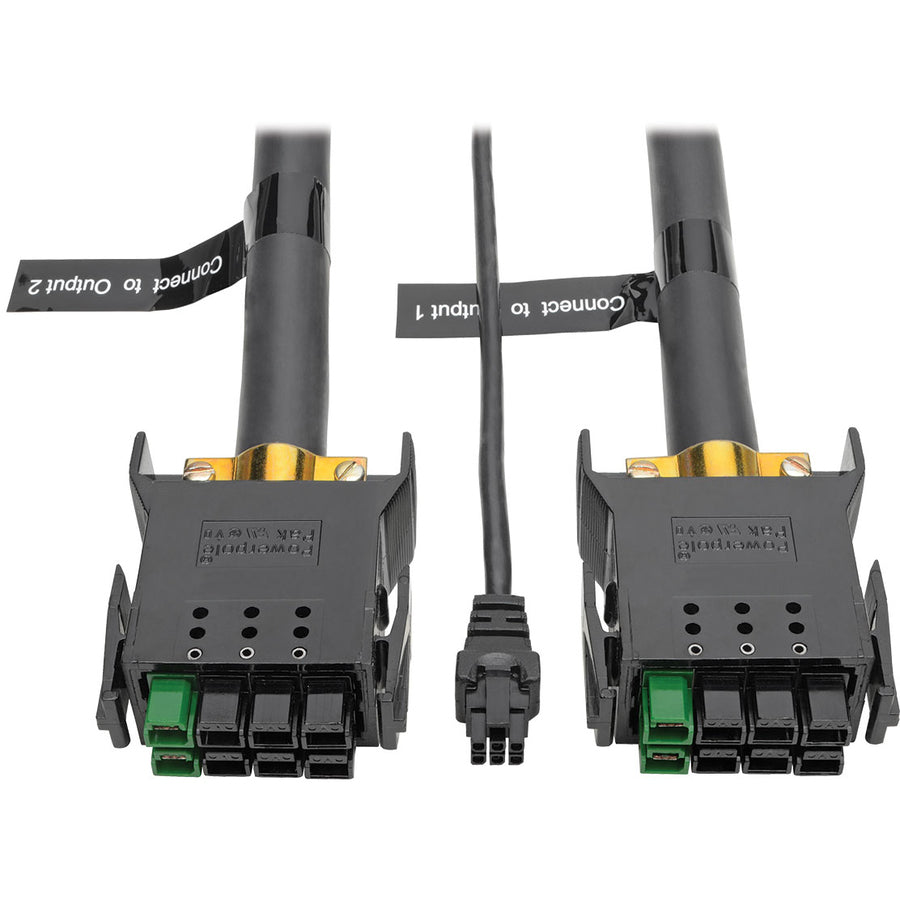

The 48 C13 and six C19 single-phase 208V outlets are interlaced to help you balance loads by spreading connections across the phase combinations throughout the rack. Each outlet is numbered and color-coded to help you keep track of connected devices and which phase combination powers each. Dual 2.5-foot power cords, each with a special seven-position input plug, connect directly to the ATS's rear receptacles.

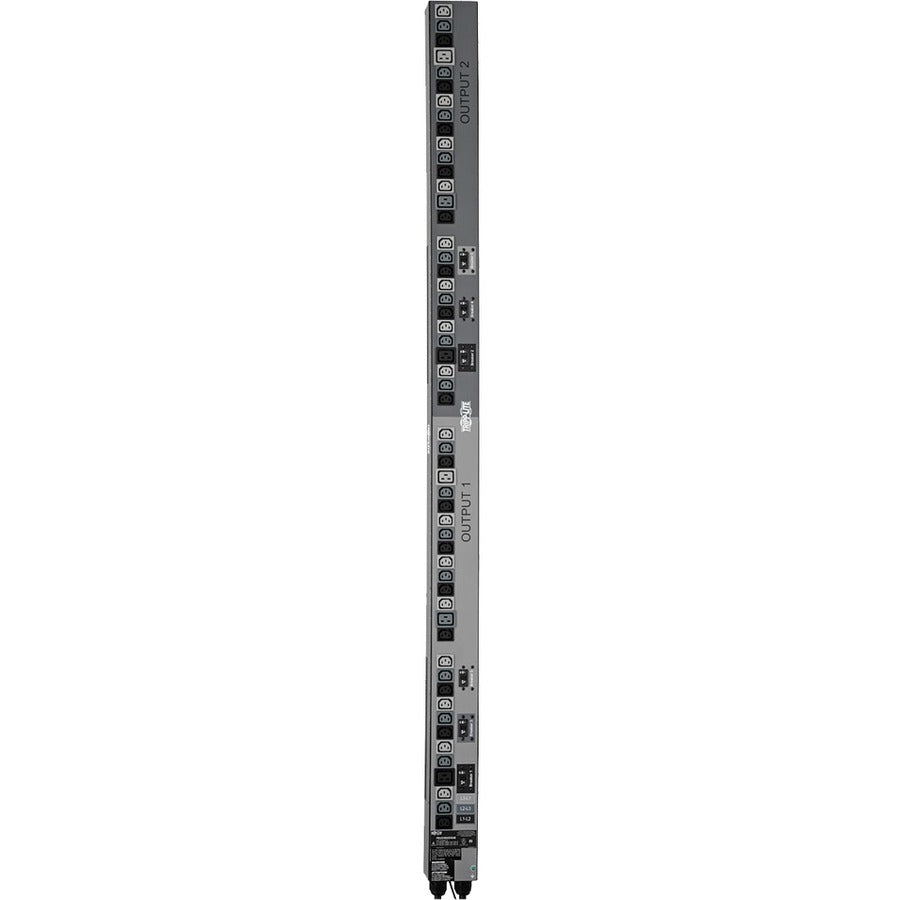

The PDU3V602D354B's rugged all-metal housing mounts vertically in an EIA-standard 19-inch rack with no tools needed. Vertical 0U installation reduces cord clutter and improves airflow through the rack.

. .
  • Receptacle Type : IEC 60320 C19,IEC 60320 C13
  • Receptacle Detail : 6 x IEC 60320 C19,48 x IEC 60320 C13
  • TAA Compliant : Yes
  • Phase : Three Phase
  • Environmentally Friendly : Yes
  • Power Rating (Watt) : 17.30 kW
  • Input Voltage : 230 V AC
  • Limited Warranty : 2 Year
  • Product Type : PDU
  • Mount Type : Rack-mountable
  • Manufacturer : Tripp Lite by Eaton
  • Product Model : PDU3V602D354B
  • Output Voltage : 230 V AC
  • Mounting Orientation : Vertical
  • Input Current : 48 A
  • Rack Height : 0U
  • Country of Origin : Taiwan
  • Manufacturer Website Address :
