Description
3-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads

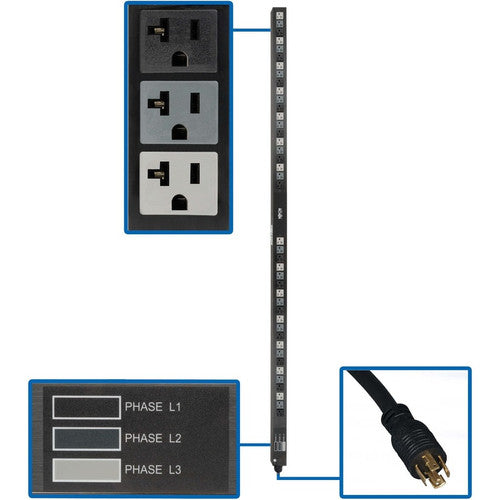

This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for small to mid-sized data centers, computer rooms and network closets, the PDU3V6L2120LV features 42 NEMA 5-15/20R outlets in three single-phase output load banks for connecting equipment. A six-foot (1.8-meter) cord with NEMA L21-20P 3-phase input plug connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.
Easy to Install Vertically in an EIA-Standard 19 in. Rack

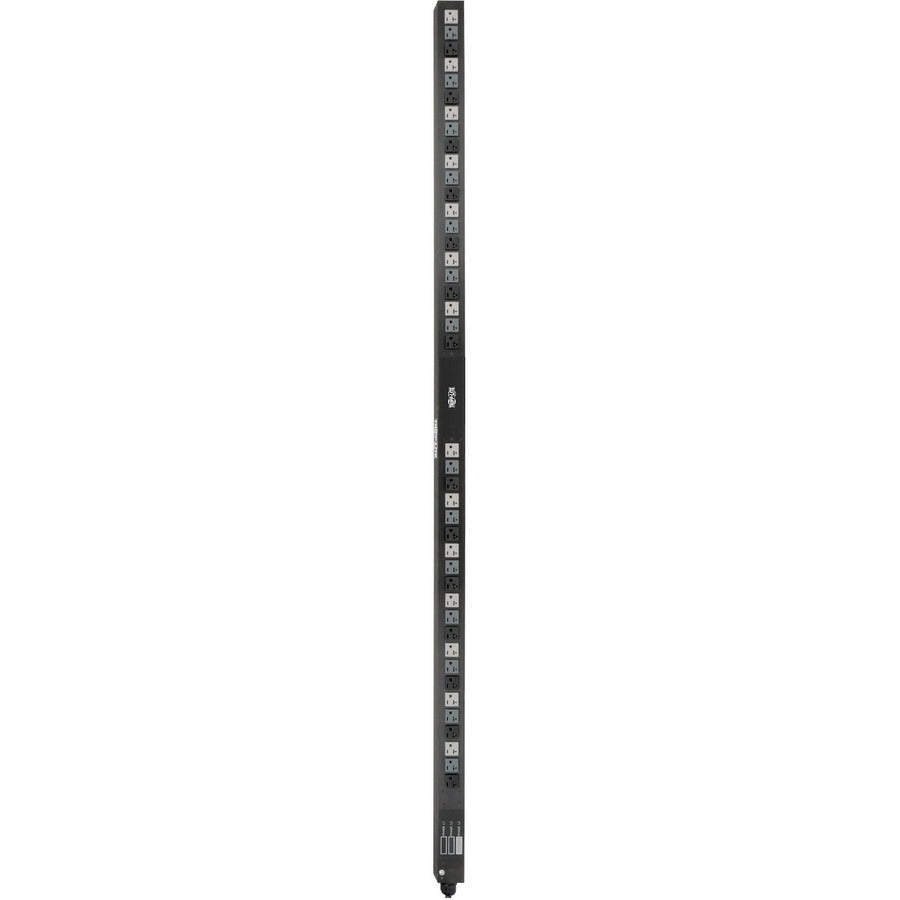

The 70-inch 0U PDU's all-metal housing mounts vertically using the pre-installed toolless mounting buttons or the included brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the PDU with outlets facing the rear for better airflow or equipment access. Cable retention brackets keep power cords organized and your rack free of clutter. The PDU's switchless design helps prevent an accidental shutdown, which could lead to costly downtime.
TAA-Compliant for GSA Schedule Purchases
The PDU3V6L2120LV is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
- Electric power fitted to racks of computers and networking equipment within a data center
- Basic PDU is the space-saving and cost-effective way to deliver power

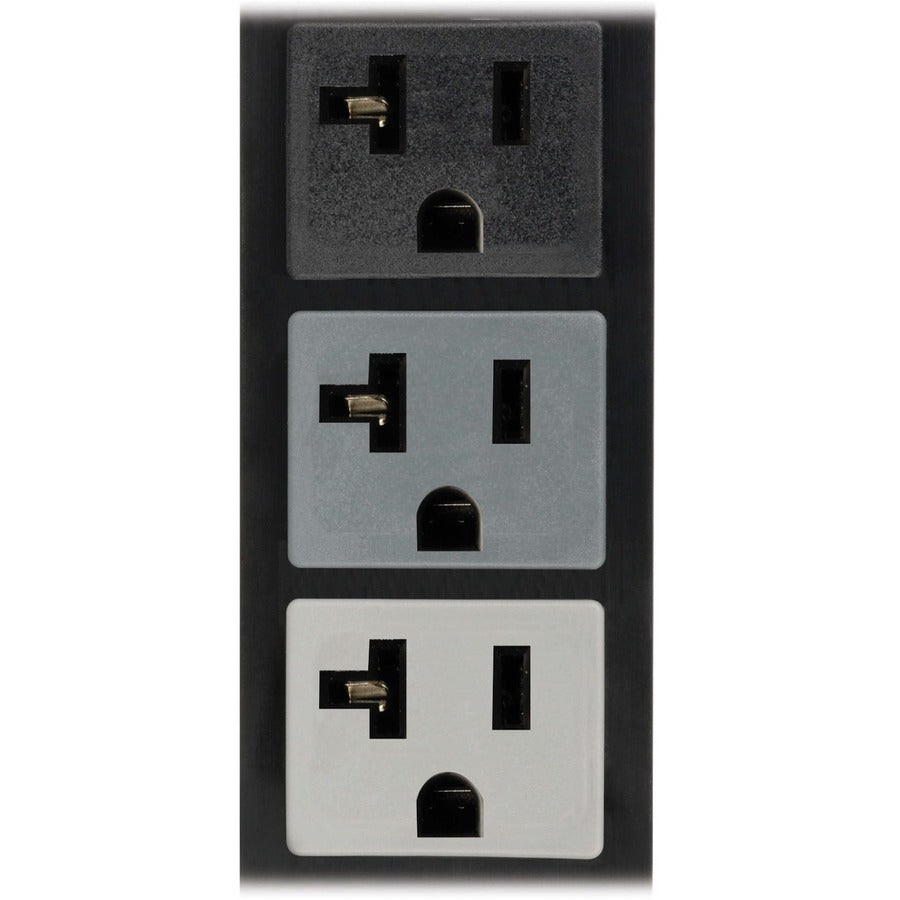

- Receptacle Type : NEMA 5-15/20R
- Receptacle Detail : 42 x NEMA 5-15/20R
- TAA Compliant : Yes

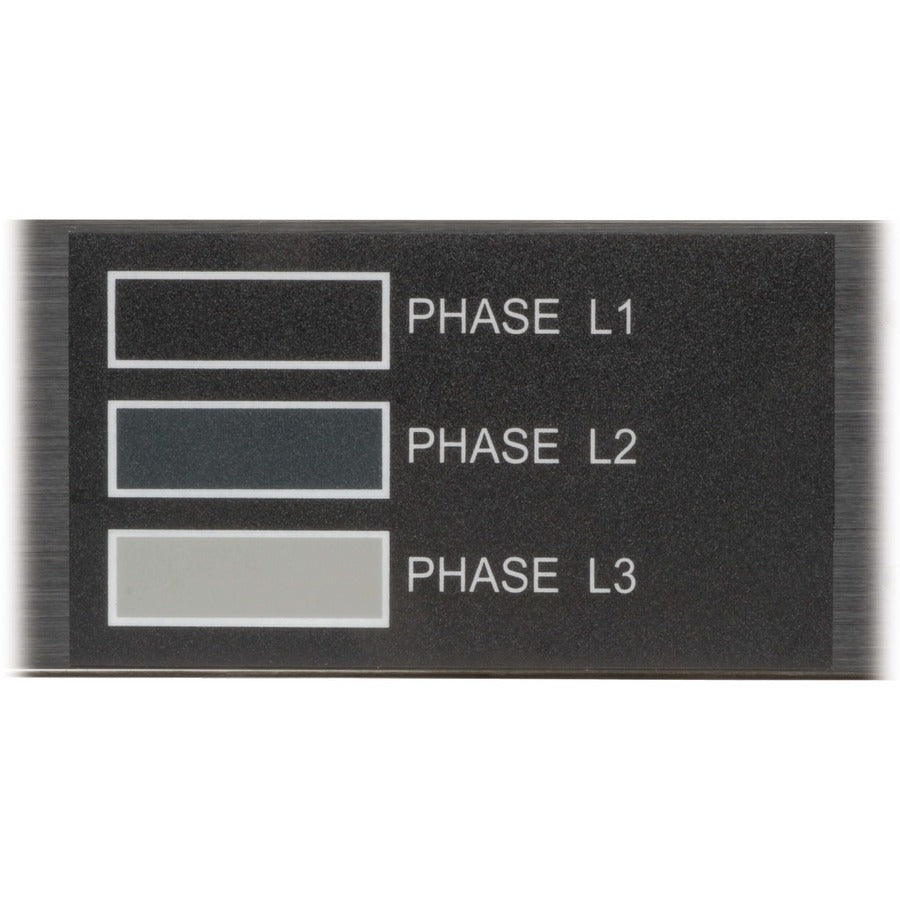

- Phase : Three Phase
- Environmentally Friendly : Yes
- PDU Type : Basic
- Power Rating (Watt) : 5.70 kW
- Locking Receptacles : Cord Retention Bracket
- Input Voltage : 230 V AC
- Limited Warranty : 2 Year

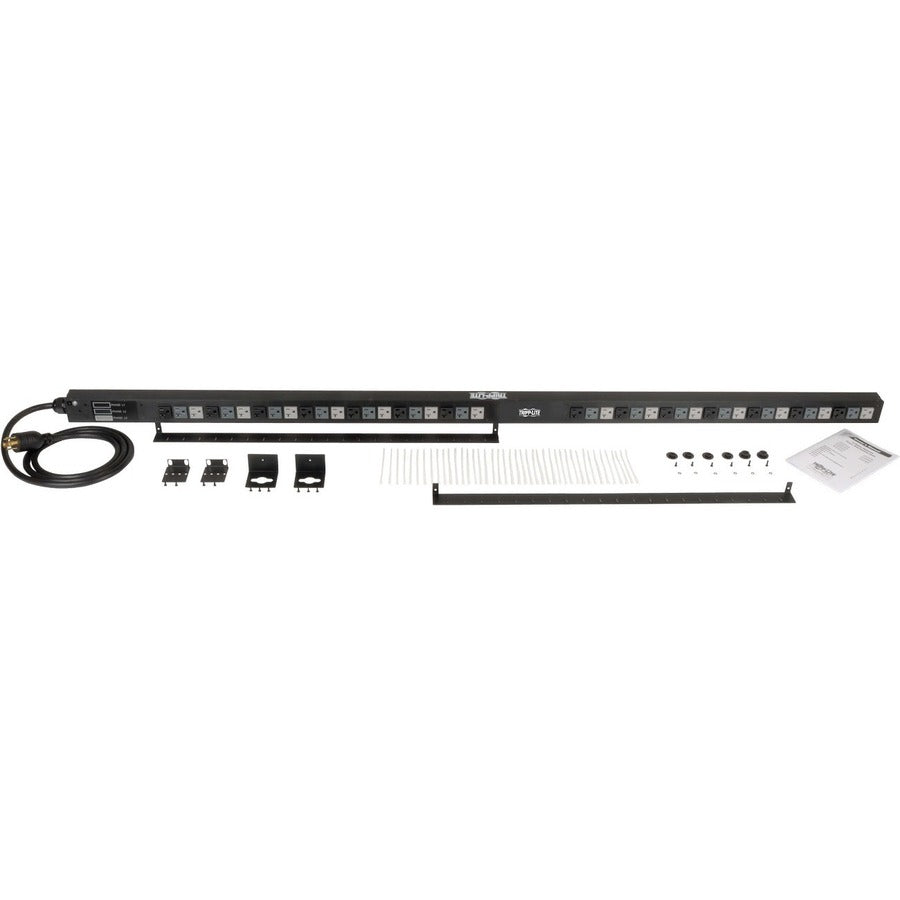

- Package Contents :
- PDU3V6L2120LV 42-Outlets PDU
- Cable Retention Brackets With Installation Hardware
- Rack-mounting Hardware
- Owner's Manual

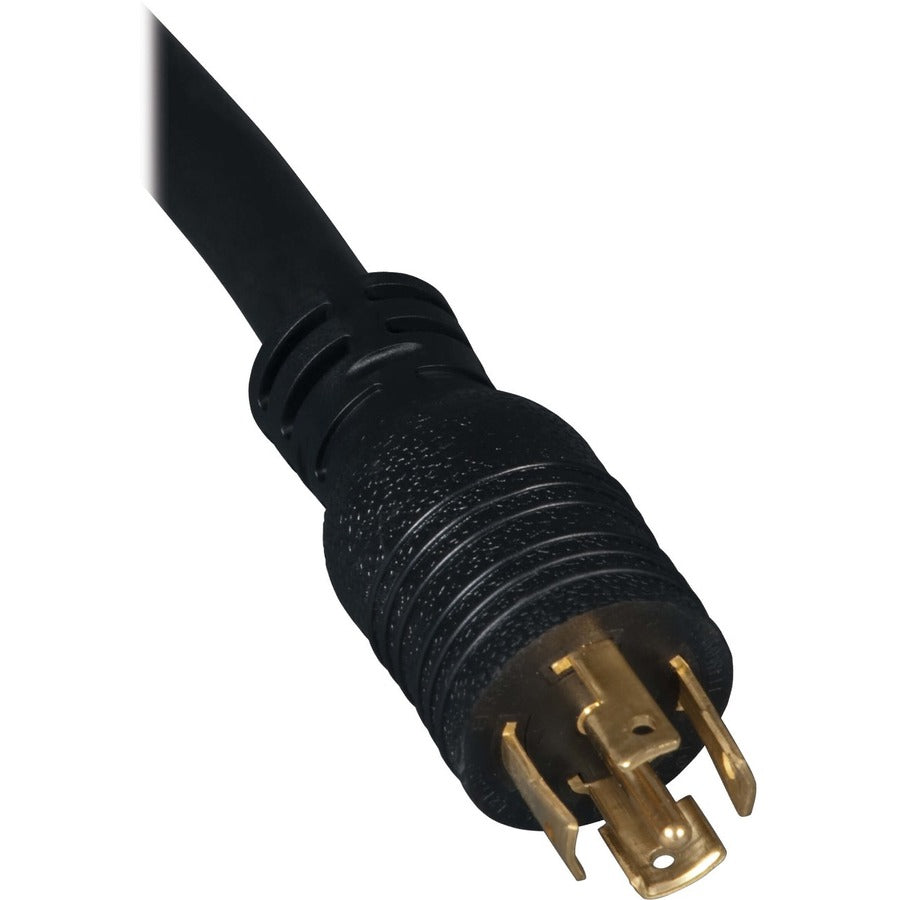

- Plug/Connector Type : NEMA L21-20P
- Product Type : PDU
- Mount Type : Rack-mountable
- Protection Type : Accidental Power Shutdown,Overload Protection,Circuit Protection
- Manufacturer : Tripp Lite by Eaton
- Product Model : PDU3V6L2120LV
- Output Voltage : 120 V AC
- Mounting Orientation : Vertical/Toolless
- Input Current : 16 A
- Rack Height : 0U
- Country of Origin : Taiwan
- Manufacturer Website Address : https://tripplite.eaton.com/
