Description

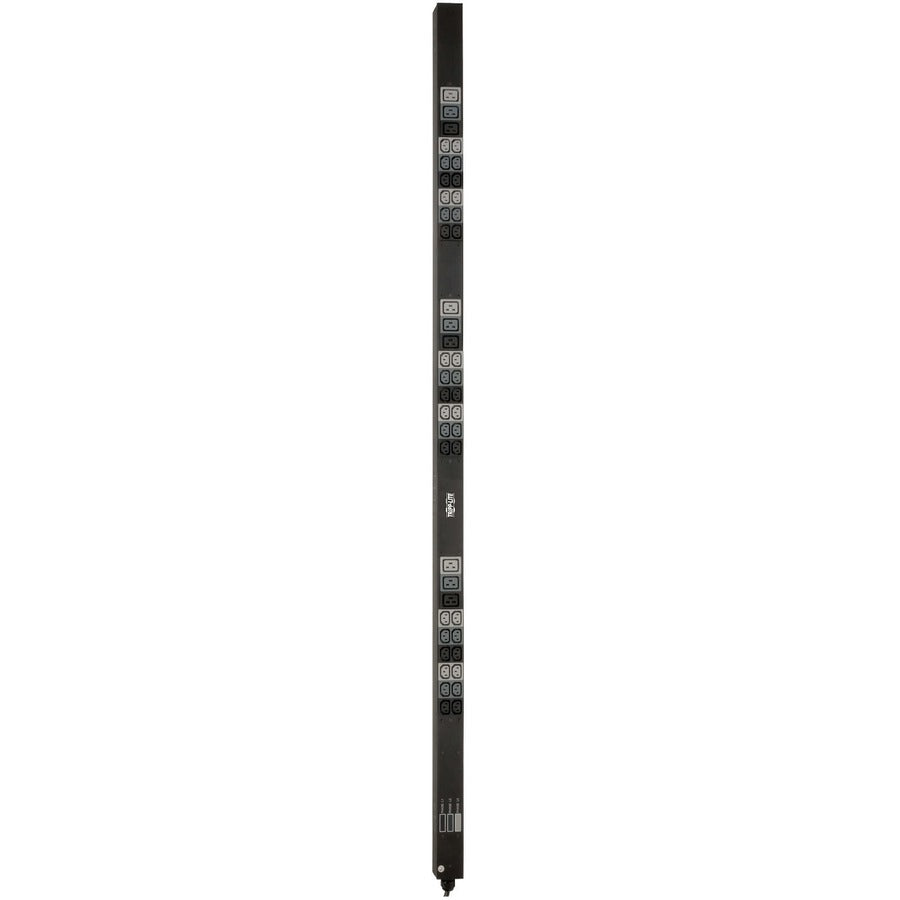

3-Phase 360-415V input / 208V-240V output PDU Distributes Network-Grade Power to Multiple Loads

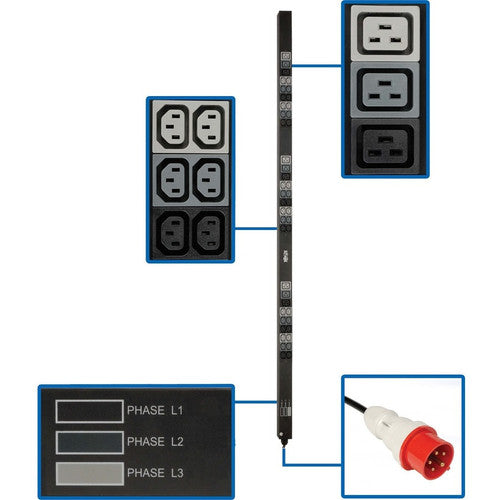

This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for small to mid-sized data centers, computer rooms and network closets, the PDU3XV6G20 features 36 C13 and six C19 (208-240V) outlets in three single-phase output load banks for connecting equipment. A six-foot (1.8-meter) cord with IEC 309 16/20A Red 360-415V (3P+N+E) 3-phase input plug connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.
Easy to Install Vertically in an EIA-Standard 19 in. Rack
The 70-inch 0U PDU's all-metal housing mounts vertically using the pre-installed toolless mounting buttons or the included brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the PDU with outlets facing the rear for better airflow or equipment access. Cable retention brackets keep power cords organized and your rack free of clutter. The PDU's switchless design helps prevent an accidental shutdown, which could lead to costly downtime.
TAA-Compliant for GSA Schedule Purchases
The PDU3XV6G20 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
- PDU is reliable for power protection and management solutions
- Basic PDU deliver power to wiring closets, server rooms & equipment racks in a cost-effective way

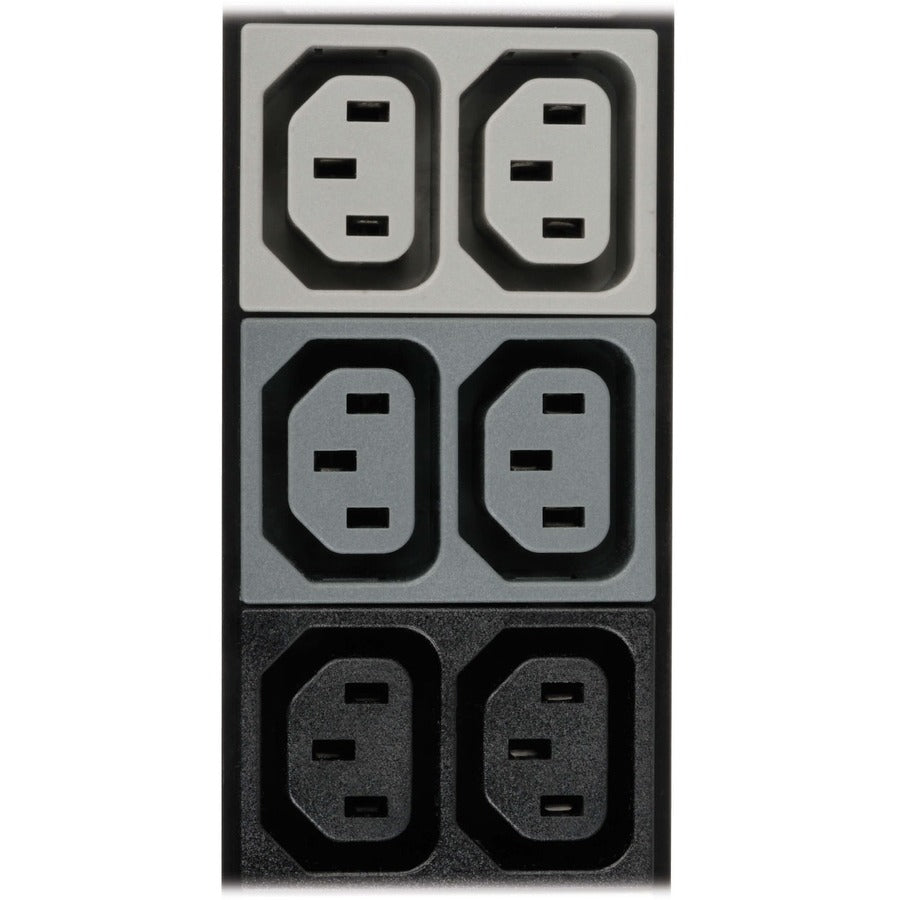

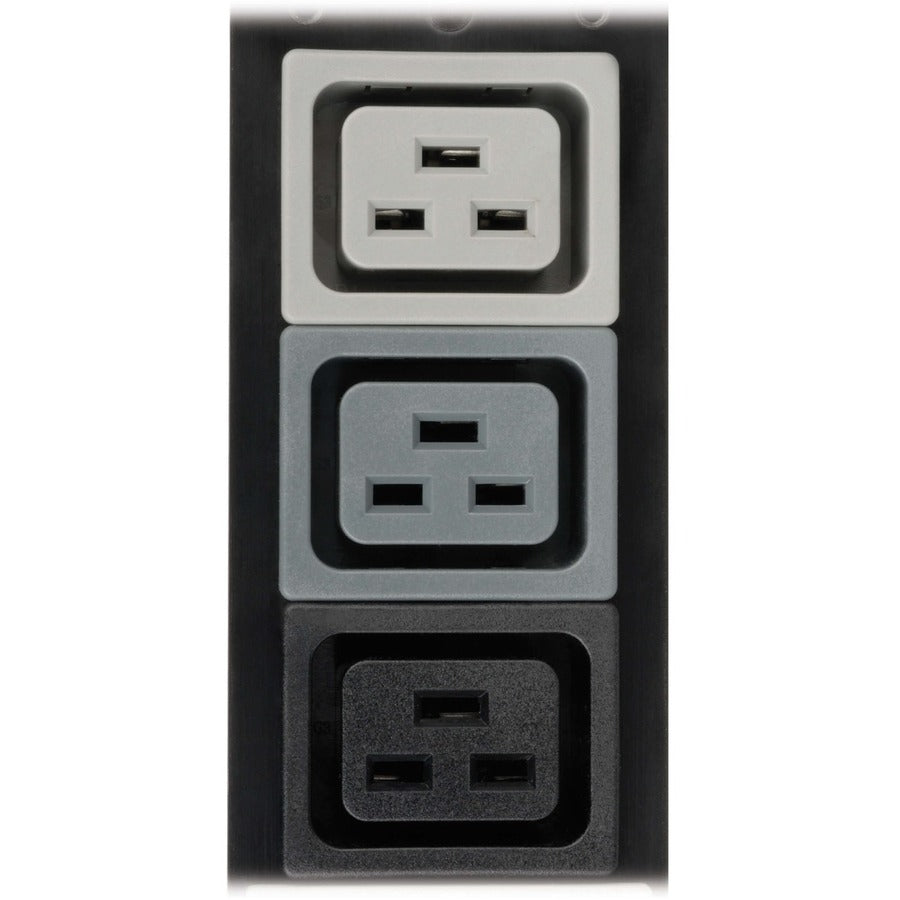

- Receptacle Type : IEC 60320 C13,IEC 60320 C19
- Receptacle Detail : 36 x IEC 60320 C13,9 x IEC 60320 C19
- TAA Compliant : Yes

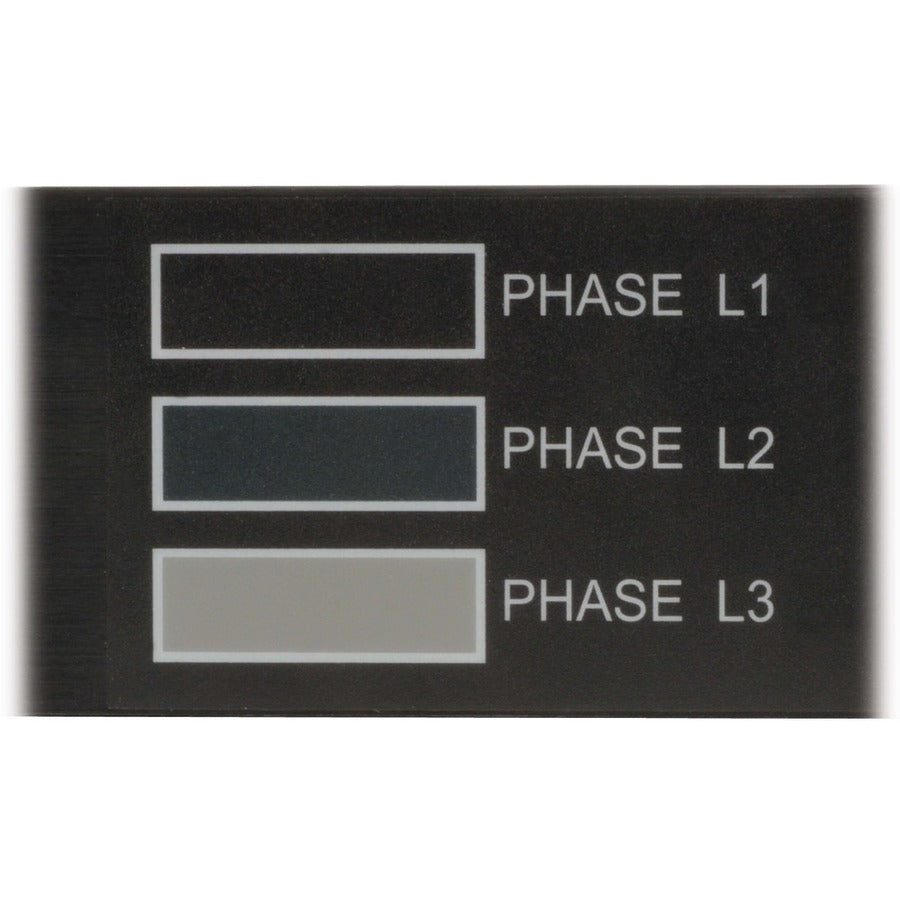

- Phase : Three Phase
- Environmentally Friendly : Yes
- PDU Type : Basic
- Power Rating (Watt) : 11.50 kW
- Locking Receptacles : Cord Retention Bracket
- Limited Warranty : 2 Year

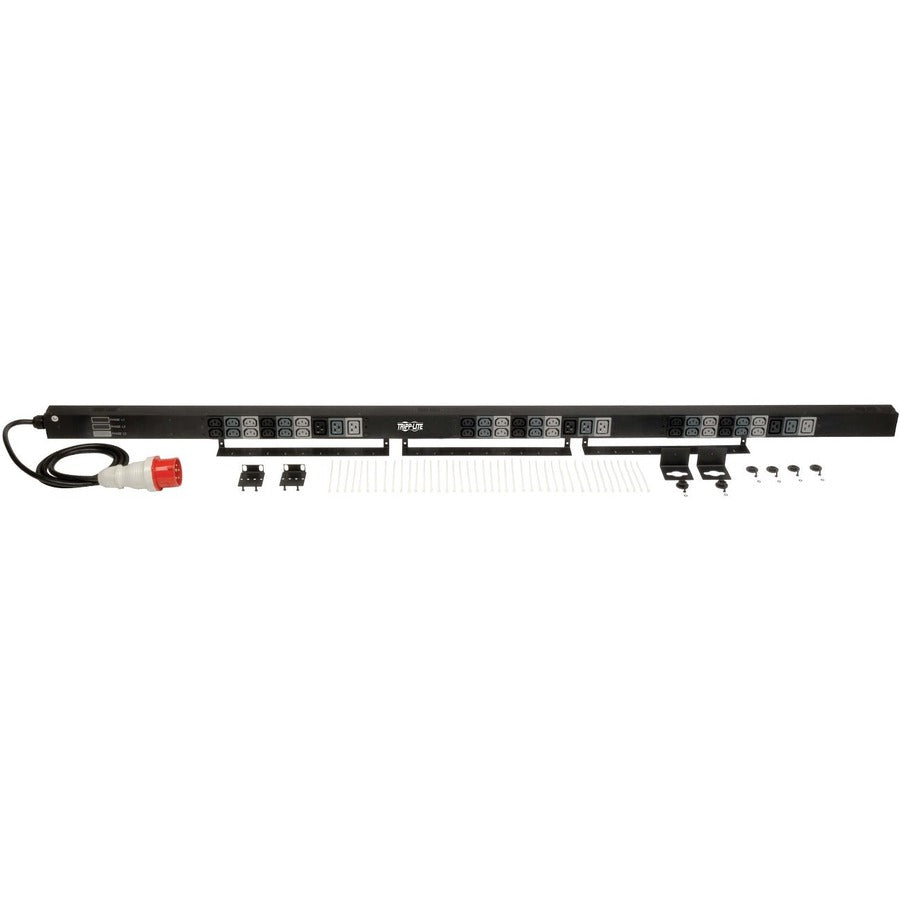

- Package Contents :
- PDU3XV6G20 45-Outlets PDU
- Cable Retention Brackets With Installation Hardware
- Rack-mounting Hardware
- Owner's Manual

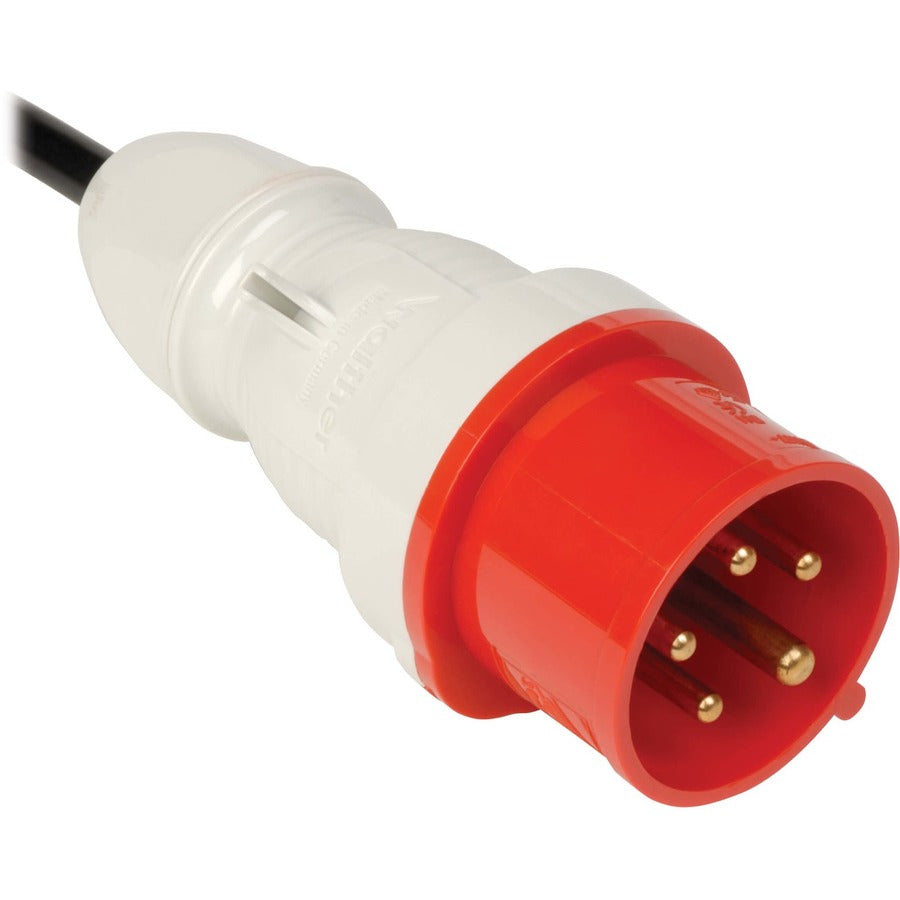

- Plug/Connector Type : IEC 60309 16/20A RED (3P+N+E)
- Product Type : PDU
- Mount Type : Rack-mountable
- Protection Type : Accidental Power Shutdown
- Manufacturer : Tripp Lite by Eaton
- Product Model : PDU3XV6G20
- Input Voltage Range : 360 V AC - 415 V AC
- Output Voltage : 208 V AC,220 V AC,230 V AC,240 V AC
- Mounting Orientation : Vertical/Toolless
- Input Current : 16 A
- Rack Height : 0U
- Country of Origin : Taiwan
- Manufacturer Website Address : https://tripplite.eaton.com/
