Description
Tripp Lite 3 phase Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption per-phase or per-receptacle. PowerAlert interface supports remote control and custom notification of user-specified conditions via email, secure web, SNMP, Telnet or SSH interface. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps per-phase can be displayed locally via visual meter or remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip. Highly accurate current metering offers +/-1% billing-grade current monitoring and recording ability for each output phase.
- TAA Compliant

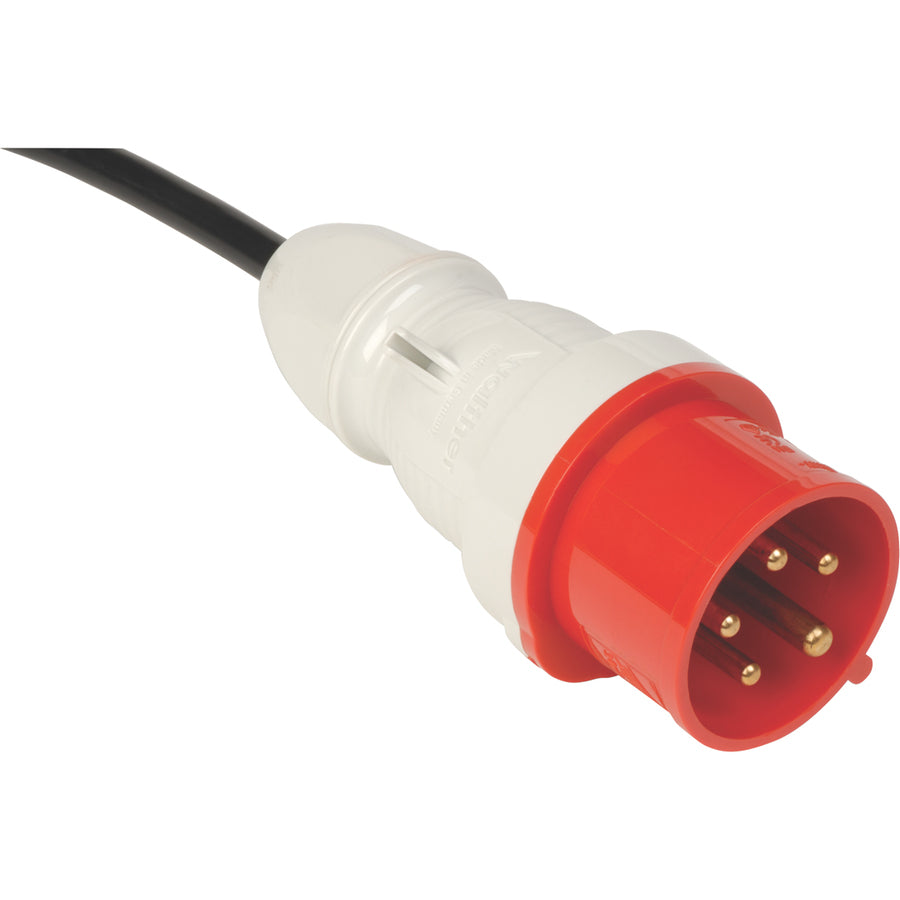

- IEC309 16/20A Red (3P+N+E) 3 phase input; 6 ft. / 1.8m line cord

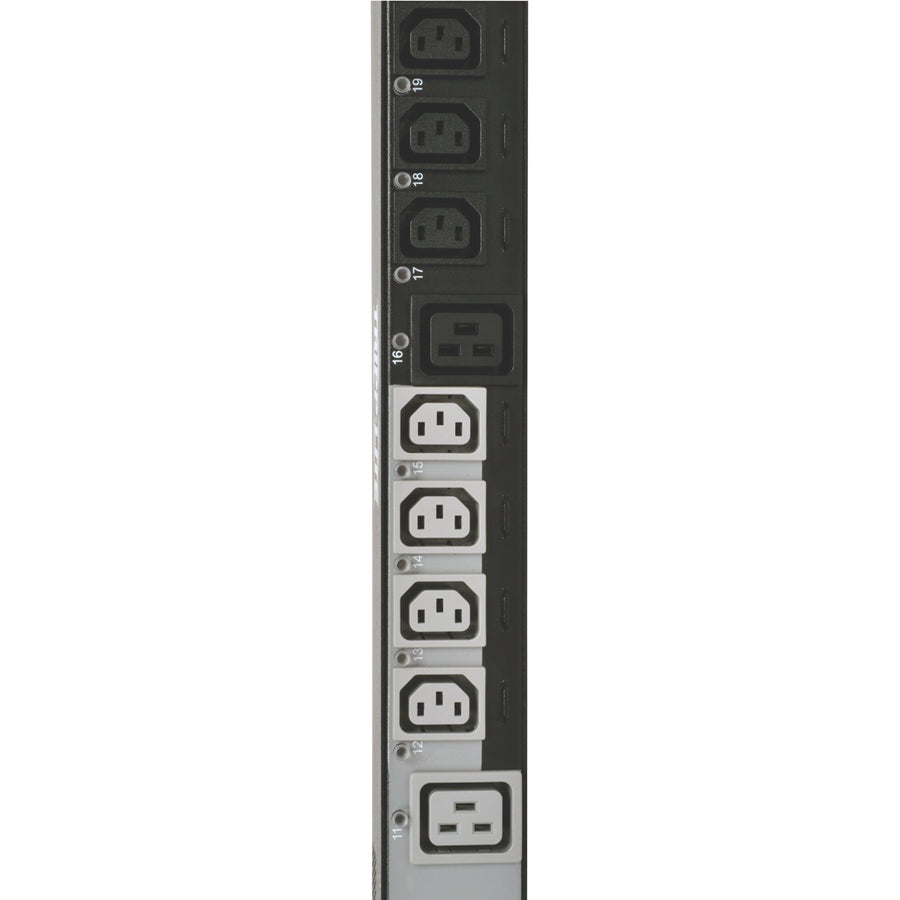

- 24 C13 & 6 C19 single phase outlets; Plug-lock cable retention inserts keep power cables secure
- 70in / 1778mm 0U vertical format; Toolless button-mount installation

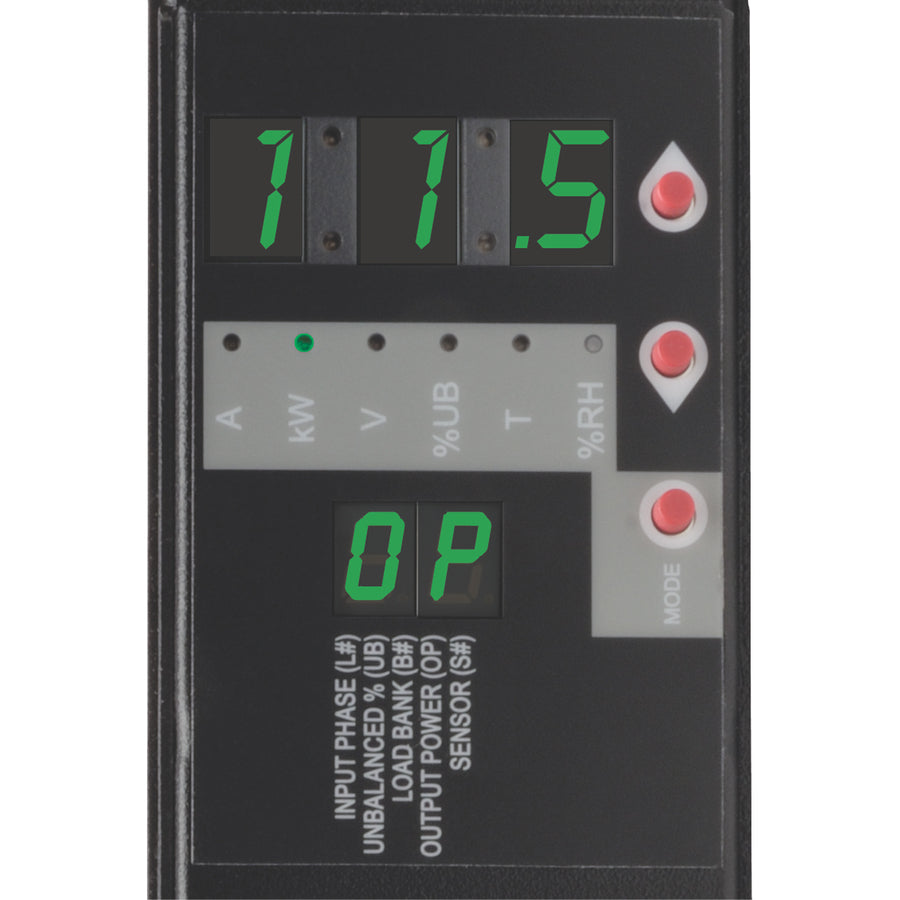

- 1% billing-grade accuracy; Digital display reports detailed status information

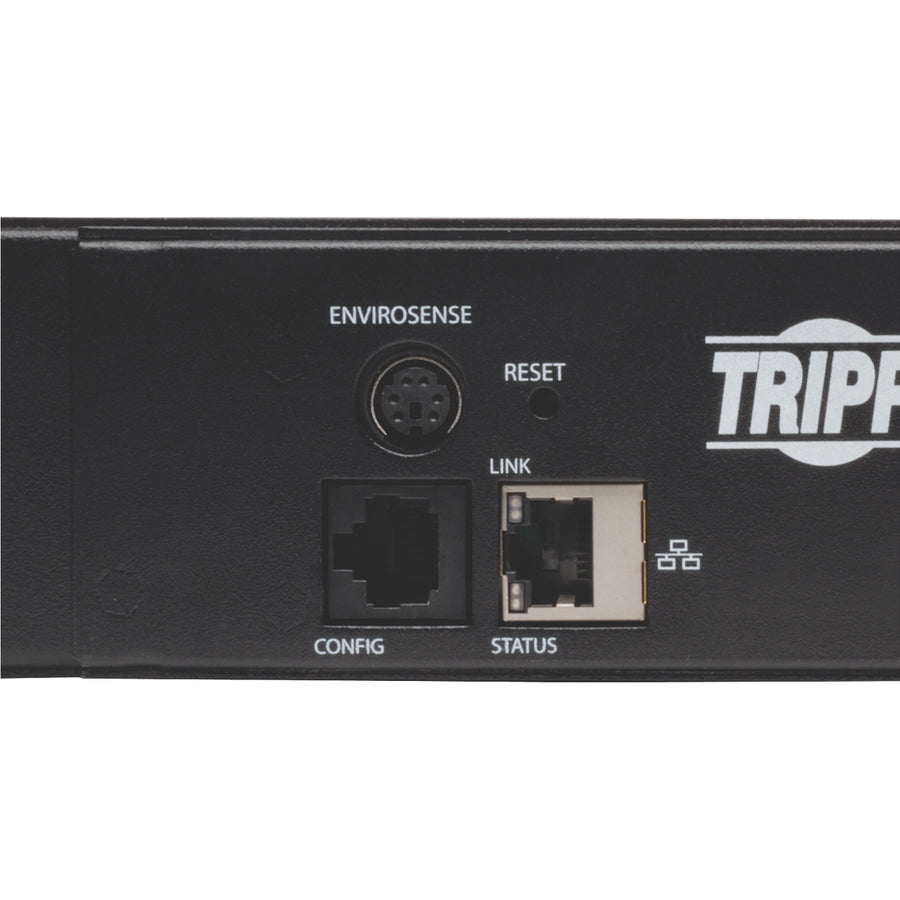

- Reports voltage & load per-phase via ethernet interface
- Switched 11.5kW 3-Phase 360/380/400/415V input 200/220/230/240V output PDU
- Receptacle Type : IEC 60320 C13,IEC 60320 C19
- Receptacle Detail : 24 x IEC 60320 C13,6 x IEC 60320 C19
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Power Rating (Watt) : 11.50 kW
- Management :
- HTTP
- HTTPS
- PowerAlert Network Management System
- SMTP
- SNMPv1
- SNMPv2
- Telnet
- SSH
- FTPP
- DHCP
- BootP
- NTP Protocols
- Limited Warranty : 2 Year
- Package Contents :
- PDU3XVS6G20 30-Outlets PDU
- 24 C13/C14 and 6 C19/C20 Plug-Lock Cable Retention Inserts
- Spare Installation Buttons (2 9mm / 4 6mm)
- Mounting Brackets
- Configuration Cable
- Owner's Manual
- Network (RJ-45) : Yes
- Plug/Connector Type : IEC 60309 16/20A RED (3P+N+E)
- Product Type : PDU
- Manufacturer : Tripp Lite by Eaton
- Product Model : PDU3XVS6G20
- Input Voltage Range : 380 V AC - 415 V AC
- Output Voltage : 380 V AC,400 V AC,415 V AC
- Mounting Orientation : Vertical
- Input Current : 16 A
- Rack Height : 0U
- Country of Origin : Taiwan
- Manufacturer Website Address : https://tripplite.eaton.com/
- Cord Length : 6 ft
