Description
Single-Phase 20A ATS PDU Distributes and Monitors Network-Grade Power in Real Time
This monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via its built-in network interface. Ideal for network IT applications, small computer rooms and other equipment rack applications, the PDUMNH20HVAT1 features eight C13 and two C19 200-240V outlets for connecting equipment. Dual 12-foot (3.7-meter) power cords with C20 inputs connect to separate primary and secondary mains circuits, backup generators, UPS systems or utility power grids, including out-of-phase sources.
Switches from Primary to Secondary Power Source in Milliseconds
Automatic transfer switching (ATS) allows the PDU to switch to the secondary source within 2-7 milliseconds, should the primary source fail or become unstable, to ensure your connected equipment operates without interruption. An on-board ATS processor constantly evaluates the power quality of both input sources. It prevents switching if the secondary source is unavailable or of lower quality than the primary source.

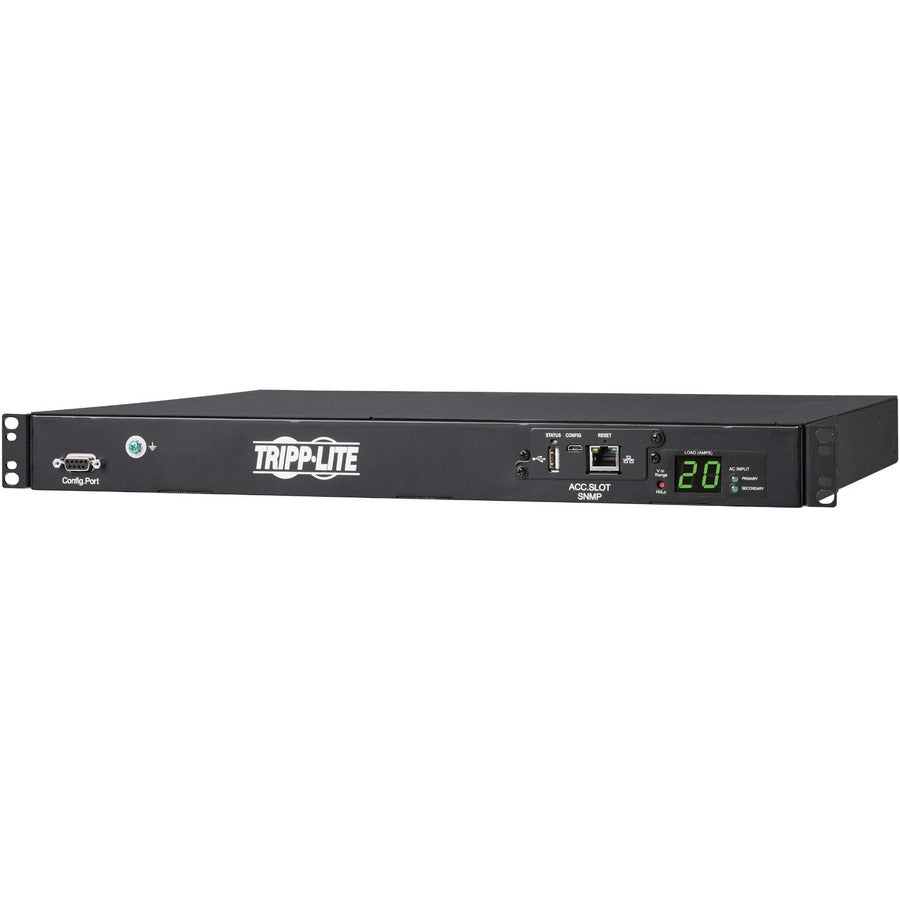

Pre-Installed WEBCARDLX Network Interface Offers 24/7 Remote Access for Monitoring and Control
The HTML5-based WEBCARDLX network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. The latest version of PowerAlert Device Manager (PADM20) provides enhanced remote management capabilities, including customizable dashboard graphs to fit user preferences. The PADM20 upgrade and Tripp Lite's PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations.
Digital Load Meter Helps Prevent Potentially Expensive Overloads
A digital ammeter reports the total load for all connected equipment. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. Maintaining proper load levels, even while adding new equipment, can keep your TCO (total cost of ownership) low.
Mounts into 1U of Rack Space
Use the included mounting hardware to install the all-metal housing into 1U of space in an EIA-standard 19-inch rack.
TAA-Compliant for GSA Schedule Purchases
The PDUMNH20HVAT1 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

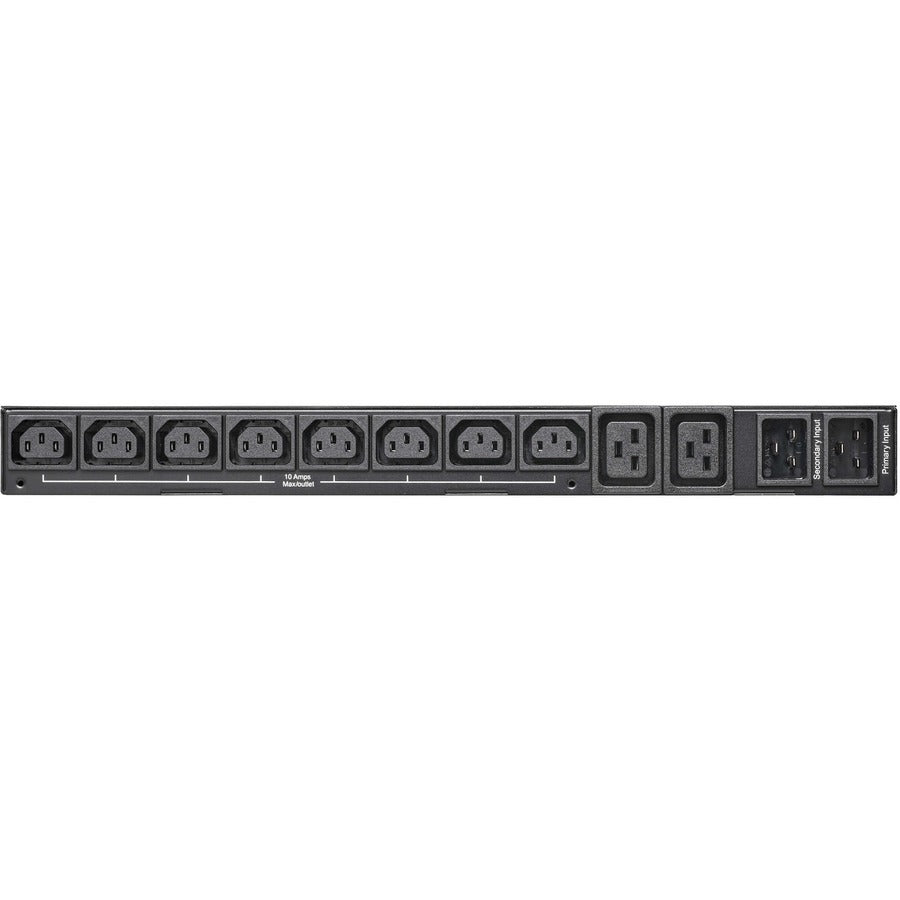

- 8 C13 and 2 C19 200-240V outlets distribute AC power to connected equipment
- Switches from primary to secondary power source in <7 ms for constant operation
- Digital ammeter for on-site real-time load monitoring helps prevent power overloads
- Includes WEBCARDLX with latest version of PADM20 for enhanced remote management
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- 2-year limited warranty
- Receptacle Detail : 8 x IEC 60320 C13,2 x IEC 60320 C19
- Phase : Single Phase
- PDU Type : Auto Transfer Switch
- Plug/Connector Detail : 2 x IEC 60320 C20
- Package Contents :
- PDUMNH20HVAT1 10-Outlets PDU
- 2 x Detachable C19 to C20 input cords, 12 ft. (3.7 m)
- Configuration Cable
- 10 x Plug-Lock Insert Sleeves
- Rack-mounting Hardware
- Owner's Manual
- Mount Type : Rack-mountable
- Manufacturer : Tripp Lite by Eaton
- Product Model : PDUMNH20HVAT1
- Rack Height : 1U
- Receptacle Type : IEC 60320 C13,IEC 60320 C19
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Power Rating (Watt) : 3.80 kW
- Input Voltage : 230 V AC
- Management :
- SNMP
- Telnet
- SSH
- HTML5
- Limited Warranty : 2 Year
- Plug/Connector Type : IEC 60320 C20
- Product Type : PDU
- Protection Type : Circuit Protection,Overload Protection
- Output Voltage : 200 V AC,208 V AC,220 V AC,230 V AC,240 V AC
- Mounting Orientation : Horizontal
- Input Current : 20 A
- Country of Origin : Taiwan
- Manufacturer Website Address : https://tripplite.eaton.com/
