Description

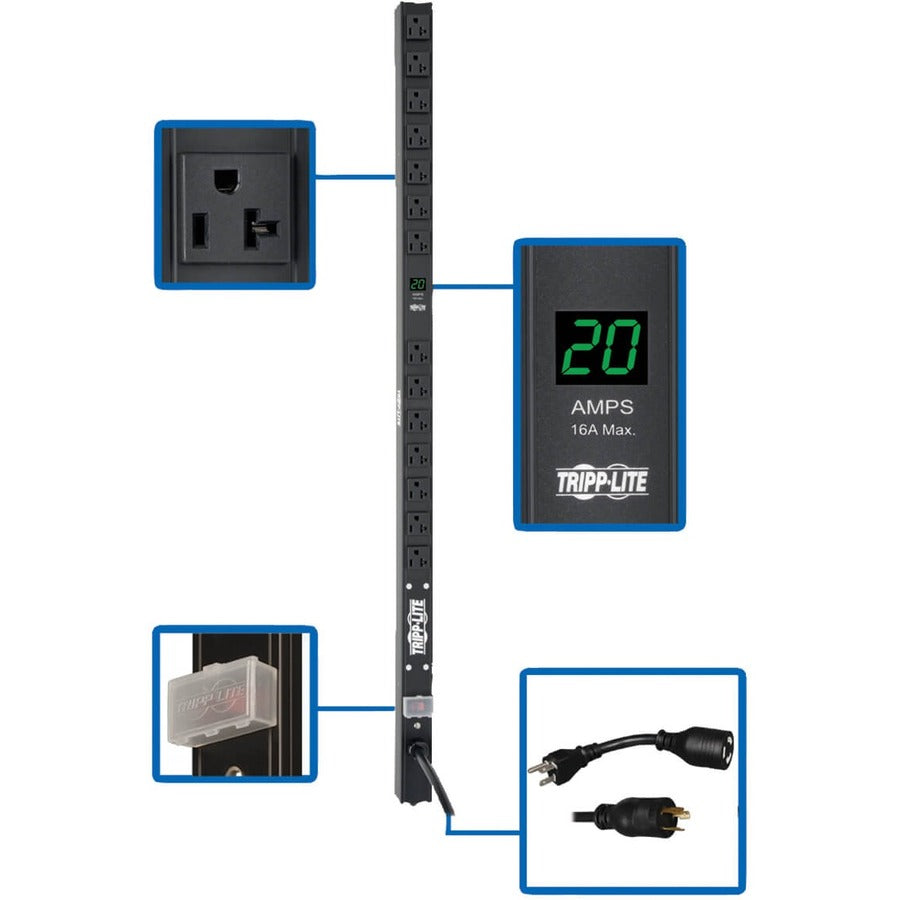

Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- Toolless button mount and bolt-down bracket installation hardware included

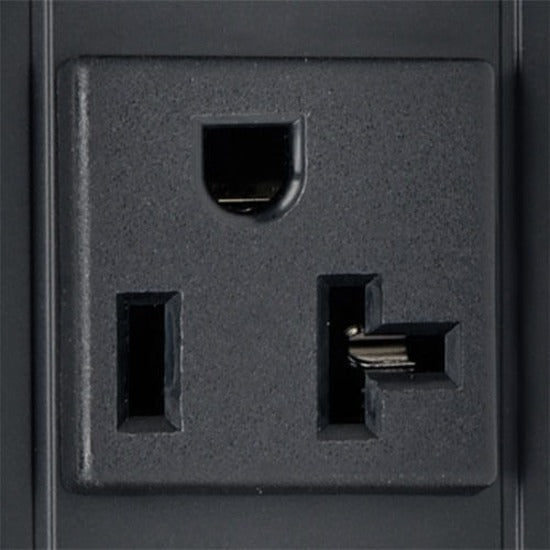

- 14 NEMA 5-15/20R outlets
- Two-digit current meter reports output current in amps
- Attached 15ft / 4.6m cord with NEMA L5-20P plug and 5-20P adapter

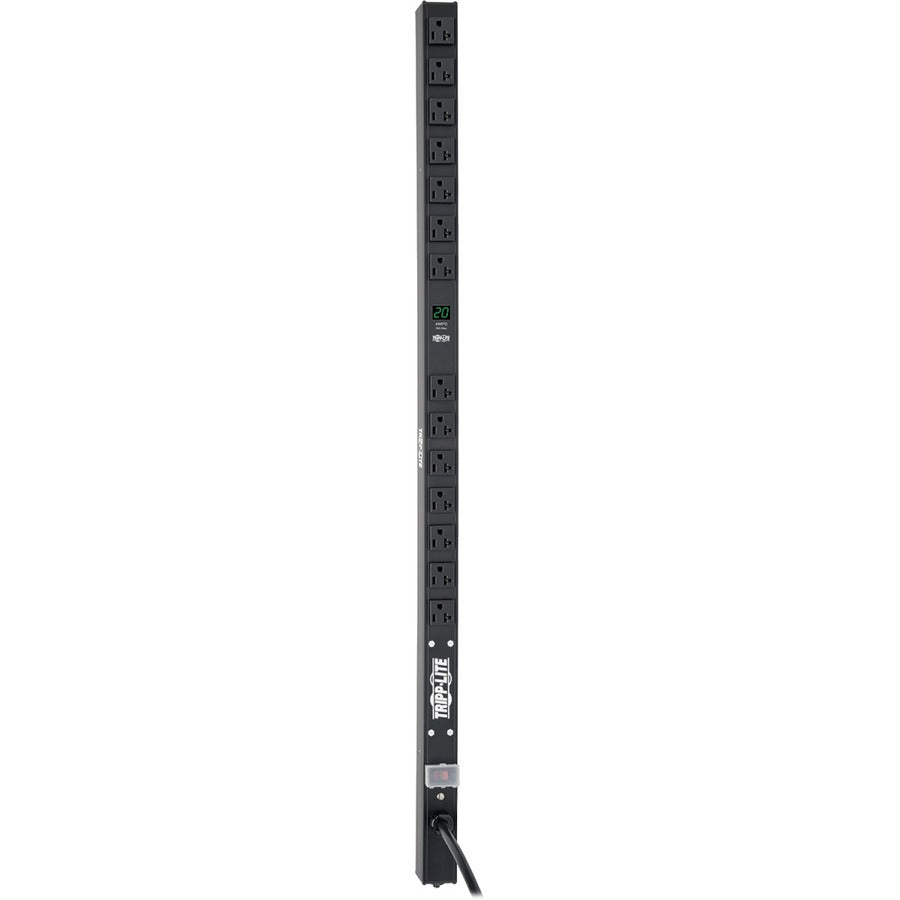

- Metered single phase 120V 20A 0U 36-in. / 91.4cm vertical rackmount PDU
- Receptacle Type : NEMA 5-15/20R
- Receptacle Detail : 14 x NEMA 5-15/20R
- Environmentally Friendly : Yes
- Power Rating (Watt) : 2 kW
- Input Voltage : 120 V AC
- Limited Warranty : 2 Year

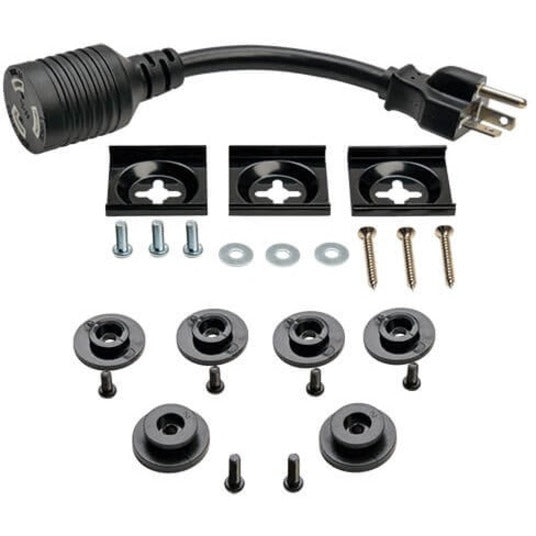

- Package Contents :
- PDUMV20-36 14-Outlets PDU

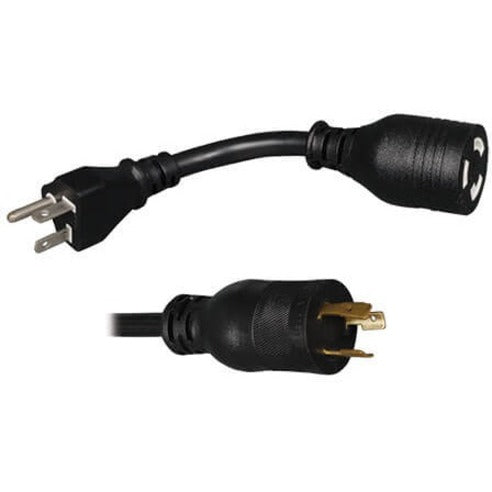

- 1 x L5-20P to 5-20P Plug Adapter
- Mounting Hardware
- Spare Mounting Buttons
- Instruction Manual with Warranty Information
- Plug/Connector Type : NEMA L5-20P
- Product Type : PDU
- Mount Type : Rack-mountable
- Manufacturer : Tripp Lite by Eaton
- Product Model : PDUMV20-36
- Output Voltage : 120 V AC
- Mounting Orientation : Vertical
- Input Current : 20 A
- Rack Height : 0U
- Country of Origin : China
- Manufacturer Website Address : https://tripplite.eaton.com/
