Description

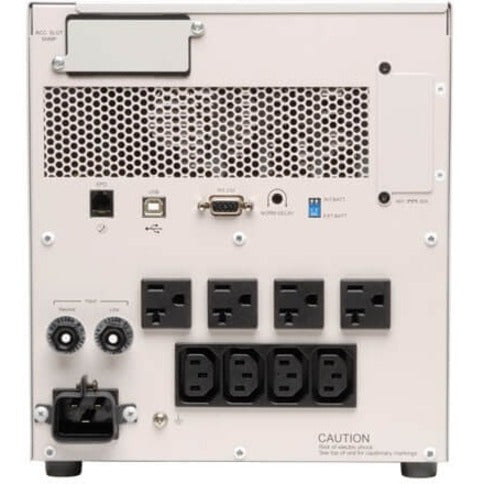

UL 60601-1 compliance is required for UPS systems within patient care areas. Get complete, compliant power protection with Tripp Lite's SMART2500XLHG SmartPro® Medical UPS System. The SMART2500XLHG provides a high load capacity 2200VA/1920W, full UL 60601-1 3rd edition compliance. Protects connected medical equipment against data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges. It features a USB port, input locking clamp, equipotential earth bonding lug, 4 NEMA 5-15/20R outlets, and 4 IEC C13 outlets for universally adaptable outlet options. The SMART2500XLHG offers a complete power protection solution for clinical labs, diagnostic imaging, ophthalmology, medical equipment, imaging and other devices requiring medical grade protection. With built-in Faraday shielding, the SMART2500XLHG provides full line isolation and reduces the cumulative leakage current of connected equipment to less than 100 µA for optimal safety in patient care areas. Full isolation also provides continuous noise filtering and enhanced common mode surge suppression. Featuring advanced line-interactive operation, it provides regulated 120V nominal output without using battery power during brownouts and overvoltages. Large internal batteries support connected equipment during blackouts and optional external battery packs (BP48V24-2U and BP48V60RT-3U) provide extended runtime tailored to your application. The SMART2500XLHG features a USB communication port that works with included PowerAlert software to provide UPS and site power monitoring plus automatic file saves and safe unattended shutdown of connected equipment in the event of a prolonged power failure. Application Usage This UPS contains a lead acid battery designed to be connected continuously to an AC power source, except during brief power outages. It is not intended for frequent charge/discharge cycles, such as mobile cart applications where the UPS is often disconnected from the power source. Using the SMART2500XLHG in this type of application will void the battery warranty
- Built in Isolation transformer, reducing cumulative shock cumulative shock potential to less than 100 microamps
- Battery backup for patient care area
- UL 60601-1 listing 3rd edition
- 2200VA Line interactive, extended run tower UPS
- Receptacle Type : IEC 60320 C13,NEMA 5-15/20R
- Receptacle Detail : 4 x IEC 60320 C13,4 x NEMA 5-15/20R
- Environmental Certification : RoHS
- Environmentally Friendly : Yes
- Input Voltage : 120 V AC
- Transfer Time : 4 ms
- Limited Warranty : 2 Year
- Typical Battery Recharge Time : 4.50 Hour
- Form Factor : Tower
- Package Contents :
- SMART 2500XLHG Medical Grade Tower UPS System
- Poweralert Software CD
- Warranty Information
- Instruction Manual
- USB Cable
- DB9 Cable
- Backup/Run Time (Full Load) : 4.40 Minute
- Plug/Connector Type : IEC 60320 C20
- Product Type : Line-interactive UPS
- Load Capacity : 2.20 kVA/1.92 kW
- Manufacturer : Tripp Lite by Eaton
- Product Model : SMART2500XLHG
- Hot Swappable : Yes
- Output Voltage : 120 V AC
- Backup/Run Time (Half Load) : 13 Minute
- Country of Origin : China
- Product Line : SmartPro
- Software Included : PowerAlert Software
- Serial Port : Yes
- USB : Yes
- Manufacturer Website Address : https://tripplite.eaton.com/
